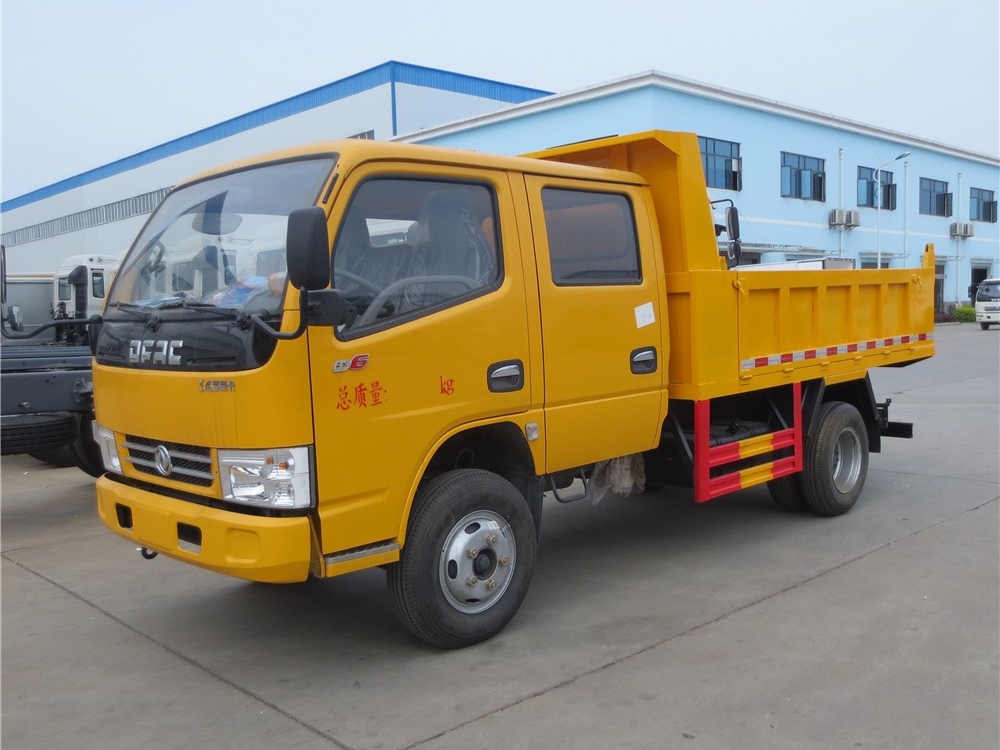

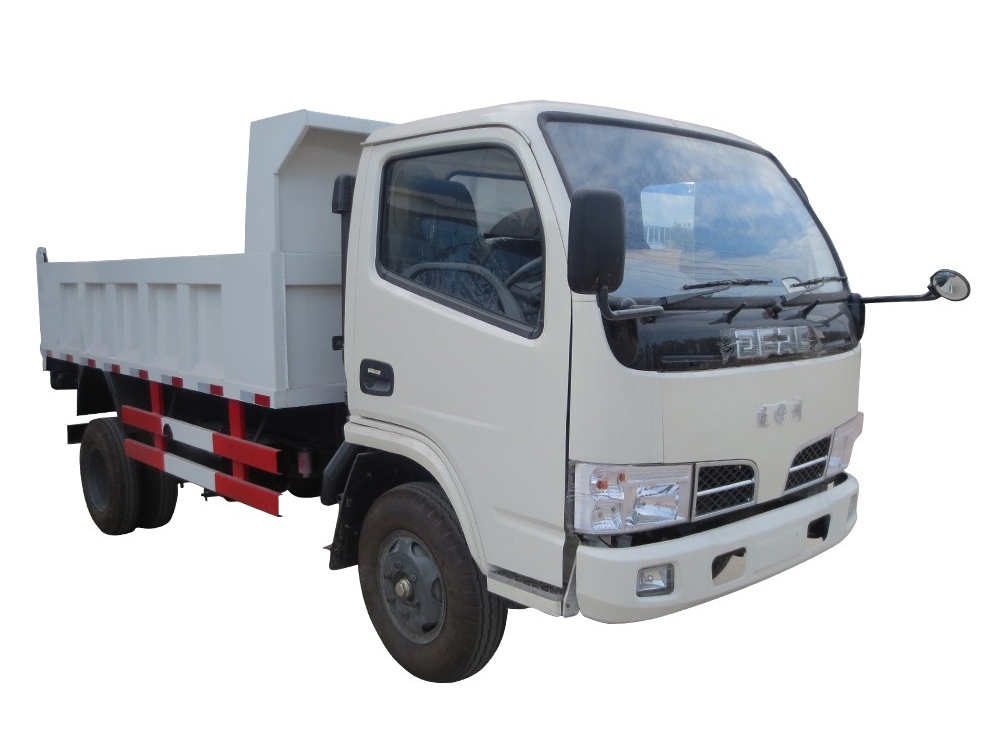

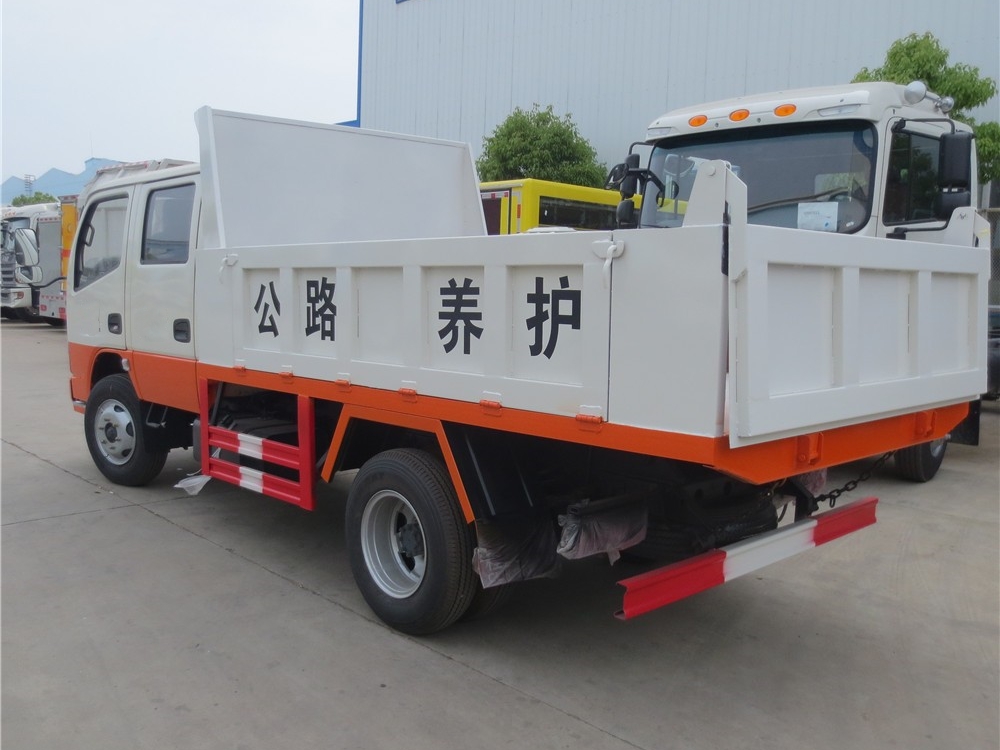

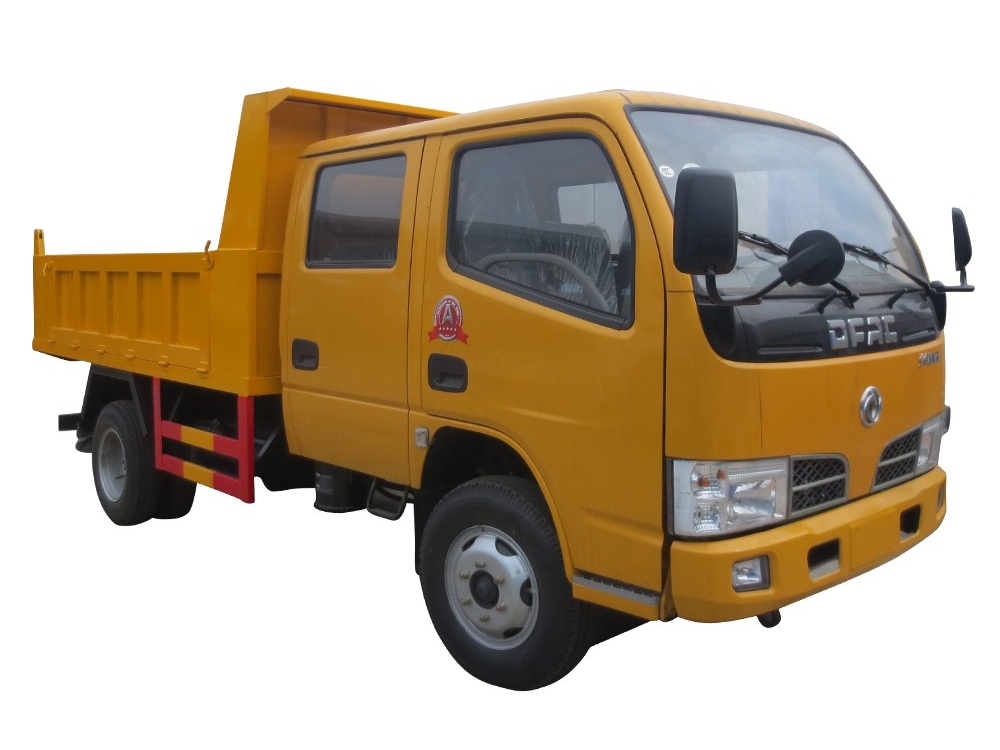

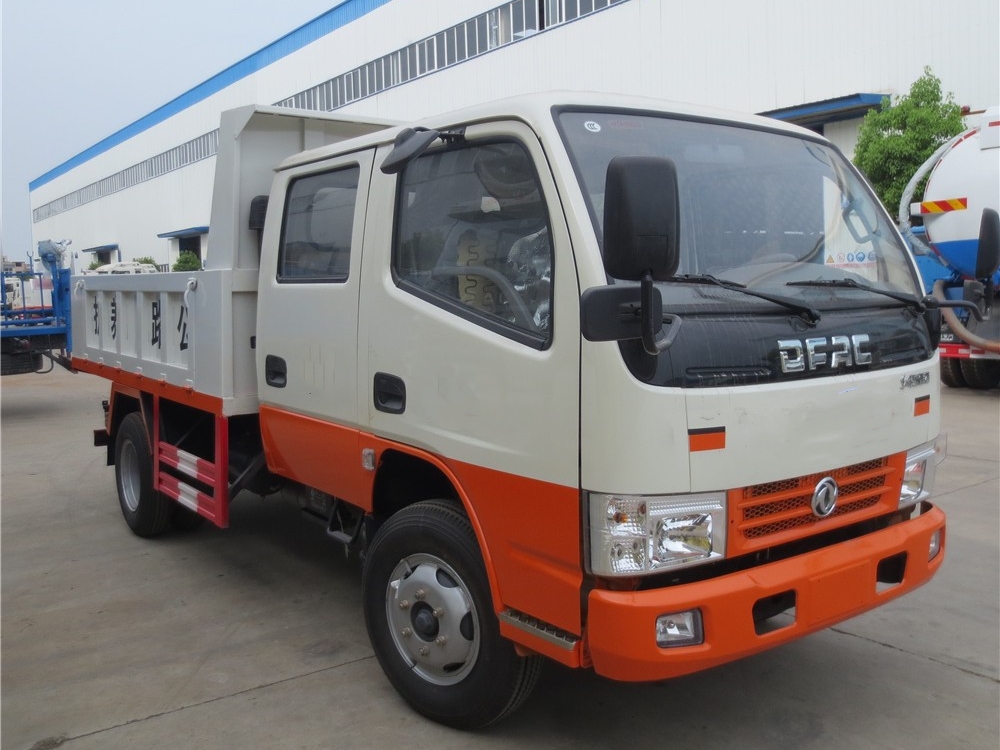

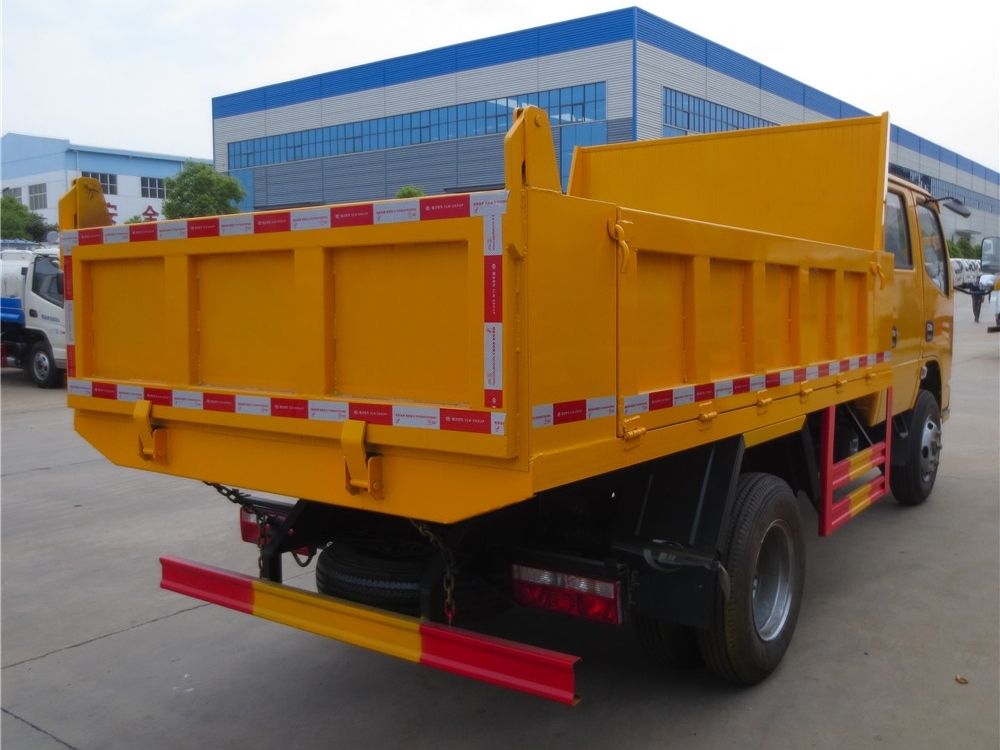

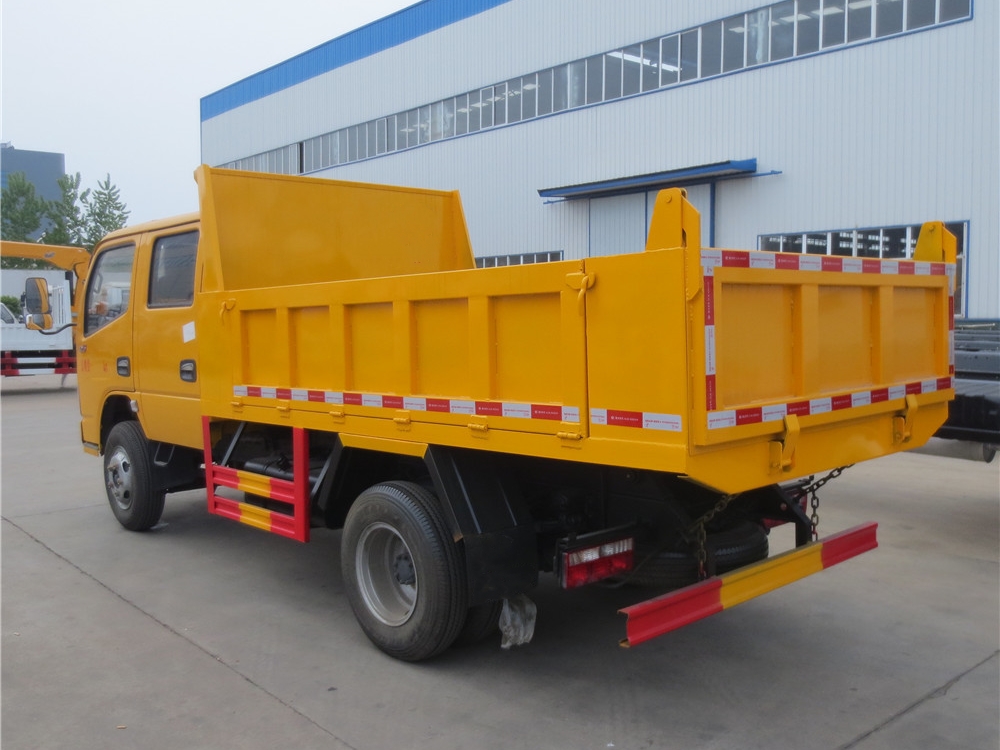

Dongfeng Mini Dumper Truck

Chassis brand Dongfeng

Product origin China, Hubei

Delivery time around 10 working days

Supply capacity 1,500 units one year

Mini dumper truck is mainly used for road maintenance, Dongfeng mini dumper truck is mainly used for loading and transport soil, sand, crushed stone, asphalt mixture,etc.

In the road maintenance process, Dongfeng mini dumper truck can greatly save unloading time and labor, shorten the transportation cycle, improve production efficiency, and reduce transportation costs.

Product Name： Dongfeng Mini Dumper Truck
Driving Type： 4X2
Dump body Volume(cbm)： 3
Rated payload weight(kg)： 3000

Product Features

Dongfeng Mini Dumper Truck

Mini dumper truck is also called mini tipper truck, is mainly used to transport kinds of sand, soil, gravel, asphalt mixture, etc

Product feature

Dongfeng chassis with double row cab

3 ton payload capacity

High strength manganese steel dump box

Factory direct sale

Product parameters

Product Name	Dongfeng Mini Dumper Truck
Driving Type	4X2
Dump body Volume(cbm)	3
Rated payload weight(kg)	3000
Overall Dimension(mm)	5800x2300x2500
Dump body size(mm)	2860x2200x600
Engine brand & model	DONGFENG Chaoyang or Yunnei power
Engine type	4 stroke,water-cooled, straight line 4 cylinders, diesel
Axle Quantity	2
Transmission Type	5 forwards,1 reverse gear, manul
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R10, 6+1 spare
Cab	flat proof, double row, radio, AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 3mm, floor plate 4mm. 2. Middle double hydraulic lifting cylinder
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
