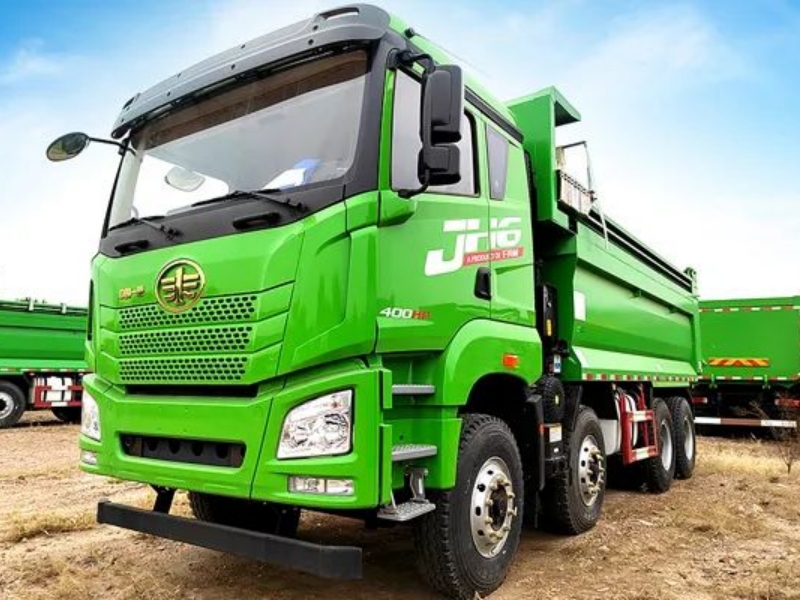

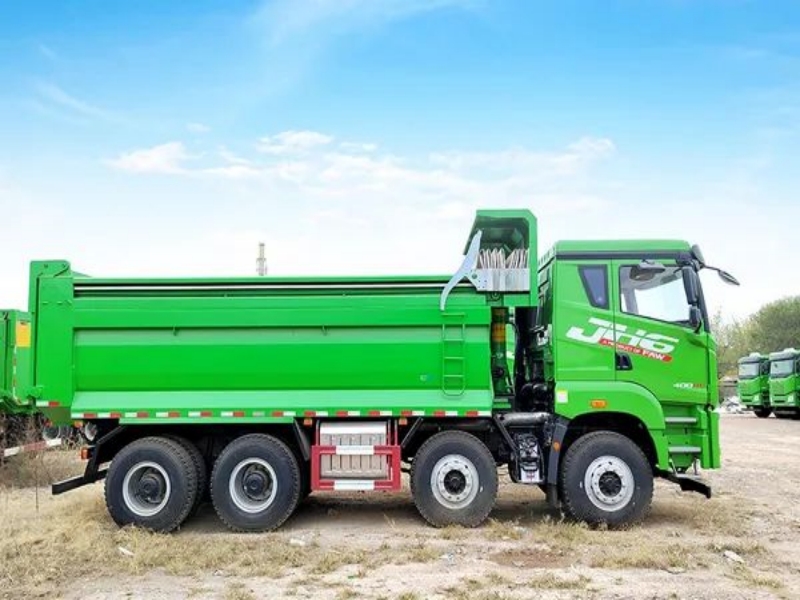

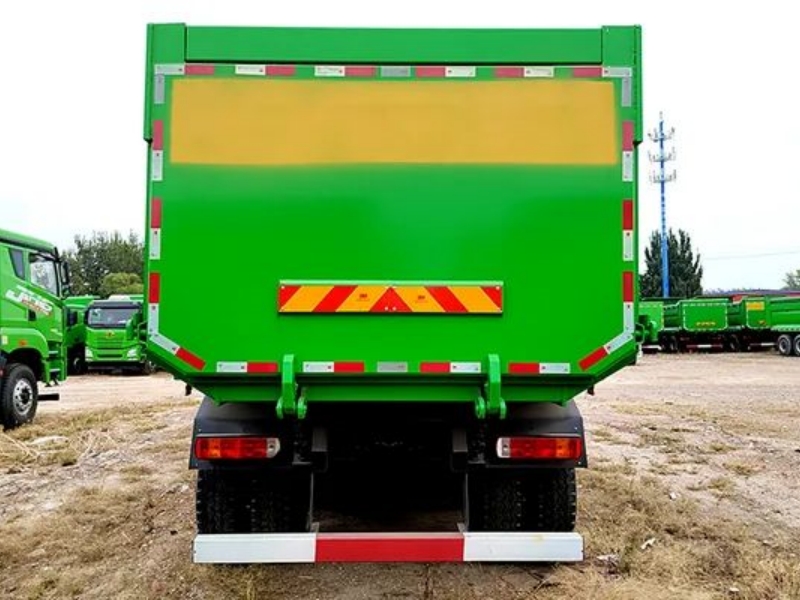

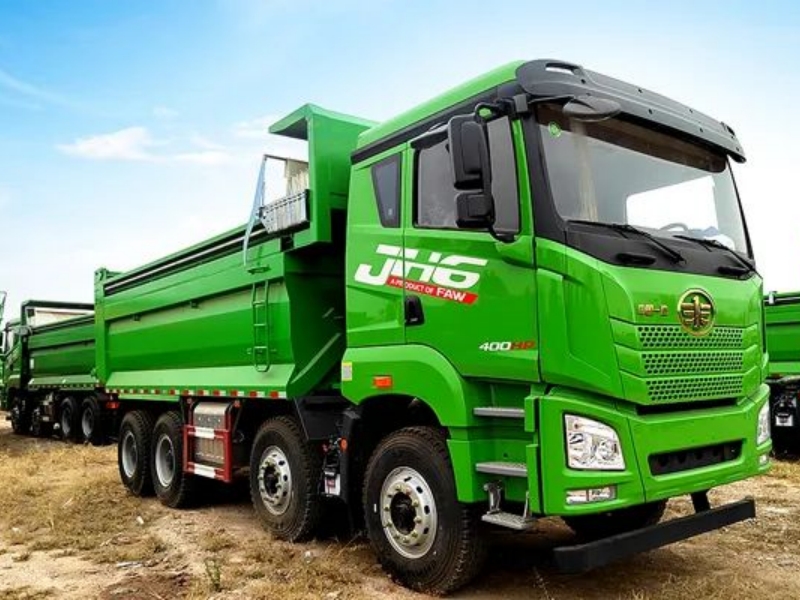

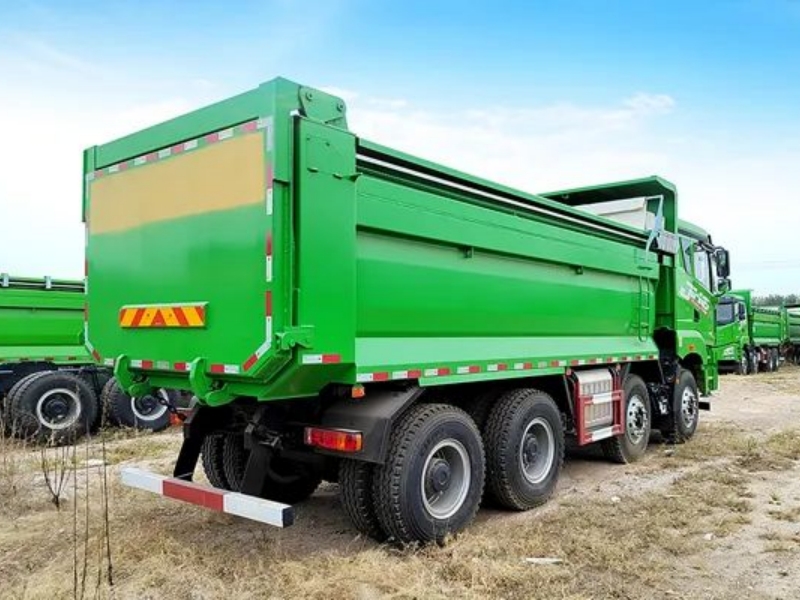

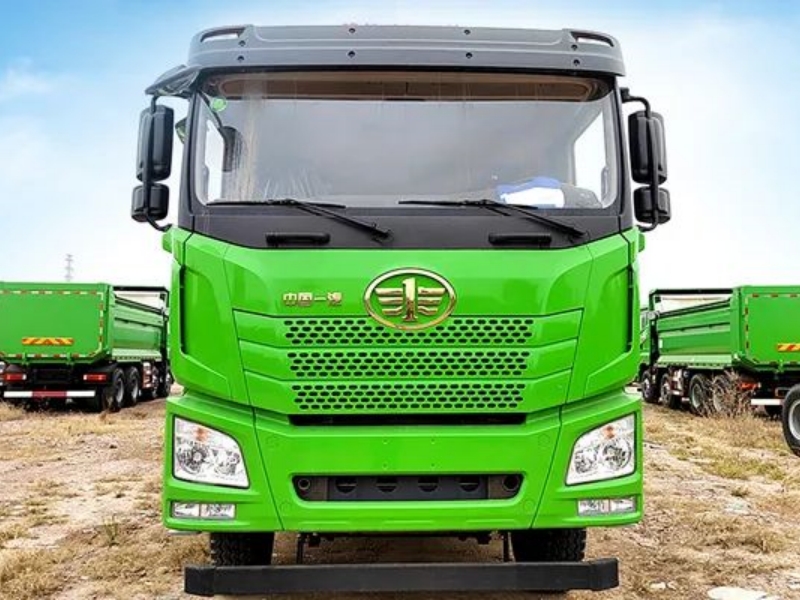

Jiefang JH6 8x4 dumper truck

Chassis configuration:

1. Engine: WP10H400E62, Weichai 400 hp

2.Transmission type: 12-speed gearbox

3.Tyre: 12.00R20 18pr, 12+1 spare

4.Wheelbase: 1900+2500+1350(mm)

5 Other: Air damping seat with sleeping berth
Installation configuration:

Edge plate thickness 5mm, bottom plate thickness 8mm

Product Name： Jiefang JH6 8x4 dumper truck
Driving Type： 8X4
Total weight(kg)： 4495(Kg)
Curb weight(kg)： 31000(Kg)

Product Features

Jiefang JH6 8x4 dumper truck

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.

Product parameters

Product Name	Jiefang JH6 8x4 dumper truck
Driving Type	8X4
Total weight(kg)	4495(Kg)
Curb weight(kg)	31000(Kg)
Rated weight(kg)	15370,15305(Kg)
Wheel base(mm)	1900+2500+1350(mm)
Overall Dimension(mm)	8645,8845,9145,9395,8895,9095,9695×2550×3325,3450,3600(mm)
Cargo box size(mm)	5800x2350x1500mm
Engine brand & model	WP10H400E62, Weichai 400 hp
Displacement(L)/Power(kw)	10L/294KW
Axle Quantity	4
Transmission Type	12-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	12.00R20 18pr, 12+1 spare
Cab	Air damping seat with sleeping berth
Cargo box configuration	Edge plate thickness 5mm, bottom plate thickness 8mm
Cargo box volume	20.44cbm
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
