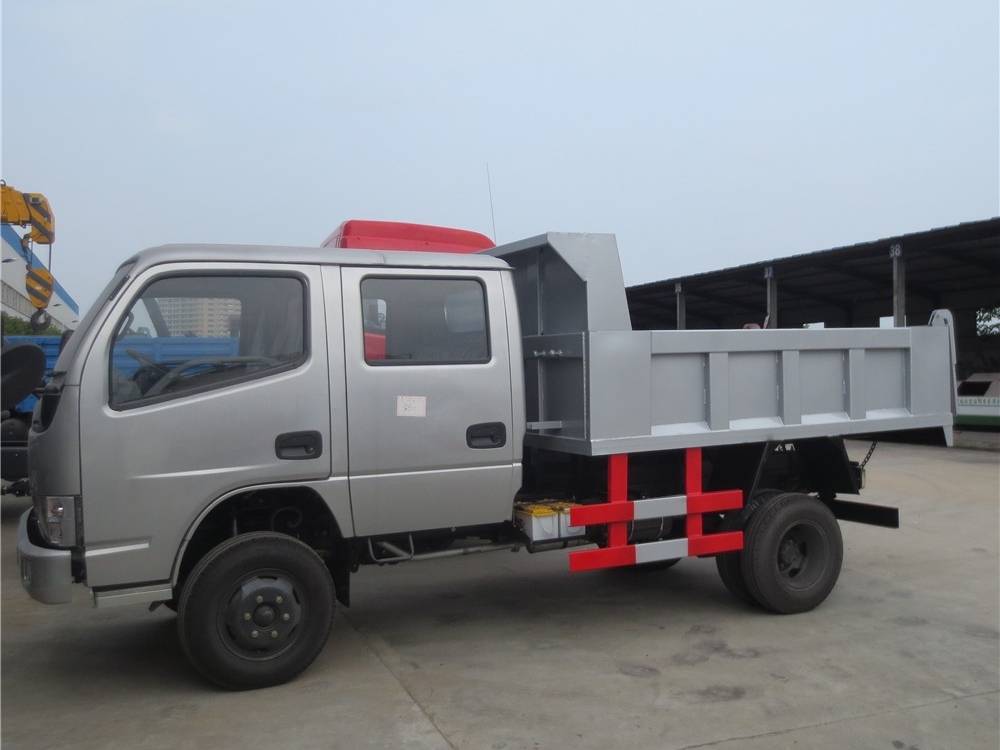

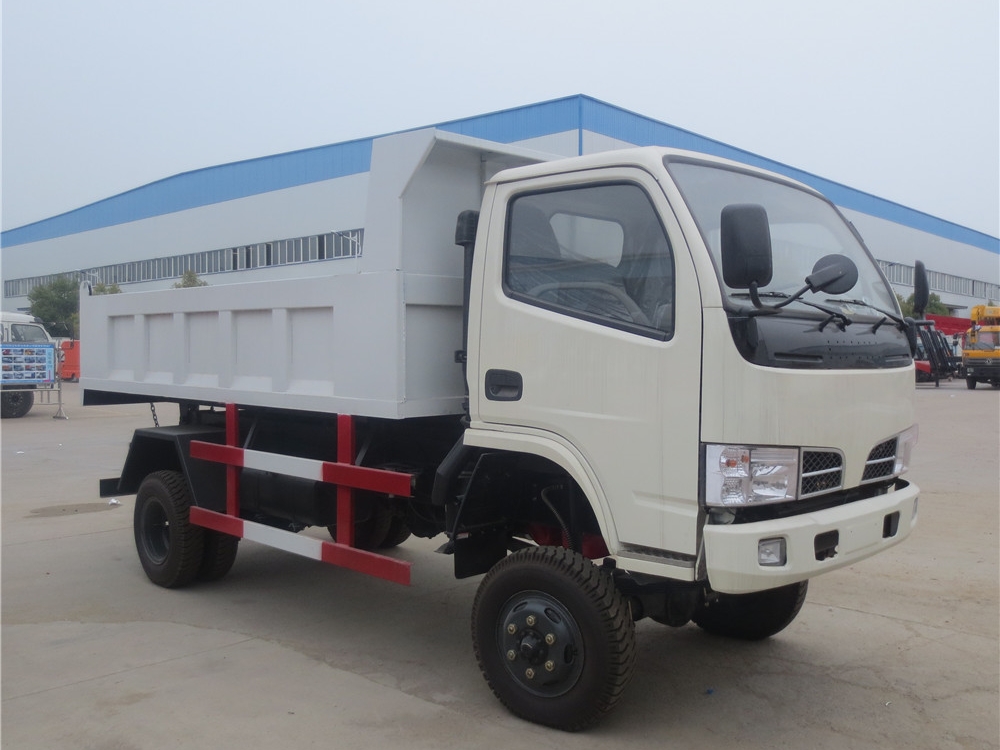

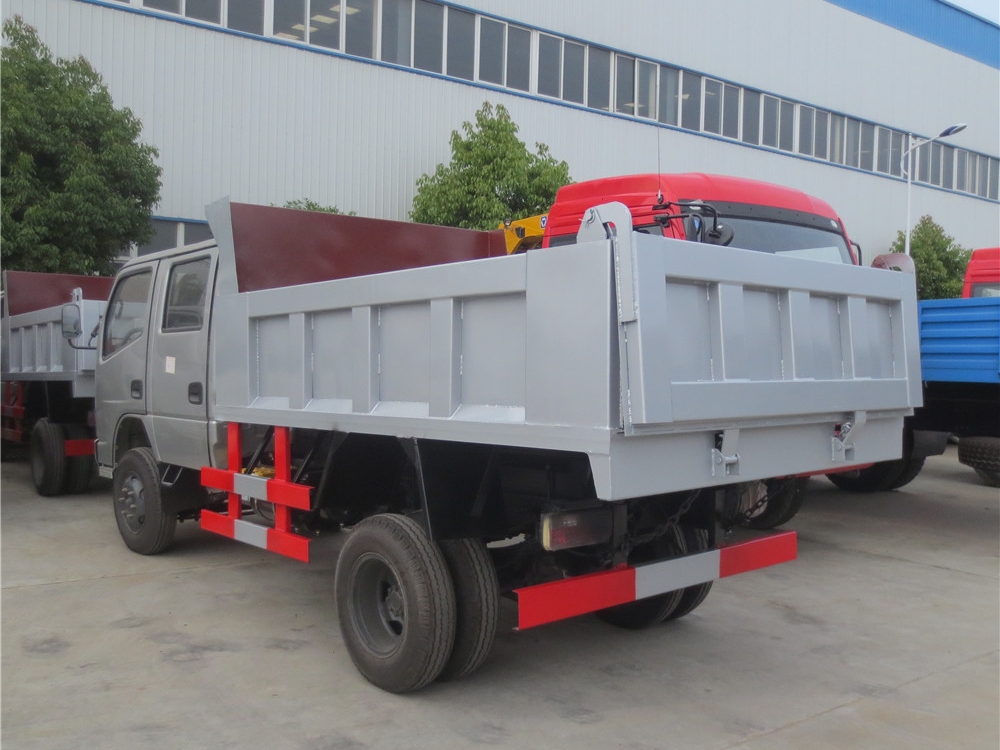

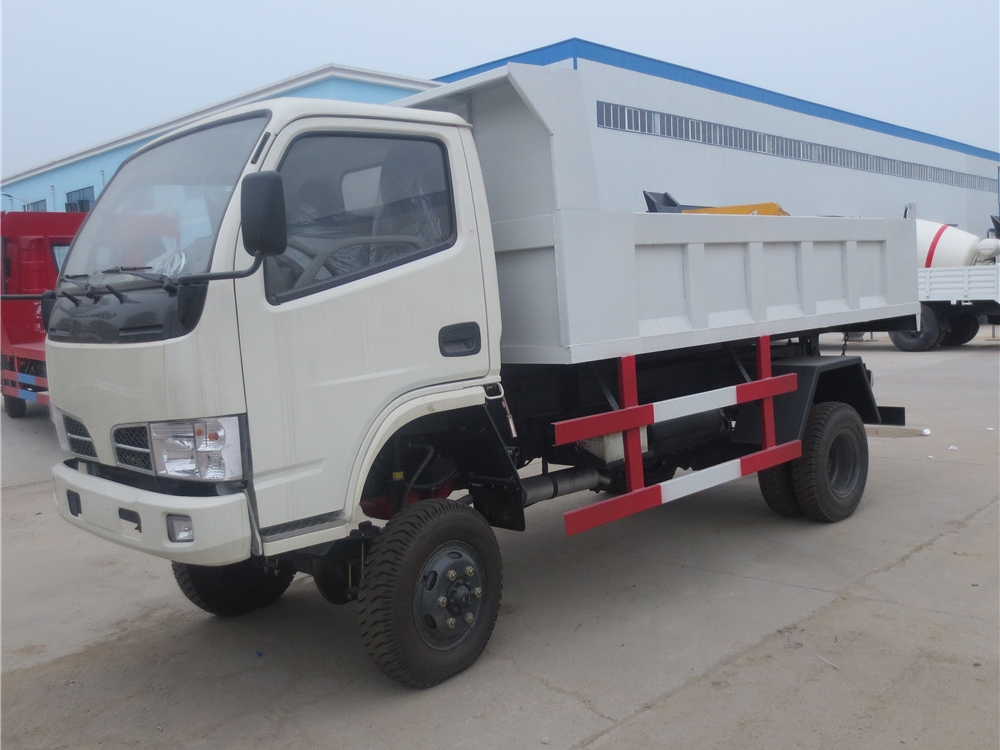

Dongfeng 4X4 Dump Truck

Chassis brand Dongfeng

Product origin China, Hubei

Delivery time around 7 working days

Supply capacity 1,500 units one year

44 dump truck can meet loading and unloading in bad road condition. Dongfeng 4X4 dump truck is mainly used for loading and unloading soil, sandand loose materials in engineering and construction field.

Compared to 4X2 dump truck, 4X4 dump truck have more advantage. goodpassability, and wider adaptability. Dongfeng 4X4 dump truck greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.

Product Name： Dongfeng 4X4 Dump Truck
Driving Type： 4X4
Dump body Volume(cbm)： 4
Rated payload weight(kg)： 5000

Product Features

Dongfeng 4X4 Dump Truck

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

4x4 dump truck is also called all wheel drive dump truck, can be used to transport kinds of sand. soil. rock, ore. etc material in very bad road condition.

Product feature

Dongfeng 4x4 dump truck chassis

Dump box made of high strength manganese steel. strong and sturdy;

5 ton payload capacity

Factory direct sale

Product parameters

Product Name	Dongfeng 4X4 Dump Truck
Driving Type	4X4
Dump body Volume(cbm)	4
Rated payload weight(kg)	5000
Overall Dimension(mm)	5800x2300x2800
Dump body size(mm)	3760x2200x600
Engine brand & model	DONGFENG CHAOYANG Or YUNNEI
Engine type	4 stroke,water-cooled, straight line 4 cylinders, diesel
Axle Quantity	2
Transmission Type	5 forwards,1 reverse gear, manual
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R10, 6+1 spare
Cab	Flat proof, single row, radio, sound ,air conditioning and so on
Dump body material	High strength manganese steel
Main configuration	1. Side plate 3mm, floor plate 4mm. 2.Middle double hydraulic lifting cylinder
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
