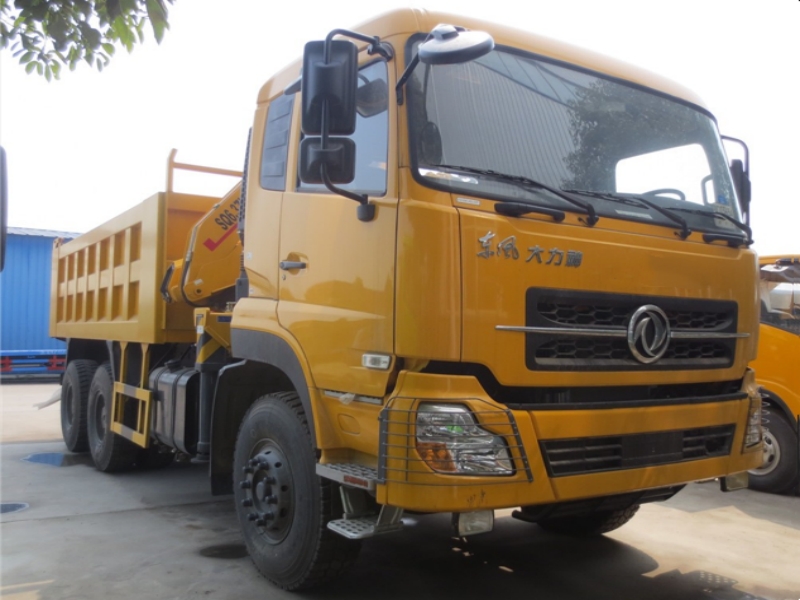

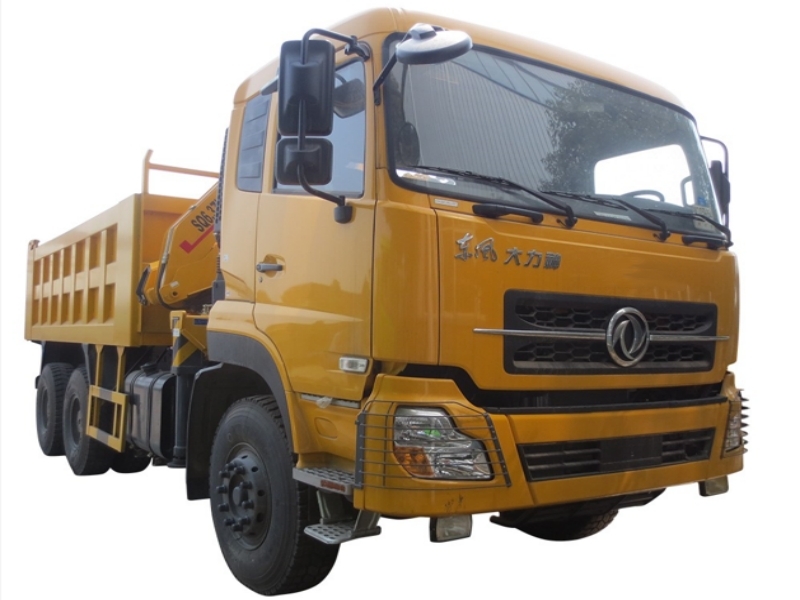

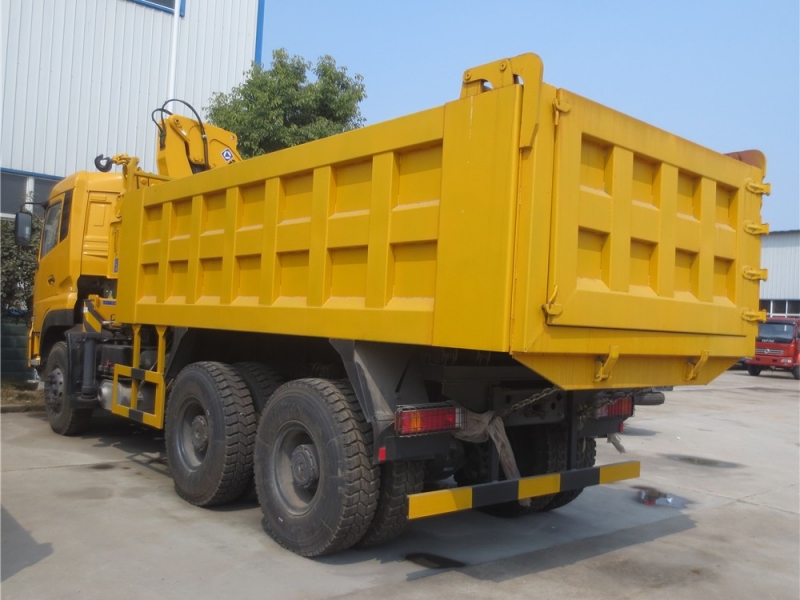

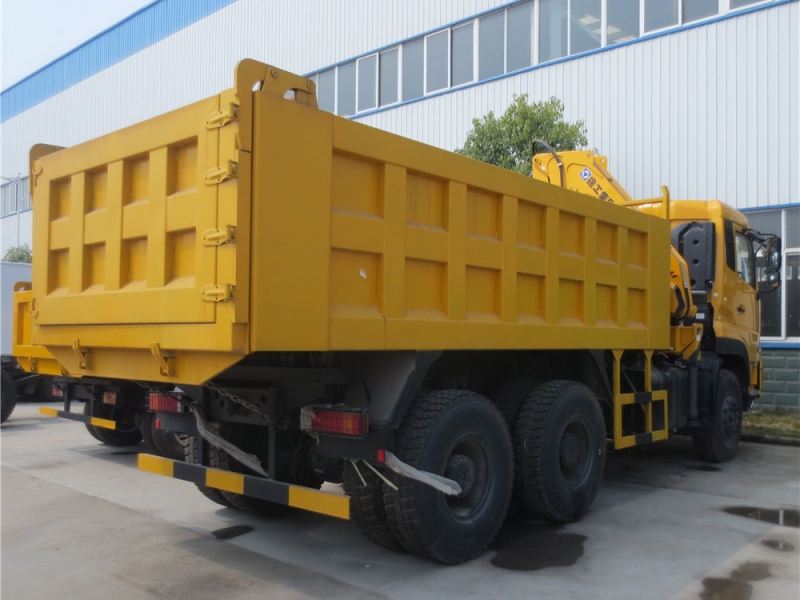

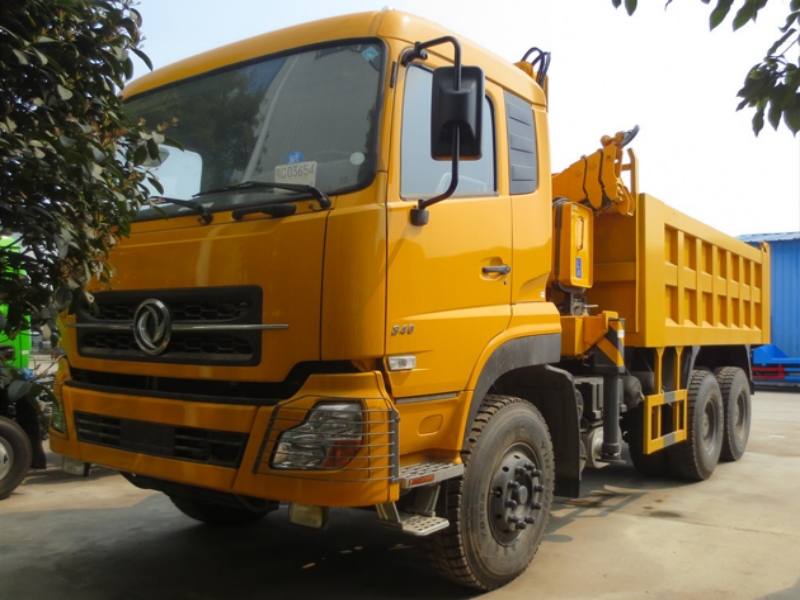

Dongfeng 30 Ton Dump Truck With Crane

Chassis brand dongfeng

Product origin China, Hubei
Delivery time around 10 working days

Supply capacity 1500 units one year
Dump truck with crane is mainly used for loading and unloading by hydraulic crane assistance. Dump truck with crane combine the advantage of dump truck and truck with crane.
Dongfeng dump truck with crane can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, and reducestransportation costs

Product Name： Dongfeng 30 Ton Dump Truck With Crane
Driving Type： 6X4
Dump body Volume(cbm)： 16
Rated payload weight(kg)： 30000

Product Features

Dongfeng 30 Ton Dump Truck With Crane

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.

Product feature

1-Dongfeng 10 wheel dump truck with Dongfeng Cummins engine

2-Dump box made of China high strength manganese steel, strong and sturdy;

3-30 ton loading capacity
4-XCMG 6.3 ton crane
5-Factory direct sale

Product parameters

Product Name	Dongfeng 30 Ton Dump Truck With Crane
Driving Type	6X4
Dump body Volume(cbm)	16
Rated payload weight(kg)	30000
Overall Dimension(mm)	8800x2400x3600
Dump body size(mm)	5400x2300x1400
Engine brand & model	Dongfeng Cummins
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	3
Transmission Type	FAST 9 forwards,1 reverse gear, manual
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20, 10+1 spare
Cab	Flat proof, single sleeper, radio, AC
Dump body material	High strength manganese steel

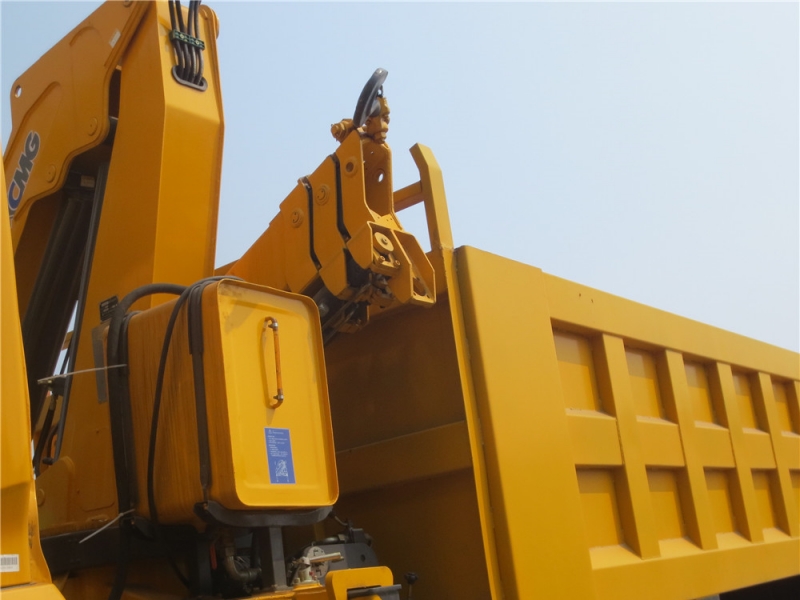

Crane	XCMG 6.3 ton folded arm crane
Main configuration	1. Side plate 6mm, floor plate 8mm. 2.Middle mounted hydraulic lifting cylinder
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
