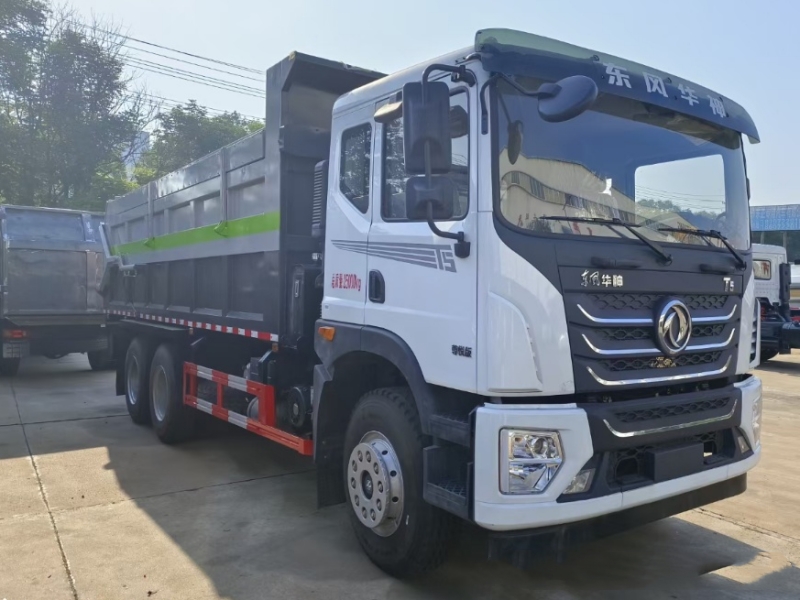

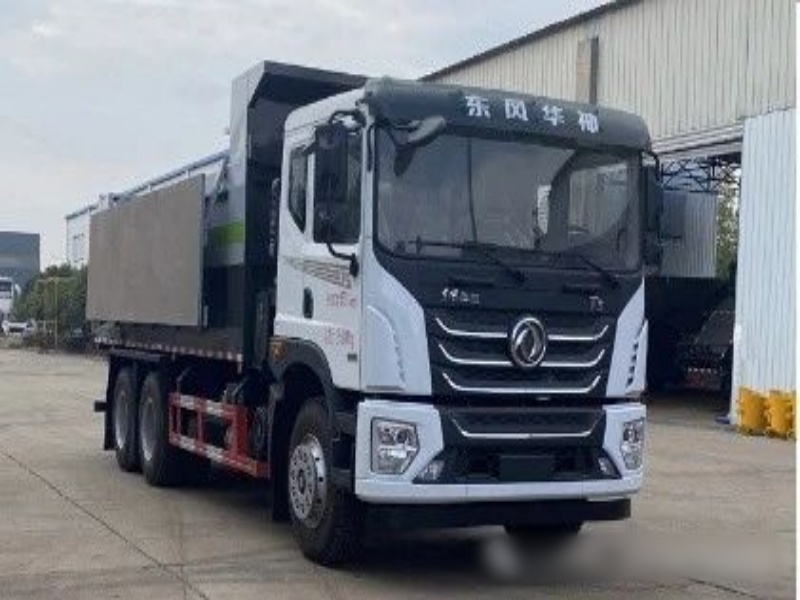

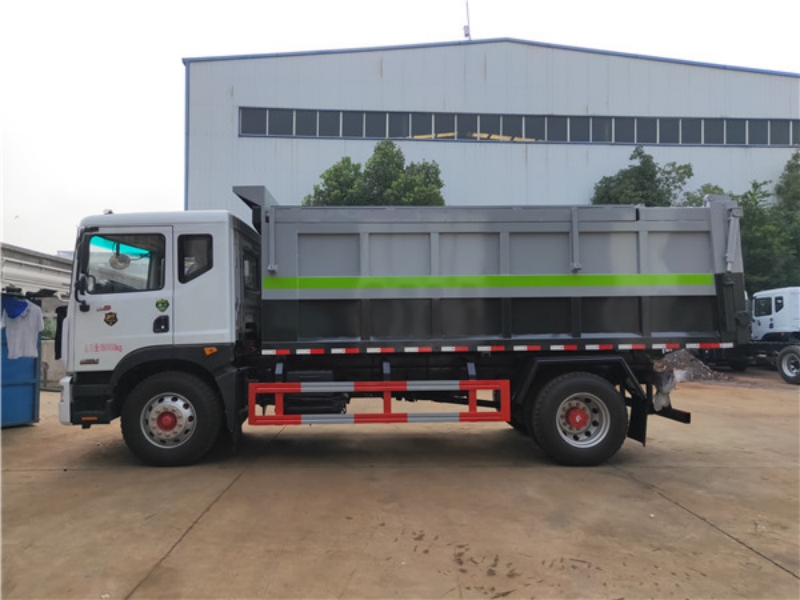

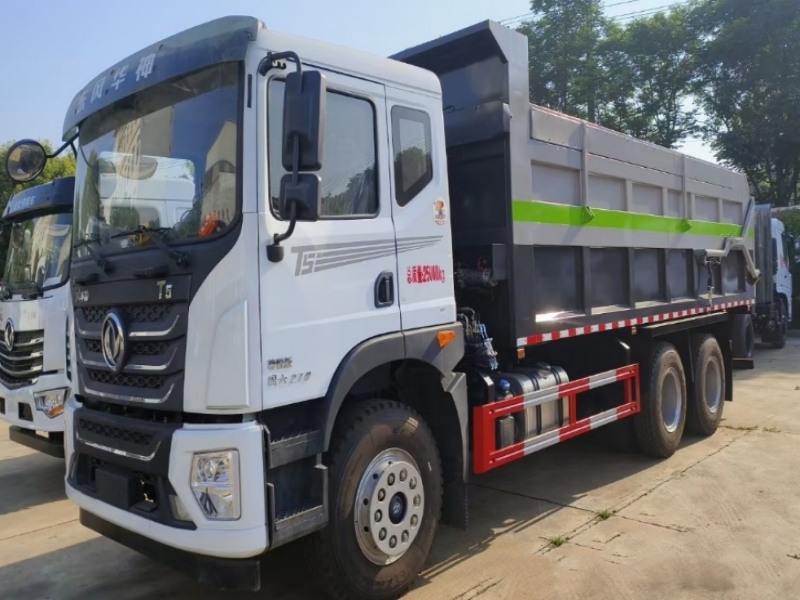

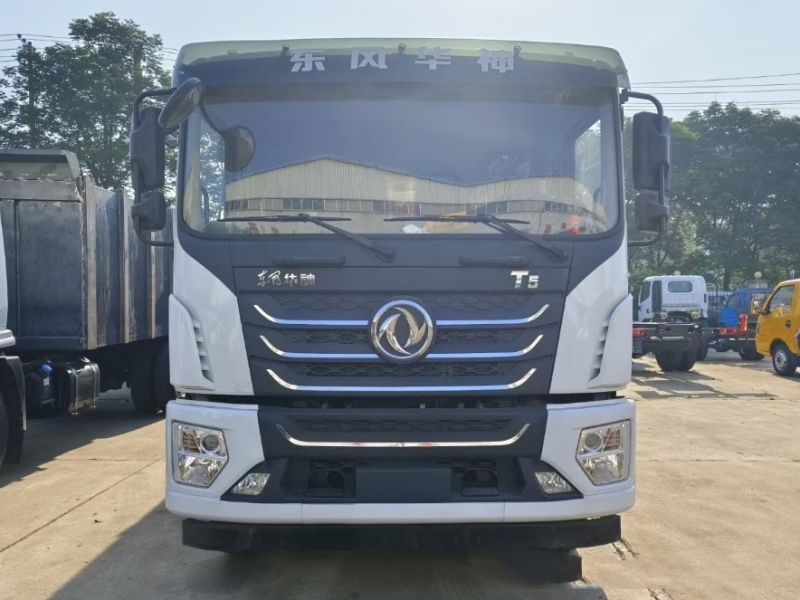

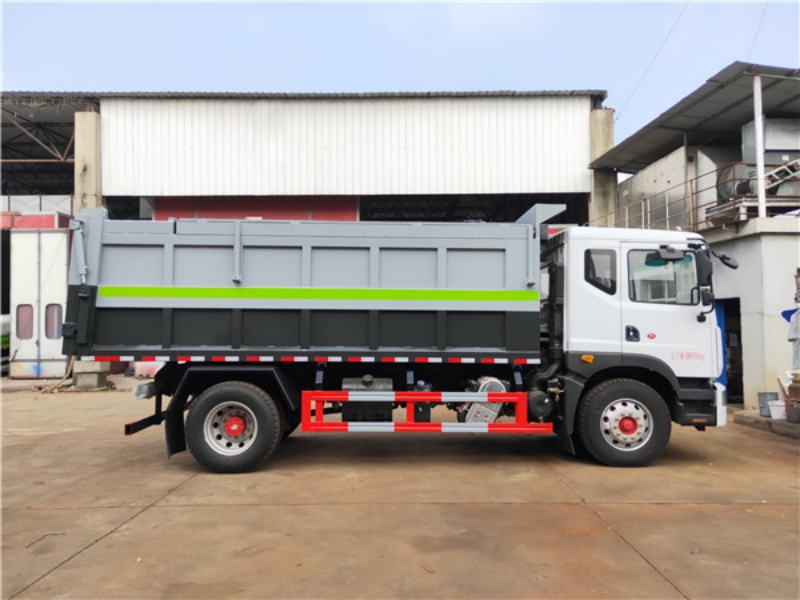

Dongfeng 6X4 Mud Dump Truck

Chassis brand dongfeng

Product origin China, Hubei
Delivery time around 10 working days

Supply capacity 1500 units one year
Sludge dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device. In civil engineering, dump trucks are often used in conjunction with construction machinery such as excavators, loaders, and belt conveyors to form loading, transportation, and unloading production lines for the loading, unloading, and transportation of soil, sand, and loose materials.

Product Name： Dongfeng 6X4 Mud Dump Truck
Driving Type： 6X4
Dump body Volume(cbm)： 20
Rated payload weight(kg)： 25000

Product Features

Dongfeng 6X4 Mud Dump Truck

Mud dump truck refers to a vehicle that unloads goods by hydraulic or mechanical lifting, also known as a dump truck. Mud dump trucks are used for urban sludge removal and the loading, unloading, and transportation of various scattered materials. They have a rated load capacity of 5 tons, 6 tons, 8 tons, 10 tons, 12 tons, 15 tons, 18 tons, and 20 tons. The cargo body is controlled by hydraulic tilting and the rear door can be automatically opened and locked The self dumping mechanism and cargo compartment rear cover of the entire vehicle can facilitate the smooth dumping of sludge and effectively reduce pollution to the urban environment and minimize material loss during transportation. The hydraulic system is easy to operate and flexible.

Product feature

1-Dongfeng 10 wheel dump truck with Guangxi Yuchai engine

2-Dump box made of China carbon steel, strong and sturdy;

3-25 ton loading capacity
4-Factory direct sale

Product parameters

Product Name	Dongfeng 6X4 Mud Dump Truck
Driving Type	6X4
Dump body Volume(cbm)	20
Rated payload weight(kg)	25000
Overall Dimension(mm)	9050,9300X2550X3250
Dump body size(mm)	6300,6500X2200X1500
Engine brand & model	YCS06245-60A, Yuchai
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	3
Transmission Type	FAST 8 forwards, manual
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20, 10+1 spare
Cab	Air conditioning, airbag seats, multifunctional steering wheel
Dump body material	carbon steel
Main configuration	1. Side plate 4mm, floor plate 5mm. 2.Front hydraulic cylinder, rear hydraulic opening, top hydraulic opening
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
