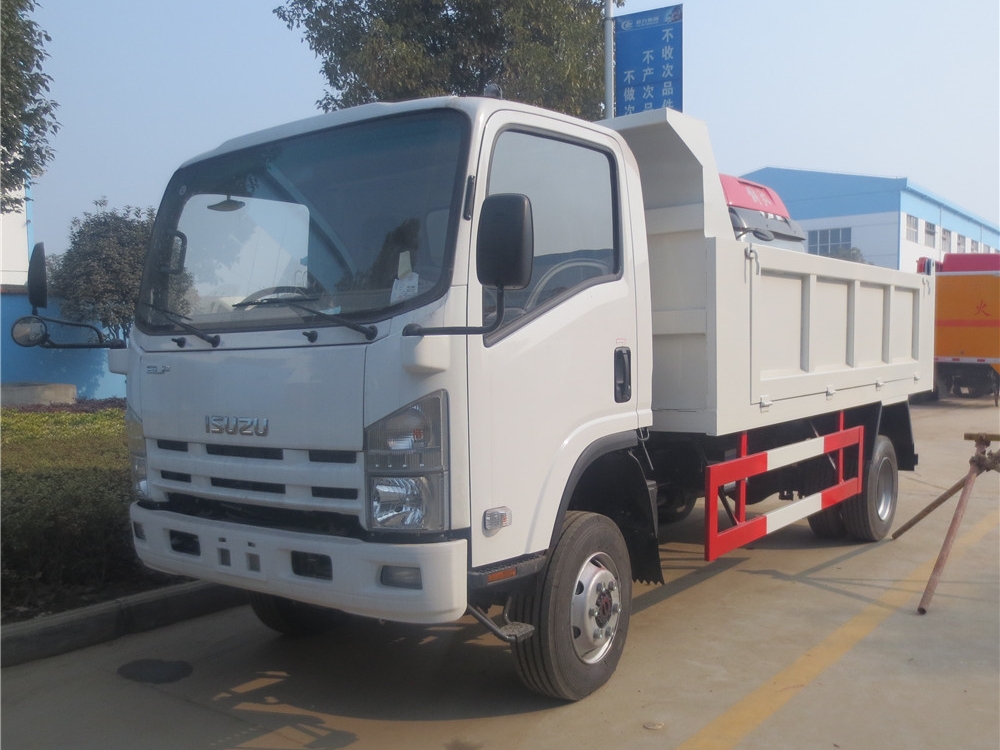

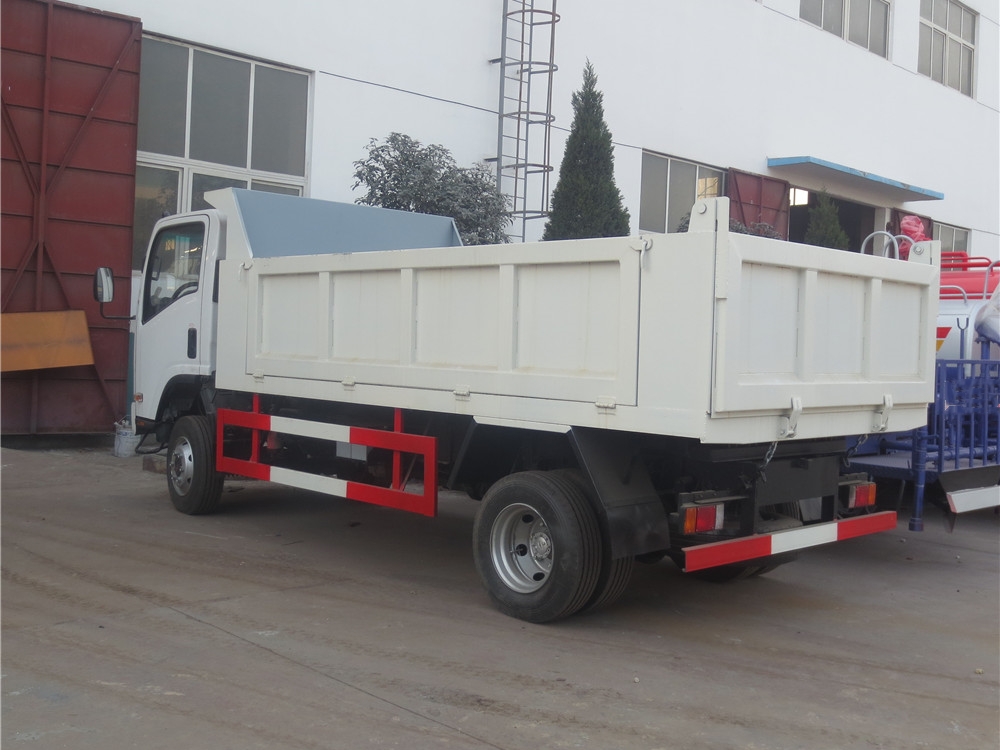

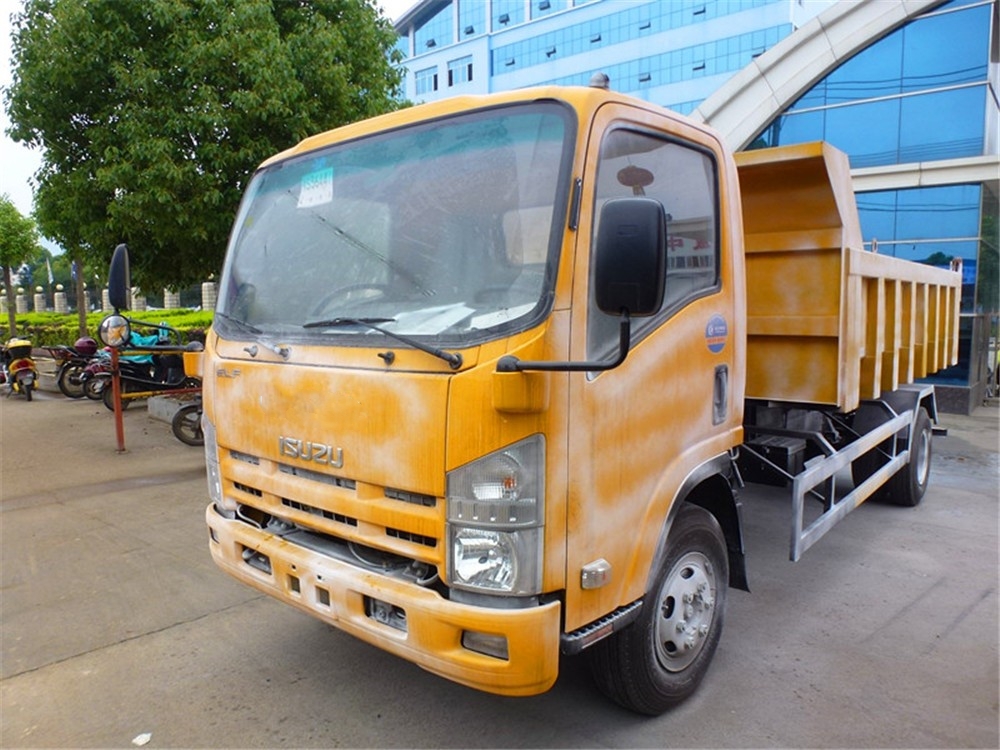

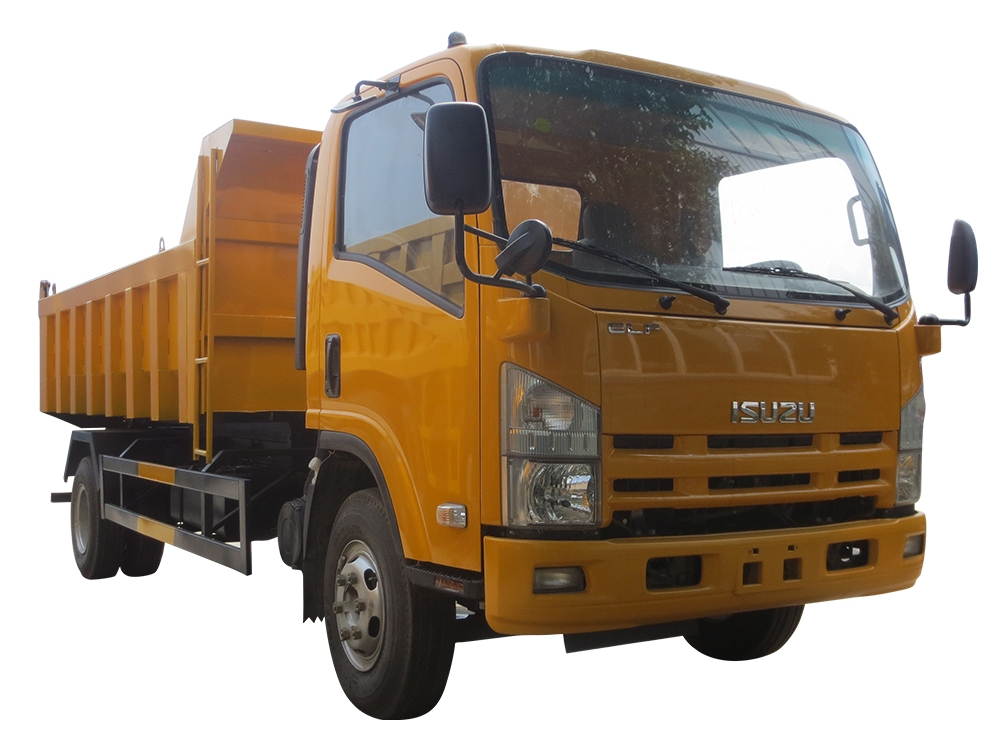

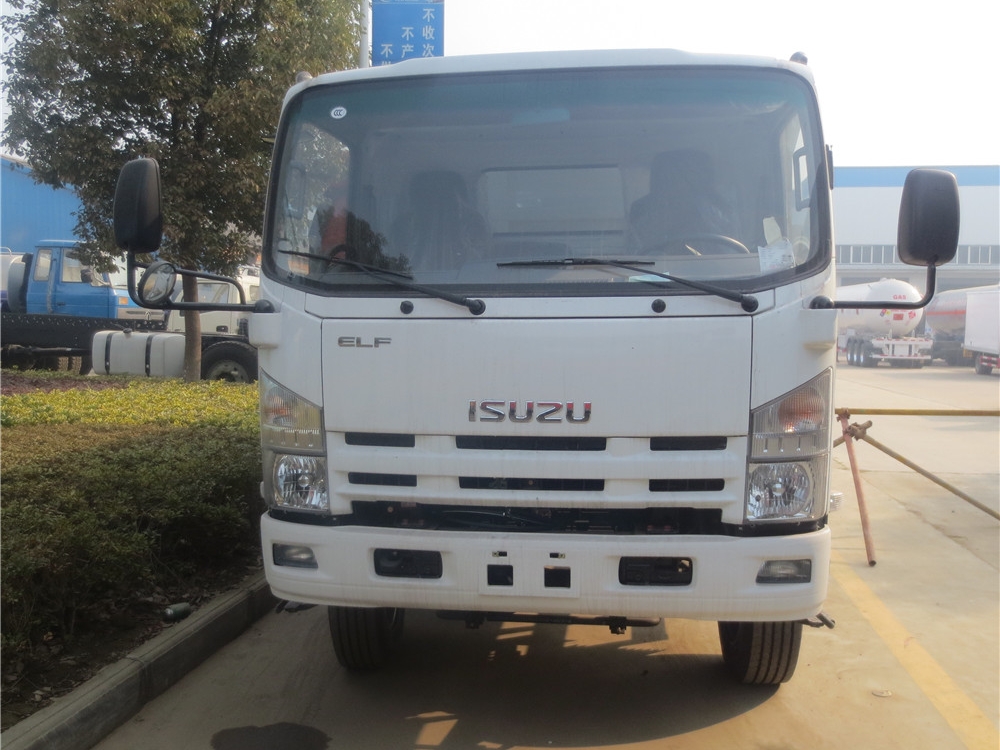

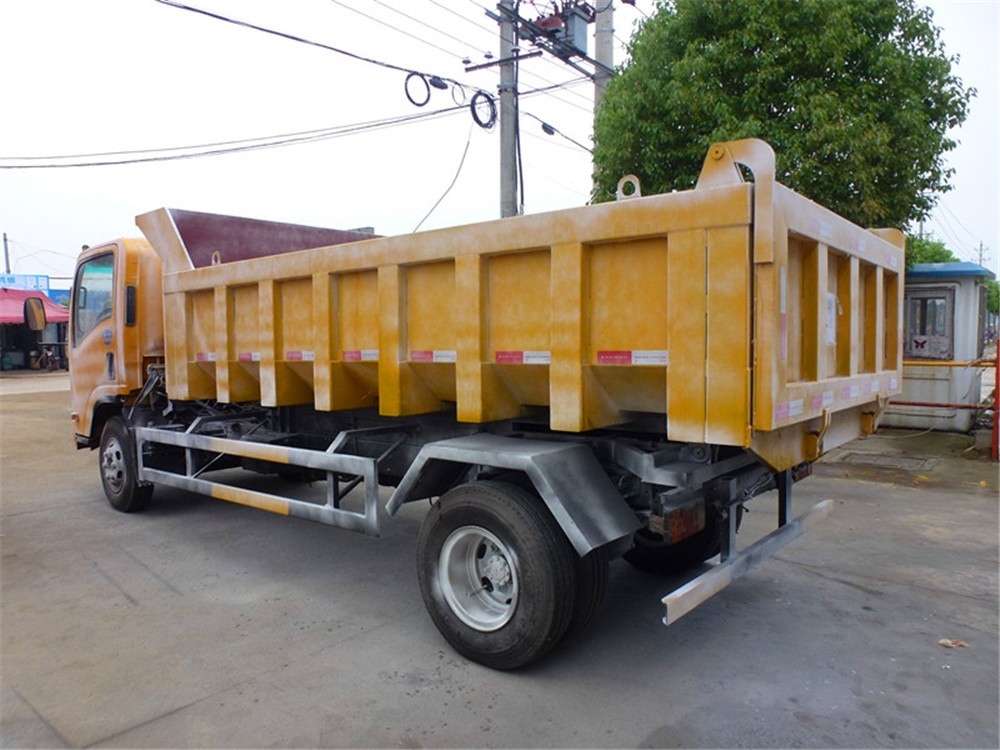

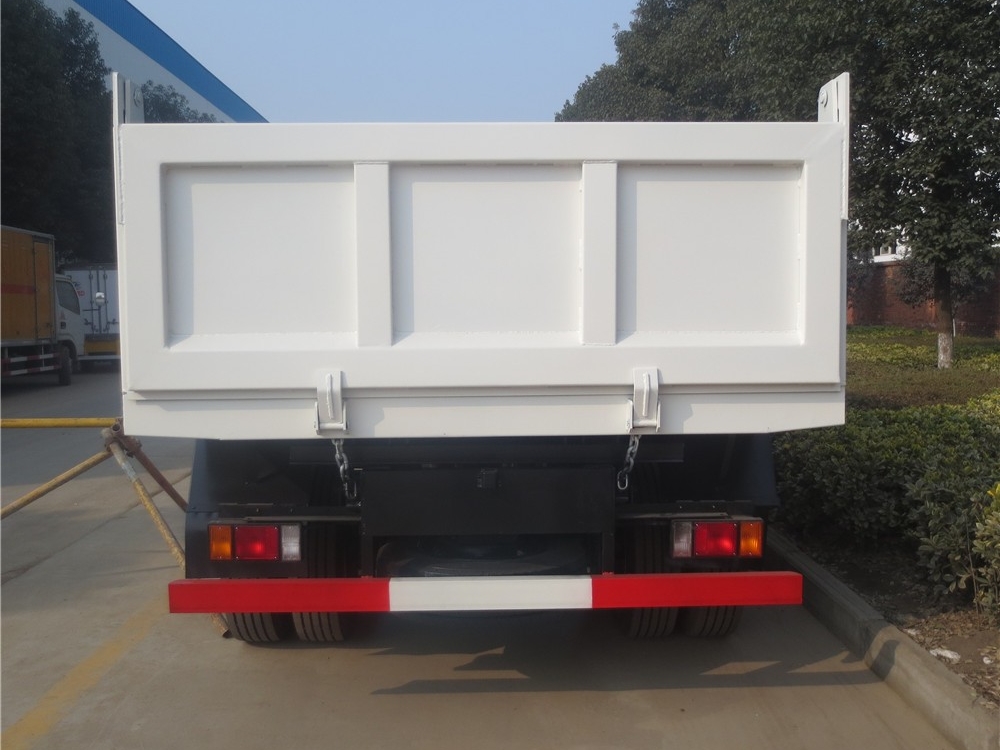

lsuzu 5 Ton Dump Truck

Chassis brand (Qingling) lsuzu

Product origin China, Hubei

Delivery time around 7 working days

Supply capacity around 1500 units one year

In civil engineering, dump truck is often operated in conjunction with excavators, loaders, belt conveyors, etc. to form a loading, transporting, and unloading production line for loading and unloading soil, sand, and loose materials

Dump body of dump truck can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs

Product Name： lsuzu 5 Ton Dump Truck
Driving Type： 4X2
Dump body Volume(cbm)： 4
Rated payload weight(kg)： 5000

Product Features

lsuzu 5 Ton Dump Truck

5 ton dump truck isalso called tipper truck, dumper truck, is mainly used to transport kinds of sand, soil, rock, ore, etc material.

Product Feature

5 ton dump truck adopt China high strength manganese steel, strong and sturdy;

5 ton dump truck can be mounted on many brand chassis, such as ISUZU, Sinotruk, Foton, dongfeng, shacman, Faw, etc

Factory direct sale, high quality low price

Product parameters

Product Name	lsuzu 5 Ton Dump Truck
Driving Type	4X2
Dump body Volume(cbm)	4
Rated payload weight(kg)	5000
Overall Dimension(mm)	5800x2300x2500
Dump body size(mm)	3760x2200x600
Engine brand & model	lsuzu
Engine type	4 stroke,water-cooled, straight line 4 cylinders, diesel
Axle Quantity	2
Transmission Type	Isuzu MSB 5 forwards,1 reverse gear, manual
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.50R16, 6+1 spare
Cab	Flat proof, single row, radio,eletric window, central lock, AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 3mm, floor plate 4mm( optional side 4mm, floor 5mm) 2. Middle double hydraulic lifting cylinder.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
