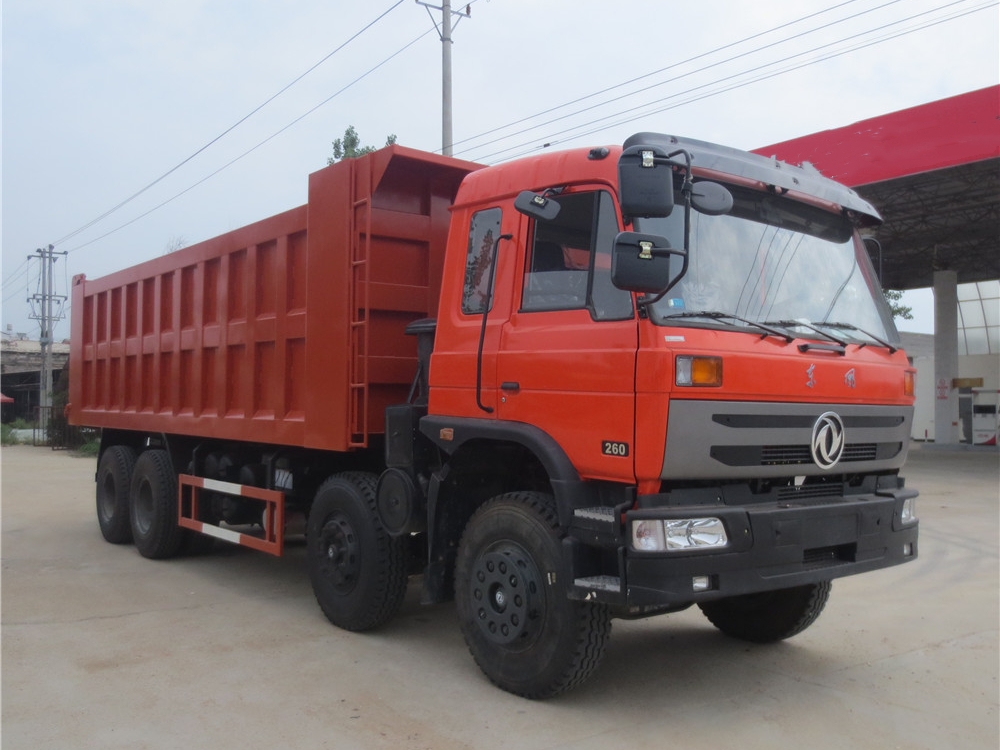

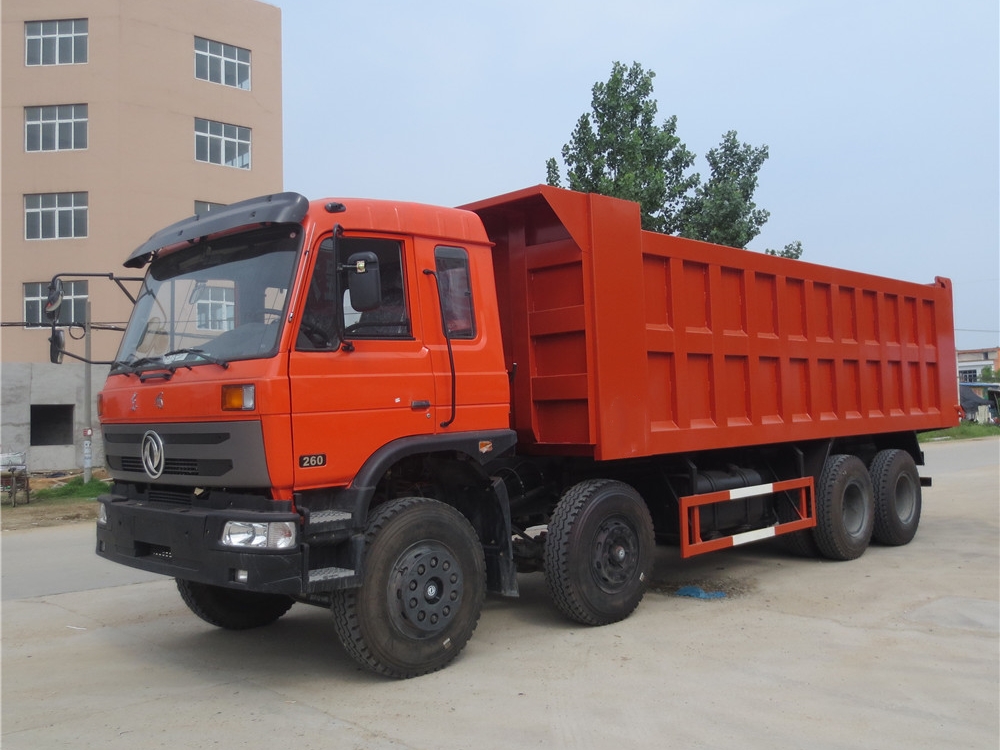

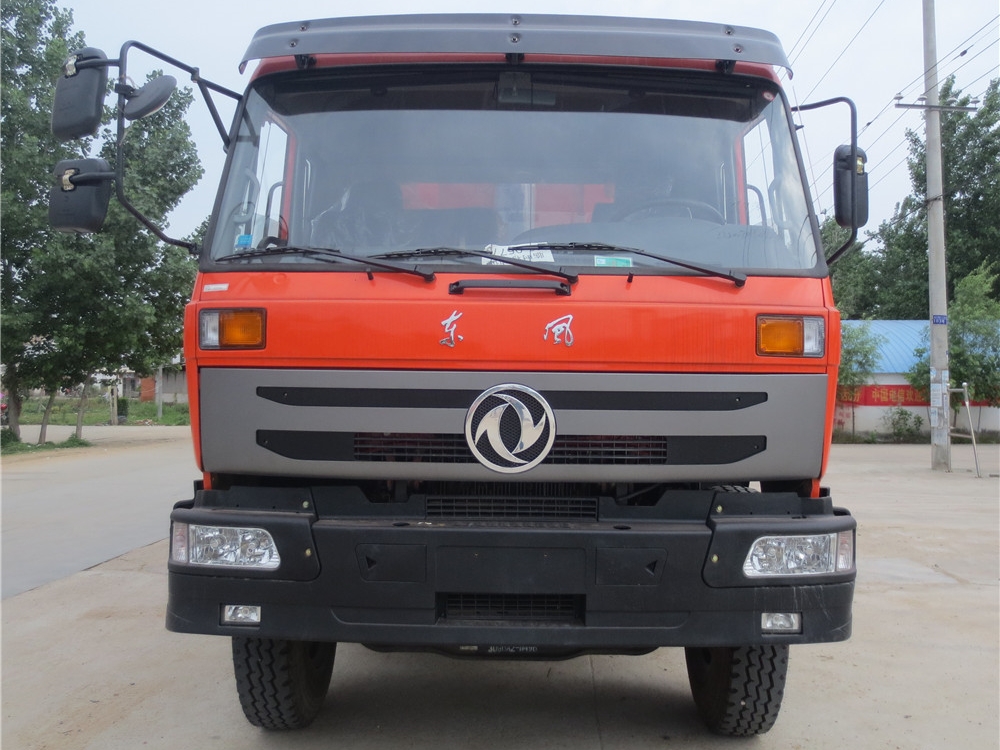

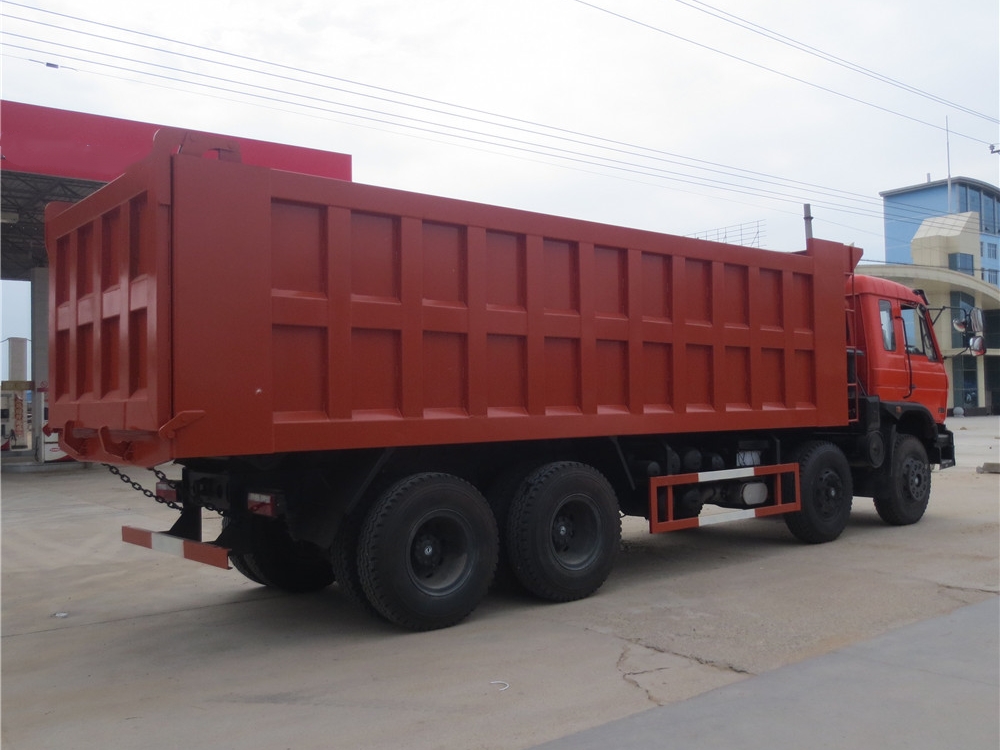

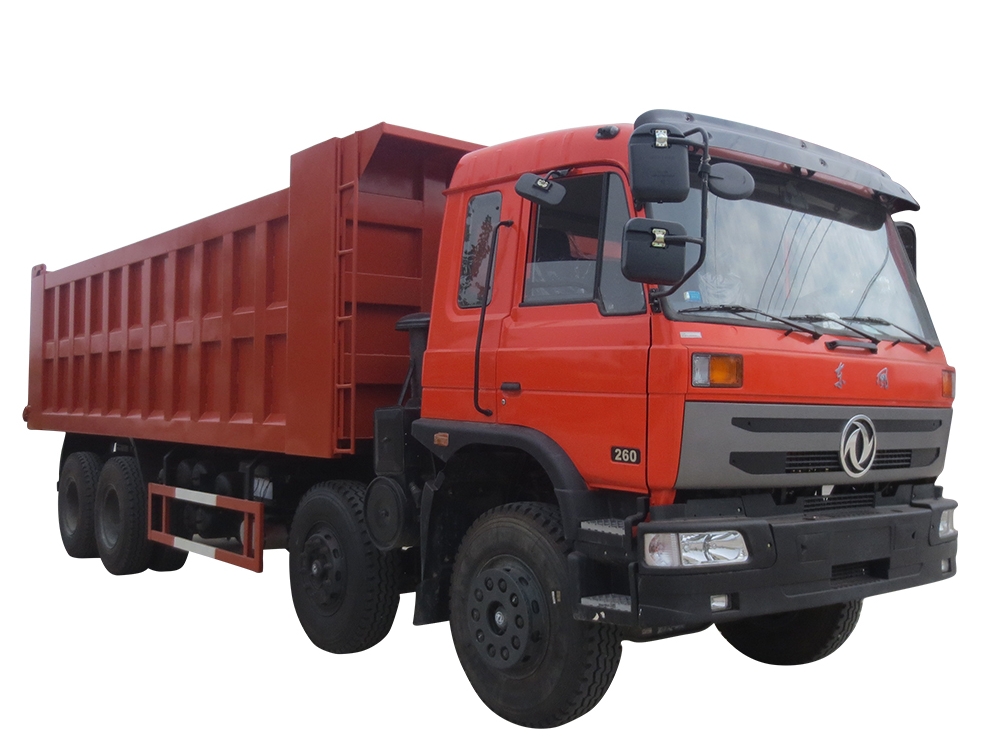

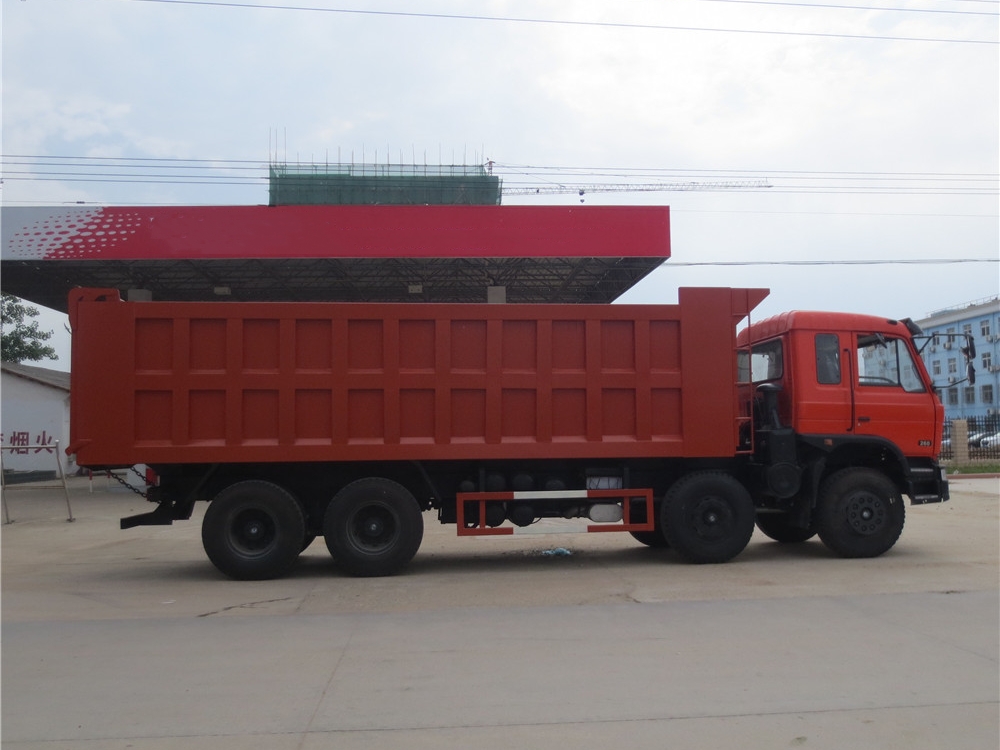

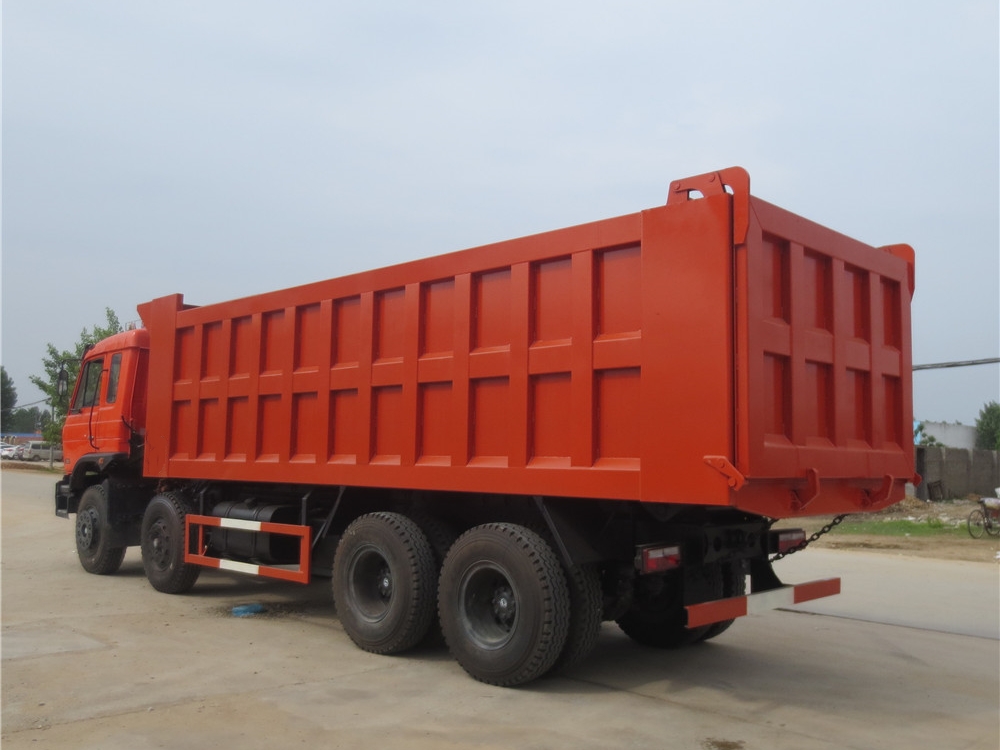

Dongfeng 40 Ton Dumper Truck

Chassis brand dongfeng

Product origin China, Hubei

Delivery time around 10 working days

Supply capacity 1,500 units one year

In engineering construction, dumper truck is often operated in conjunction with excavators, loaders, belt conveyors, etc. dumper truck is mainly used for loading and unloading soil, sand, and loose materials.

Dongfeng dumper truck can automatically tip over to unload at a certain angle, dongfeng 40 ton dumper truck greatly saves unloading time and manpower, improves production efficiency and reduces transportation costs.

Product Name： Dongfeng 40 Ton Dumper Truck
Driving Type： 8X4
Dump body Volume(cbm)： 23
Rated payload weight(kg)： 40000

Product Features

Dongfeng 40 Ton Dumper Truck

A tipper truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting, also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

Dumper truck is also called tipper truck, dump truck, Dongfeng 40 ton dumper truck is mainly used to transport kinds of sand, sol. rock, ore etc material from 20 ton to 40 ton.

Product feature

Dongfeng 12 wheel dump truck

40 ton loading capacity

Dump body made of China high strength manganese steel, strong and sturdy;

Factory direct sale, mass production and fast delivery

Product parameters

Product Name	Dongfeng 40 Ton Dumper Truck
Driving Type	8X4
Dump body Volume(cbm)	23
Rated payload weight(kg)	40000
Overall Dimension(mm)	9700x2490x3500
Dump body size(mm)	6700x2300x1500
Engine brand & model	DONGFENG Cummins or Yuchai power
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	4
Transmission Type	FAST 9 forwards,1 reverse gear, manul
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20, 12+1 spare
Cab	flat proof, single sleeper,radio, AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 6mm, floor plate 8mm(optional side 8mm ,floor 10mm). 2. Front lifting hydraulic cylinder
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
