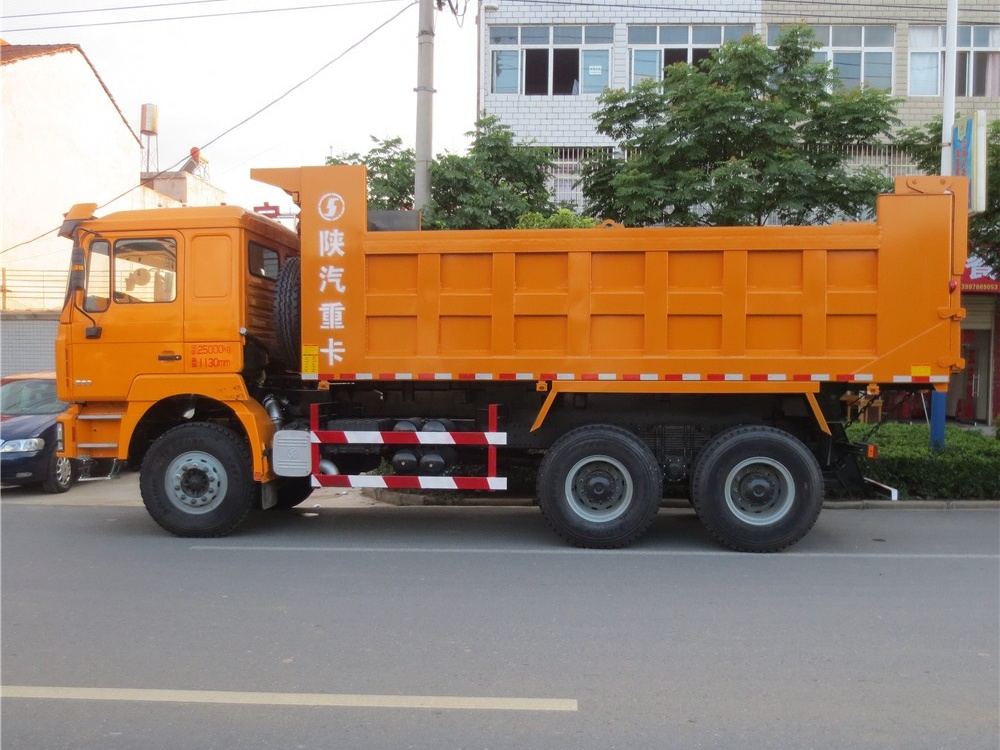

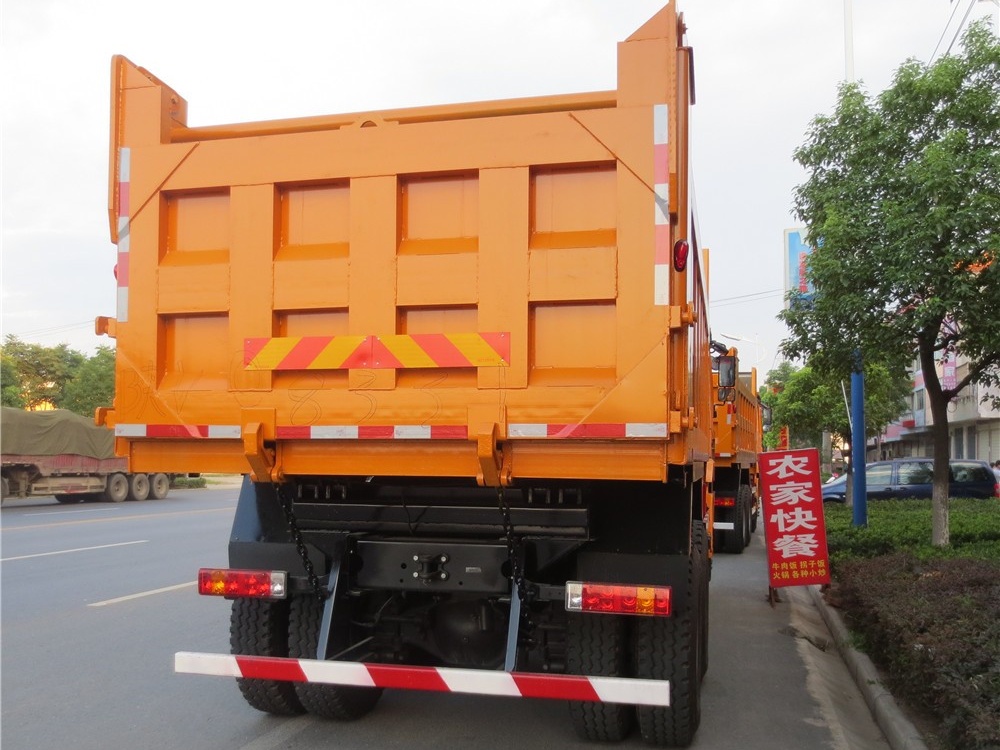

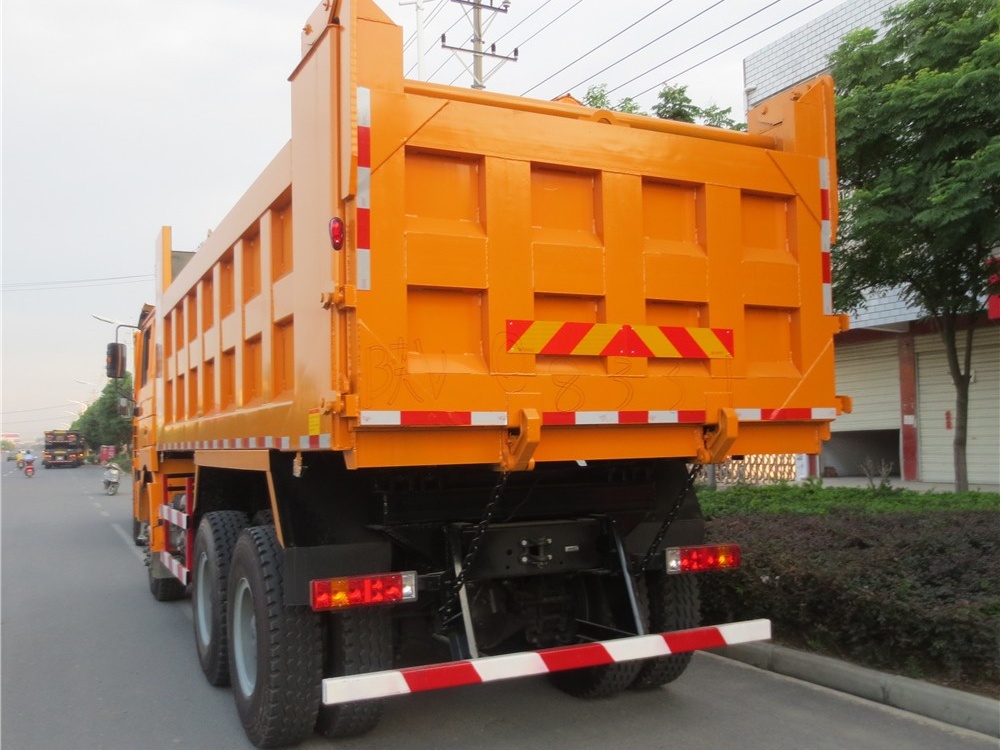

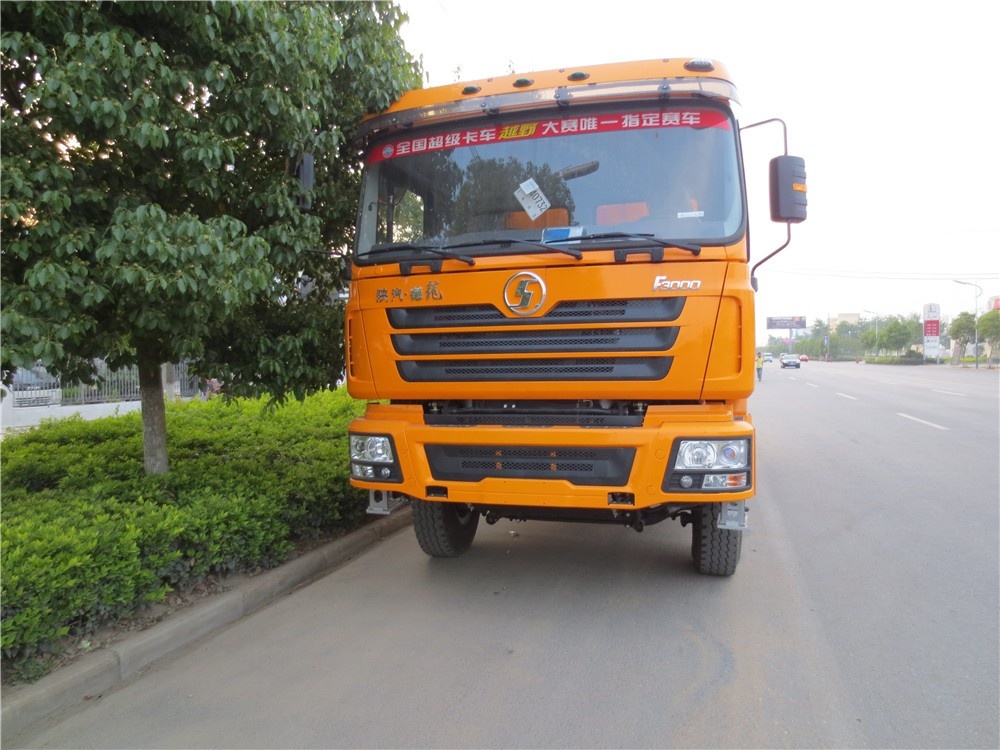

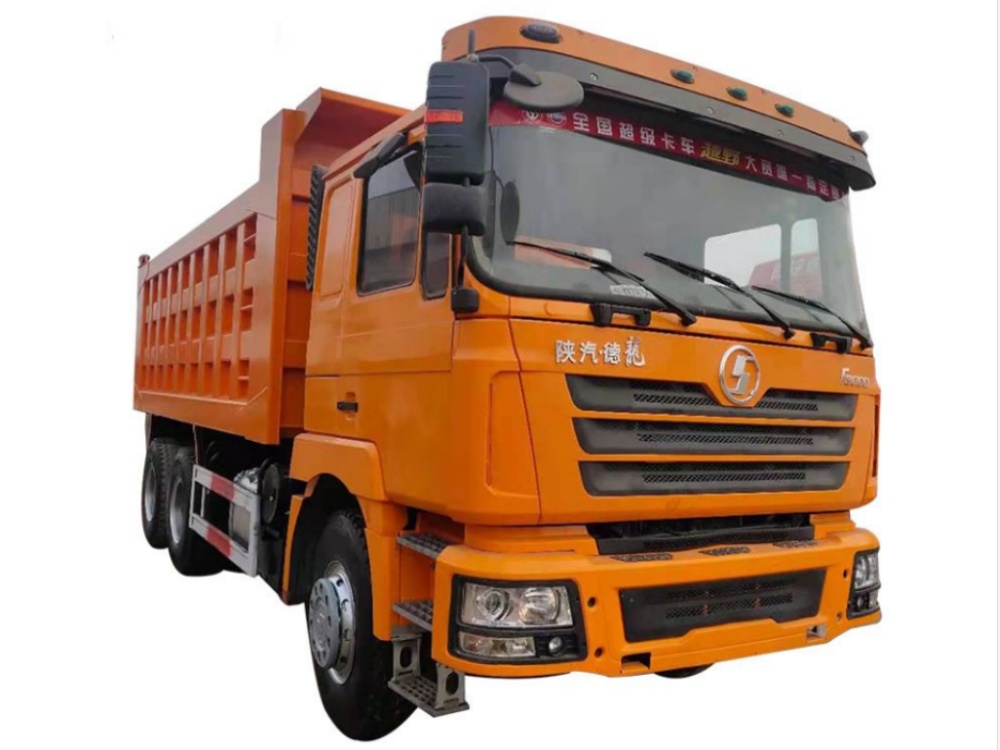

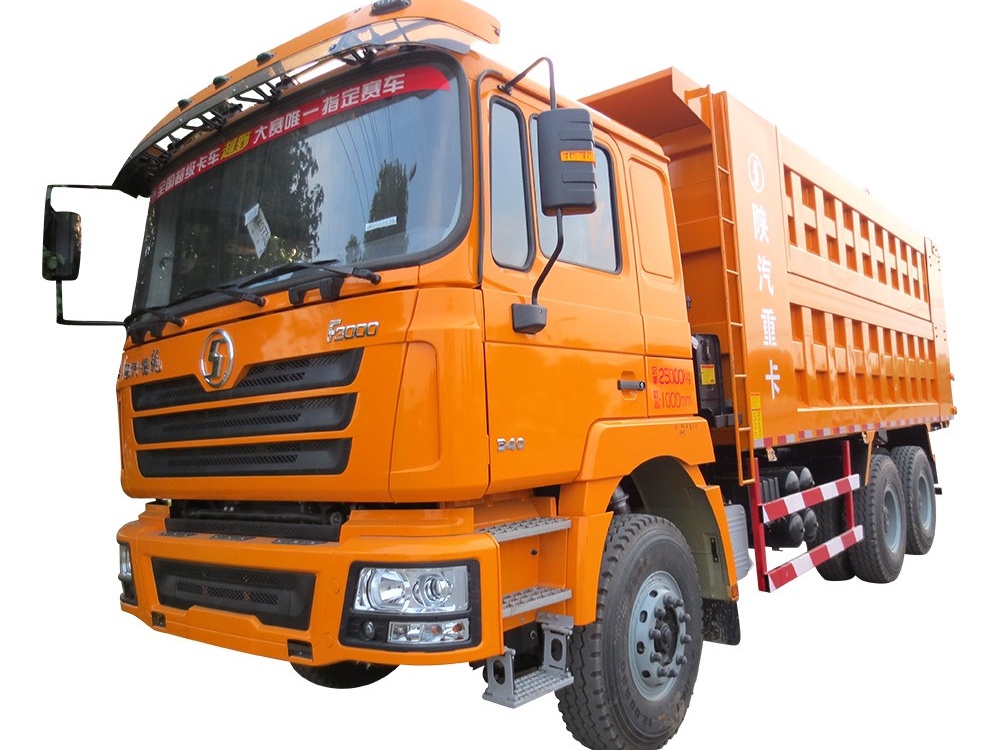

Shacman 35 Ton Dump Truck

Chassis brand shacman

Product origin China, Hubei

Delivery time around 10 working days

Supply capacity 1,500 units one year

In civil engineering, 35 ton dump truck is often operated in conjunction with excavators, loaders, belt conveyors, etc.to form a loading, transporting, and unloading production line for loading and unloading soil, sand, and loose materials.

35 ton dump truck is composed of shacman dump truck chassis, 35 ton dump body and Hyva hydraulic system, Shacman 35 ton dump truck is very popular in Middle-Asia countries.

Product Name： Shacman 35 Ton Dump Truck
Driving Type： 6X4
Dump body Volume(cbm)： 25
Rated payload weight(kg)： 35000

Product Features

Shacman 35 Ton Dump Truck

A tipper truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting, also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

Tipper truck, is basically used to transport kinds of sand, soil, rock, ore, etc material.

35 ton dump truck is also called 35 ton tipper truck, 35 ton dumper truck, Shacman 35 ton dump truck is mainly used to transport kinds of sand soil, rock. ore, etc material.

Product feature

1-Shacman 10 wheel dump truck chassis with Weichai 375hp engine

2-Adopt China high strength manganese steel, strong and sturdy;

3-35 ton loading capacity

Product parameters

Product Name	Shacman 35 Ton Dump Truck
Driving Type	6X4
Dump body Volume(cbm)	25
Rated payload weight(kg)	35000
Overall Dimension(mm)	9800x2470x3500
Dump body size(mm)	6800x2300x1600
Engine brand & model	Weichai Power & WP12.375
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	3
Transmission Type	FAST 9 forwards,1 reverse gear, manul
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	12.00R20, 10+1 spare
Cab	Shacman F3000 flat proof, air seat, single sleeper,radio, AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 6mm, floor plate 8mm(optional side 8mm ,floor 10mm). 2. Front mounted Hyva or China top hydraulic lifting cylinder
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
