Jiefang 10 Tons Oil Tank Truck, 4X2 Refueling Truck

Upper configuration

1-Tank volume:12.9m³(can be made into 1 or 2 compartments)

2-Tank material:carbon steel (Aluminum alloy/stainless steel are available for selection.)

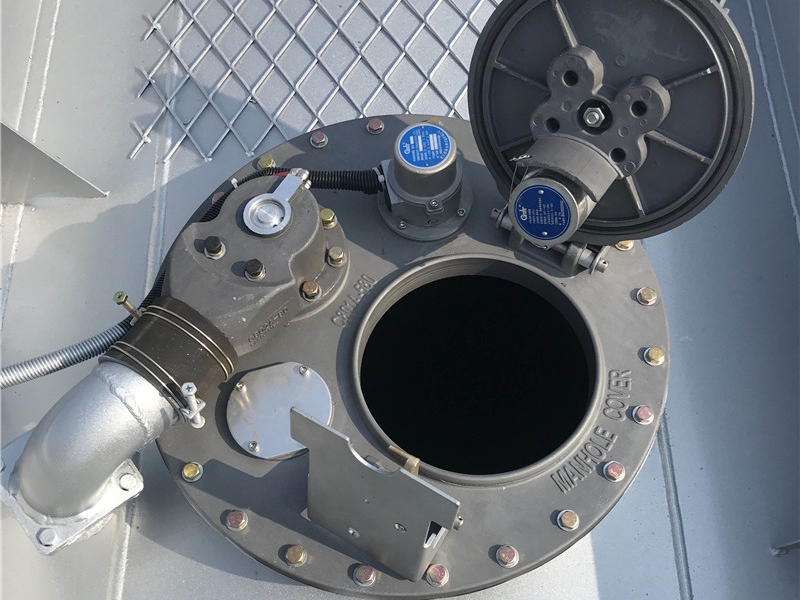

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： Jiefang 10 Tons Oil Tank Truck, 4X2 12.9m³ Refueling Truck
Chassis brand： Jiefang
Driver： flat one and a half rows
Drive wheel： 4X2

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Jiefang 10 Tons Oil Tank Truck, 4X2 12.9m³ Refueling Truck
Chassis brand	Jiefang
Driver	flat one and a half rows
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Dachai
Engine Model	CA4DK1-22E61
Horse Power (HP)	220
Engine displacement	4.76L
Emission standard	Euro 6 (option:Euro3/4/5)
Wheel base	4700(mm)
Gearbox	8 forward gears and 1 reverse gear
Front wheel track	1950,1972(mm)
Rear wheel track	1878(mm)
Approach angle/departure angle	18/11(°)
Front/rear suspension	1400/2400(mm)
F/R axle load	6500/11500
Axle numbers	2
Tire Specification and Quantity	275/80R22.5, 6 with a spare
Vehicle dimension	8500×2500×3100,3130(mm)
Tank dimension	5700×2000×1400(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	7605(Kg)
Rated weight(Kg)	10200(Kg)
Tank volume	12.9 cubic meter
Tank material	carbon steel/aluminum alloy/stainless steel

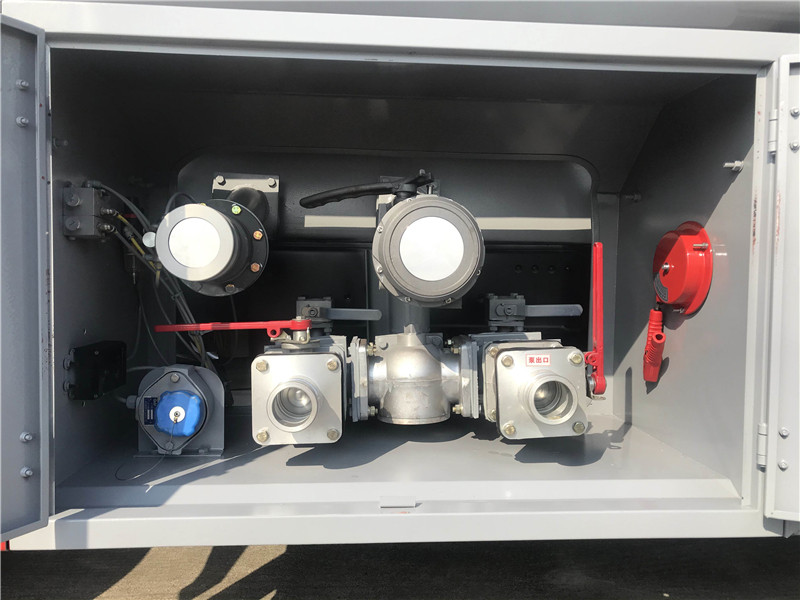

Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
