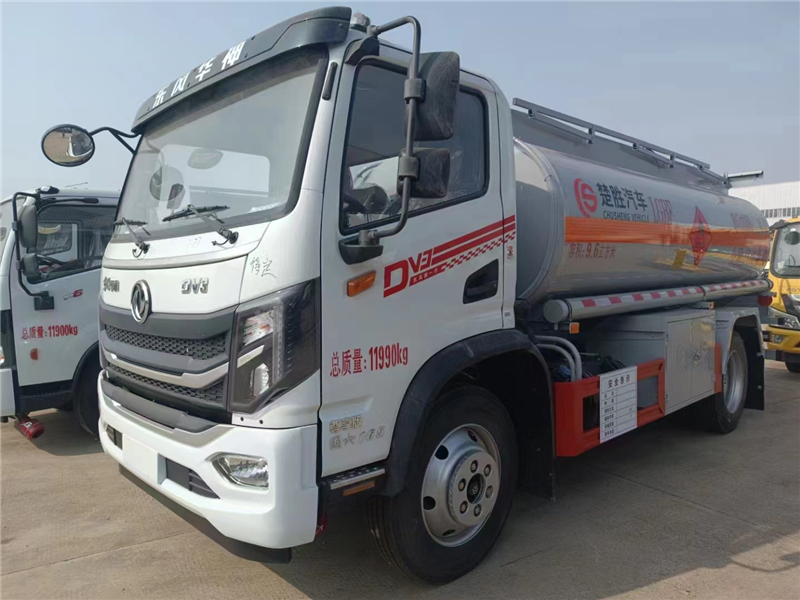

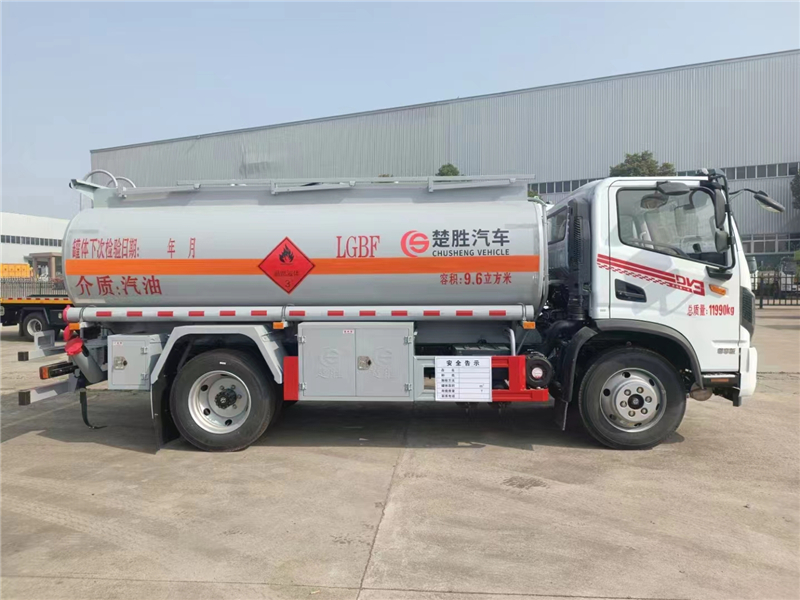

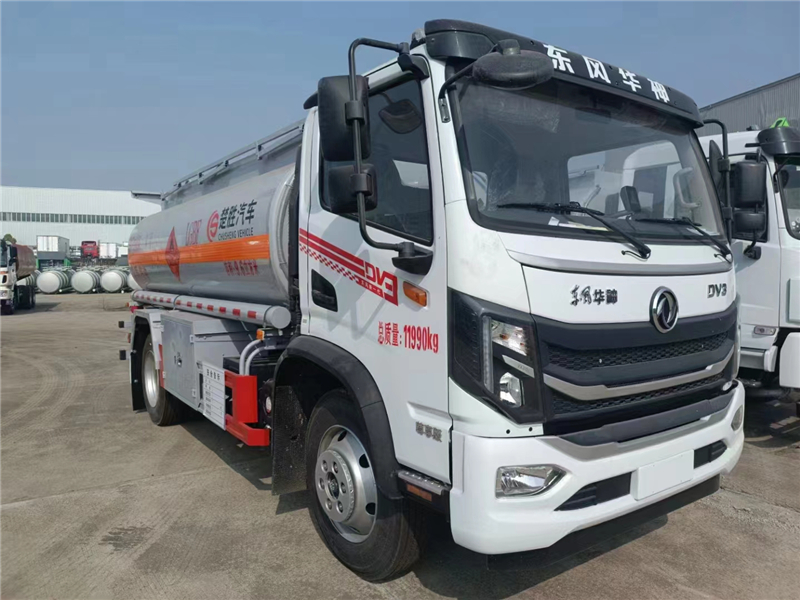

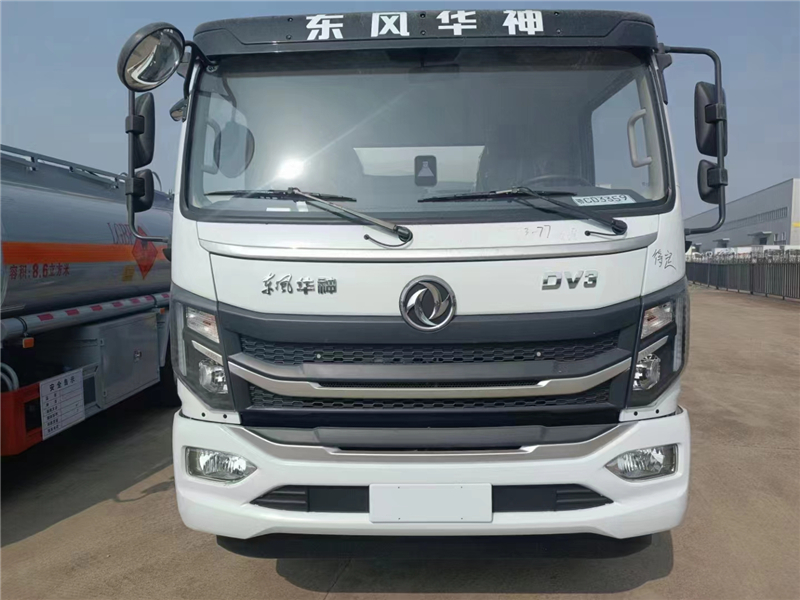

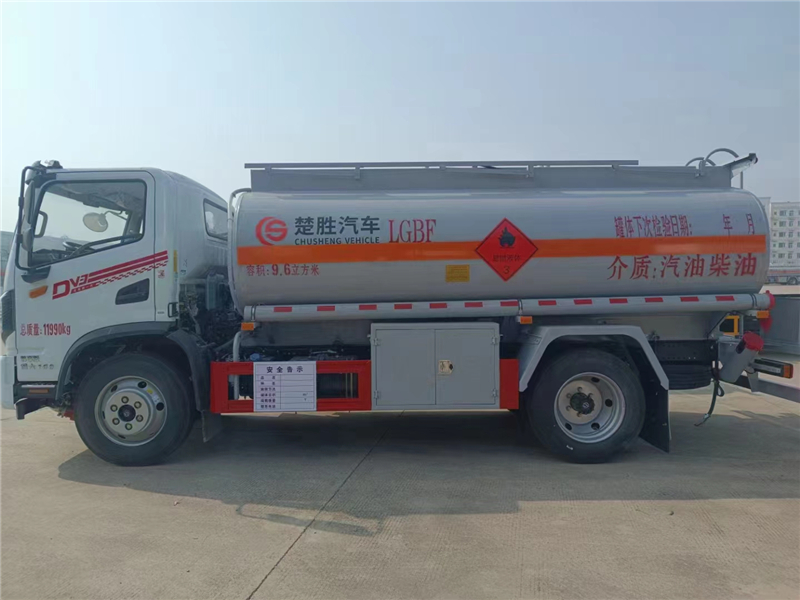

Dongfeng 9600 Liters Oil Truck

1-Tank volume:9.6m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.

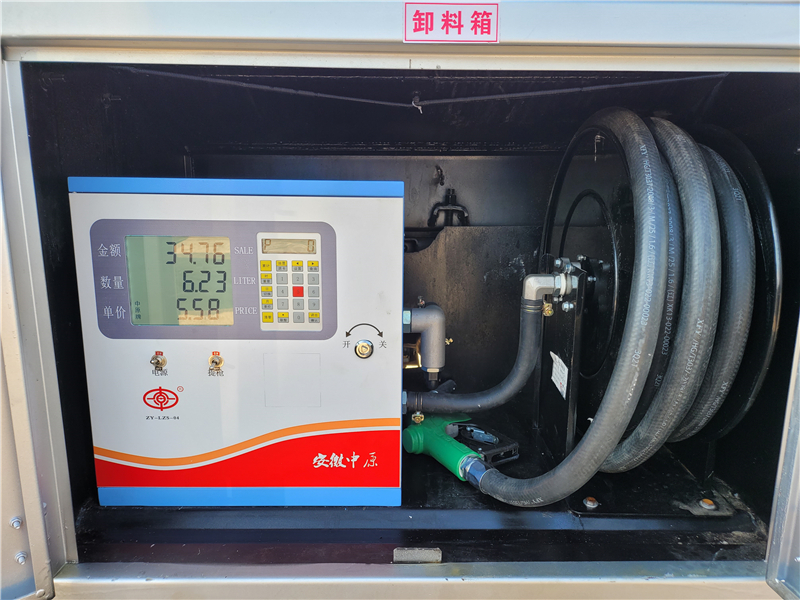

5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： Dongfeng 9600 Liters Oil Truck
Chassis brand： Dongfeng

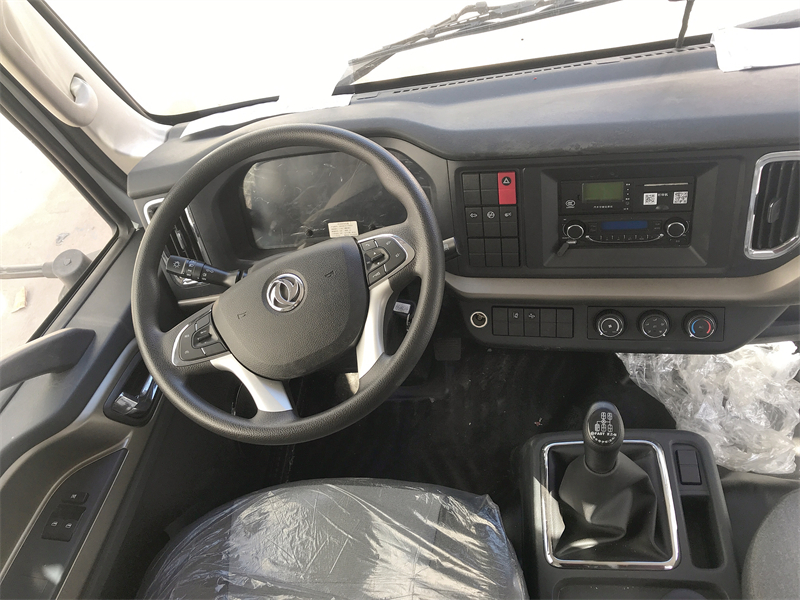

Cab： DV3 white flat top single row cab
Drive wheel： 4X2

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Dongfeng 9600 Liters Oil Truck
Chassis brand	Dongfeng
Cab	DV3 white flat top single row cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Yuchai
Engine Model	YCY30165-60
Horse Power (HP)	165
Engine displacement	3L
Engine type	4 stroke, water-cooled, straight line 4 cylinder, diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	8 forward gears and 1 reverse gear
Wheel base (mm)	3800
Front wheel track (mm)	1600,1730,1820,1700
Rear wheel track (mm)	1586,1650,1800,1670
Approach angle/departure angle	15/14(°)
F/R axle load	4300/7690
Axle numbers	2
Tire Specification and Quantity	9R22.5, 6 with a spare
Vehicle dimensions (mm)	6950×2350×2850
Tank dimension(mm)	4700×2000×1300
Gross vehicle weight(Kg)	11990
Curb weight(Kg)	5390
Rated weight(Kg)	6470
Tank volume	9600 Liters
Tank material	aluminum alloy/stainless steel/carbon steel

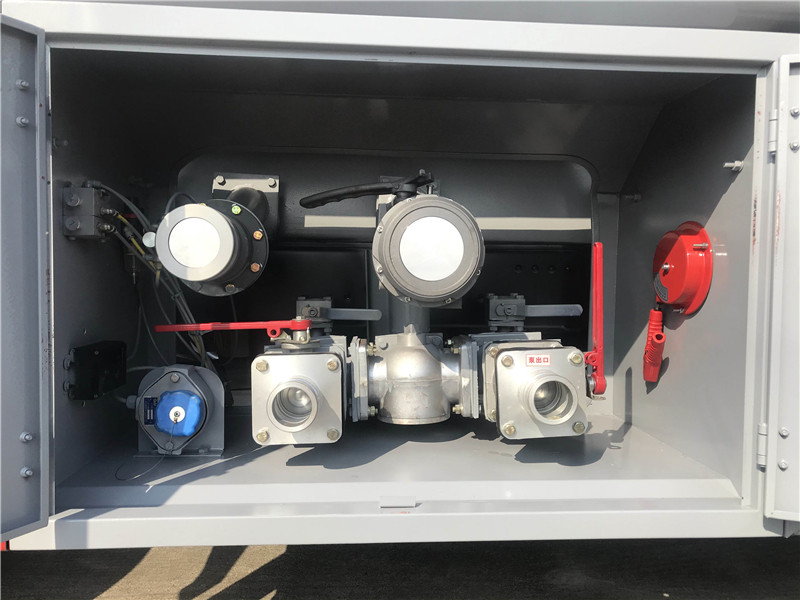

Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
