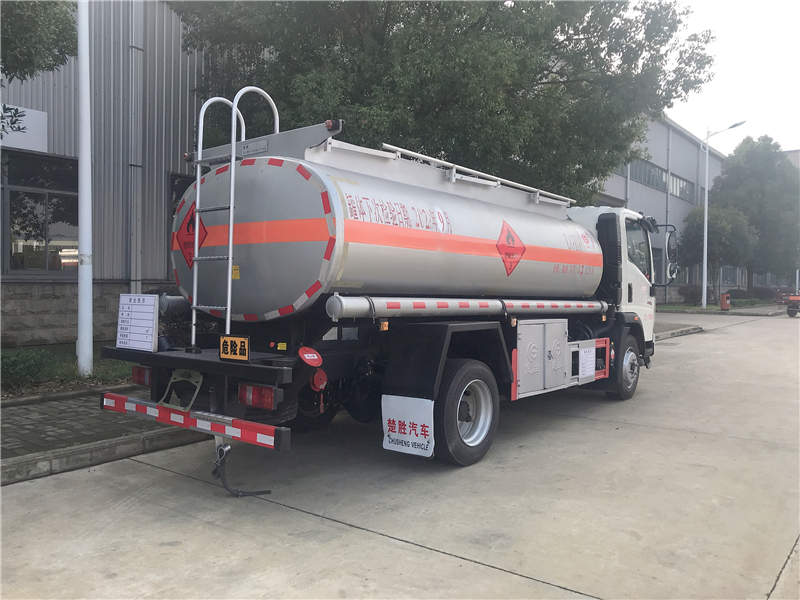

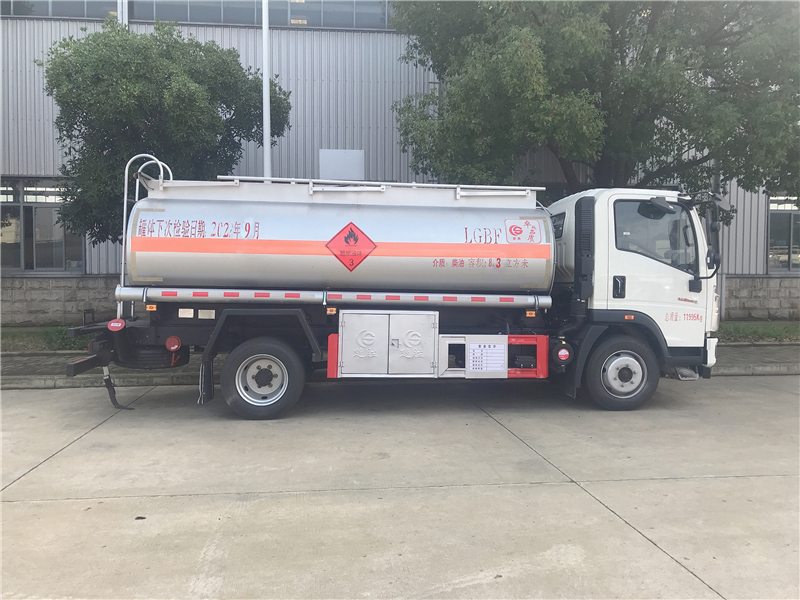

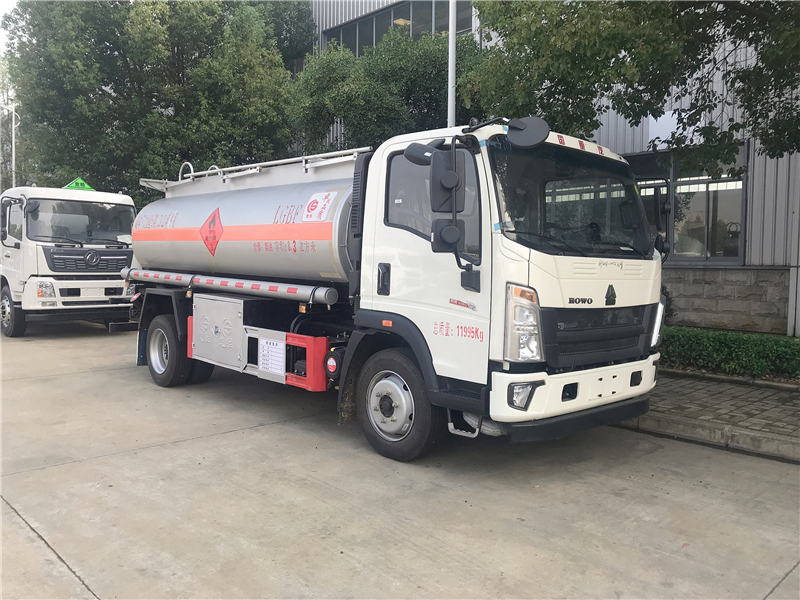

HOWO 8300 Liters Oil Truck

1-Tank volume:8.3m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.

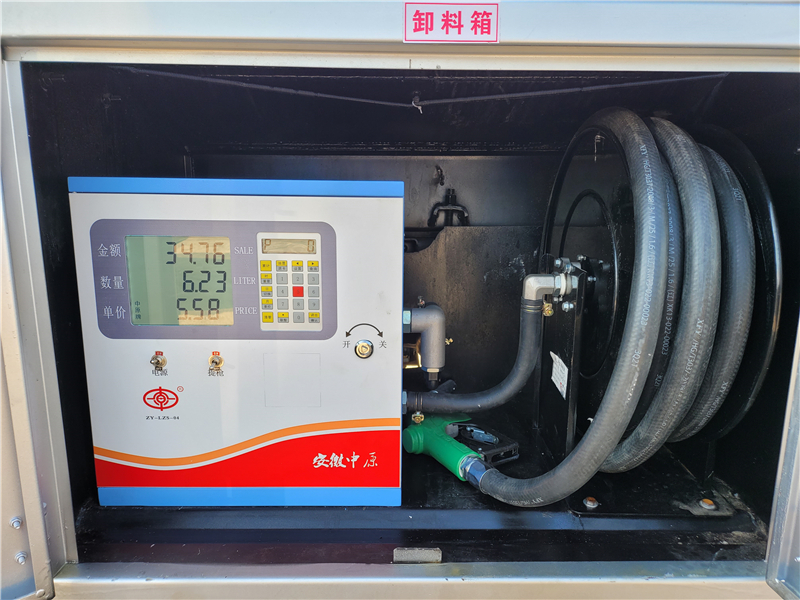

5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： HOWO 8300 Liters Oil Truck
Chassis brand： HOWO

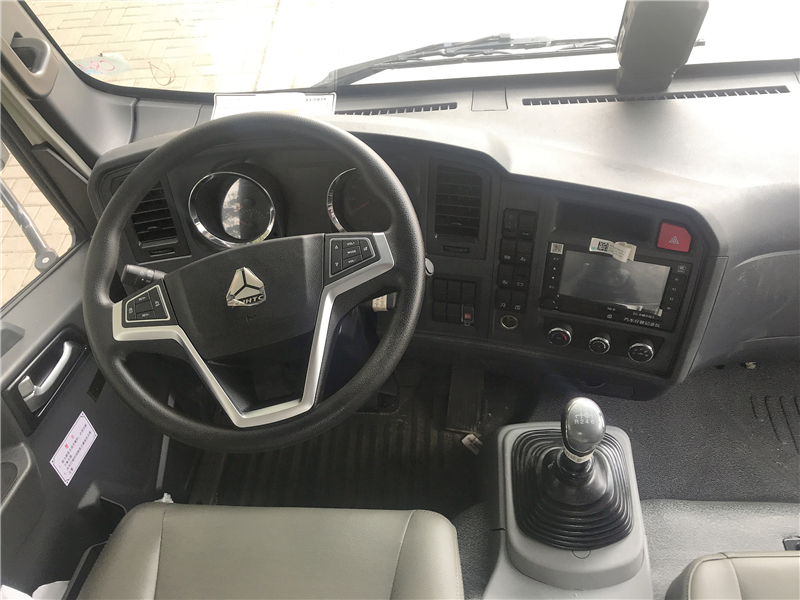

Cab： HOWO White flat top single row cab
Drive wheel： 4X2

Product Features

Brief Introduction of Refueling Truck

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

Main Parameter

Product Name	HOWO 8300 Liters Oil Truck
Chassis brand	HOWO
Cab	HOWO White flat top single row cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Weichai
Engine Model	WP3NQ160E61
Horse Power (HP)	160
Engine displacement	2.97L
Engine type	4 stroke, water-cooled, straight line 4 cylinder, diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	6 forward gears and 1 reverse gear
Wheel base (mm)	3800
Front wheel track (mm)	1776,1800,1820
Rear wheel track (mm)	1555,1595,1695,1795
Approach angle/departure angle	18/13(°)
F/R axle load	4285/7710
Axle numbers	2
Tire Specification and Quantity	245/70R19.5, 6 with a spare
Vehicle dimensions (mm)	6950×2350×2800
Tank dimension(mm)	4600×1950×1200
Gross vehicle weight(Kg)	11995
Curb weight(Kg)	5235
Rated weight(Kg)	6565
Tank volume	8.3 cubic meter
Tank material	aluminum alloy/stainless steel/carbon steel

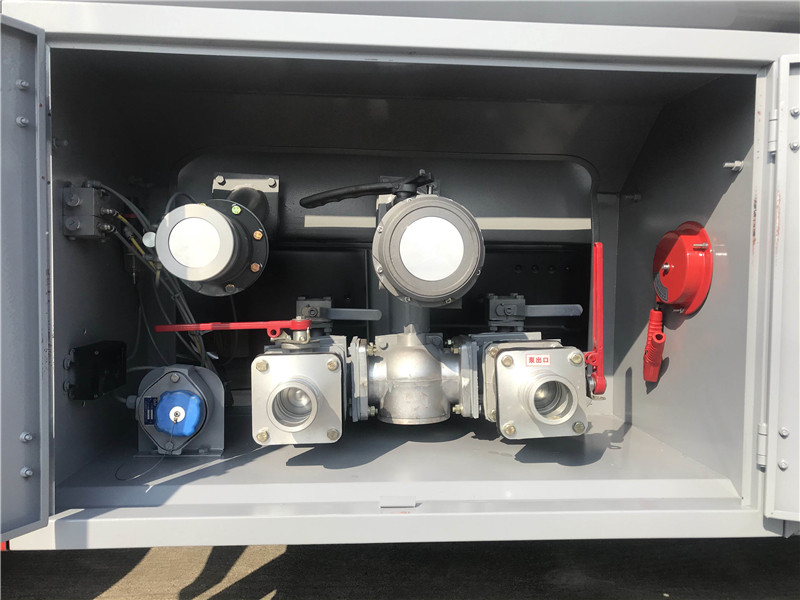

Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
