HOWO 6200 Liters Oil Truck

1-Tank volume:6.2m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.

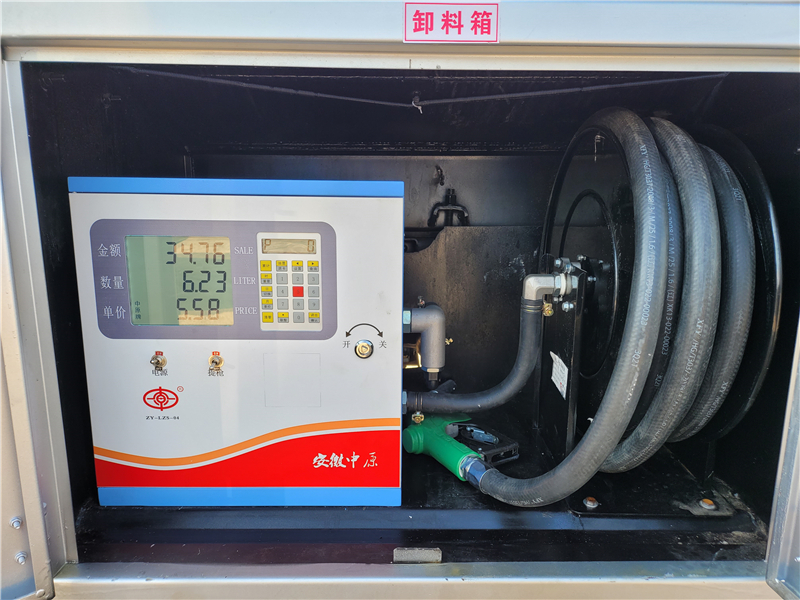

5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： HOWO 6200 Liters Oil Truck
Chassis brand： HOWO
Driver： HOWO 1900mm wide cab, single row seat
Drive wheel： 4X2

Product Features

Brief Introduction of Refueling Truck

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

Main Parameter

Product Name	HOWO 6200 Liters Oil Truck
Chassis brand	HOWO
Driver	HOWO 1900mm wide cab, single row seat
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Weichai
Engine Model	WP2.3NQ130E61
Horse Power (HP)	130
Engine displacement	2.29L
Engine type	4 stroke, water-cooled, straight line 4 cylinder, diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	6 forward gears and 1 reverse gear
Wheel base (mm)	3280,3360,3600,3800
Front wheel track (mm)	1610,1776,1796,1815
Rear wheel track (mm)	1555,1595,1645,1695,1795
Approach angle/departure angle	18/18(°)
F/R axle load	3300/5800
Axle numbers	2
Tire Specification and Quantity	7.50R16, 6 with a spare
Vehicle dimensions (mm)	5990×2100×2650
Tank dimension(mm)	3800×1800×1160,3800×1700×1180
Gross vehicle weight(Kg)	9100
Curb weight(Kg)	4000,3905
Rated weight(Kg)	4970,4905,5065,5000
Tank volume	6.2 cubic meter
Tank material	aluminum alloy/stainless steel/carbon steel

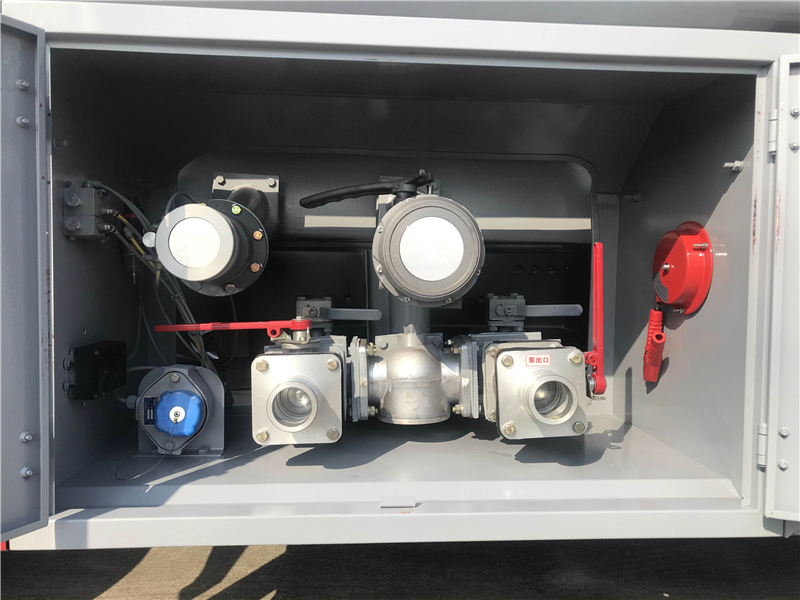

Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
