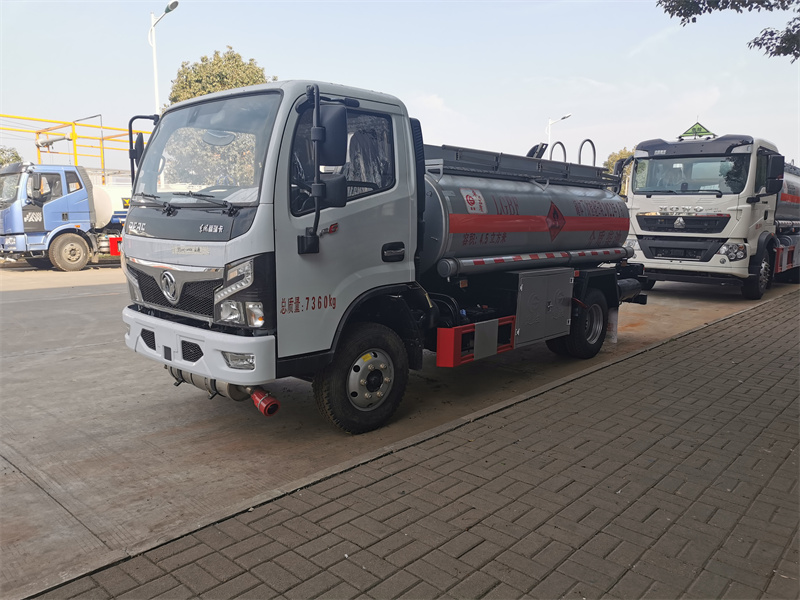

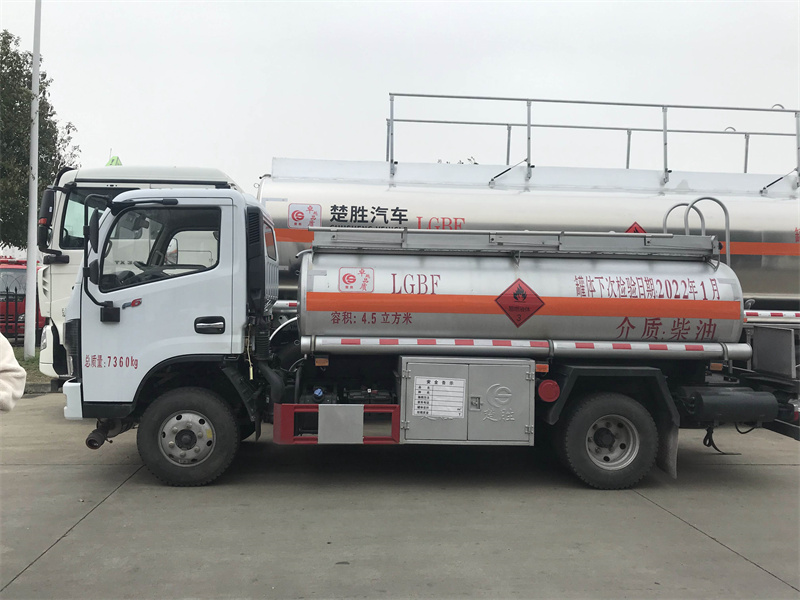

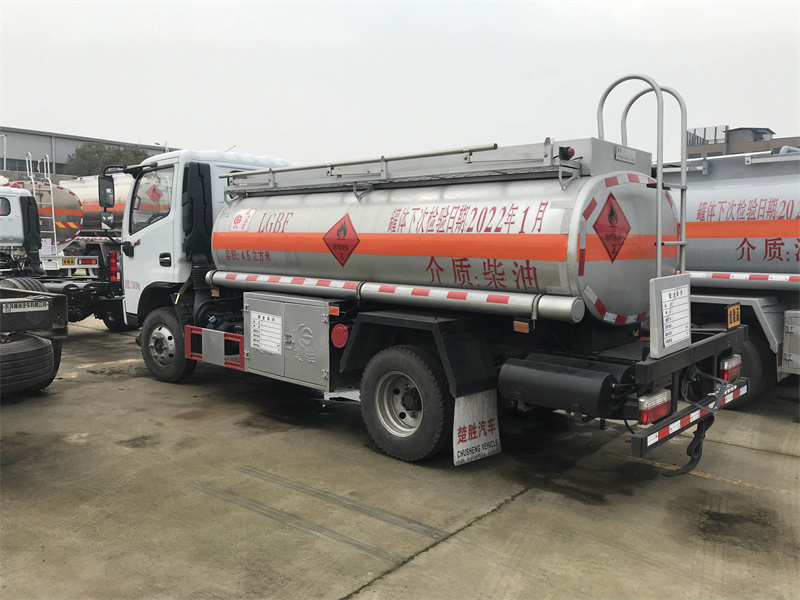

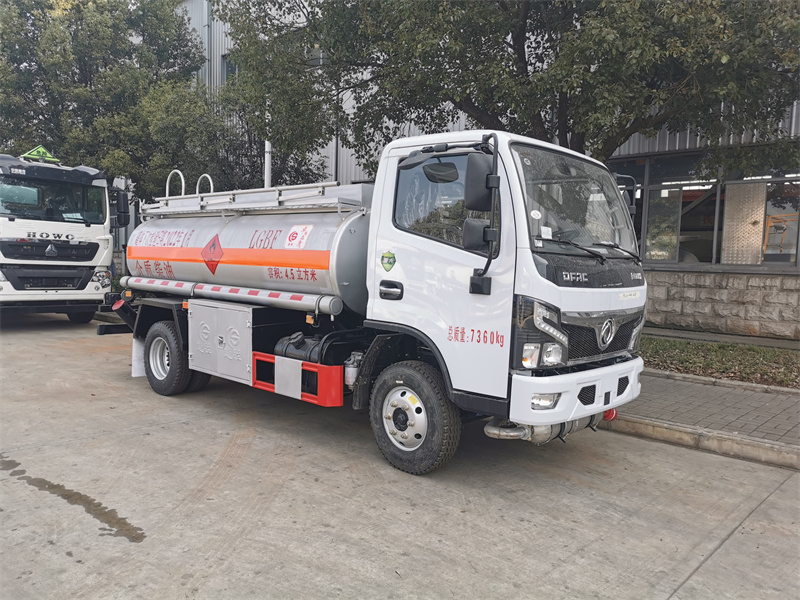

Dongfeng 4500 Liters Oil Truck

1-Tank volume:4.5m³(can be made into 1 or 2 compartments)

2-Tank material：aluminum alloy; stainless steel；carbon steel

3-The whole set of European configurations for each compartment: European type manhole, overflow probe system, vapor recovery system, bottom valve, API adaptors.
4-Emergency bottom valve and foldable aluminum handrail.
5-You can choose to install different brands of fuel dispensers.
6-Tank color: customized.

Product Name： Dongfeng 4500 Liters Oil Truck
Chassis brand： Dongfeng

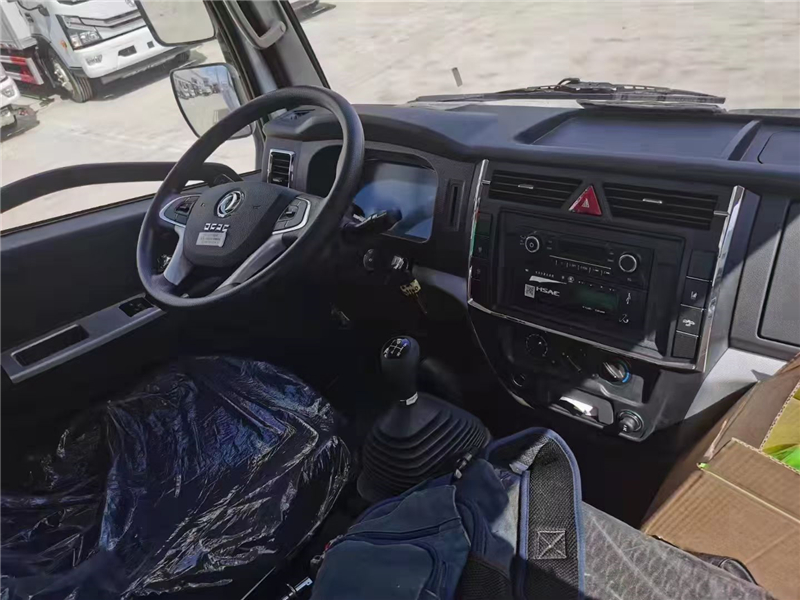

Cab： F6 white flat top single row cab
Drive wheel： 4X2

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Dongfeng 4500 Liters Oil Truck
Chassis brand	Dongfeng
Cab	F6 white flat top single row cab
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Yunnei

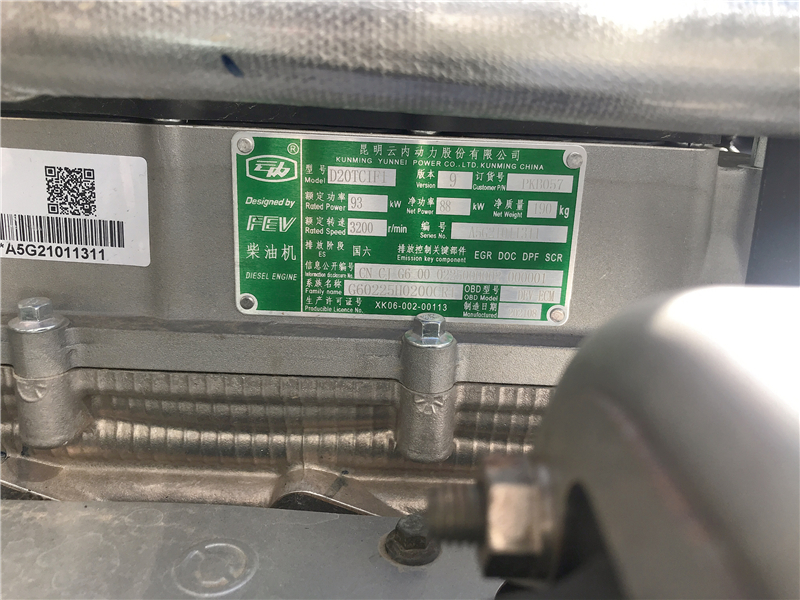

Engine Model	D20TCIF1
Horse Power (HP)	126
Engine displacement	2L
Engine type	4 stroke, water-cooled, straight line 4 cylinder, diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	6 forward gears and 1 reverse gear
Wheel base (mm)	3308
Front wheel track (mm)	1525,1519,1605
Rear wheel track (mm)	1498,1516,1586,1670,1458,1650,1630
Approach angle/departure angle	27.7/15(°)
F/R axle load	2640/4720
Axle numbers	2
Tire Specification and Quantity	7.50R16, 6 with a spare
Vehicle dimensions (mm)	5990×2000,2150,2050×2500
Tank dimension(mm)	3800×1500×1000
Gross vehicle weight(Kg)	7360
Curb weight(Kg)	3670
Rated weight(Kg)	3560,3495
Tank volume	4500 Liters
Tank material	aluminum alloy/stainless steel/carbon steel
Standard configuration	Including a high flow oil pump, one lower loading and unloading oil valve, one oil and gas recovery valve, one oil and gas recovery interface, one set of pneumatic combination switches, one anti overflow probe rod, and one socket, one European standard tank cover, and one subsea valve,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
