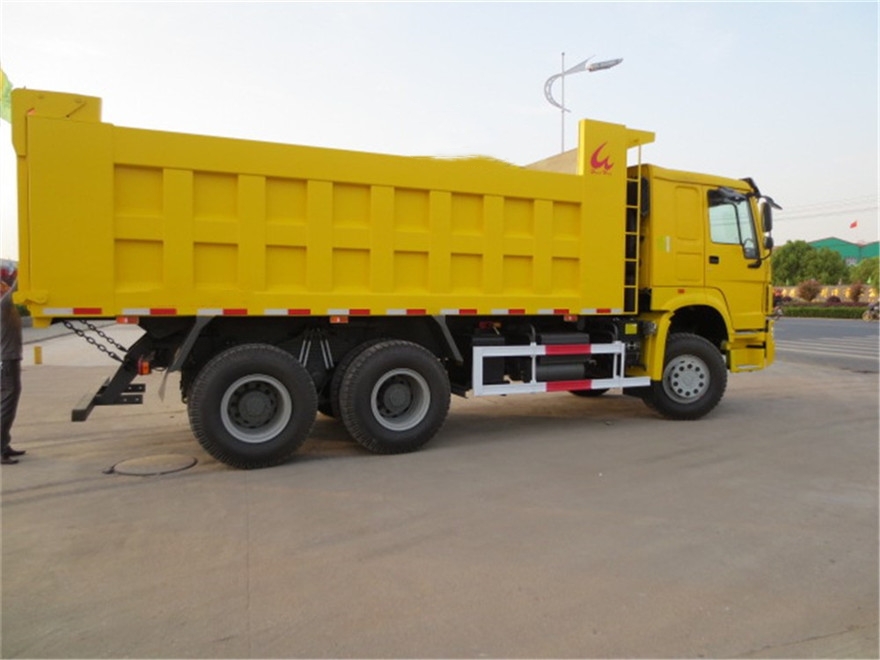

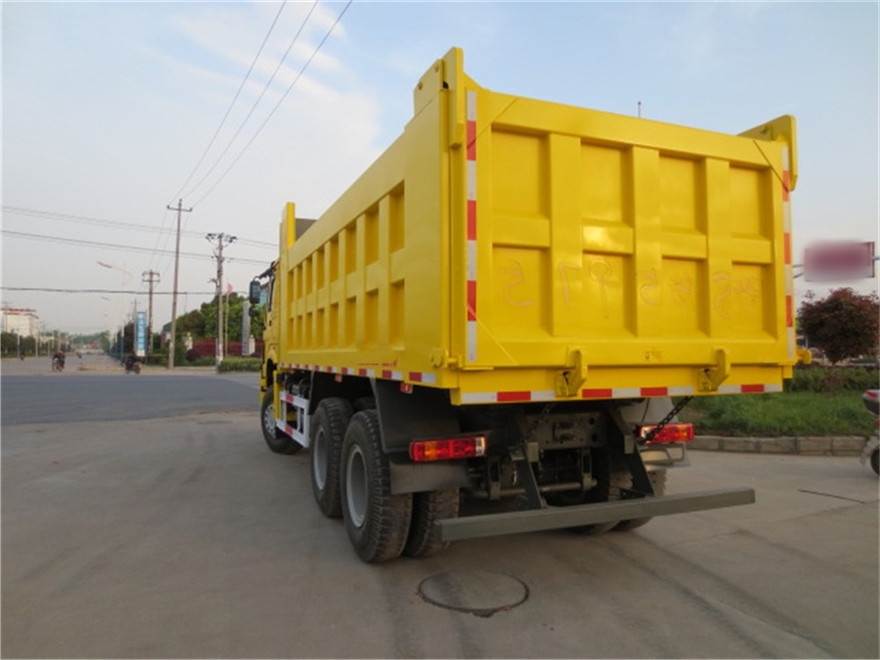

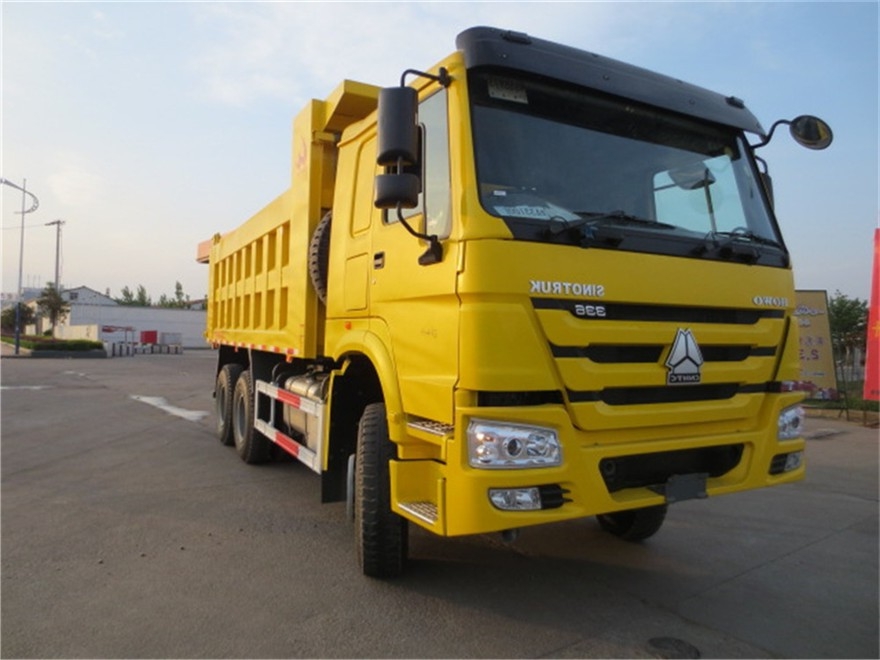

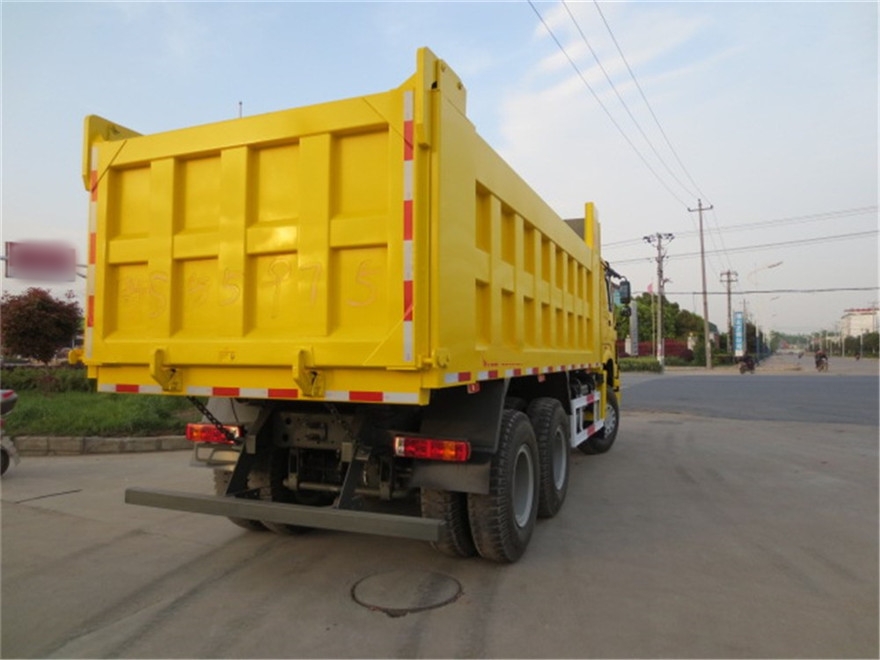

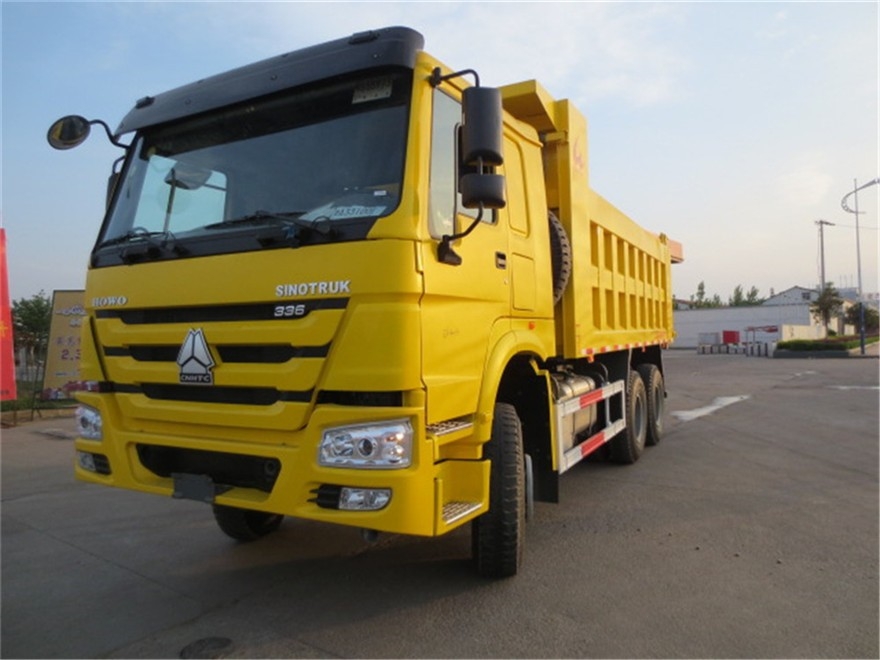

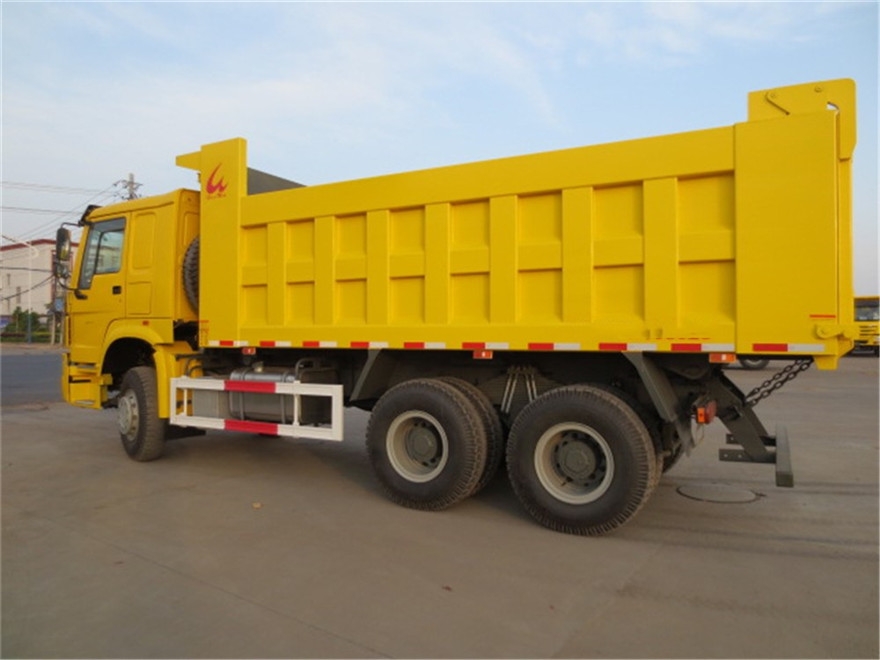

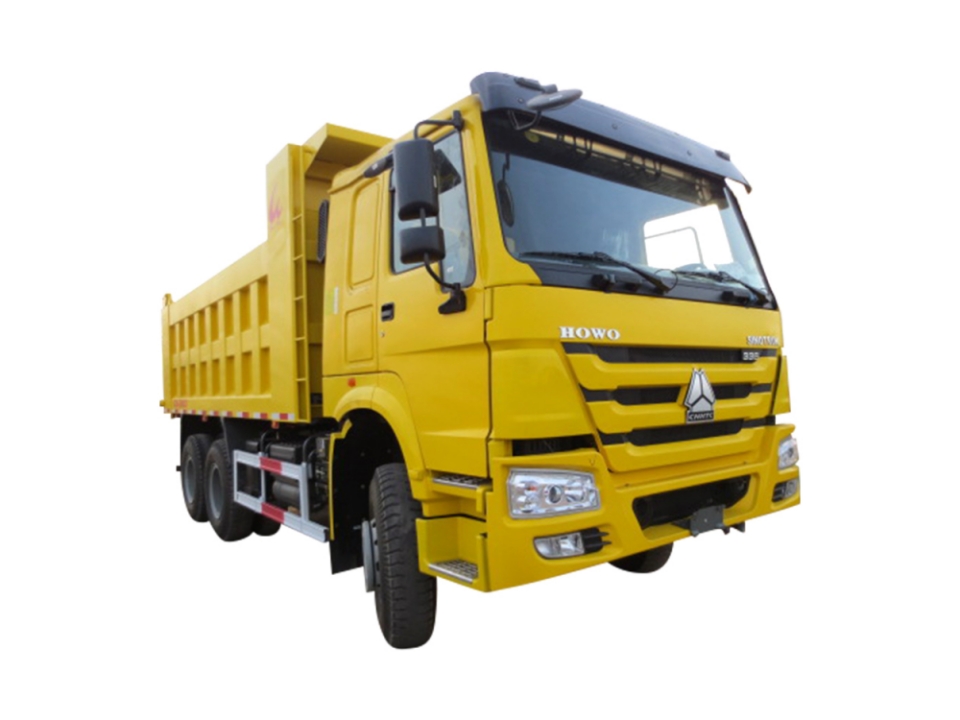

30 Ton Howo Dump Truck

Howo dump truck is also called howo tipper truck, howo dumper truck, is mainly used to transport kinds of sand, soil, rock.,ore. etc material.

Product feature

10 wheel howo dump chassis and CNHTC large power engine

Adopt China high strength manganese steel, strong and sturdy;

30 ton payload capacity

Factory direct sale

Product Name： 30 Ton Howo Dump Truck
Driving Type： 6x4
Dump body Volume(cbm)： 16
Rated payload weight(kg)： 30000

Product Features

30 Ton Howo Dump Truck

A dump truck, also known as atippertruck, refers to a vehicle that unloads goods on its own by hydraulic or mechanical lifting. Also known as a dump truck. It consists of components such as car chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

The compartments of dump trucks are divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the control system, and backward tilting is more common. Pushing the piston rod causes the compartment to tilt, while a few tilt in both directions.

Product parameters

Product Name	30 Ton Howo Dump Truck
Driving Type	6x4
Dump body Volume(cbm)	16
Rated payload weight(kg)	30000
Overall Dimension(mm)	8800x2450x3500
Dump body size(mm)	5600X2300X1400
Engine brand & model	CNHTC
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	3
Transmission Type	HOWO 10-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	12.00R20, 10+1 spare
Cab	Howo HV76 flat proof, single sleeper, radio, AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
