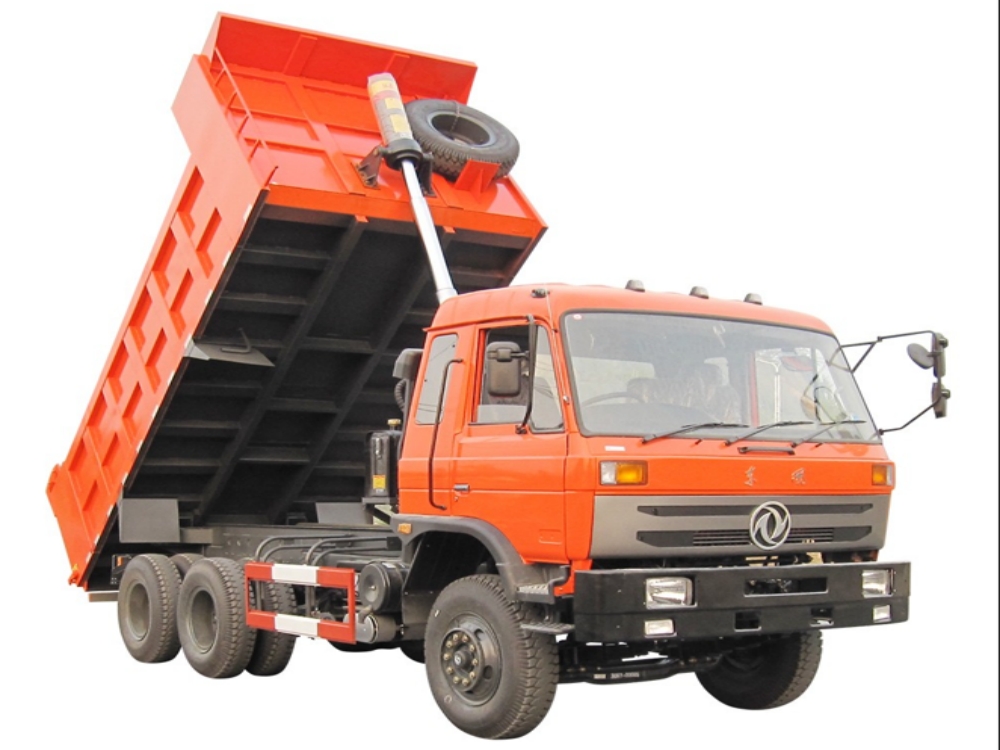

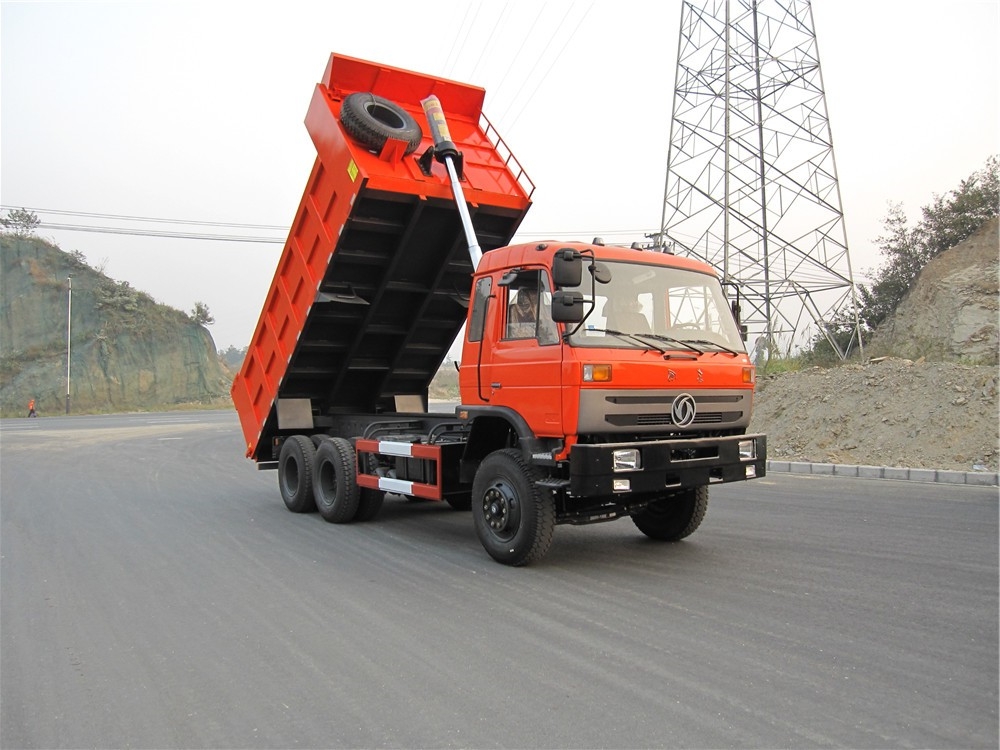

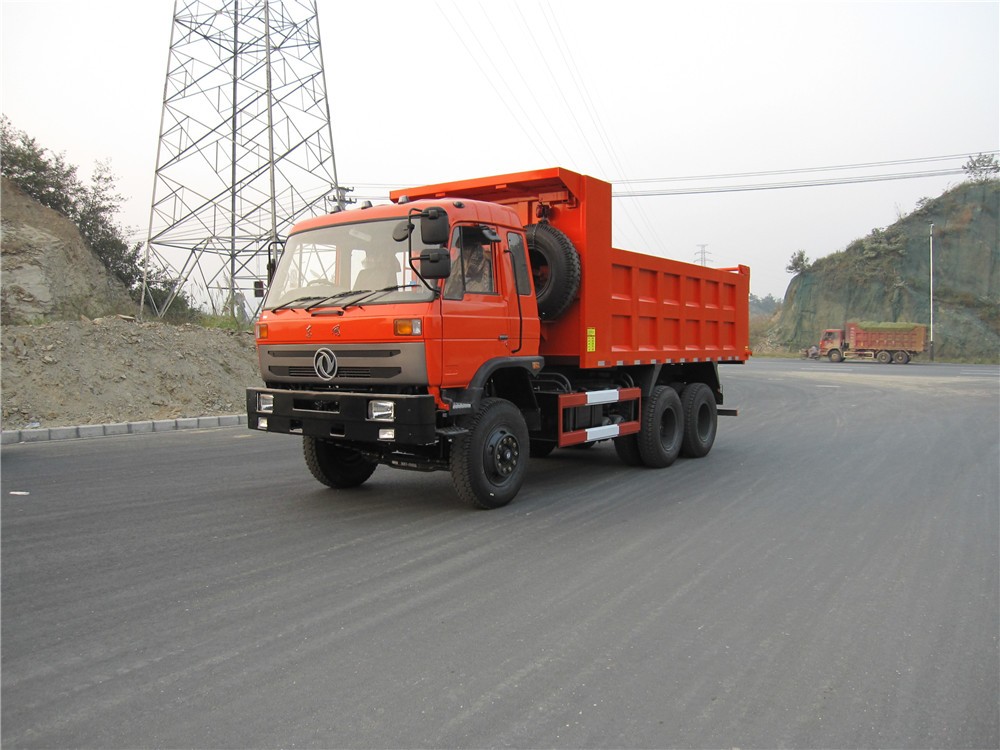

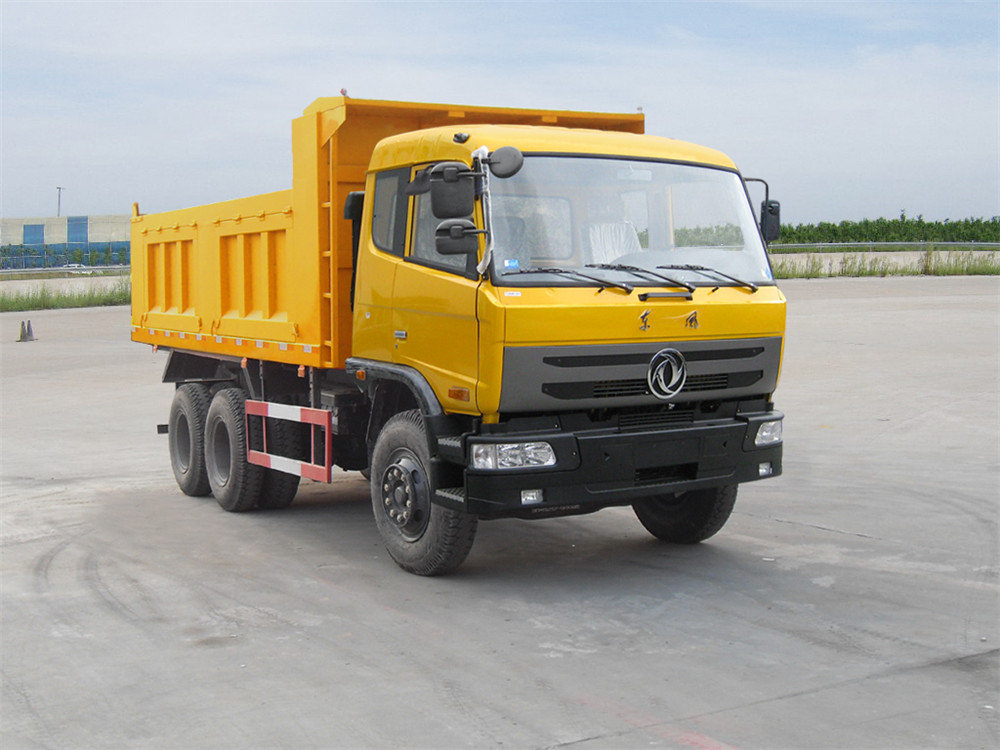

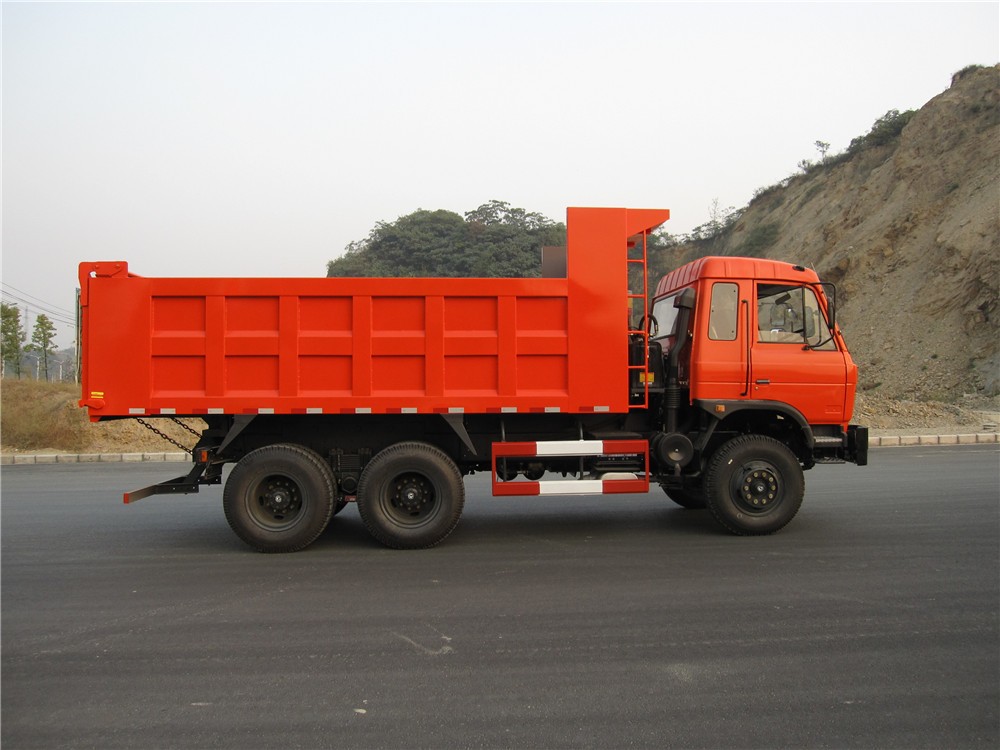

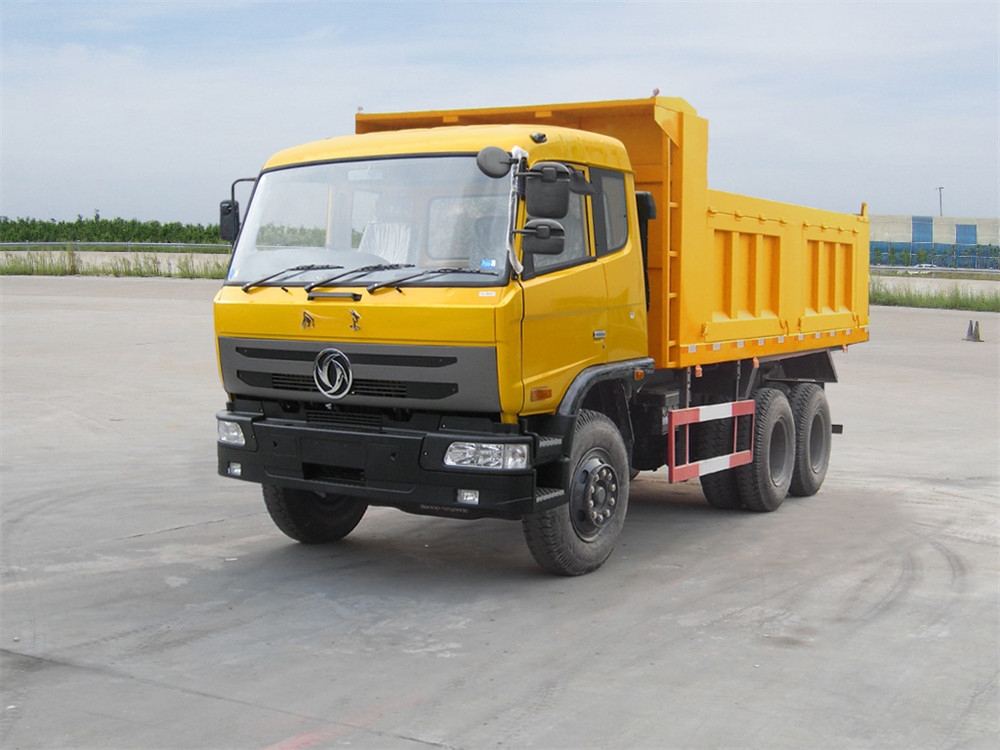

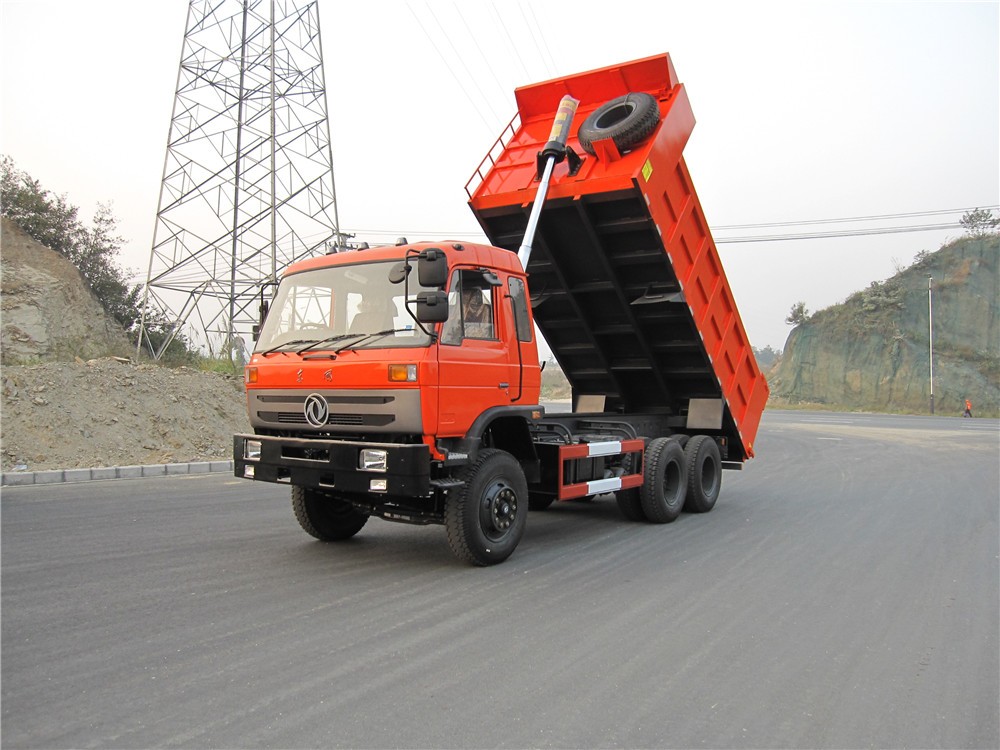

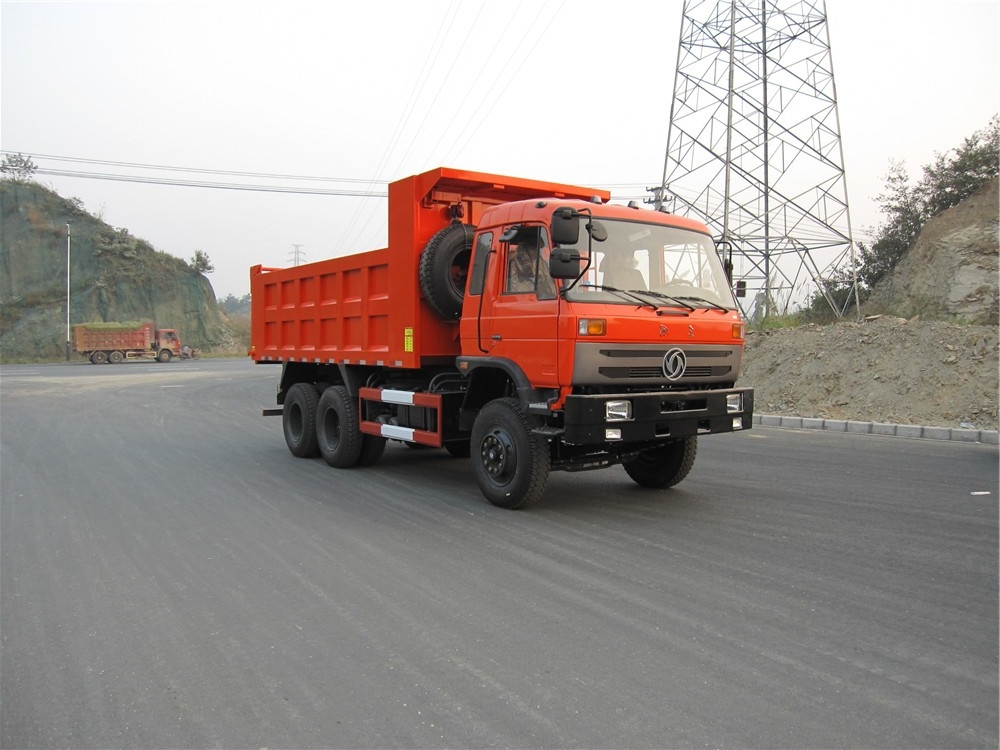

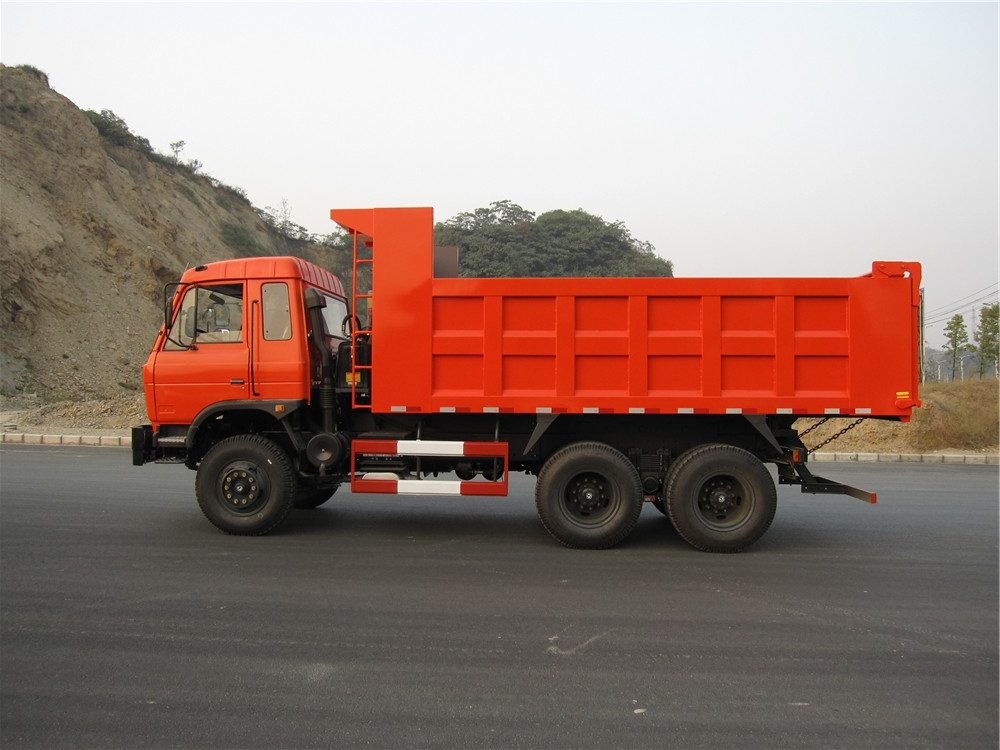

6X4 Dongfeng 20 Ton Dump Truck

Chassis brand Dongfeng

Product origin China, Hubei

Delivery time around 10 working days

Supply capacity 1,500 units one year

20 ton dump truck is mainly used for loading and unloading 20 ton soil, sand and loose materials. 20 ton dump truck is composed of 20 ton dump body dongfeng 10 wheel dump chassis, and hydraulic lifting system, etc.

Dump body of dongfeng 20 ton dump truck can automatically tip over to unload at a certain angle, greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.

Product Name： 6X4 Dongfeng 20 Ton Dump Truck
Driving Type： 6X4
Dump body Volume(cbm)： 15
Rated payload weight(kg)： 20000

Product Features

6X4 Dongfeng 20 Ton Dump Truck

20 ton dump truck is also called 20ton tipper truck,20 ton dumper truck, dongfeng 20 ton dump truck apply to transport kinds of sand, sol, rock ore etc material.

Product feature

Dongfeng 10 wheel dump truck chassis with Dongfeng Cummins engine

Dump body made of China high strength manganese steel, strong and sturdy;

20 ton payload capacity

Worry -free after-sale

Product parameters

Product Name	6X4 Dongfeng 20 Ton Dump Truck
Driving Type	6X4
Dump body Volume(cbm)	15
Rated payload weight(kg)	20000
Overall Dimension(mm)	8300x2400x3200
Dump body size(mm)	5400x2300x1200
Engine brand & model	DONGFENG Cummins & B190 33
Engine type	4 stroke,water-cooled, straight line 6 cylinders, diesel
Axle Quantity	3
Transmission Type	FAST 8 forwards,1 reverse gear, manual
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20, 10+1 spare
Cab	Flat proof, single sleeper,radio,AC
Dump body material	High strength manganese steel
Main configuration	1.Side plate 6mm, floor plate 8mm 2. Front mounted hydraulic lifting cylinder.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
