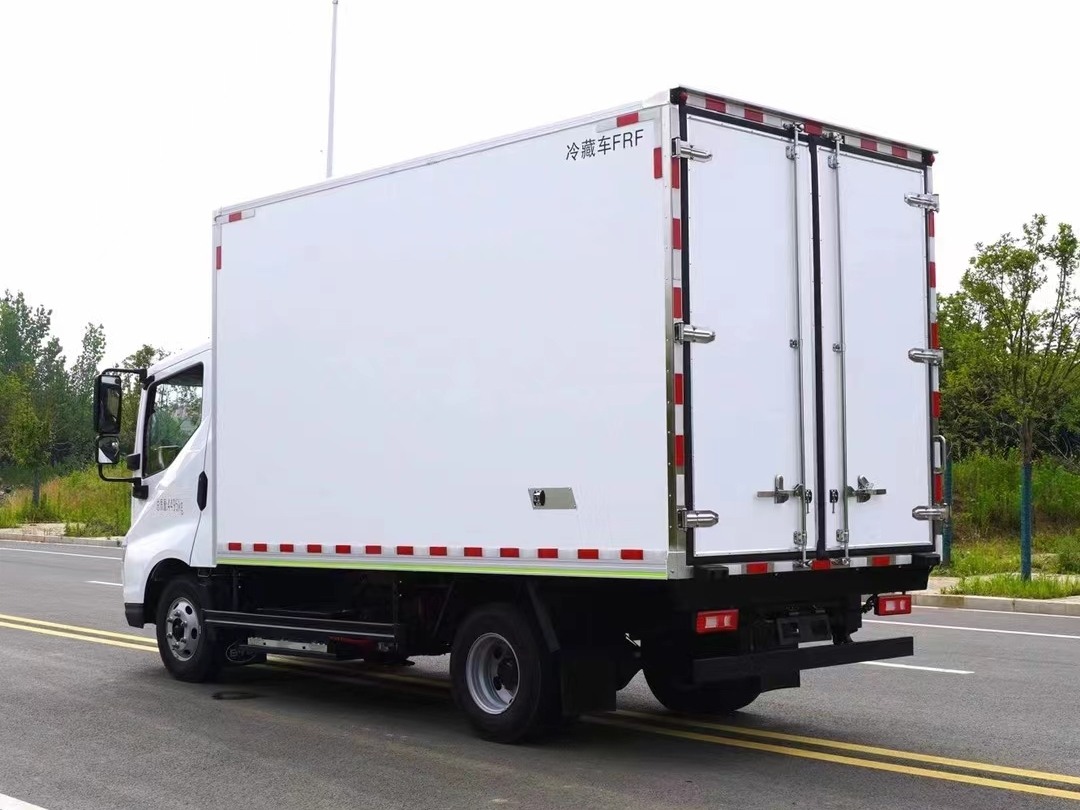

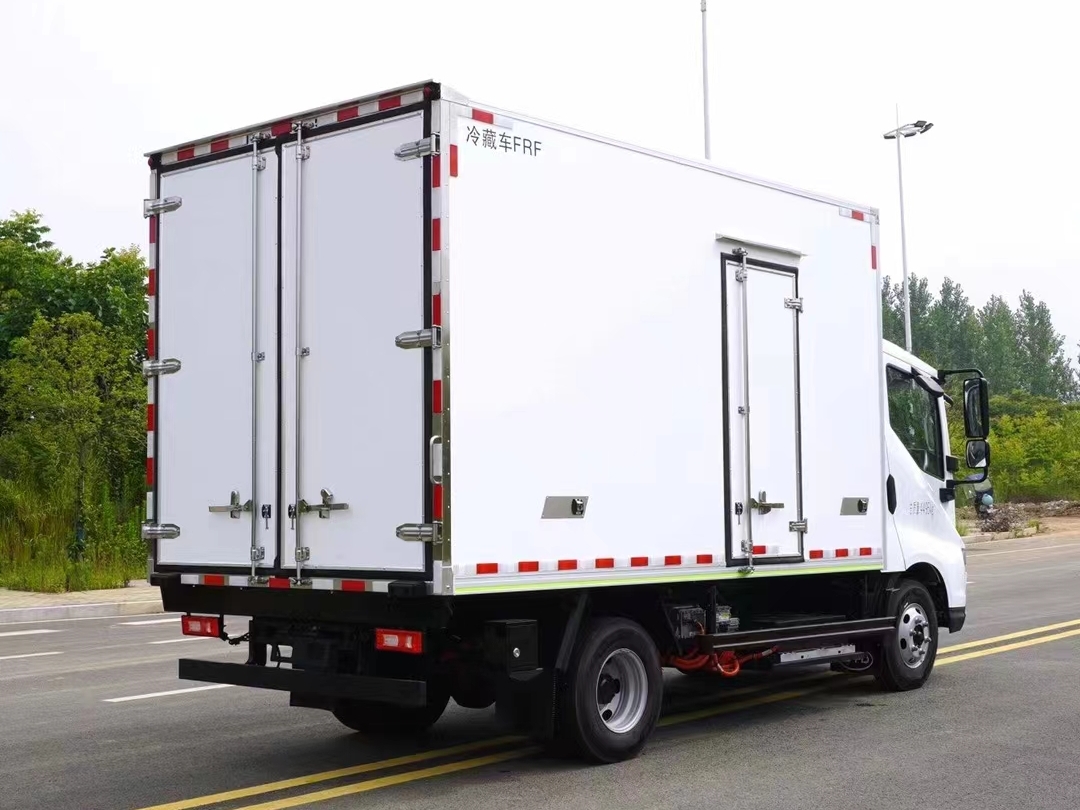

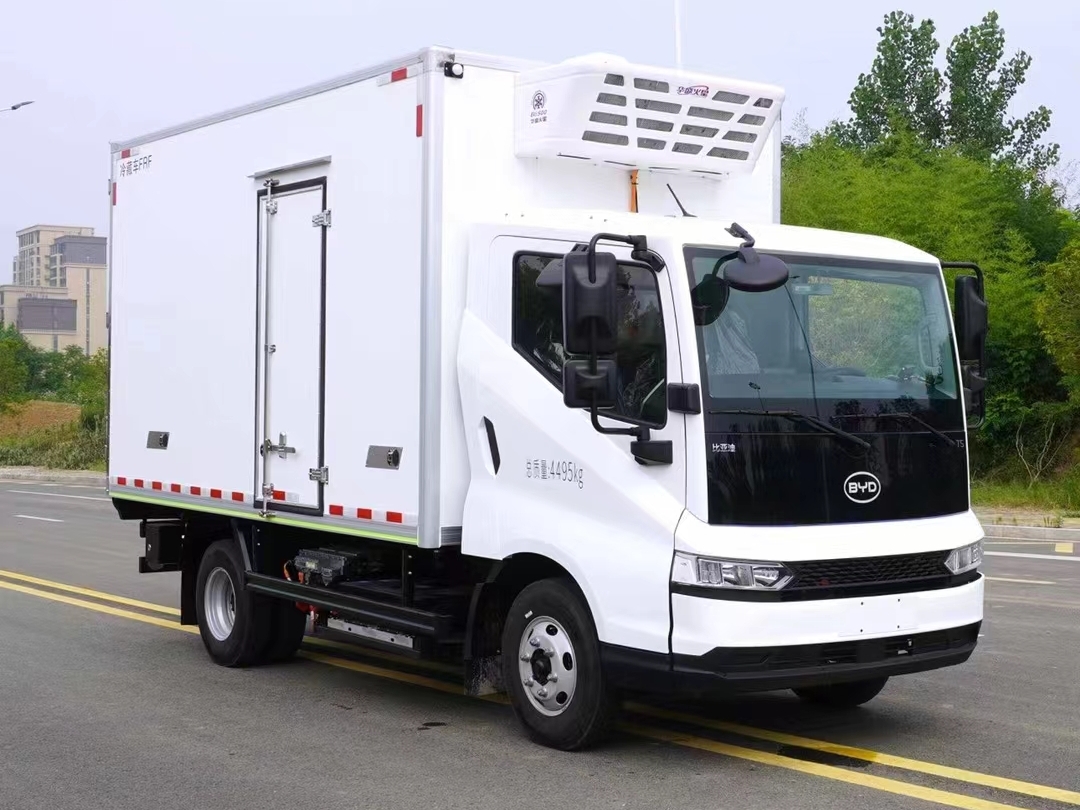

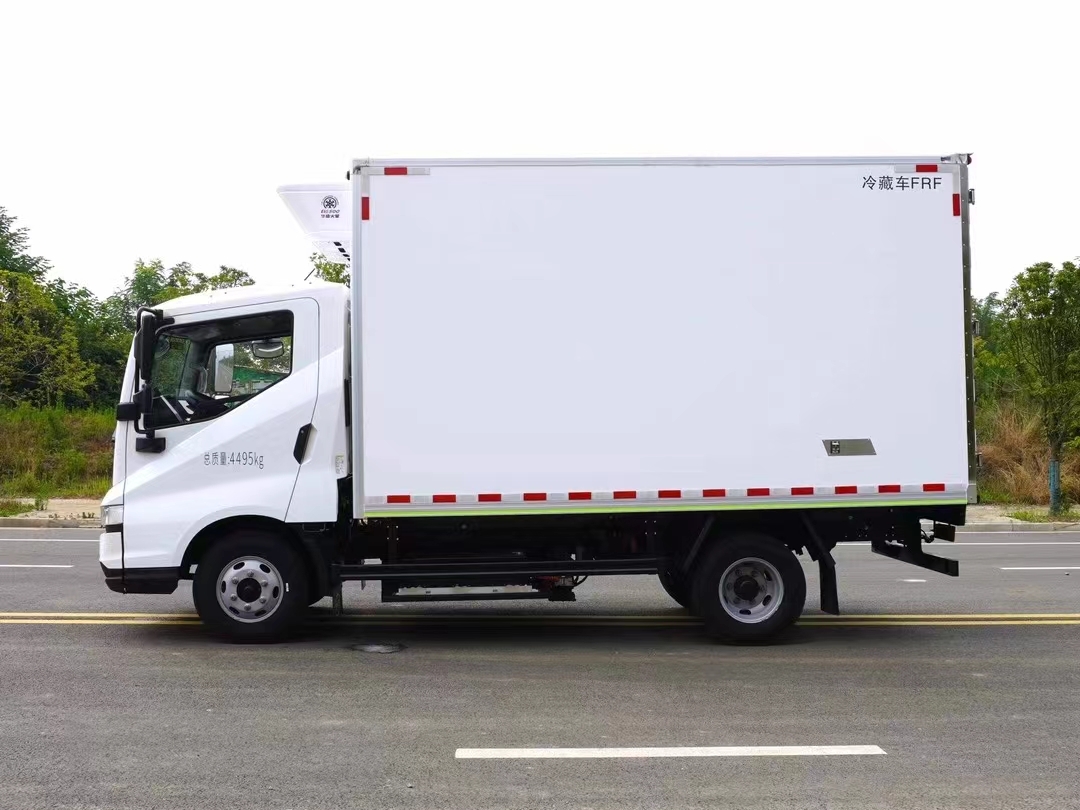

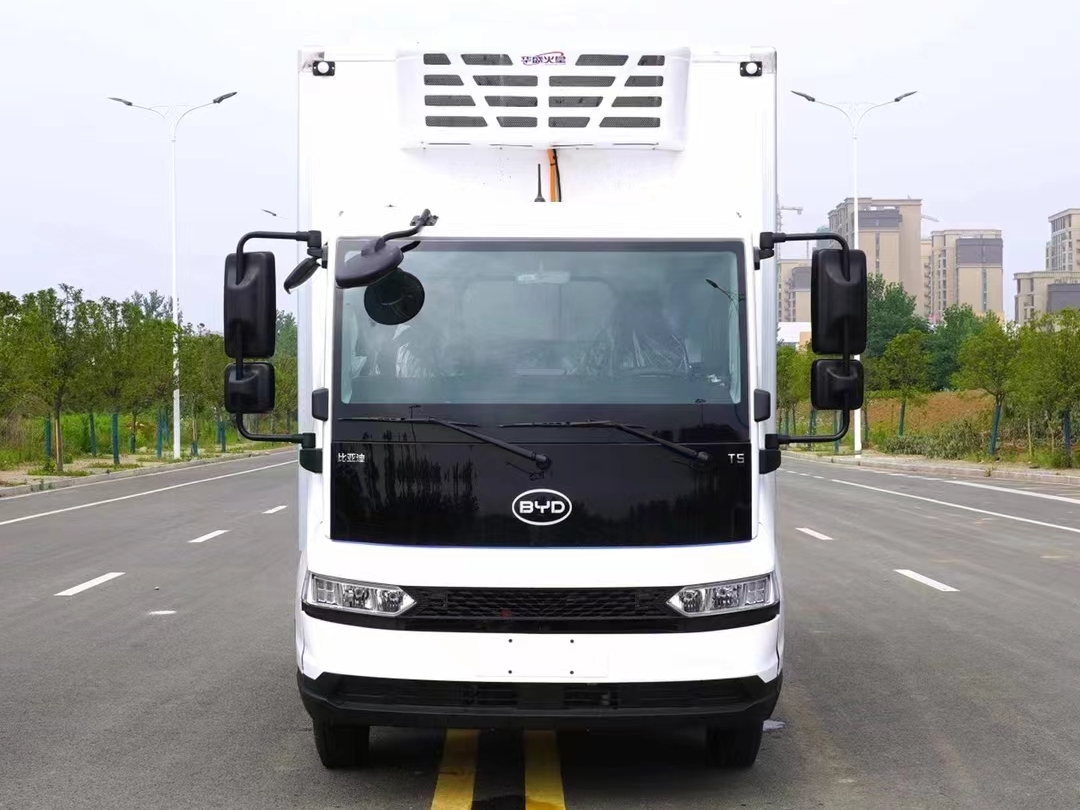

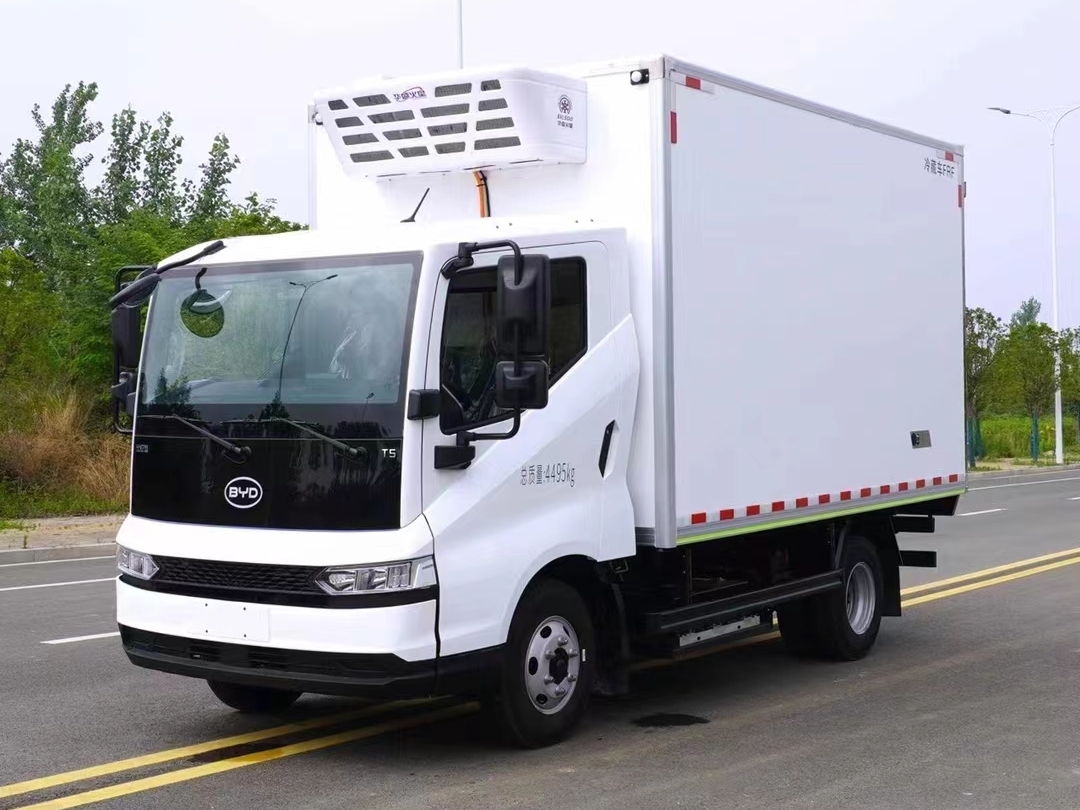

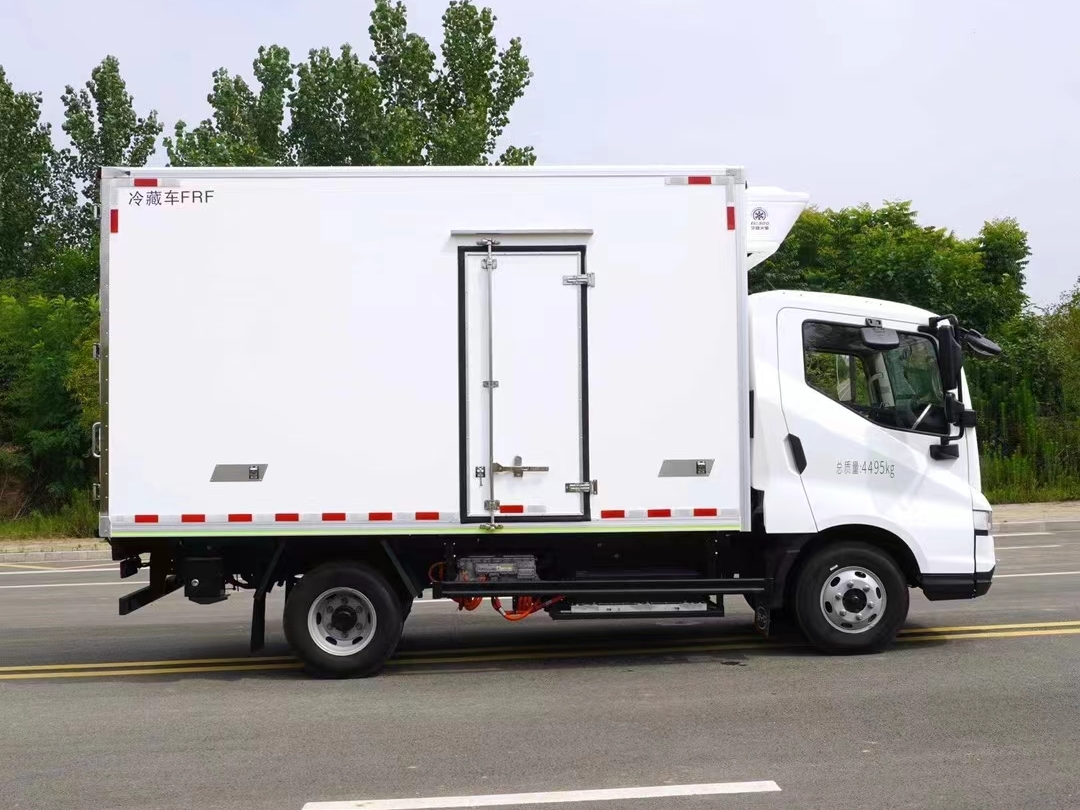

BYD T5EV pure electric refrigerated truck

Chassis configuration:

BYD T5 single row luxury cab, lithium iron phosphate blade battery, 94.3kWh capacity, range:>275 kilometers, high-efficiency flat wire motor drive axle, highest motor efficiency
37%, peak power of 150kw, peak torque of 340Nm, 0-50km/full load acceleration takes only 5.5 seconds. 3/5+6 leaf springs, 7.00R16 tires, service brake: hydraulic brake, warranty service: battery 8 years/500000 kilometers, electric motor
Control for 5 years/250000 kilometers, complete vehicle for 3 years/100000 kilometers Configuration: DC fast charging, wide body single row cab, full LCD combination instrument panel, one key start, knob shift mode, automatic air conditioning, electric doors and windows, central locking, remote key, multifunctional
Steering wheel, daytime running lights+automatic headlights, front wheel and rear drum, OTA remote upgrade, electronic parking system EPB, body stability system ESC, anti lock braking ABS, hill start assist HHC, cruise control, reverse radar, no spare tire
Optional: 10.1-inch multimedia screen, Dilink intelligent networking system (remote vehicle status query, anti-theft alarm status response, remote car search, remote power on/off, remote unlocking, remote air conditioning, in car GPS navigation system, in car)
NIFI hotspot, intelligent voice control system, reverse image.

Installation configuration:

1.The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

2.Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units

Product Name： BYD T5EV pure electric refrigerated truck
Driving Type： 4X2
Total weight(kg)： 4495(Kg)
Curb weight(kg)： 3250(Kg)

Product Features

BYD T5EV pure electric refrigerated truck

Pure electric refrigerated trucks, also known as new energy refrigerated trucks or electric refrigerated trucks, are mainly characterized by using stored power to drive the electric host, achieving the purpose of driving. They have the advantages of low operating costs, easy maintenance, zero emissions, and low noise.

Pure electric refrigerated trucks use a storage power source to drive the electric main unit, achieving the purpose of driving. It has the following characteristics: low usage cost, easy maintenance, zero emissions, and low noise. Users can choose to install different brands of refrigeration units according to their needs, such as Hurricane, Carrier, Kai Xue, Cold King, etc. In addition, the compartment of the pure electric refrigerated truck is made of environmentally friendly materials and has good insulation performance. Some models are also equipped with advanced intelligent devices, such as electronic handbrake EPB+automatic parking AutoHold, rotary electronic shifter, 8-inch central control screen, voice control, etc., to enhance driving experience and safety

Product parameters

Product Name	BYD T5EV pure electric refrigerated truck
Driving Type	4X2
Total weight(kg)	4495(Kg)
Curb weight(kg)	3250(Kg)
Rated weight(kg)	1115(Kg)
Wheel base(mm)	3360(mm)
Overall Dimension(mm)	5995×2260×3380(mm)
Cargo box size(mm)	4000×2100×2200(mm)
Engine brand & model	130Kw electric motor (176 horsepower)
Displacement(L)/Power(kw)	Pure electric
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT, 6+1 spare

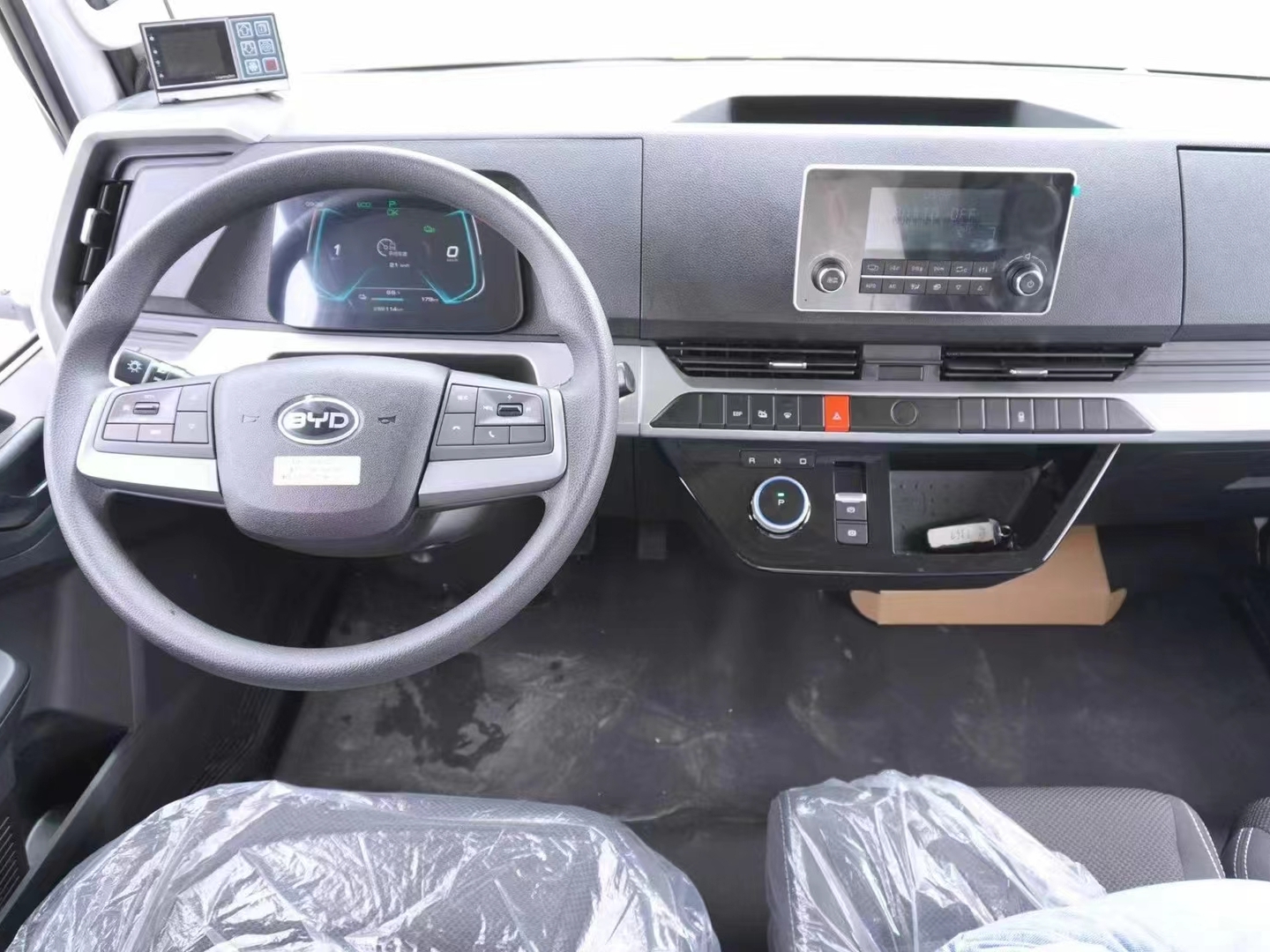

Cab	Wide body single row cab, full LCD combination instrument panel, one key start, knob shift mode, automatic air conditioning, electric doors and windows, central locking, remote key, multifunctional steering wheel
Cargo box configuration	The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

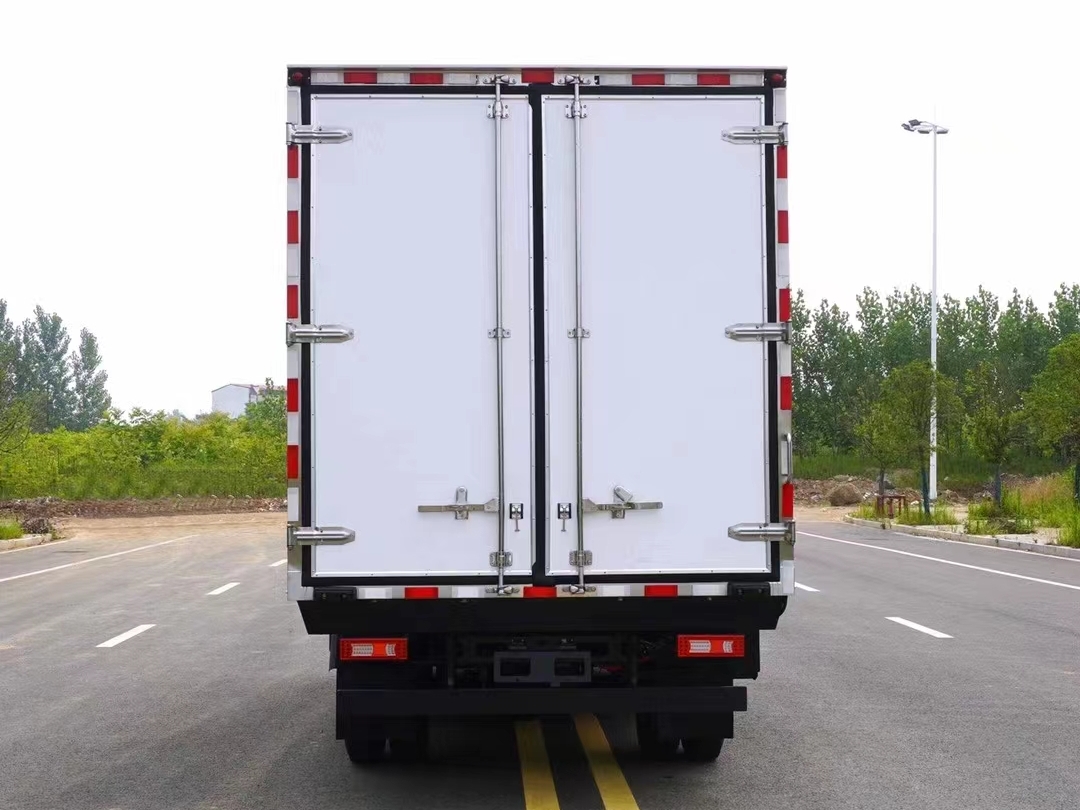

Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
