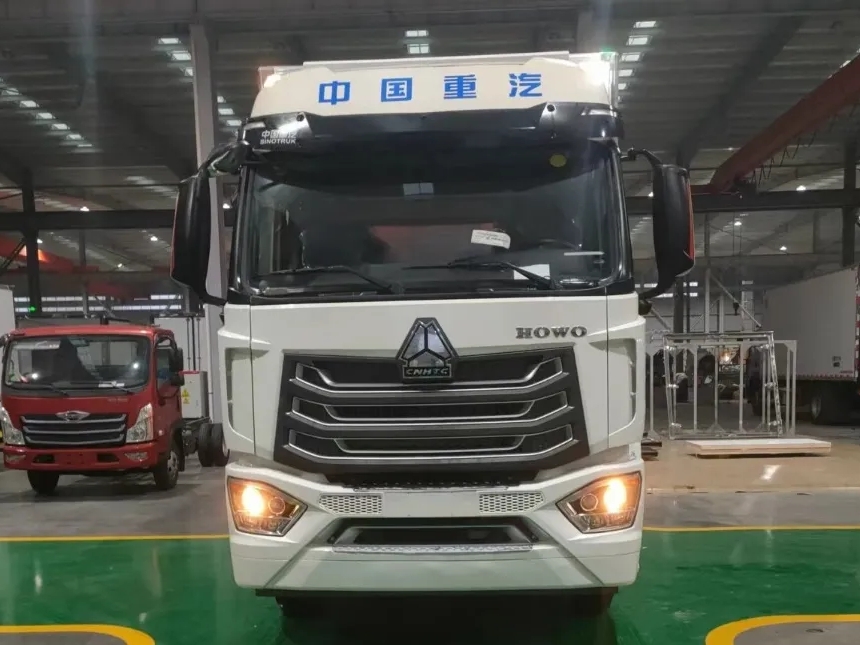

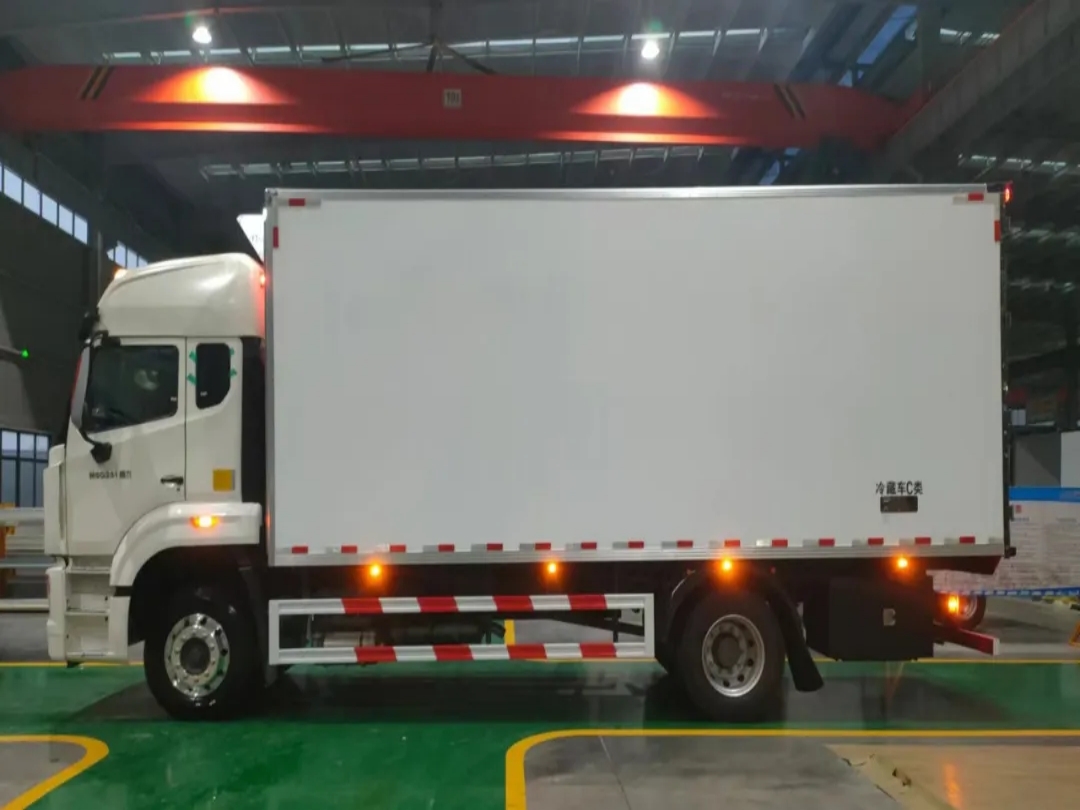

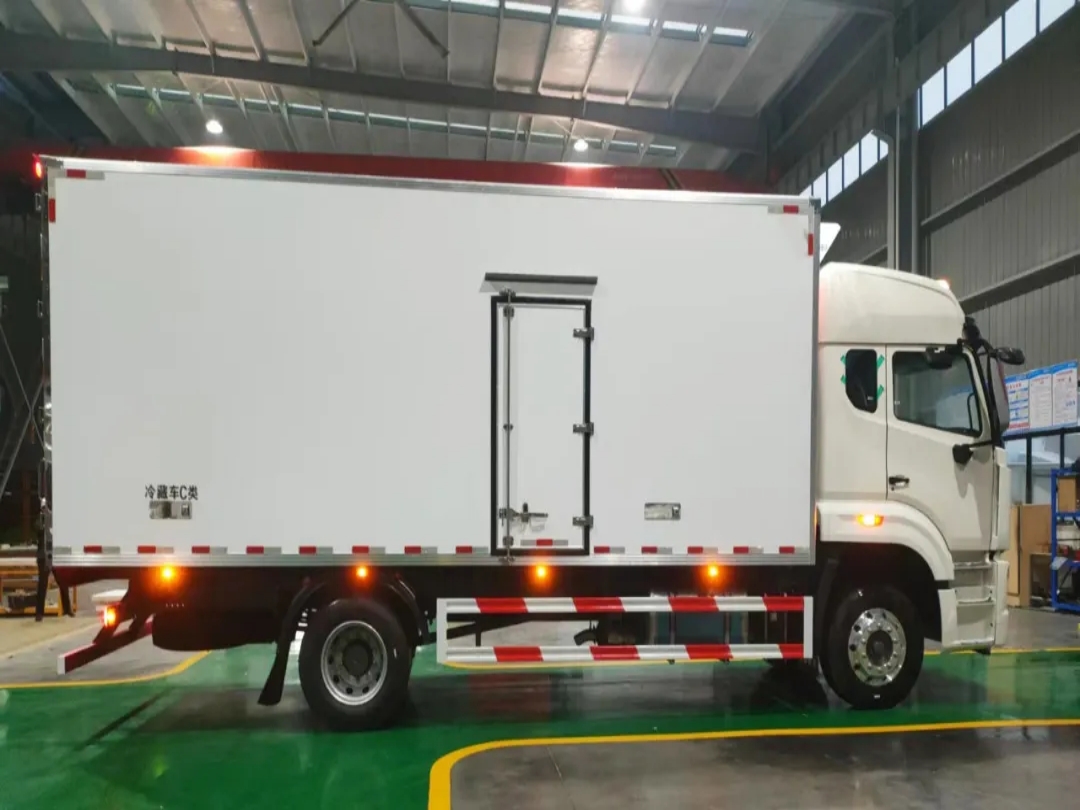

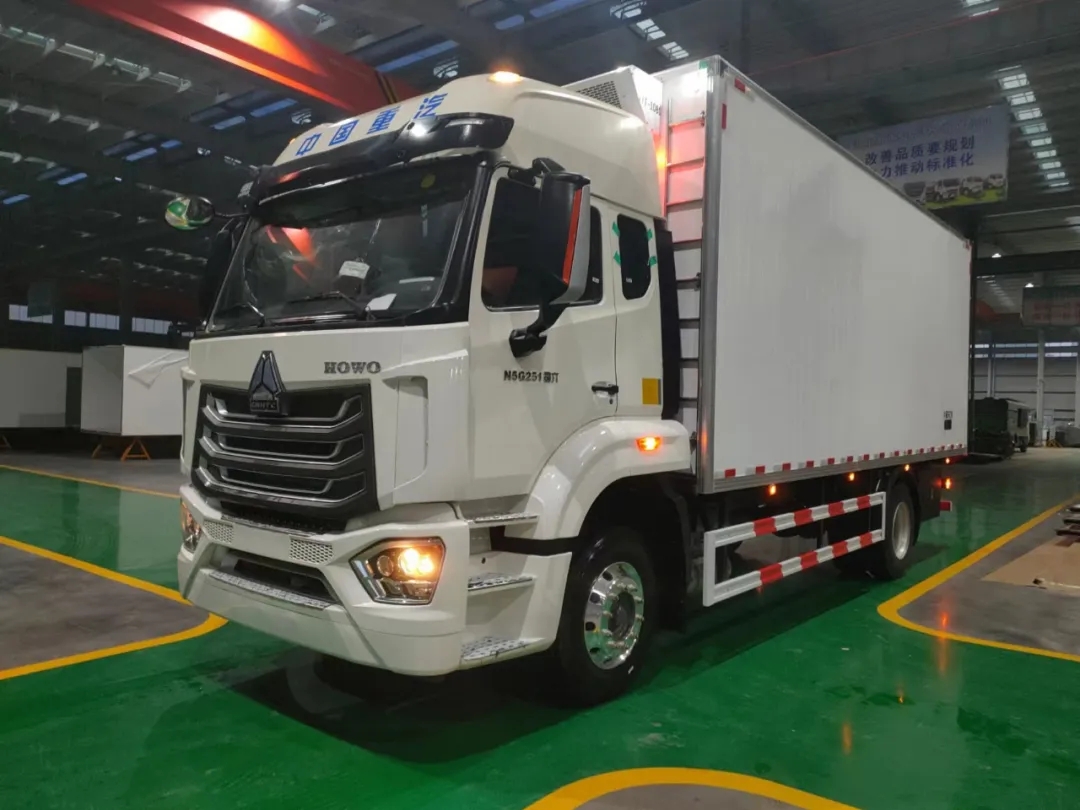

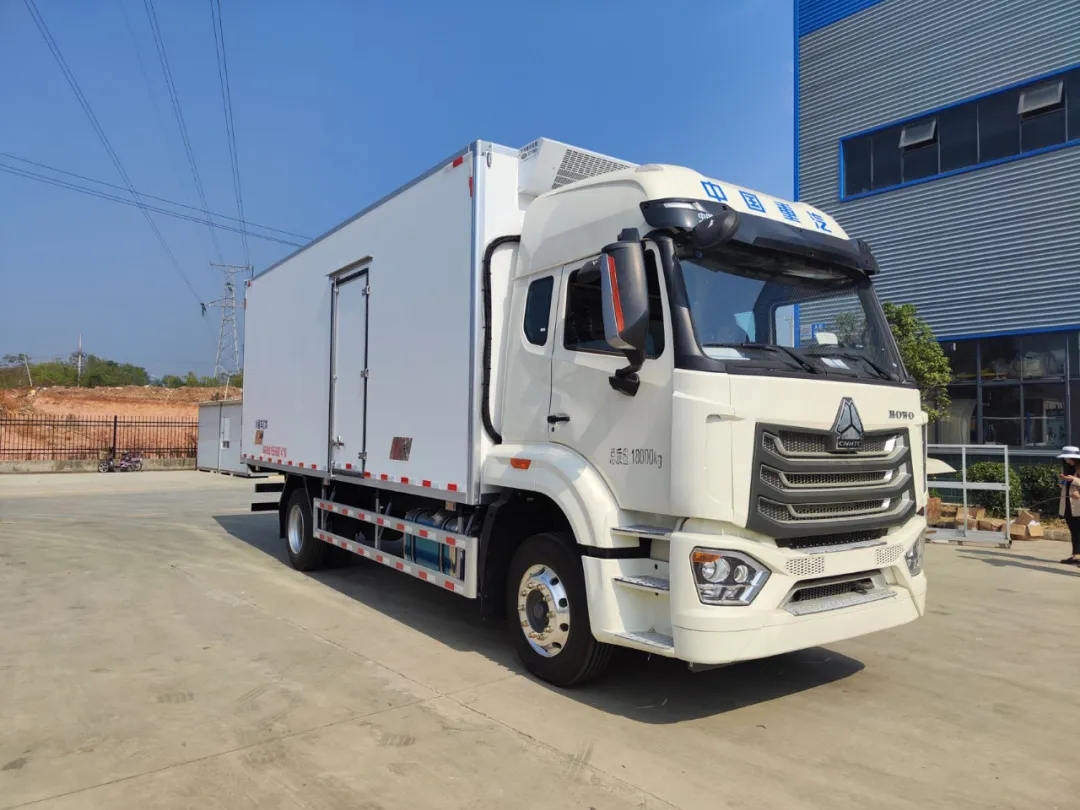

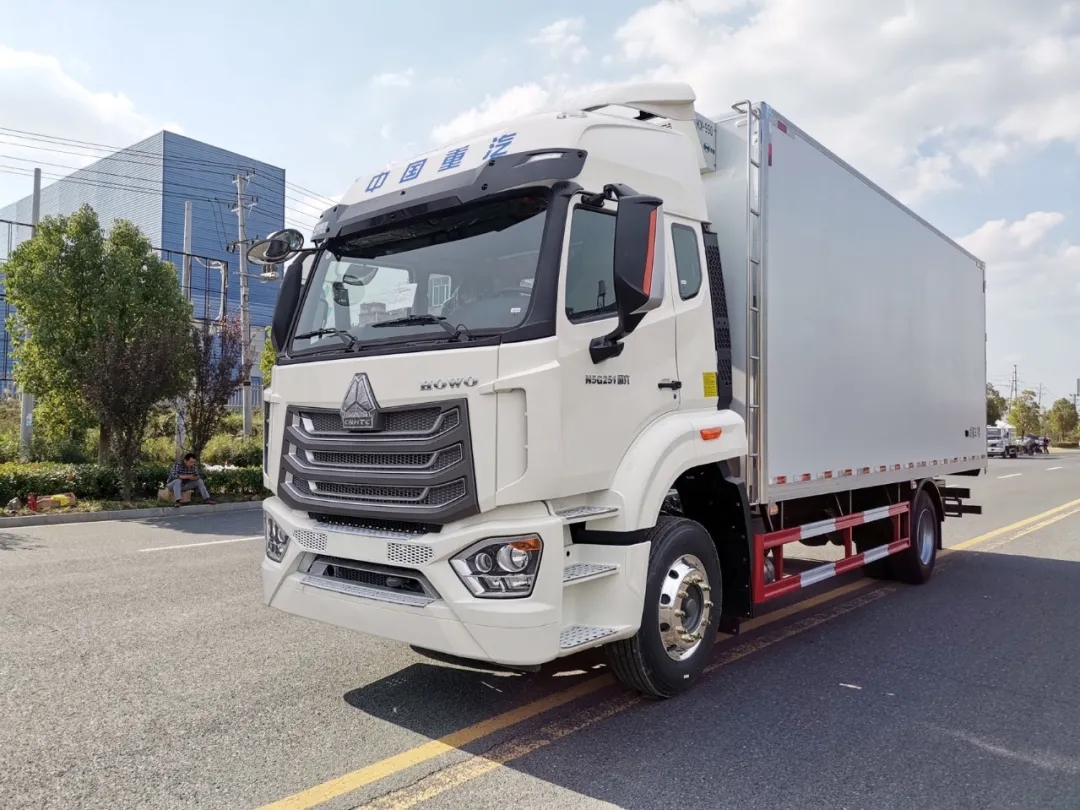

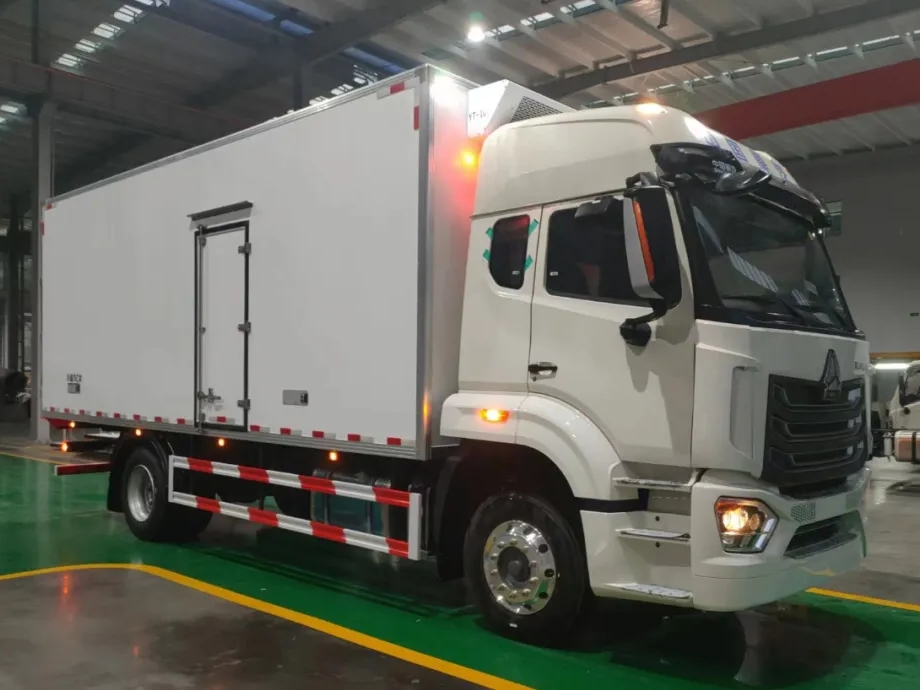

Sinotruk HOWO 6.8m refrigerated van truck

Chassis configuration:

1. Engine: MC07.29-60

2.Transmission type: 8-speed gearbox

3.Tyre: 275/80R22.5, 6 tires with a spare

4.Wheelbase: 5100,4500,4700(mm)

5 Other:High top two sleeping berth cab, four airbag suspension, electric flip cab, airbag seats, automatic air conditioning, ABS, China National Heavy Duty Truck Intelligent Communication B version, multimedia central control large display screen, four-way camera, driving recorder, electric doors and windows, remote key, central lock, LED daytime running lights, multifunctional steering wheel, electric rearview mirror with heating
Installation configuration:

1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.

4.The truck can be equipped with an optional tailboard.

Product Name： Sinotruk HOWO 6.8m refrigerated van truck
Driving Type： 4X2
Rated payload weight(kg)： 9990,9925,9670,9605,9370,9305(Kg)
Wheel base(mm) ： 5100,4500,4700(mm)

Product Features

Sinotruk HOWO 6.8m refrigerated van truck

A refrigerated van truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

A refrigerated truck consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	Sinotruk HOWO 6.8m refrigerated van truck
Driving Type	4X2
Rated payload weight(kg)	9990,9925,9670,9605,9370,9305(Kg)
Wheel base(mm)	5100,4500,4700(mm)
Overall Dimension(mm)	9230,8350,8700,8490,8840,9470×2600×3980(mm)
Cargo box Volume(cbm)	40
Cargo box size(mm)	6830,5850,6200×2420×2520(mm)
Engine brand & model	MC07.29-60
Displacement(L)/Power(kw)	6.87L/210kW
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	275/80R22.5, 6 tires with a spare

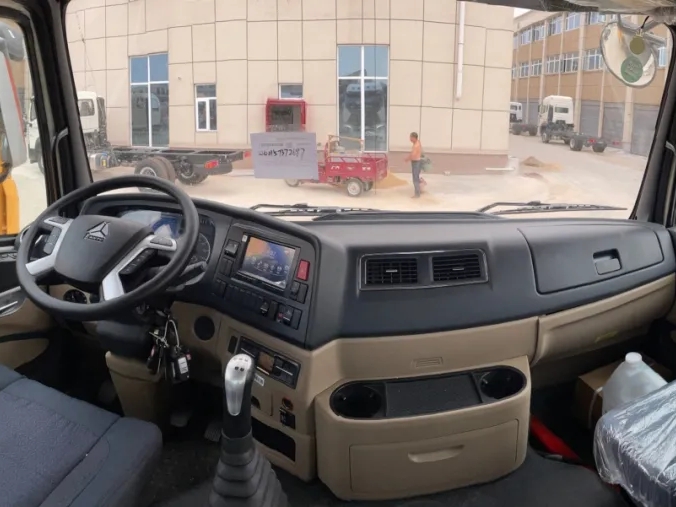

Cab	High top two sleeping berth cab, four airbag suspension, electric flip cab, airbag seats, automatic air conditioning, ABS, China National Heavy Duty Truck Intelligent Communication B version, multimedia central control large display screen, four-way camera, driving recorder, electric doors and windows, remote key, central lock, LED daytime running lights, multifunctional steering wheel, electric rearview mirror with heating
Compartment material	FRP inside and outside,8 cm polyurethane foam middle
Compartment structure	Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
