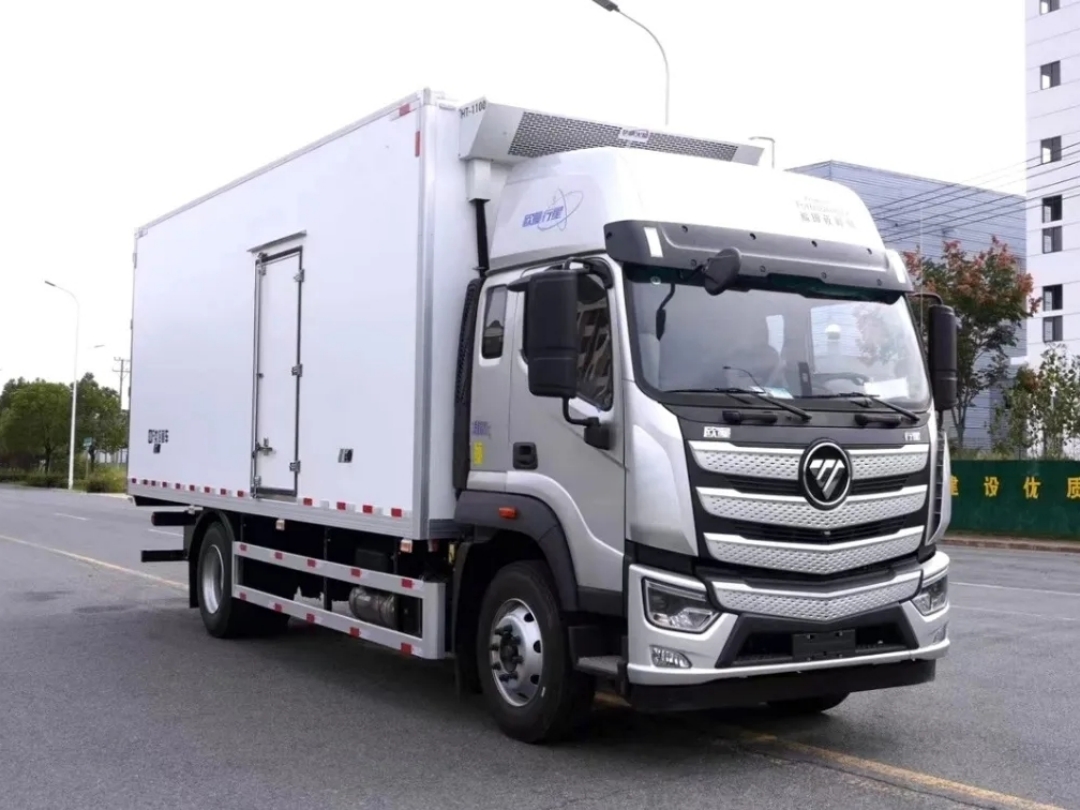

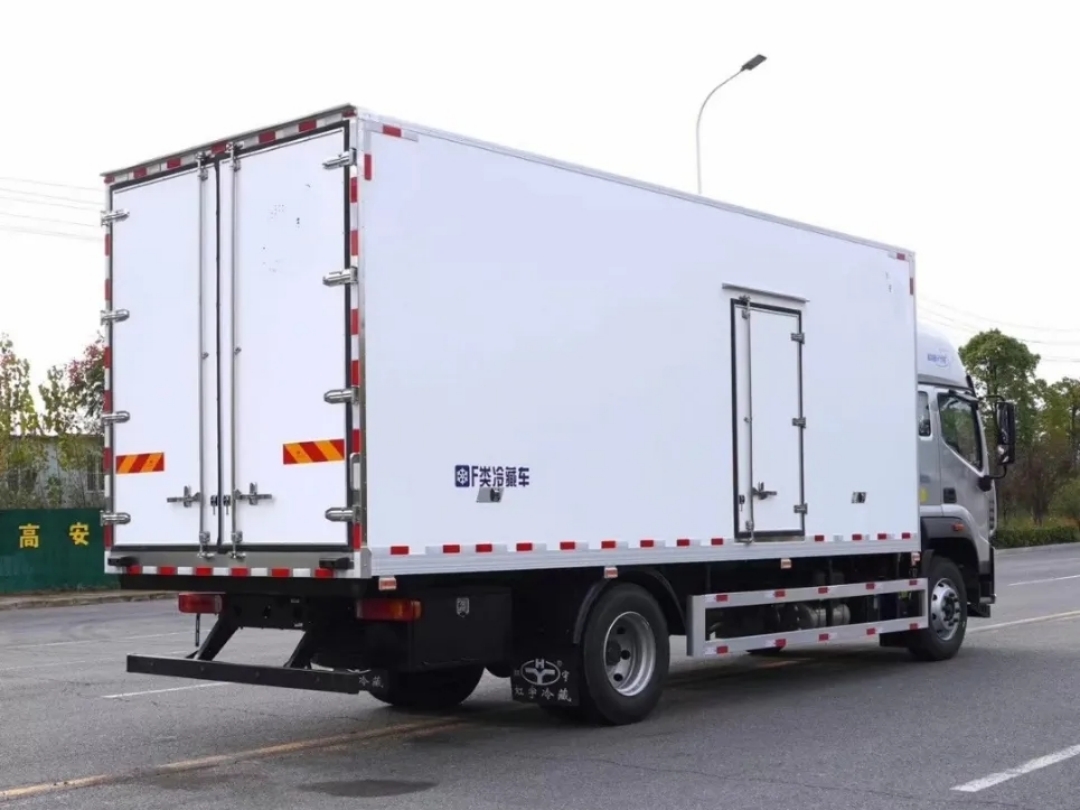

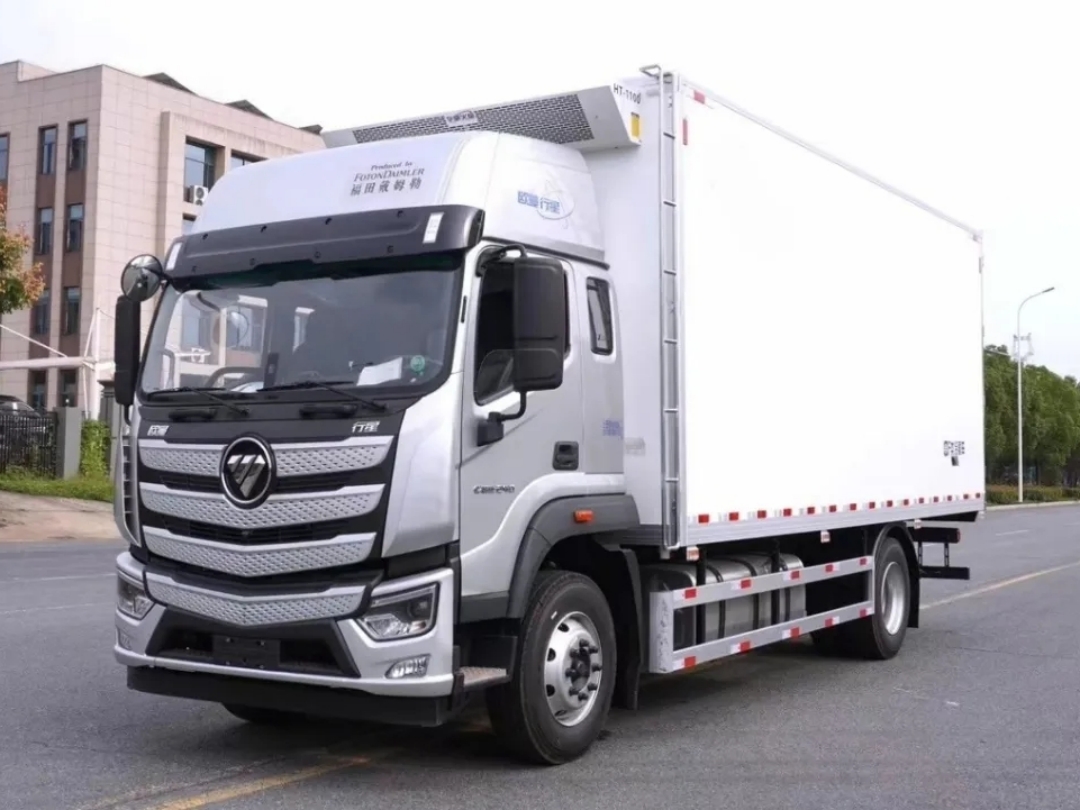

Mercedes Benz Auman 4X2 refrigerated truck

Chassis configuration:

1. Engine: F4.5NS6B240

2.Transmission type: 8-speed gearbox with synchronizer and power take-off

3.Tyre: 275/80R22.5 18PR, 6 tires with a spare

4.Wheelbase: 4800mm

5 Other:Four point suspension, airbag seats, air conditioning, cruise control, multifunctional steering wheel, central locking system, electric doors and windows, remote key, ABS, no reverse electrical appliances+180Ah battery+120A generator, LED headlights, electric hydraulic body flip 7-inch color screen instrument panel, with reverse radar
Installation configuration:

1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.

4.The car can be equipped with an optional tailboard.

Product Name： Mercedes Benz Auman 4X2 refrigerated truck
Driving Type： 4X2
Cargo box Volume(cbm)： 37
Rated payload weight(kg)： 9870,9805

Product Features

Mercedes Benz Auman 4X2 refrigerated truck

A refrigerated truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Product parameters

Product Name	Mercedes Benz Auman 4X2 refrigerated truck
Driving Type	4X2
Cargo box Volume(cbm)	37
Rated payload weight(kg)	9870,9805
Wheel base(mm)	4800
Overall Dimension(mm)	9100,8390,8590,9190,7590,7790,8190×2600×3850,3950,3989
Cargo box size(mm)	6800,6000,6200,5200,5400,5800×2420,2450×2500,2550,2600
Engine brand & model	F4.5NS6B240
Displacement(L)/Power(kw)	4.5L/176KW
Axle Quantity	2
Transmission Type	8-speed gearbox with synchronizer and power take-off
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	275/80R22.5 18PR, 6 tires with a spare

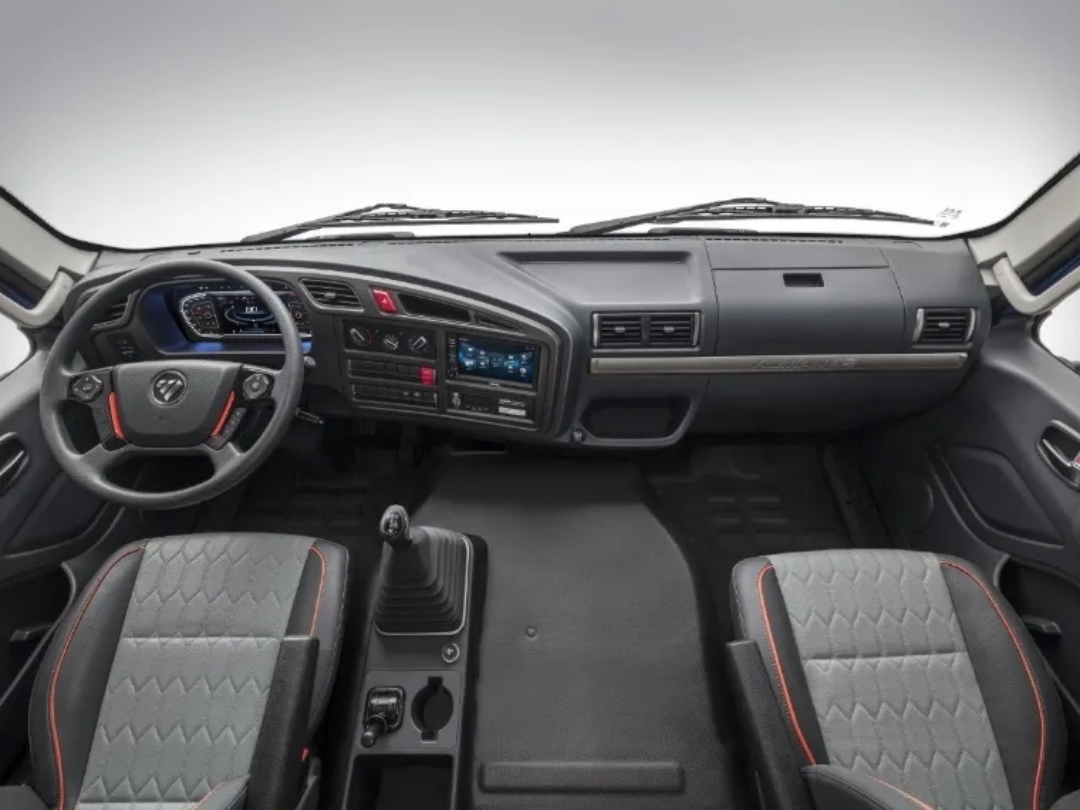

Cab	Four point suspension, airbag seats, air conditioning, cruise control, multifunctional steering wheel, central locking system, electric doors and windows, remote key, ABS, no reverse electrical appliances+180Ah battery+120A generator, LED headlights, electric hydraulic body flip 7-inch color screen instrument panel, with reverse radar

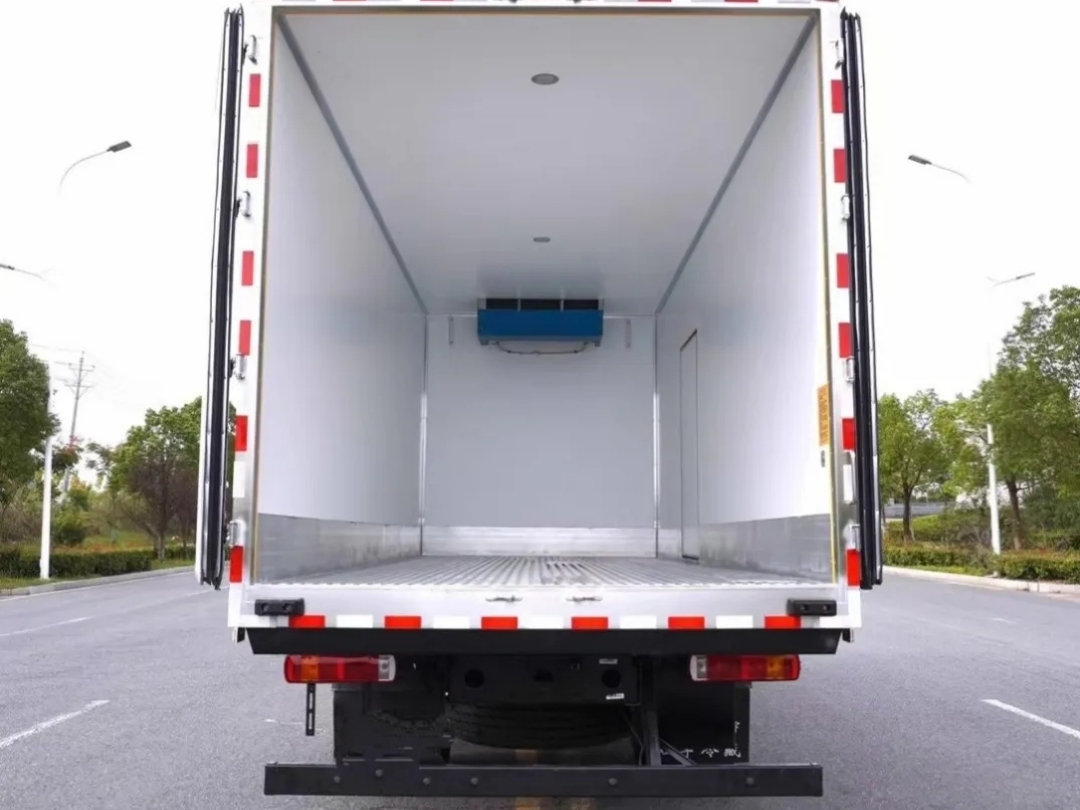

Compartment material	FRP inside and outside,8 cm polyurethane foam middle
Compartment structure	Don
Refrigerated Unit	1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
