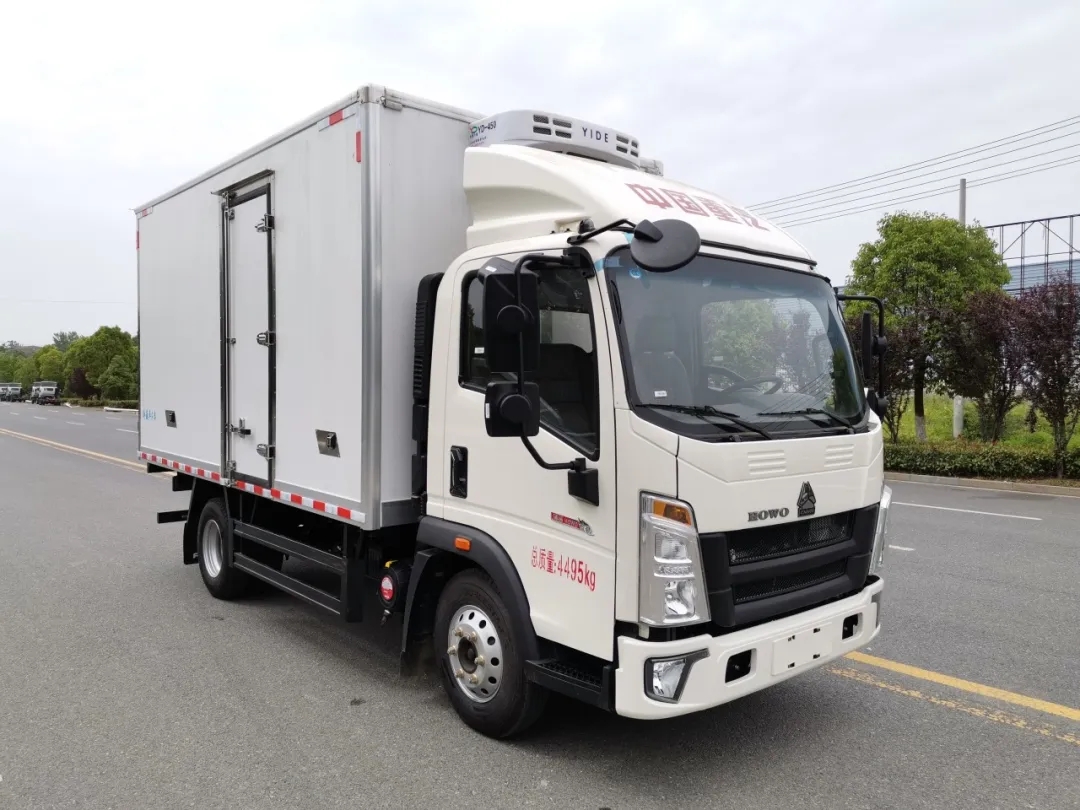

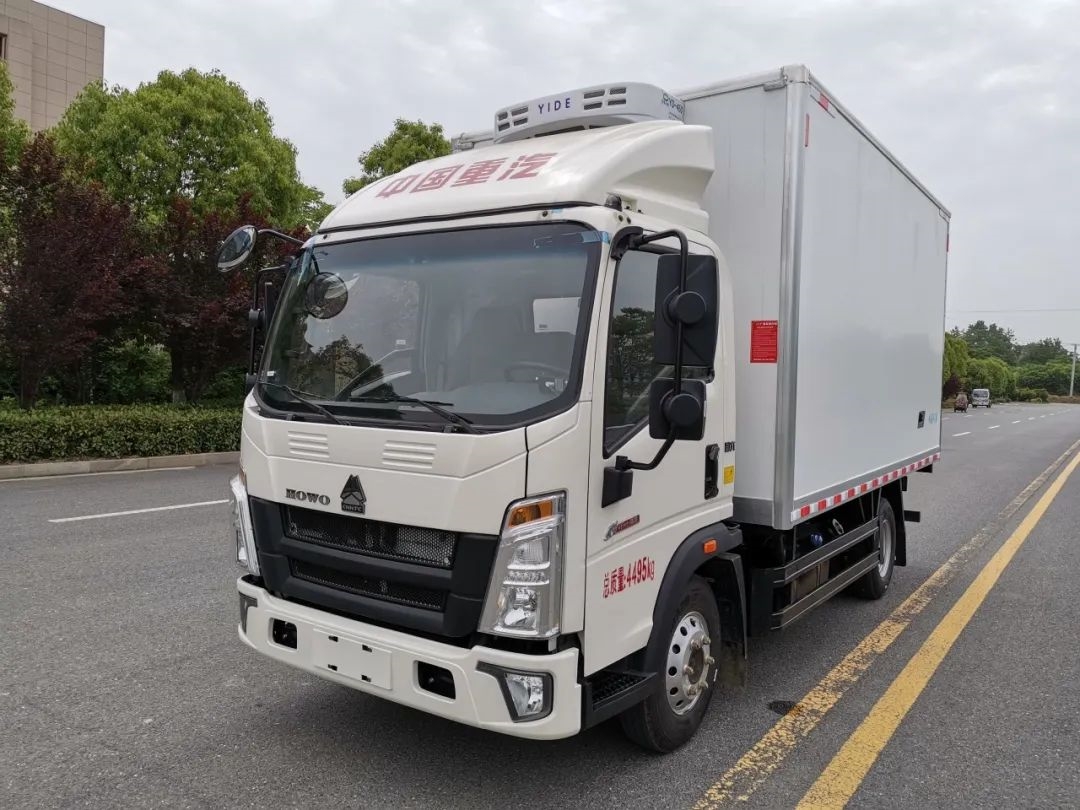

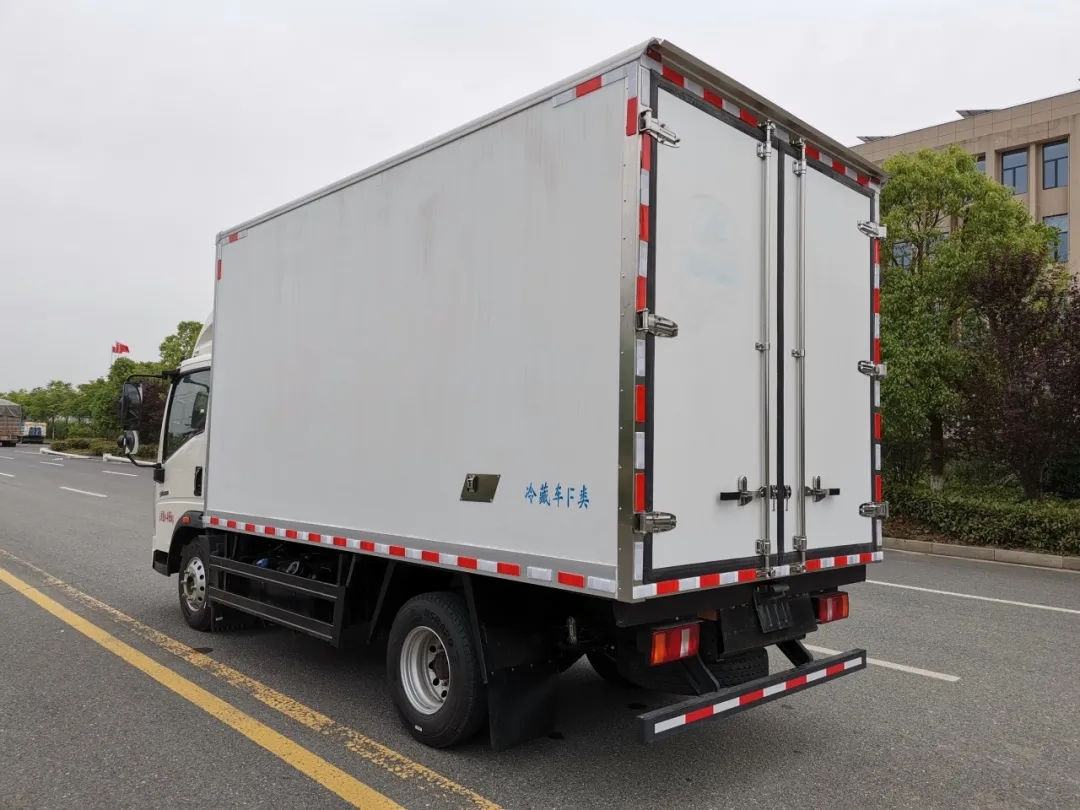

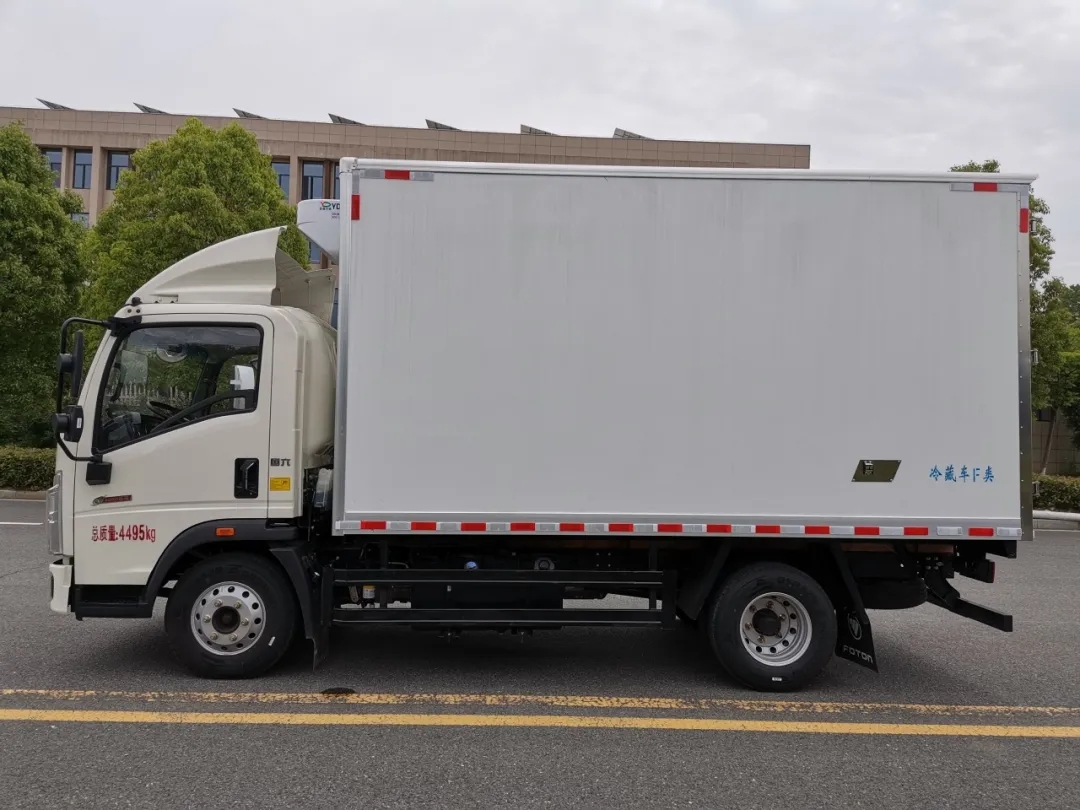

Sinotruk HOWO 4.2m refrigerated van truck

Chassis configuration:

1. Engine: WP3NQ160E61

2.Transmission type: 6-speed gearbox

3.Tyre: 7.00R16, 6 tires with a spare

4.Wheelbase: 4800mm

5 Other:1900mm single row cab with large sleeping berth
Installation configuration:

1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.

4.The truck can be equipped with an optional tailboard.

Product Name： Sinotruk HOWO 4.2m refrigerated van truck
Driving Type： 4X2
Rated payload weight(kg)： 1155,1090(Kg)
Wheel base(mm) ： 3280,3360mm

Product Features

Sinotruk HOWO 4.2m refrigerated van truck

A refrigerated van truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

A refrigerated truck consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	Sinotruk HOWO 4.2m refrigerated van truck
Driving Type	4X2
Rated payload weight(kg)	1155,1090(Kg)
Wheel base(mm)	3280,3360mm
Overall Dimension(mm)	5995x2250x 3450mm
Cargo box Volume(cbm)	17
Cargo box size(mm)	4000x2100x2100mm
Engine brand & model	WP3NQ160E61
Displacement(L)/Power(kw)	2.97L/118KW
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16, 6 tires with a spare

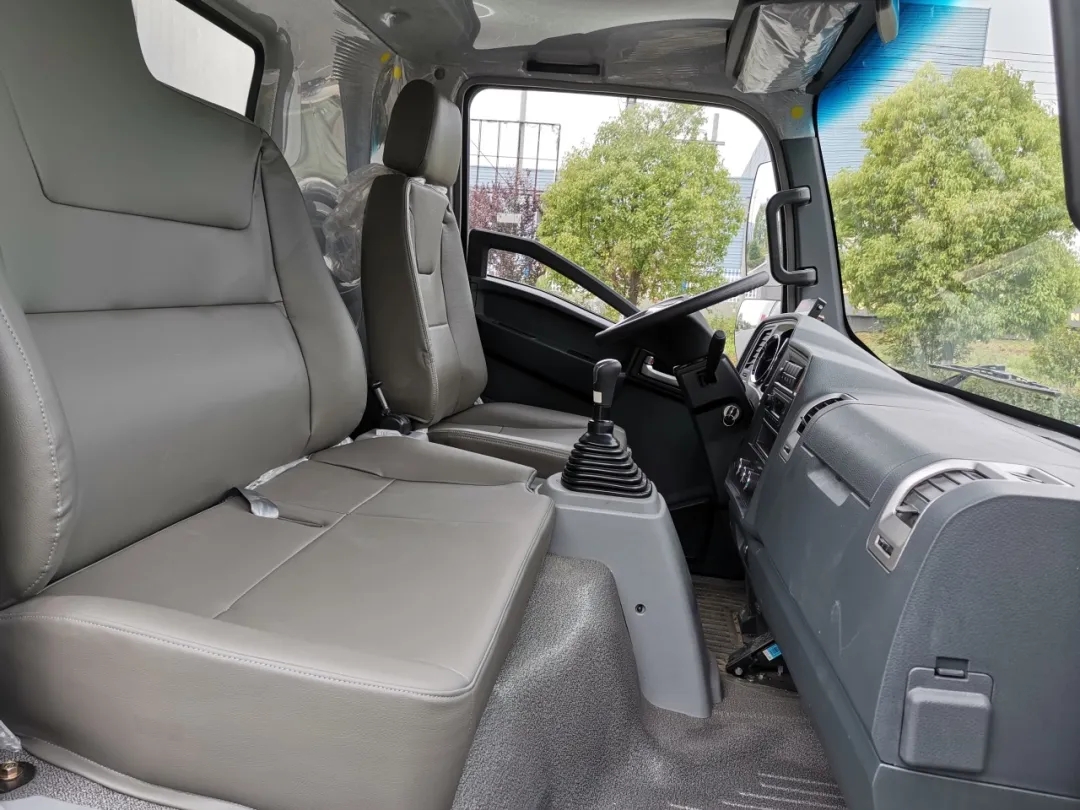

Cab	1900mm single row cab with large sleeping berth,Central locking system, electric doors and windows, remote key, power steering, electrically adjustable air conditioning, ABS+ASR
Compartment material	FRP inside and outside,8 cm polyurethane foam middle

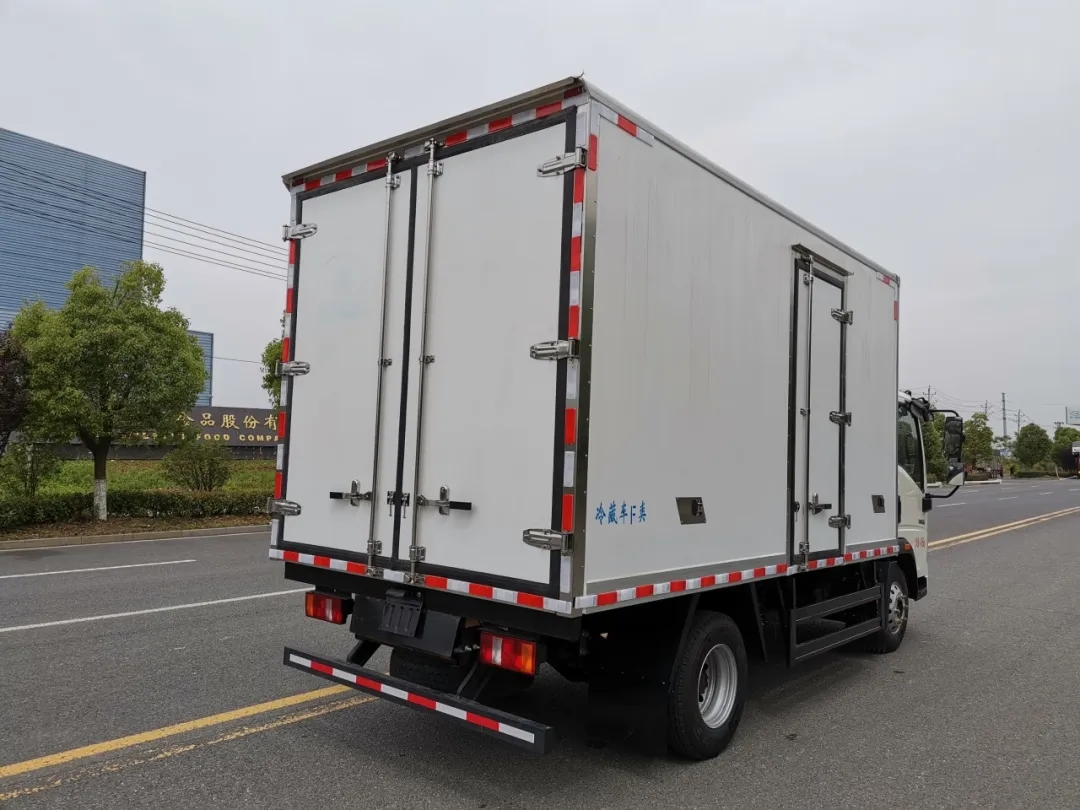

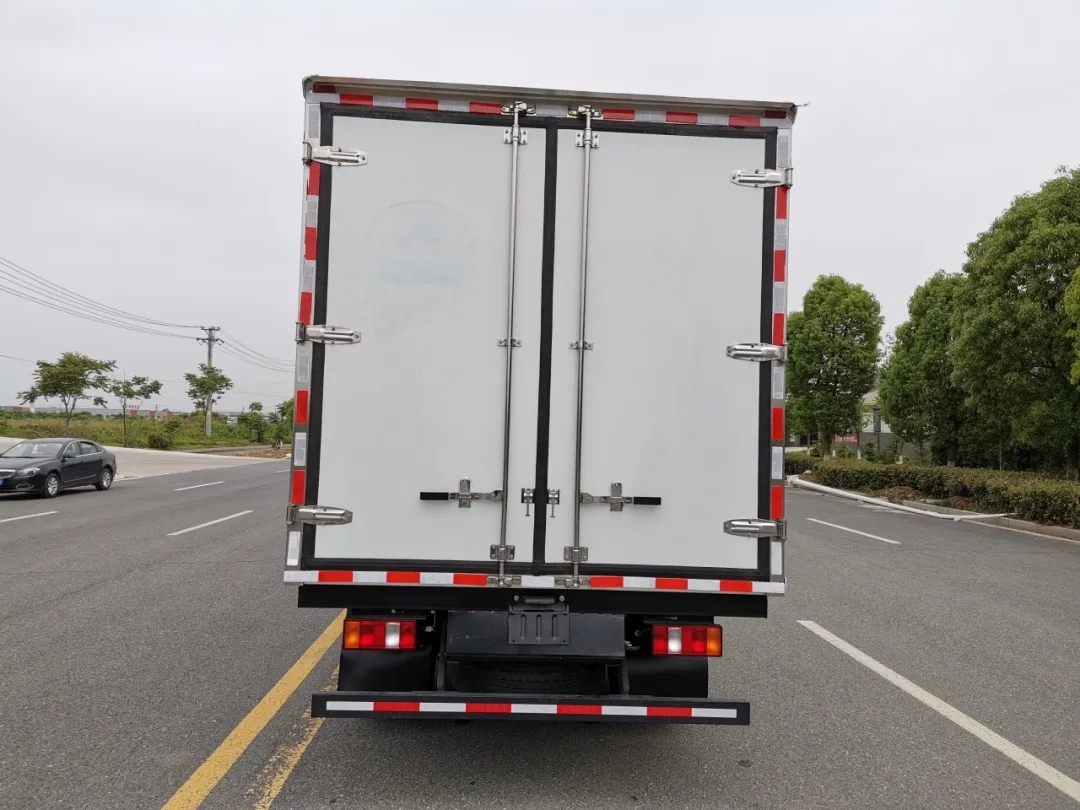

Compartment structure	Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
