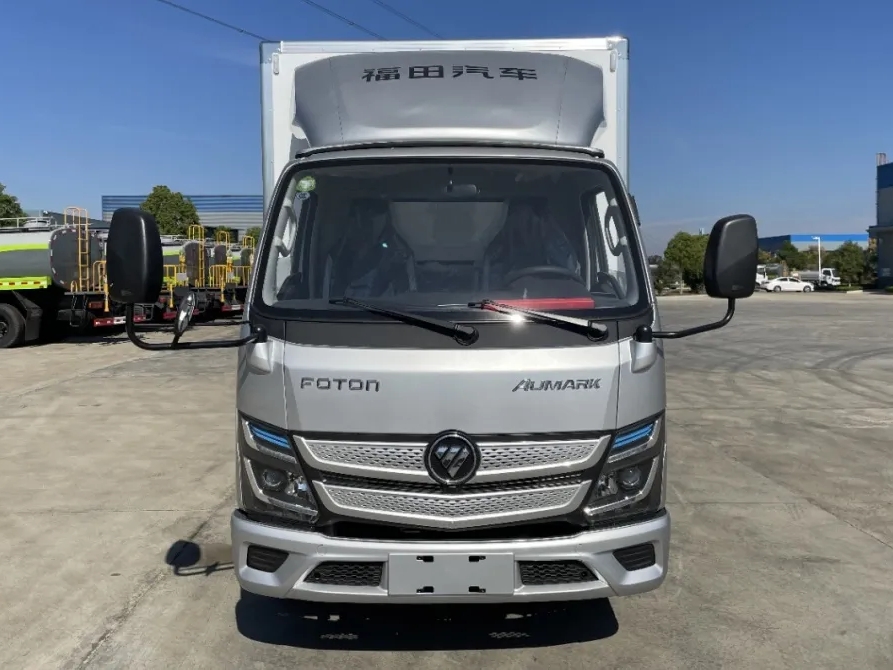

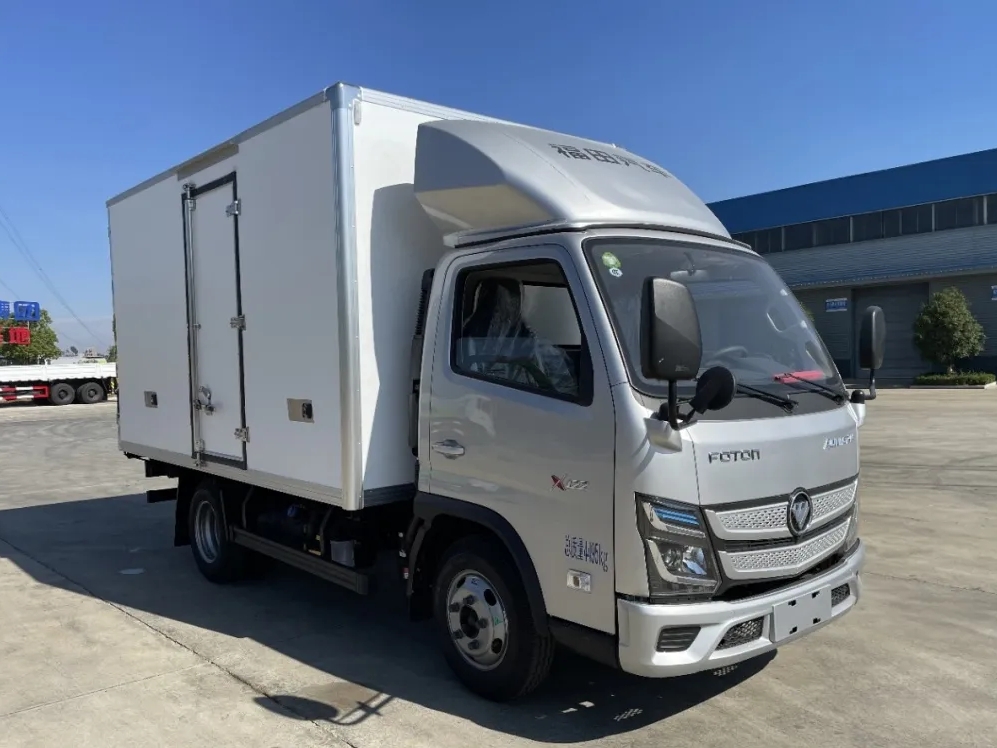

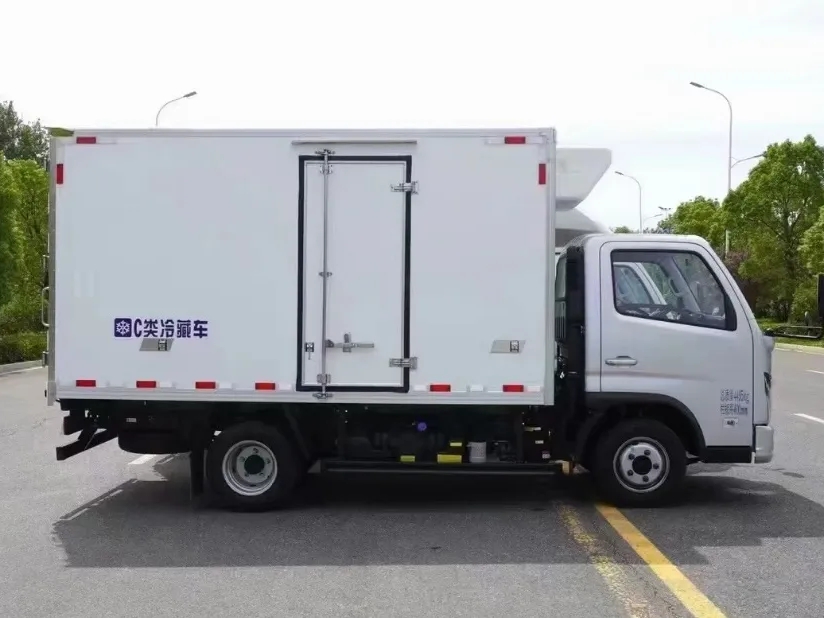

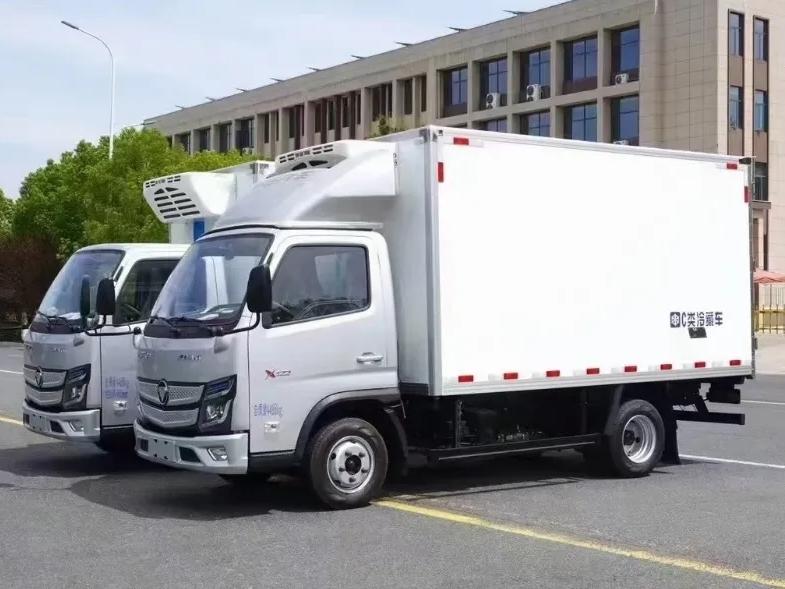

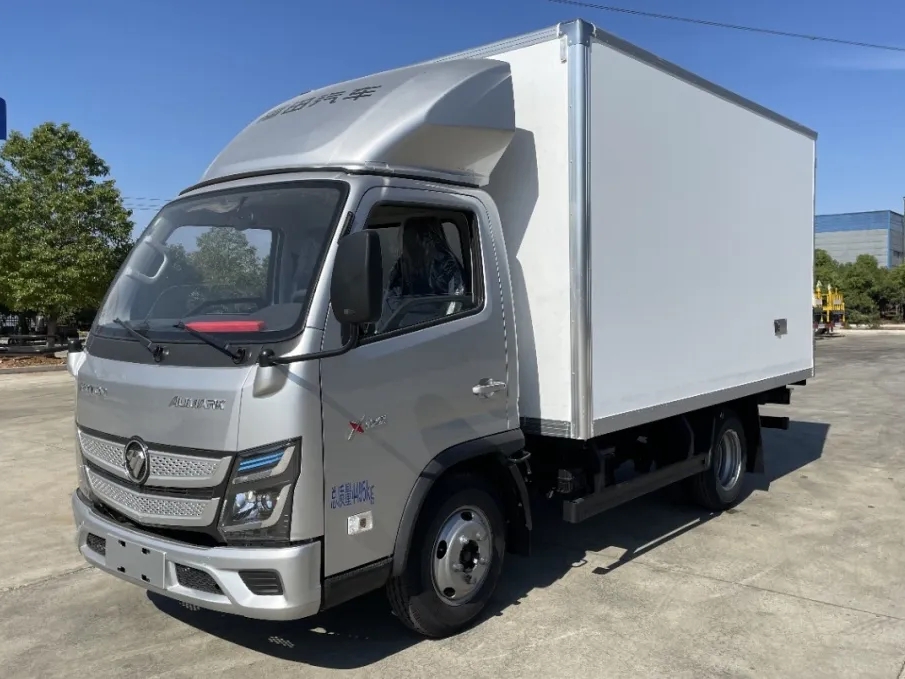

Foton Aumark 4X2 frozen vehicle

Chassis configuration:

1. Engine: D20TCIF2,Yunnei 122ph

2.Transmission type: 5-speed gearbox

3.Tyre: 6.50R16, 6 tires with a spare

4.Wheelbase: 2900mm

5 Other:Air conditioning, multifunctional steering wheel, digital LCD instrument panel, cruise control, central locking, electric doors and windows, remote key, hydraulic brake.
Installation configuration:

1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-20 °C

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.

4.The truck can be equipped with an optional tailboard.

Product Name： Foton Aumark 4X2 frozen vehicle
Driving Type： 4X2
Rated payload weight(kg)： 1490(Kg)
Wheel base(mm) ： 2900mm

Product Features

Foton Aumark 4X2 frozen vehicle

Afrozen vehicleis a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Afrozen vehicleconsists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	Foton Aumark 4X2 frozen vehicle
Driving Type	4X2
Rated payload weight(kg)	1490(Kg)
Wheel base(mm)	2900mm
Overall Dimension(mm)	5565,5995,5600,5700×1970,2030,2120,2080×2845,2875,2945,2975(mm)
Cargo box Volume(cbm)	11
Cargo box size(mm)	4040,3580,3700,3240,3850,3455,3645,3800×1810,1870,1960,1920×1800,1900(mm)
Engine brand & model	D20TCIF2,Yunnei 122ph
Displacement(L)/Power(kw)	1.9L/90kW
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	hydraulic brake
Tire Spec. & size	6.50R16, 6 tires with a spare
Cab	Air conditioning, multifunctional steering wheel, digital LCD instrument panel, cruise control, central locking, electric doors and windows, remote key, hydraulic brake.
Compartment material	FRP inside and outside,8 cm polyurethane foam middle
Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
