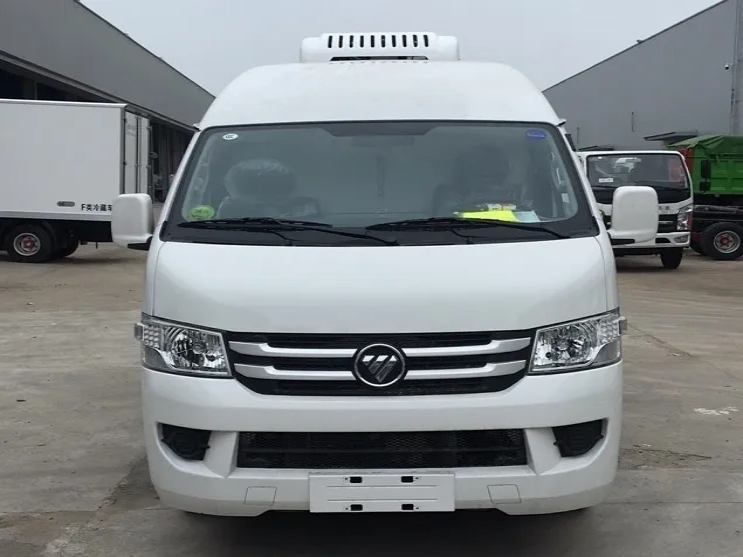

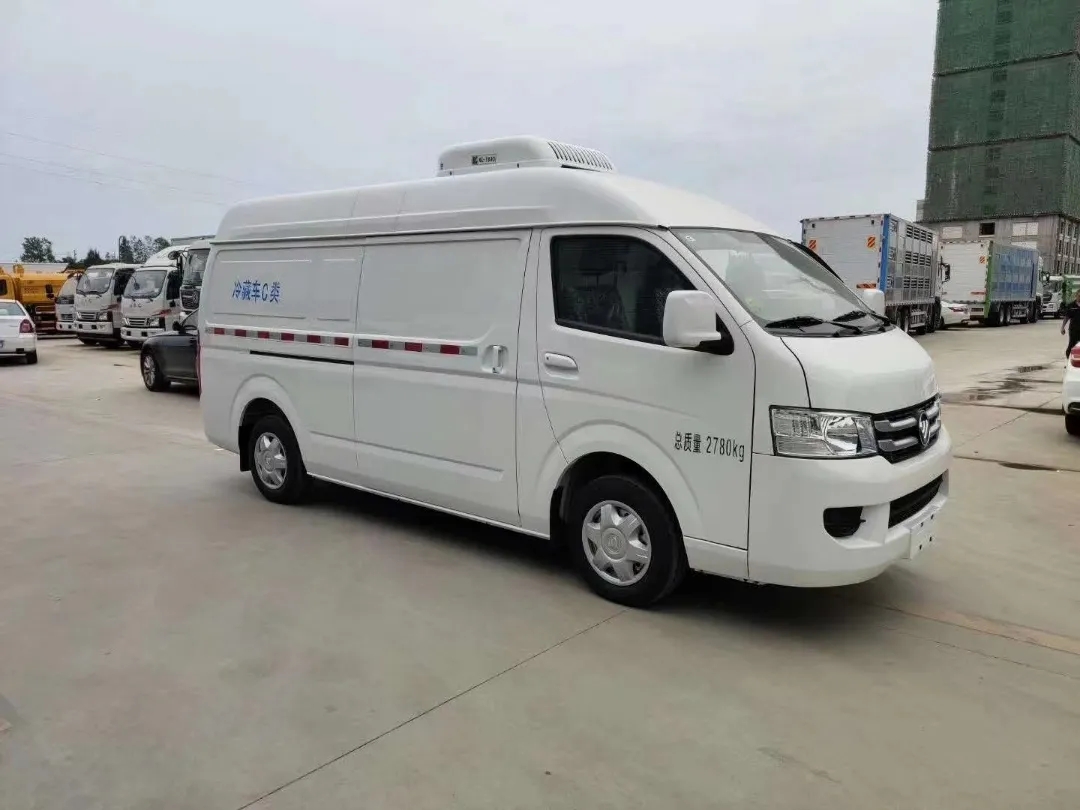

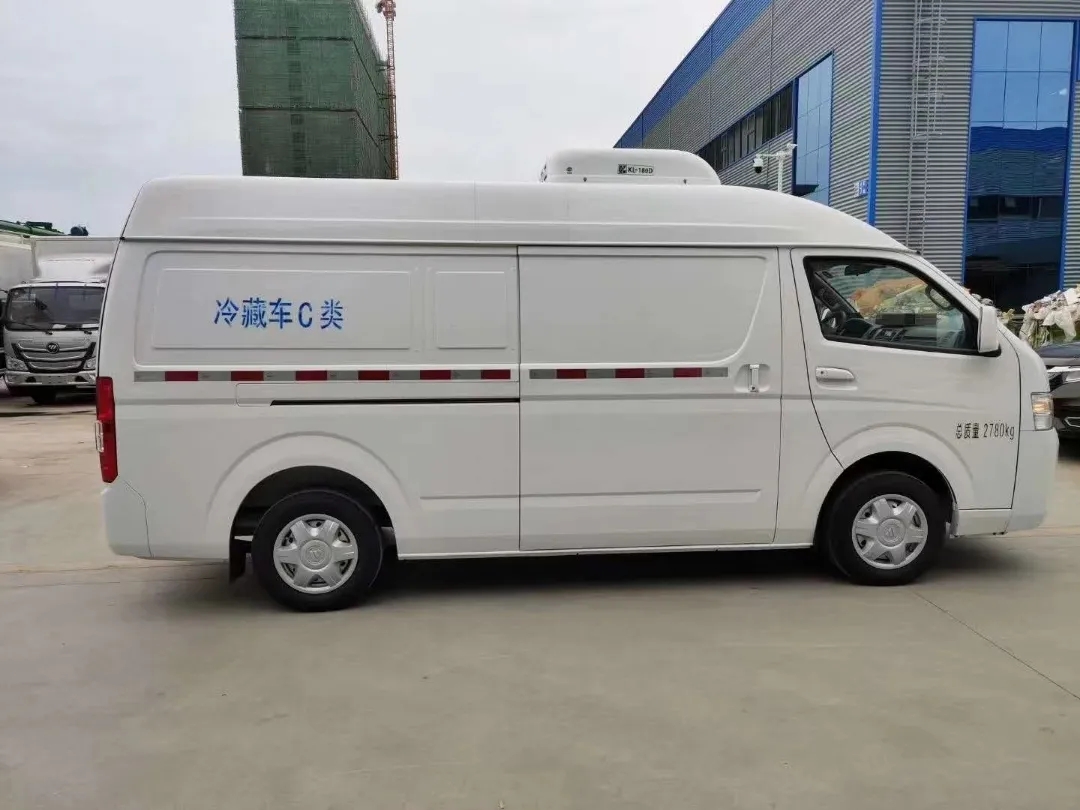

Foton Cold Chain Transportation Vehicle

Chassis configuration:

1. Engine: 4K22D4M， 160hp

2.Transmission type: 5-speed gearbox

3.Tyre: 195/70R15LT,195R15C

4.Wheelbase: 3050(mm)

5 Other:Front door electric doors and windows, front cab air conditioning central door lock and remote key, knitted seats+headrest/three-point seat belt adjustable headlights+no front fog lights and daytime running lights, hydraulic power steering, front disc and rear drum brakes, ABS braking system, engine with OBD
Installation configuration:

1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-20 °C

3.Don't open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.

4.The truck can be equipped with an optional tailboard.

Product Name： Foton Cold Chain Transportation Vehicle
Driving Type：
Rated payload weight(kg)： 544,414,349(Kg)
Wheel base(mm) ： 3050(mm)

Product Features

Foton Cold Chain Transportation Vehicle

Cold Chain Transportation Vehicle is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Cold Chain Transportation Vehicle consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	Foton Cold Chain Transportation Vehicle
Driving Type
Rated payload weight(kg)	544,414,349(Kg)
Wheel base(mm)	3050(mm)
Overall Dimension(mm)	5340x1695x2500mm
Cargo box Volume(cbm)	3-5
Cargo box size(mm)	2900x1400x1430mm
Engine brand & model	4K22D4M， 160hp
Displacement(L)/Power(kw)	2.37L/118KW
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	hydraulic brake
Tire Spec. & size	195/70R15LT,195R15C

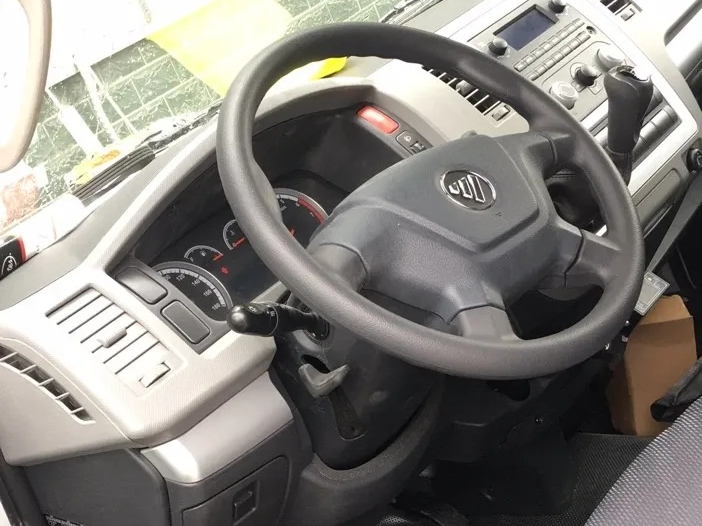

Cab	Front door electric doors and windows, front cab air conditioning central door lock and remote key, knitted seats+headrest/three-point seat belt adjustable headlights+no front fog lights and daytime running lights, hydraulic power steering, front disc and rear drum brakes, ABS braking system, engine with OBD
Compartment material	FRP inside and outside,8 cm polyurethane foam middle

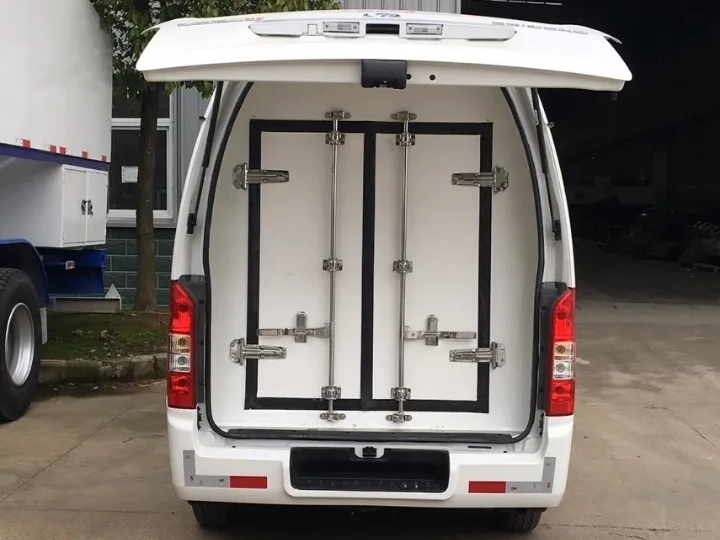

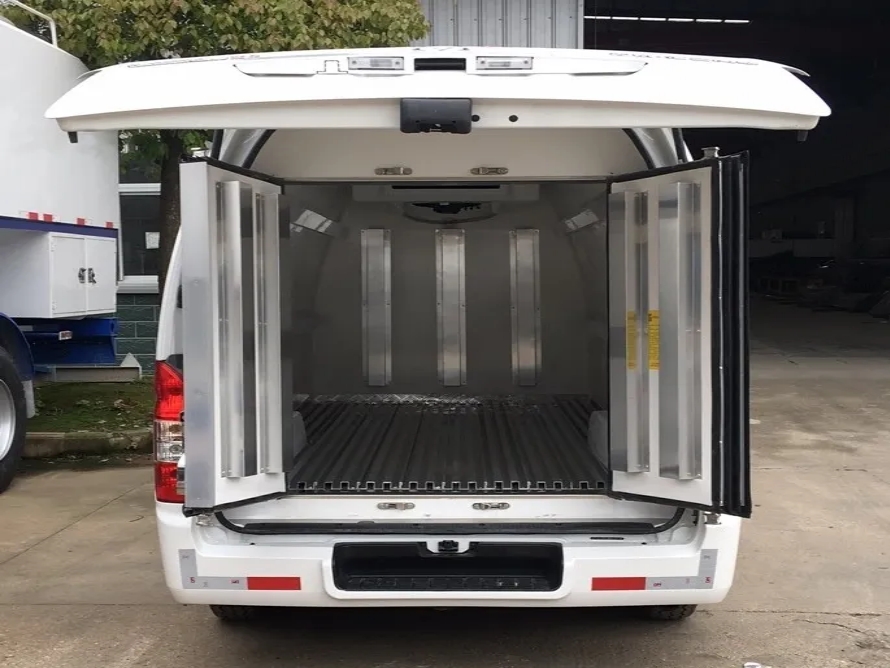

Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	1. USA Thermo king or Carrier or China brand high quality independent refrigeration unit. 2.Minimum temperature.-15 °C
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
