Dongfeng D6 refrigeration van truck

Chassis configuration:

Dongfeng D6/1900 single row cab, Fast 6-speed gearbox, 3/6+5 leaf springs, Dena axle 2.2/3.5 (speed ratio 4.33), 7.00R16-8PR tires, front and rear wheelbase 1613mm/1650mm, 170 variable cross-section frame, 120L plastic fuel tank, clutch power assist, power steering, air conditioning, electric window¢er console, reverse radar, daytime running lights, LCD instrument panel, MP3, exhaust brake, air brake, ABS, 2210 height, 860 beam width, wheelbase: 3308mm

Installation configuration:

1.The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.

2.Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units

Vehicles can be customized according to customer requirements.

Product Name： Dongfeng D6 refrigeration van truck
Driving Type： 4X2
Total weight(kg)： 4495(Kg)
Curb weight(kg)： 3200(Kg)

Product Features

Dongfeng D6 refrigeration van truck

Refrigerated truck is a closed van vehicle used to transport frozen or fresh goods. It is a specialized refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is commonly used to transport frozen food (refrigerated truck), dairy products (dairy transport truck), vegetables and fruits (fresh goods transport truck), vaccines and drugs (vaccine transport truck), etc.

Refrigerated truck consists of the walking part of a specialized vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added.

Product parameters

Product Name	Dongfeng D6 refrigeration van truck
Driving Type	4X2
Total weight(kg)	4495(Kg)
Curb weight(kg)	3200(Kg)
Rated weight(kg)	1100,1165(Kg)
Wheel base(mm)	3308(mm)
Overall Dimension(mm)	5995X2260X3250(mm)
Cargo box size(mm)	4090X21002100(mm)
Engine brand & model	Nissan 160 horsepower engine (ZD25D16-6D)
Displacement(L)/Power(kw)	2.49L/120KW
Axle Quantity	2
Transmission Type	Fast 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16-8PR, 6+1 spare
Cab	Dongfeng D6/1900 single row cab, air conditioning, electric windows¢er console, reverse radar, daytime running lights, LCD instrument panel, MP3 player

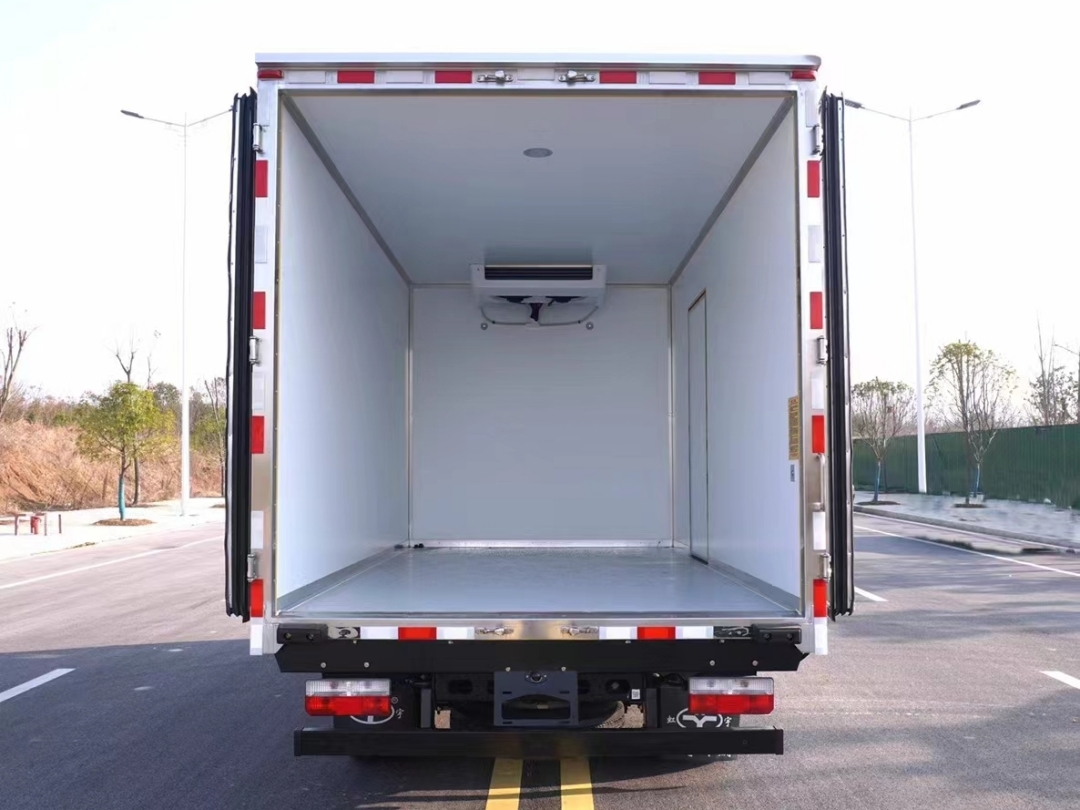

Cargo box configuration	The interior and exterior fabrics of the cabin are made of the latest nano glass fiber reinforced plastic (non light absorbing, good insulation, strong hardness, oxidation resistance), with a thickness of 8cm. The inner lining skeleton is made of rust resistant high-quality light steel profiles from WISCO, and the insulation material is filled with polyurethane foam without gaps. The bottom of the cabin is made of aluminum alloy patterned board or flat nano glass fiber reinforced plastic. The cabin is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. LED lighting and cabin width lights are used inside the cabin.
Compartment structure	Do not open at the top, rear door opening, equipped with aluminum alloy ventilation slots on the floor, with stainless door frames and door accessory.
Refrigerated Unit	Customers can choose different units according to their vehicle needs, including -5 ℃, -10 ℃, -15 ℃, and -18 to -20 ℃ refrigeration units
Optional	The car can be equipped with an optional tailboard.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
