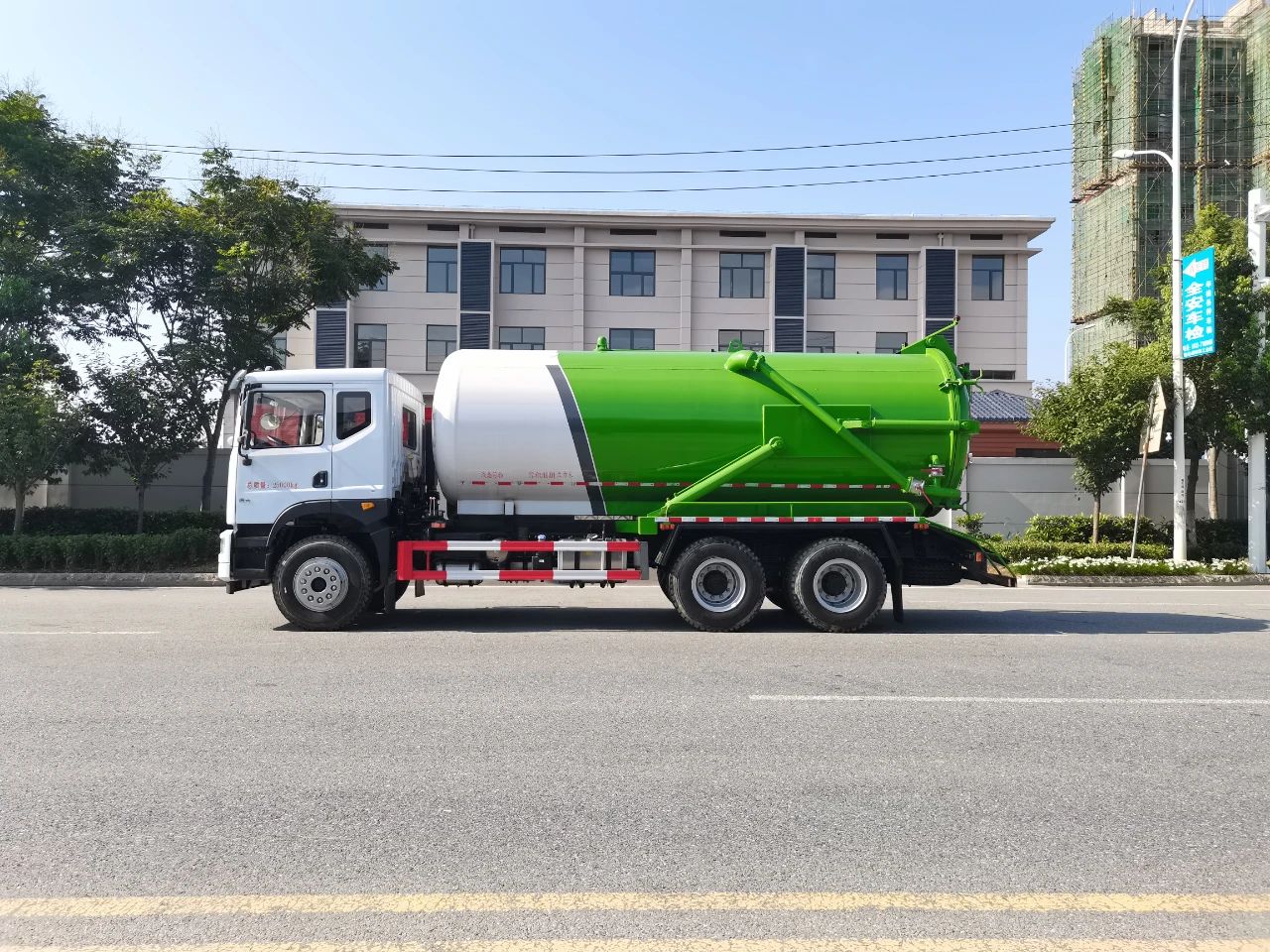

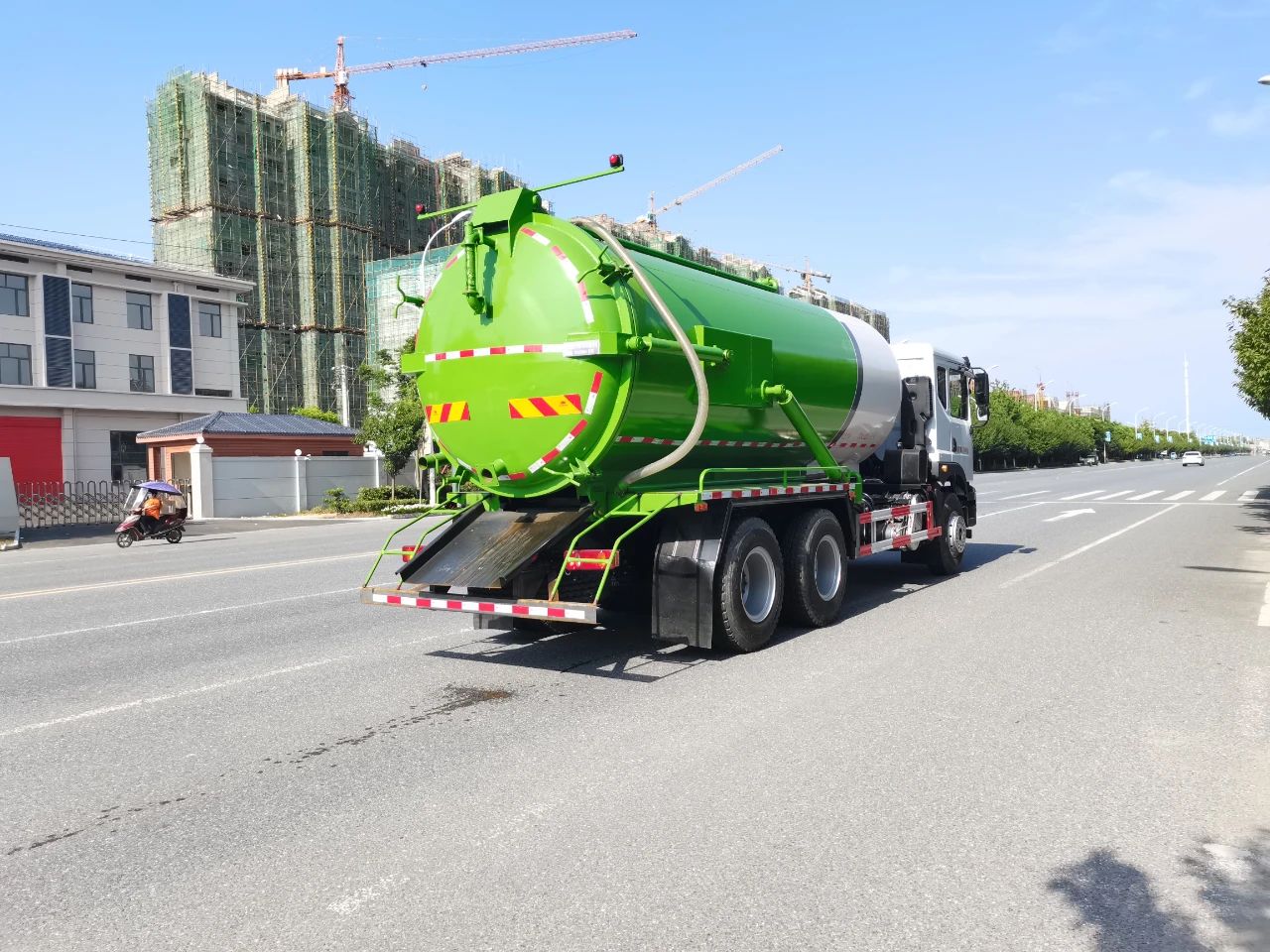

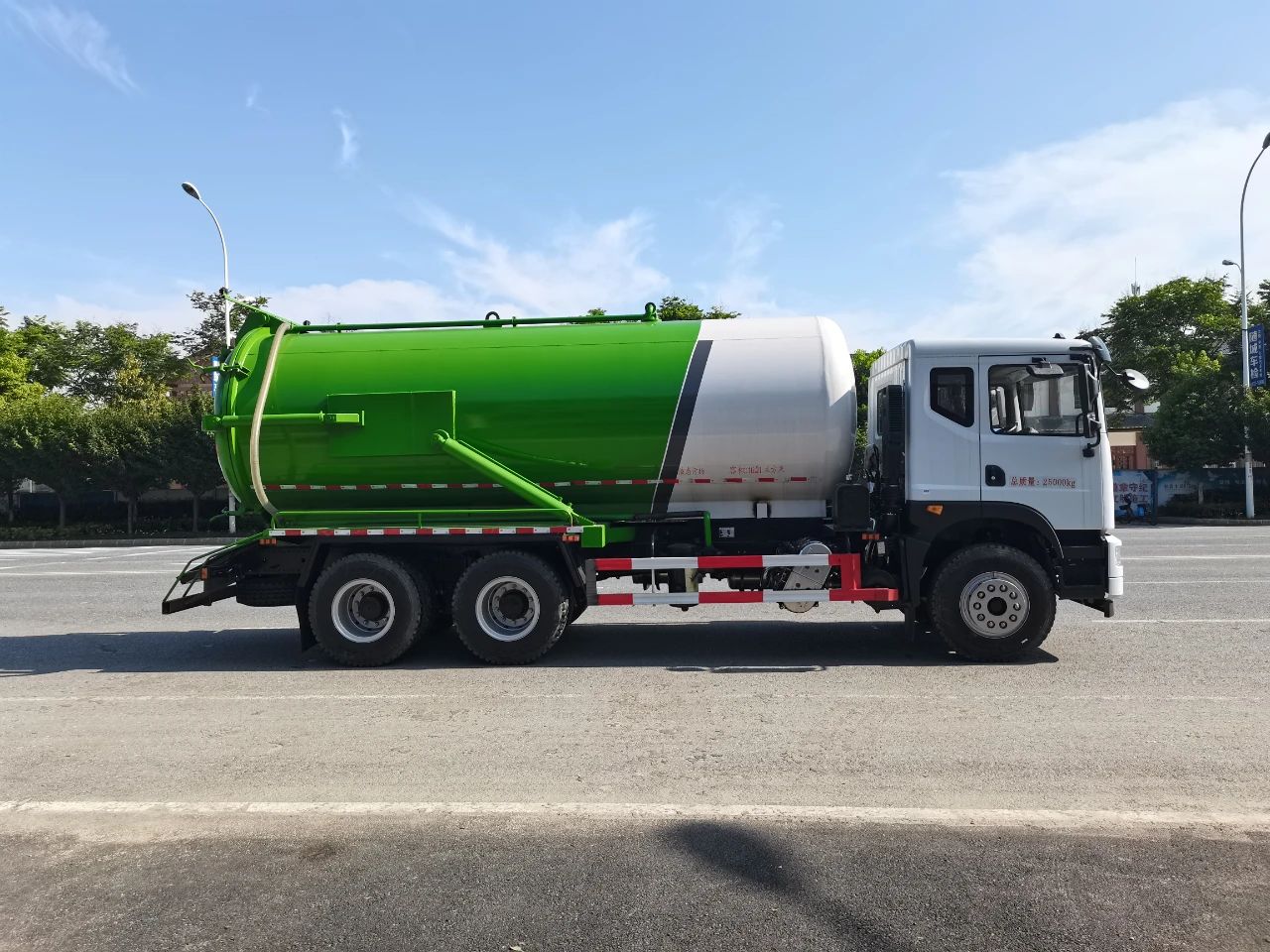

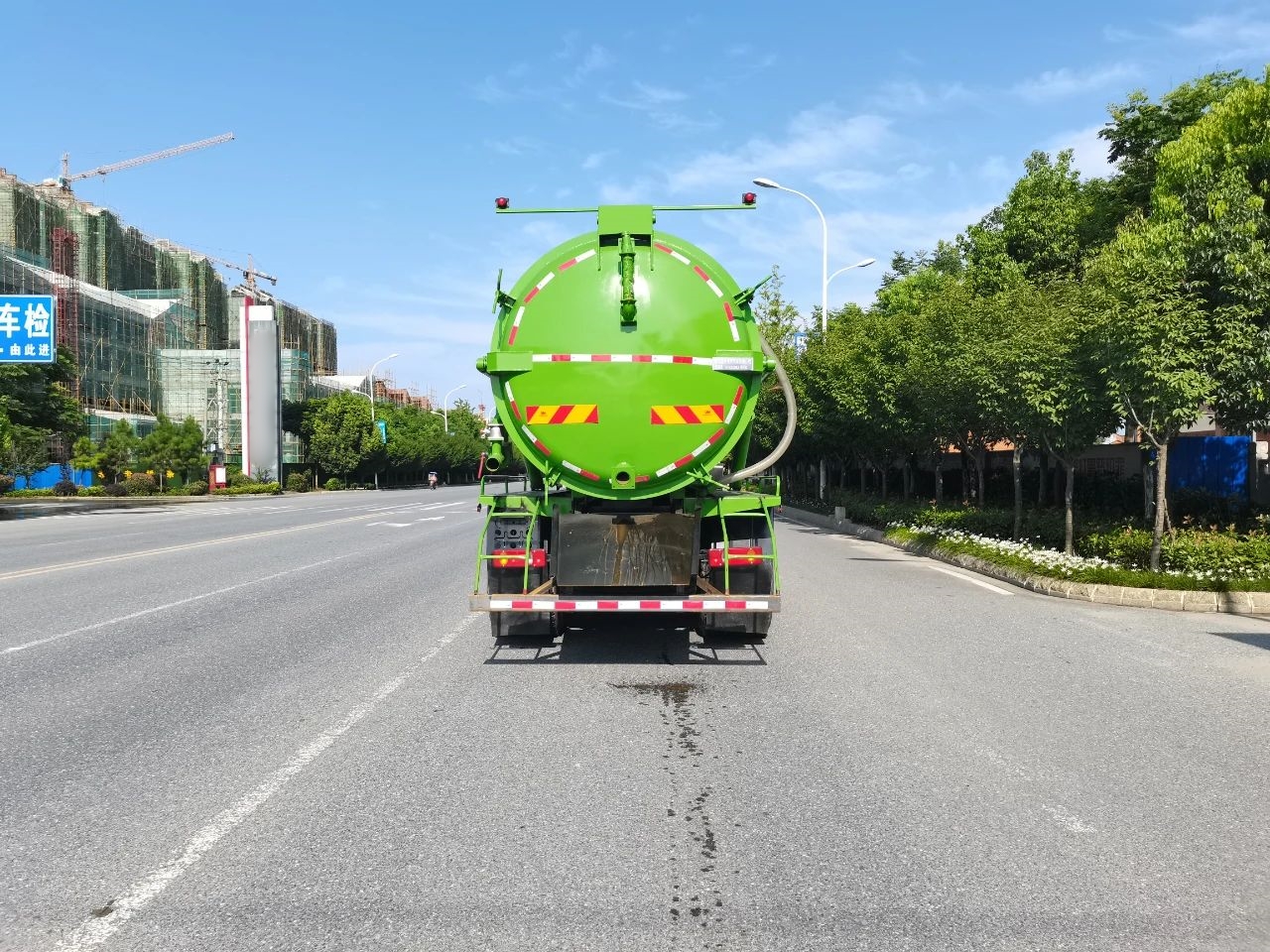

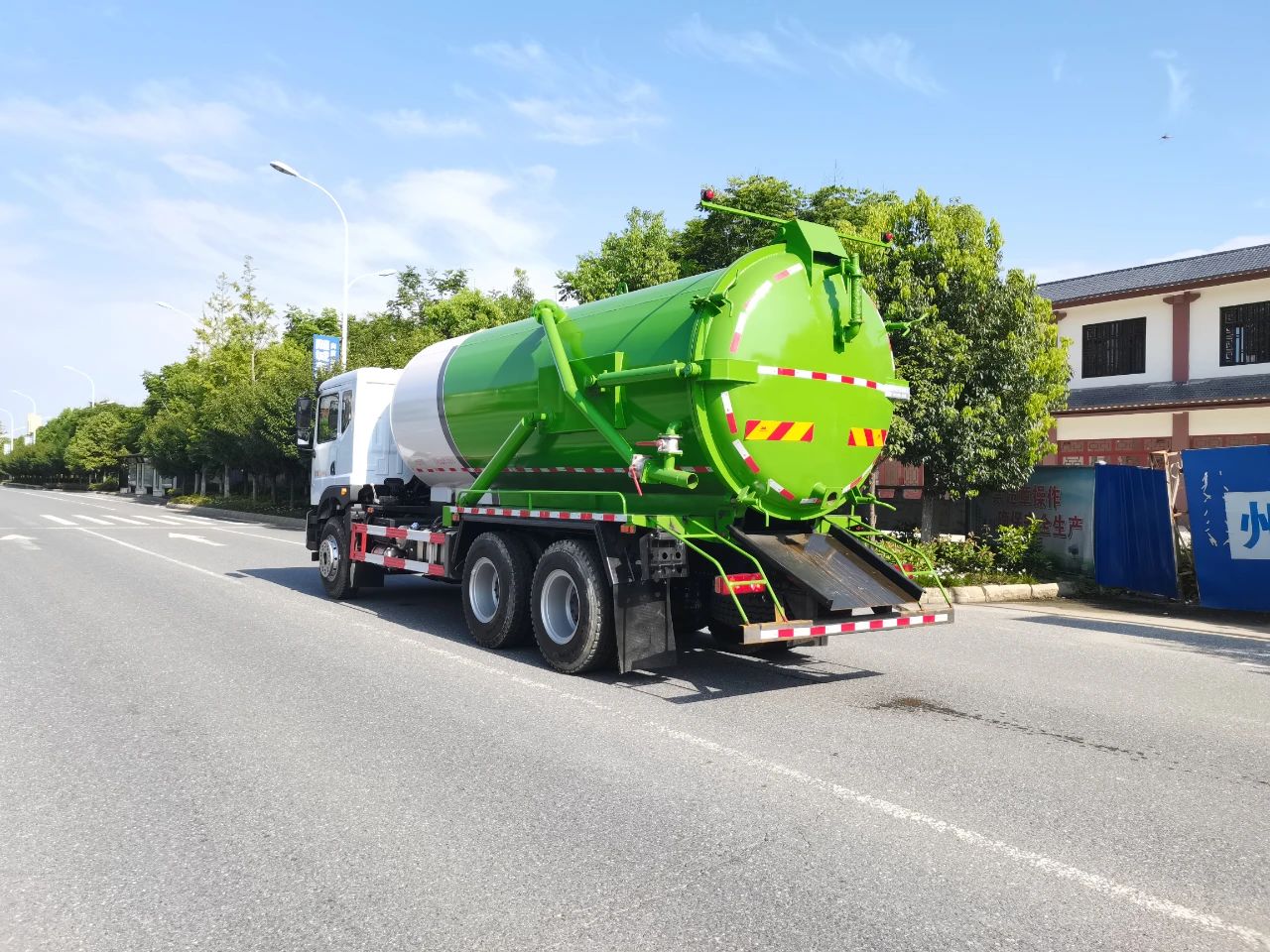

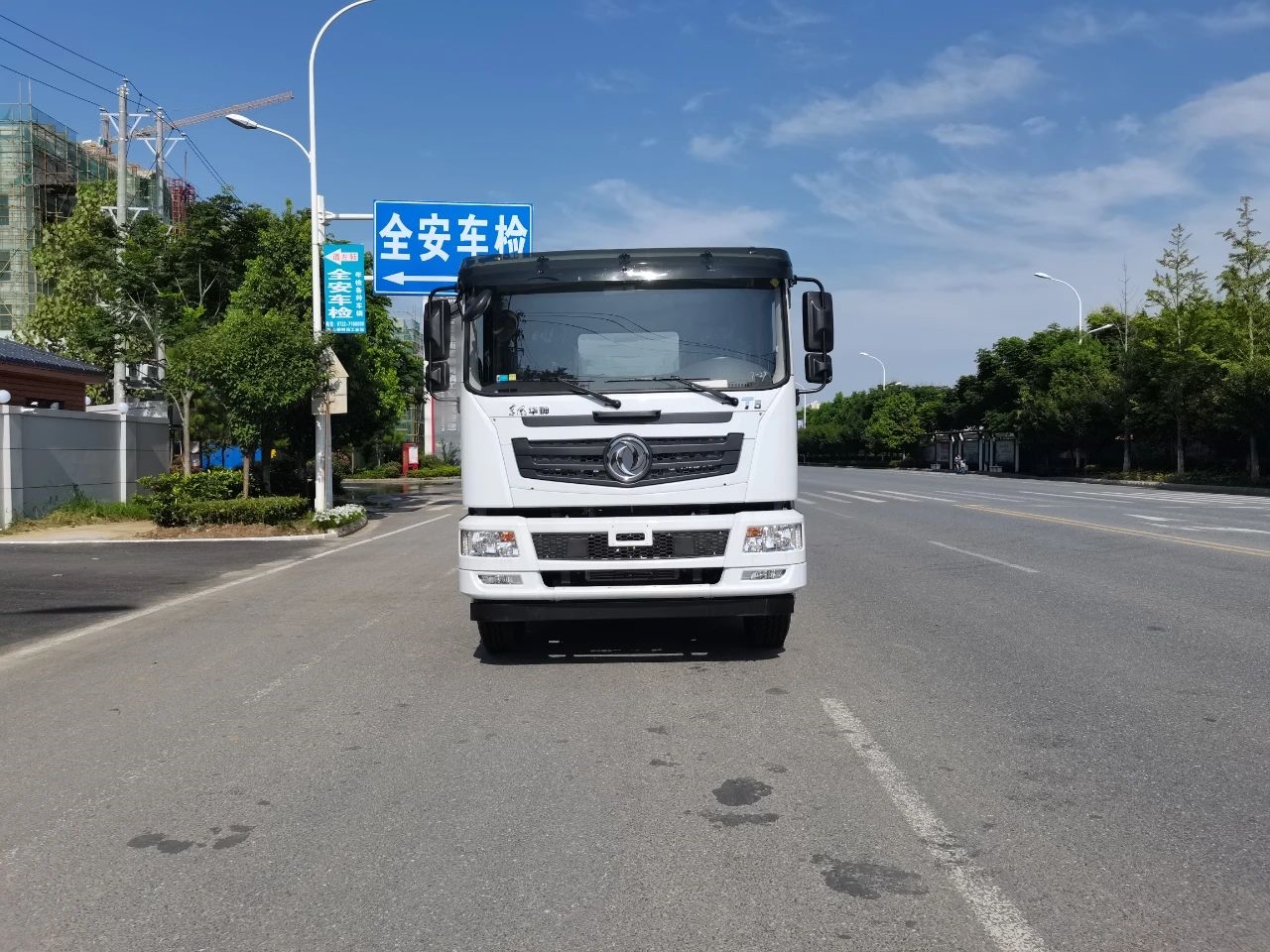

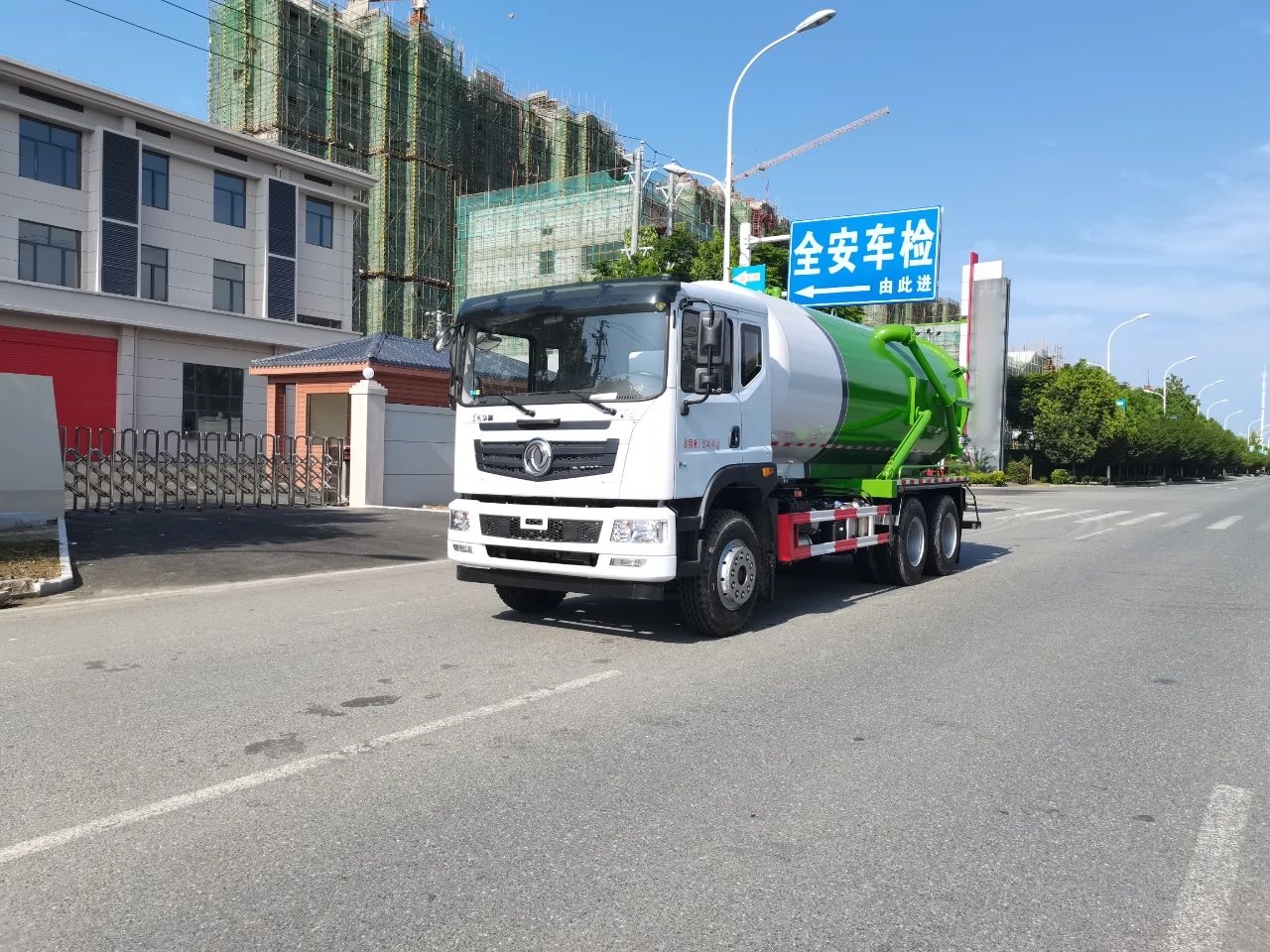

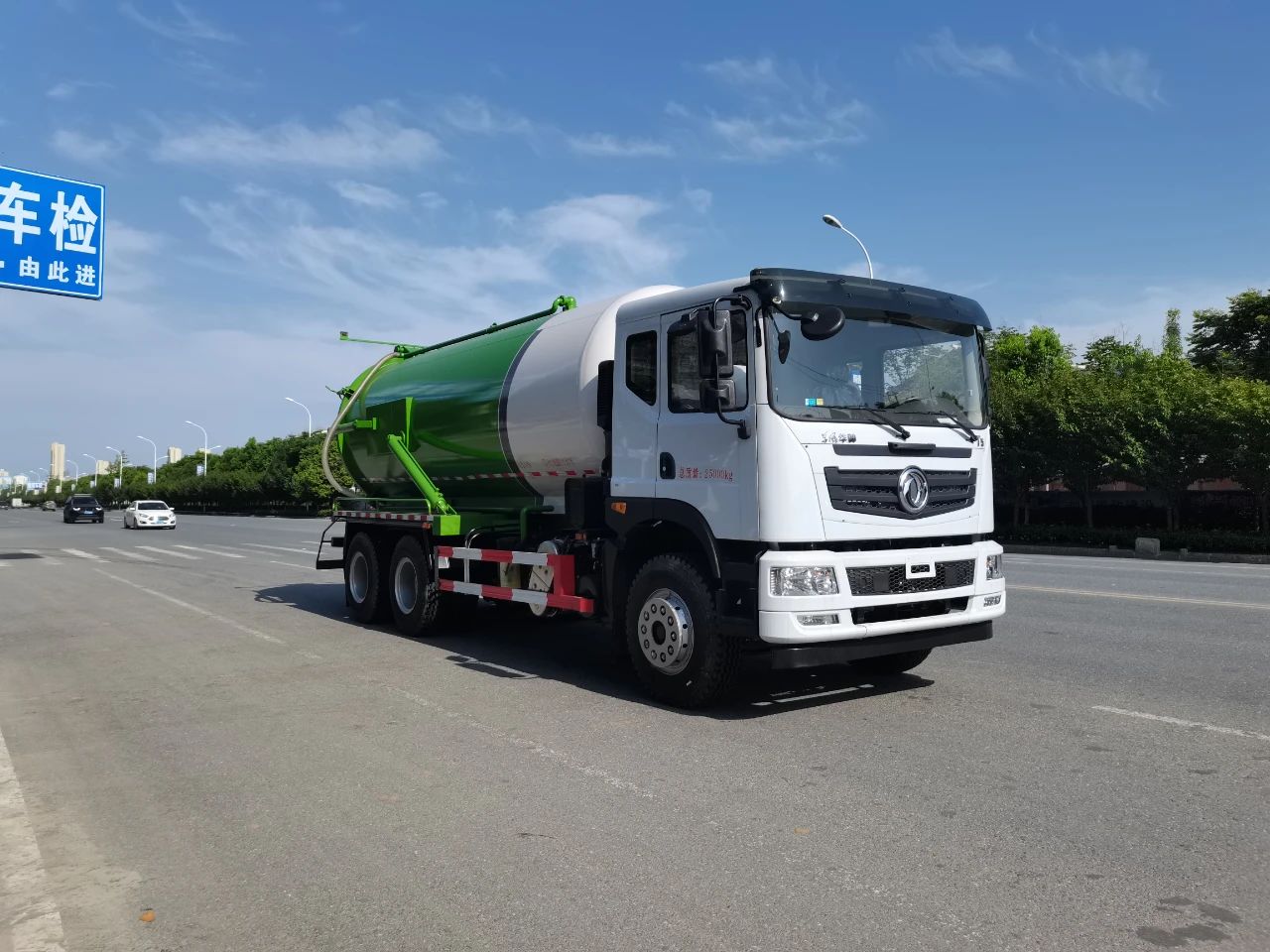

Dongfeng T5 6X4 18 m³ sewage suction truck

Chassis configuration:

Dongfeng T5 cab, Cummins 230 horsepower/Yuchai 245 horsepower/Cummins260 horsepower/Yuchai 270 horsepower, Shaanxi small eighth gear, 11.00 steel wire tires. Air conditioning, electric glass, central locking system
Conventional configuration of suction function:
1.The dedicated part of the sewage suction truck consists of a power take-off, transmission shaft, vacuum sewage pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, sight window, hand washing device, etc. It is equipped with a high-power vacuum sewage pump and a high-quality hydraulic system. The tank head is formed by one-time die-casting, the tank body can be opened by the rear door, and the double top is self dumping.
2.The dirt inside the tank can be directly poured out through the back cover.
3.The tank body is made of high-quality carbon steel from Wugang, with a thickness of 6mm and over 5mm,
4. Equipped with hand washing device, thickened sewage observation pipe, Yifeng/Weiye vacuum pump, water oil separator, vacuum pressure gauge, anti overflow valve, and 1 suction pipe of 8 meters,
5. The suction truck is equipped with hydraulic lifting function, and the rear door is hydraulically opened and closed (the suction truck tank body is hydraulically lifted, the rear cover is hydraulically opened, one DN100 feeding port, one DN150 discharging port, and one suction tank port)

Product Name： Dongfeng T5 6X4 18 m³ sewage suction truck
Driving Type： 6X4
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(Kg) ： 11100(Kg)

Product Features

Dongfeng T5 6X4 18 m³ sewage suction truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Dongfeng T5 6X4 18 m³ sewage suction truck
Driving Type	6X4
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	11100(Kg)
Rated weight(kg)	13770,13705(Kg)
Wheelbase(mm)	4350+1350(mm)
Overall Dimension(mm)	9200×2520×3530(mm)
Tank volume(cbm)	18m³
Engine brand & model	B6.2NS6B230,YCS06245-60A,B6.2NS6B260,YCS06270-60
Displacement(L)/Power(kw)	/
Axle Quantity	3
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00 steel wire tire, 10+1 spare
Cab	Dongfeng T5 cab
Tank material	8mm carbon steel
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
