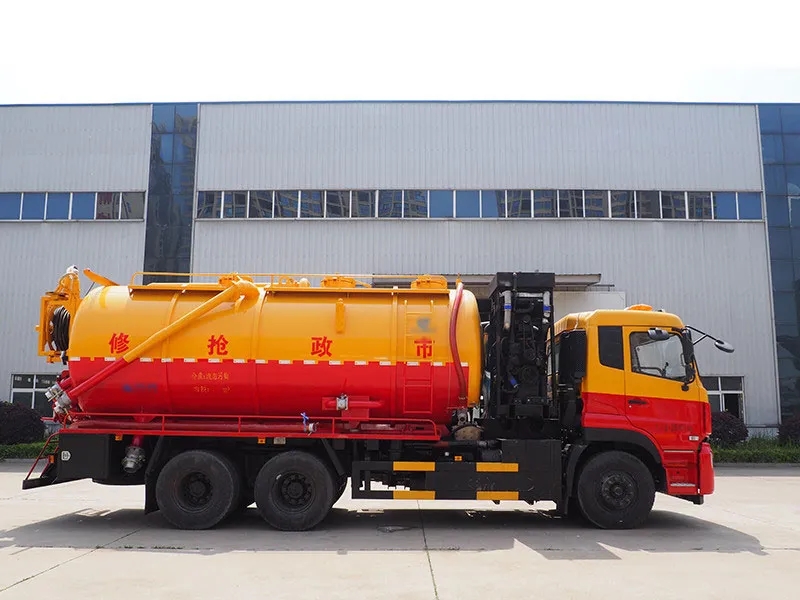

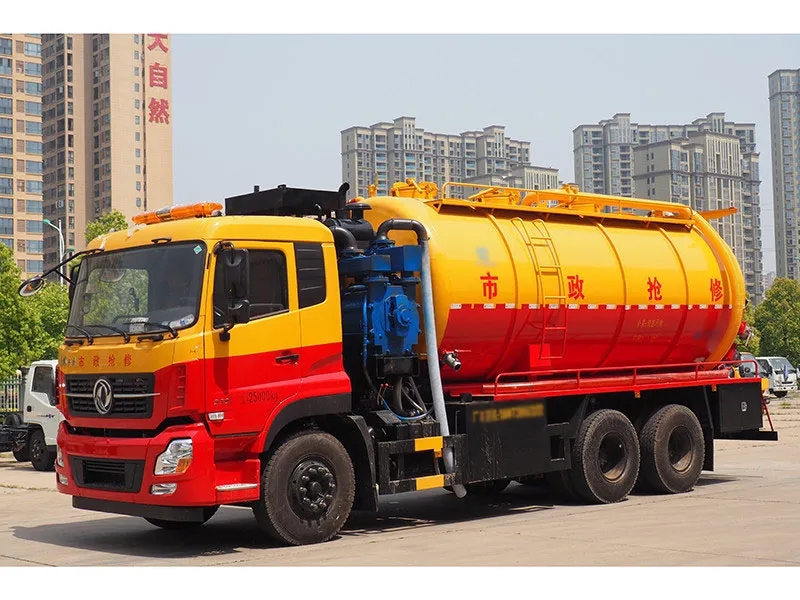

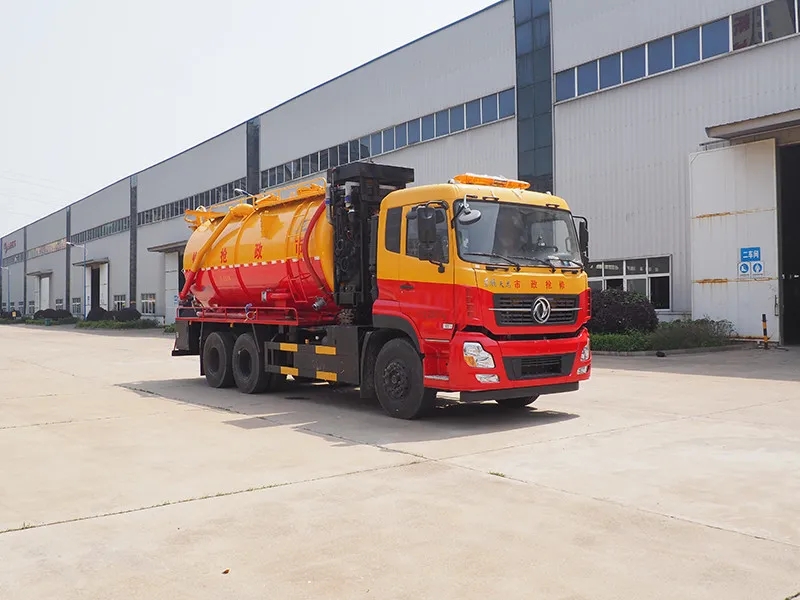

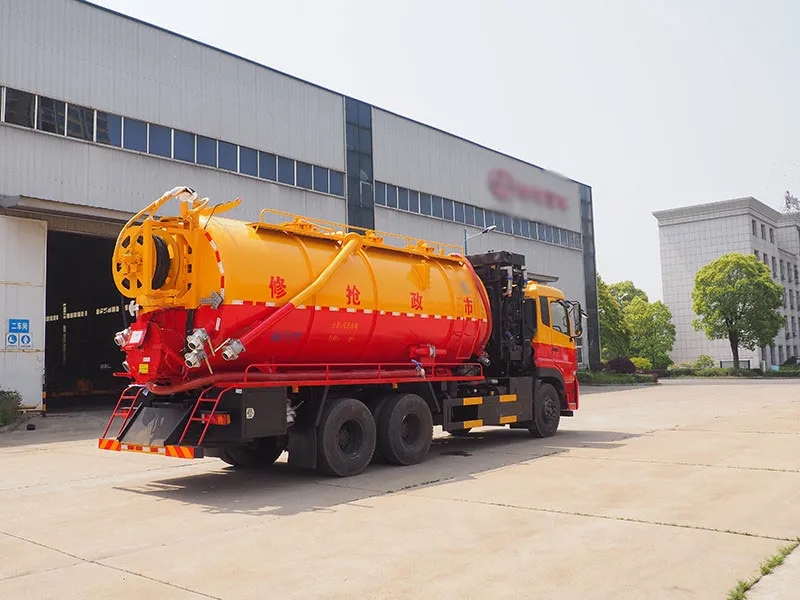

Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck

Chassis configuration:

1. Adopting Dongfeng's original Tianlong rear eight wheel chassis, Cummins 290 horsepower engine, 4350+1350 wheelbase, 9-speed gearbox, original air conditioning, ABS, airbag seats, electric glass, central locking system, electric front folding luxury cab, brand new humanized interior, 11.00 original steel wire tires, and others as standard from Dongfeng's factory.
Installation configuration:
1. Overall dimensions of the vehicle: 9850 * 2550 * 2850. Tank size (straight section length * diameter): 5400 * 2200, tank volume is approximately 22 cubic meters. Suggested storage: 5 cubic meters of clean water, and the rest should be used as sewage tanks. The tank body is made of 8mm national standard carbon steel plate, and 8mm heads are used for separating the clean water and sewage tanks. There is a water tank mouth on the top of the clean water tank, and a cement tank mouth on the top of the dirty water tank.

Product Name： Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck
Driving Type： 6x4
Weight /Volume：
Tank volume(cbm)： 22m³

Product Features

Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Dongfeng 6X4 sewage suction tanker truck, 22m³ sewage suction truck
Driving Type	6x4
Weight /Volume
Tank volume(cbm)	22m³
Rated payload weight(kg)	/
Dimensions
Wheelbase(mm)	4350+1350
Overall Dimension(mm)	9850X2550X2850
Engine
Engine brand & model	Chaochai, YCY30165-60
Displacement(L)/Power(kw)	2.97L/121KW
Chassis
Axle Quantity	3
Transmission Type	6 forward gears and 1 reverse gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245/70R19.5,8.25R20, 6 with a spare
Cab
Standard configuration	D7 series cab
Air conditioning	YES
Performance parameter
Garbage container material	high-quality carbon steel
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
