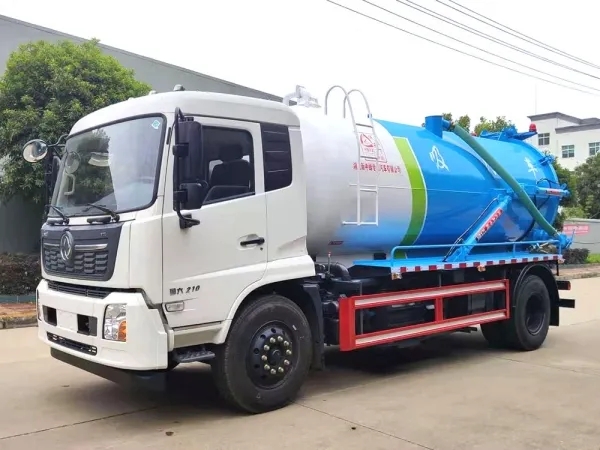

Dongfeng D9 sewage tanker truck,10m³-12m³ suction cleaning truck

The suction truck is mainly used for cleaning urban sewers, sediment in pipelines, dredging dead corners and mud ditches, as well as cleaning industrial discharge pipelines, walls, etc. It can also be used for watering, transporting water, and flushing highways. It can be used for firefighting in emergency situations.

Product Name： Dongfeng D9 sewage tanker truck,10m³-12m³ suction cleaning truck
Driving Type： 4x2
Weight /Volume：
Tank volume(cbm)： 10m³-12m³

Product Features

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Dongfeng D9 sewage tanker truck,10m³-12m³ suction cleaning truck
Driving Type	4x2
Weight /Volume
Tank volume(cbm)	10m³-12m³
Rated payload weight(kg)	8000,8065,8490,8555,8855,8920
Dimensions
Wheelbase(mm)	3600,3950,4500,4700,5000,5300,5600,3600
Overall Dimension(mm)	7200,7900,8100×2500×3300,3400
Engine
Engine brand & model	Commins, B6.2NS6B210
Displacement(L)/Power(kw)	6.2L/154KW
Chassis
Axle Quantity	3
Transmission Type	8 forward gears and 1 reverse gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	295/80R22.5 ,10 with a spare
Cab
Standard configuration	D9 series cab
Air conditioning	YES
Performance parameter
Garbage container material	high-quality carbon steel

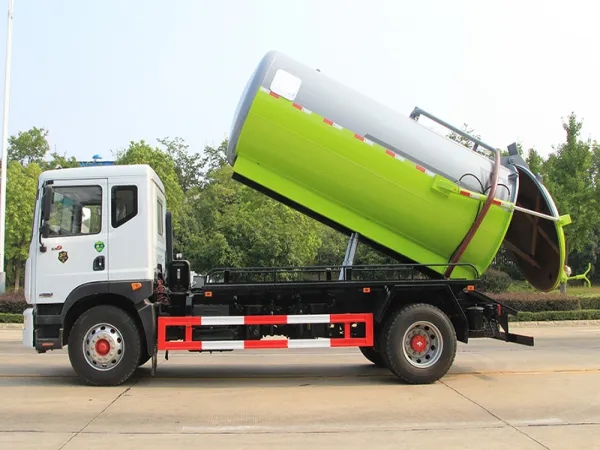

Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
