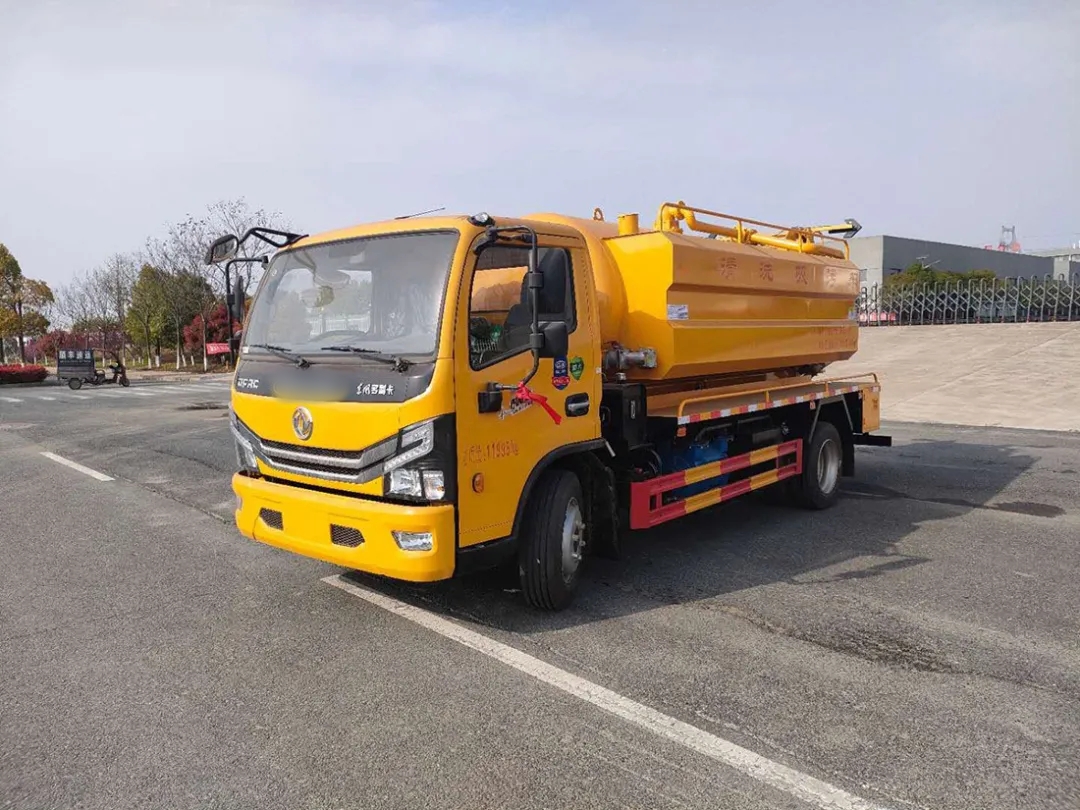

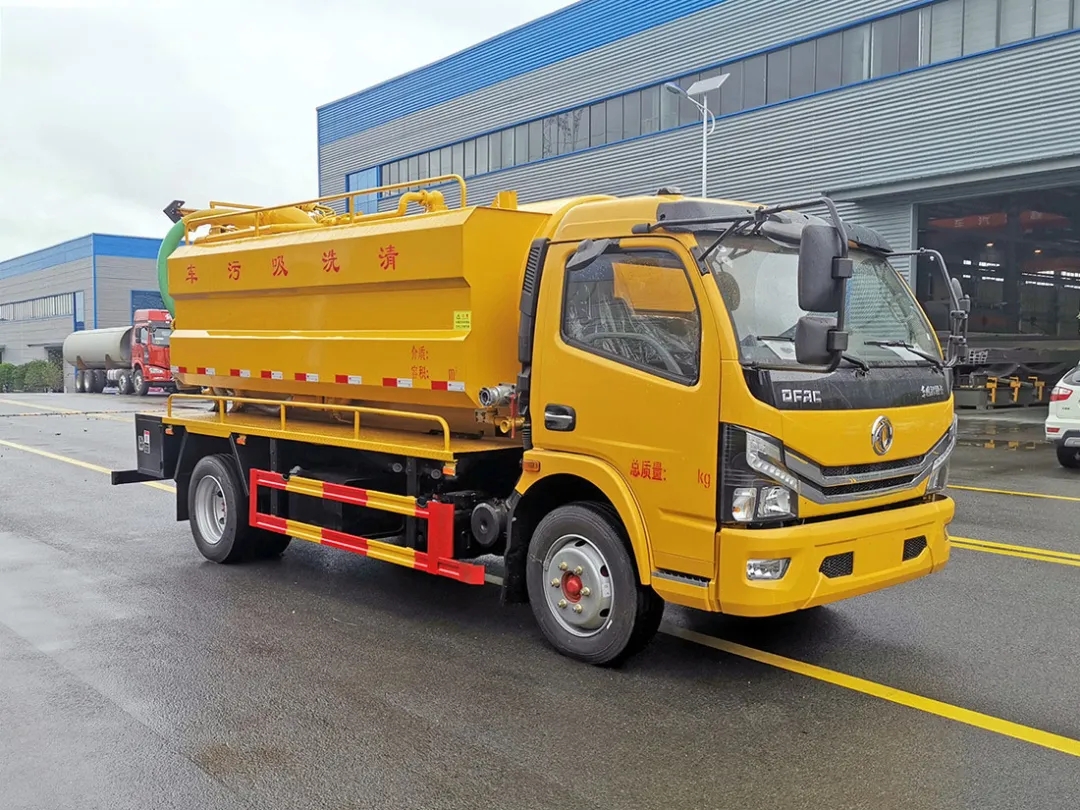

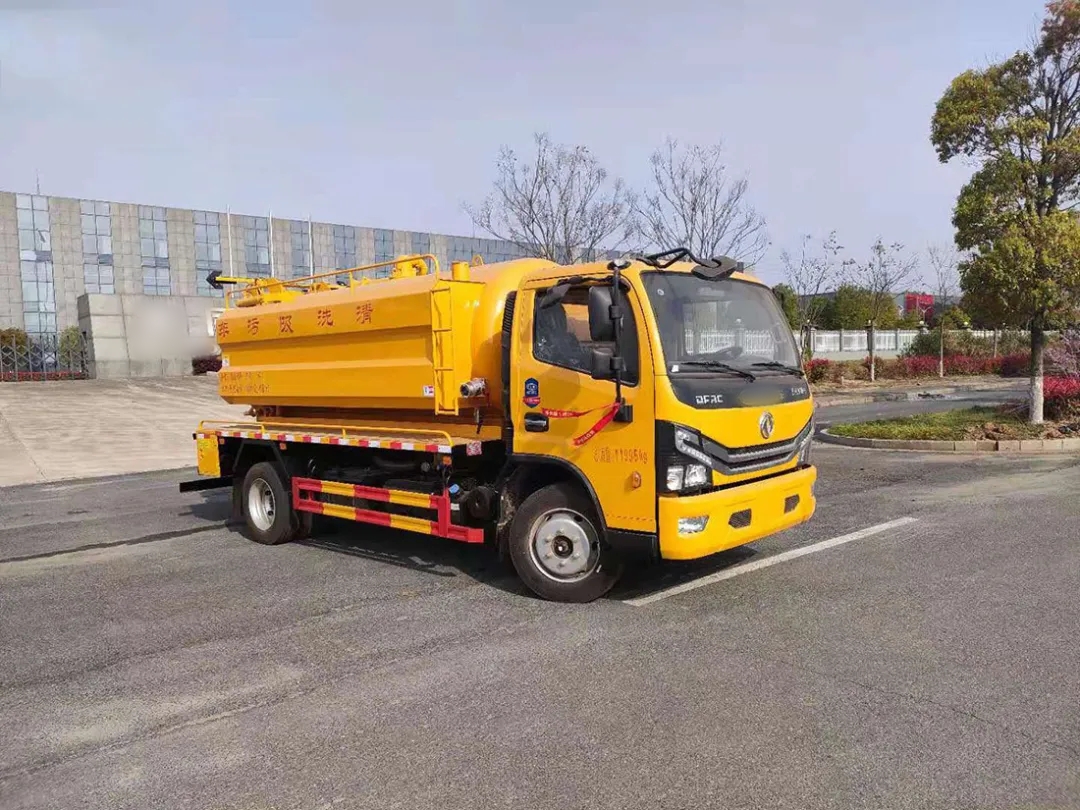

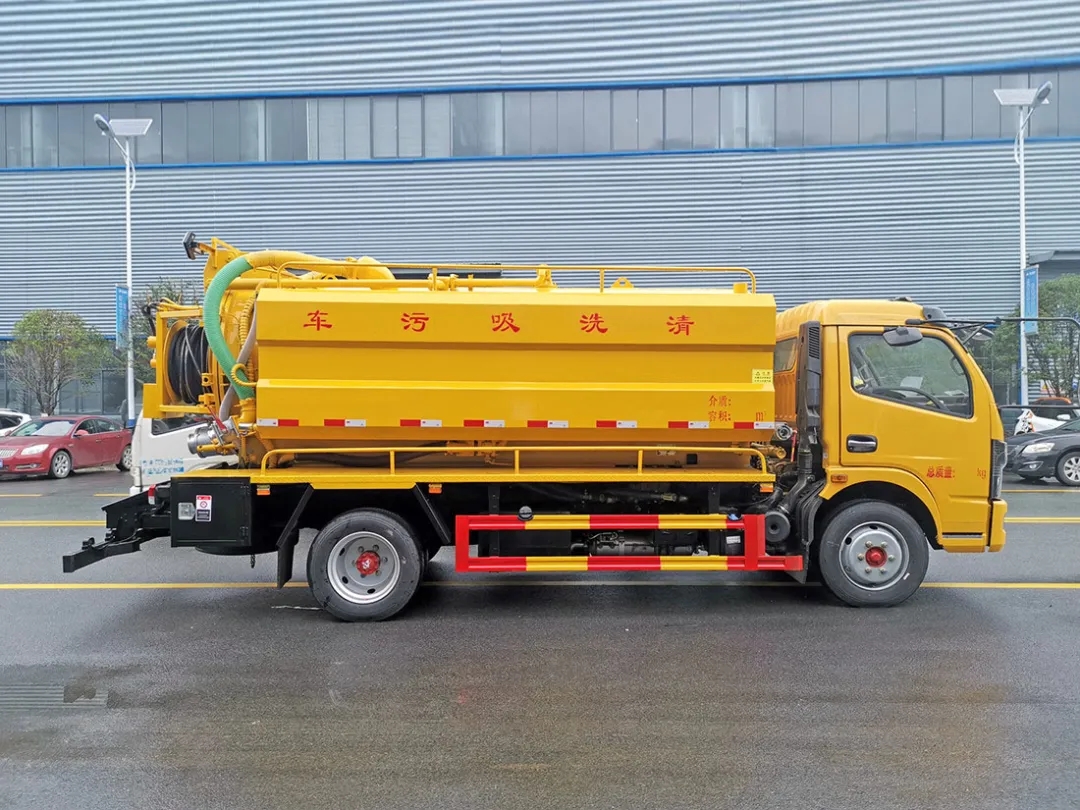

Dongfeng 10m³ sewage tanker truck

Dongfeng 10m³ sewage suction tanker truck

1.Chassis parameters:
The chassis adopts Yuchai 165 horsepower, wheelbase of 3800mm, National VI emission standard, with intercooled boosting, original ABS anti lock braking system, original steering assistance, air brake, original air conditioning, electric doors and windows, remote key, 245 vacuum tires, and new interior design.
2.Top configuration
Suction part: 7-square sewage tank, made of 6mm Q235 high-quality carbon steel, equipped with Zibo SK-12 water circulation pump, one 8-meter suction pipe, inlet pipe with filter screen, vacuum overflow valve, rear cover buckle lock, sight pipe, one 100mm ball valve suction port at the rear end, 150mm discharge port, tank body with lifting function, rear door with hydraulic opening.
Cleaning section: Three sided water tank, made of 4mm Q235 high-quality carbon steel plate, with fire interfaces on both sides of the water tank for water inlet, and one toolbox. Using a German made floating high-pressure pump with a flow rate of 215 liters and a pressure of 22 megapascals, equipped with a 60 meter inner diameter 19 # high-pressure pipe, a set of 10 nozzles of different sizes, a rear mounted cleaning reel, equipped with a shower device (used to rinse the residual dirt on the high-pressure pipe after dredging the pipeline), and an air blown water function (used to blow out the residual water stains inside the high-pressure pipe after each operation, to prevent freezing in cold weather from affecting the next use)
