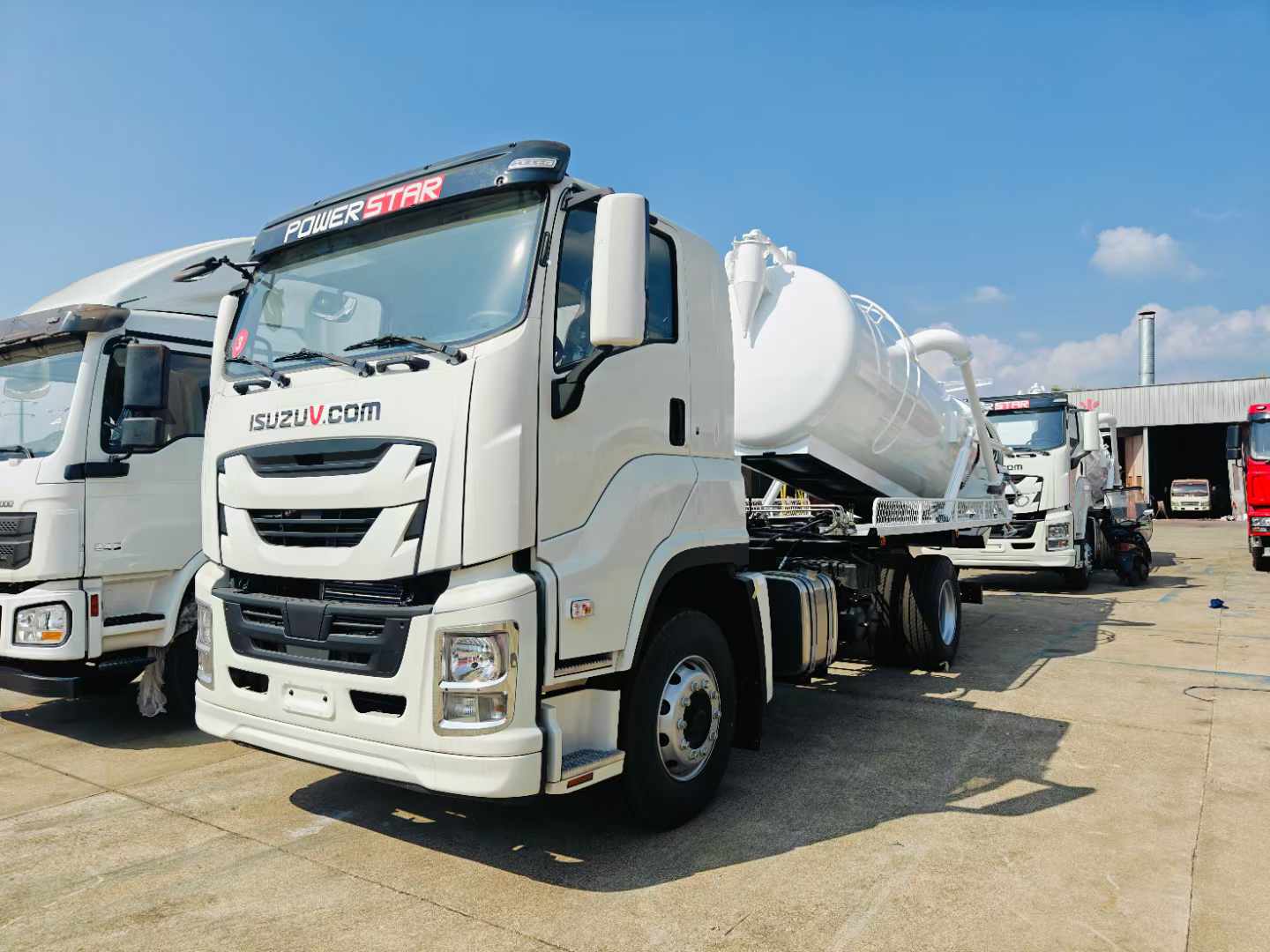

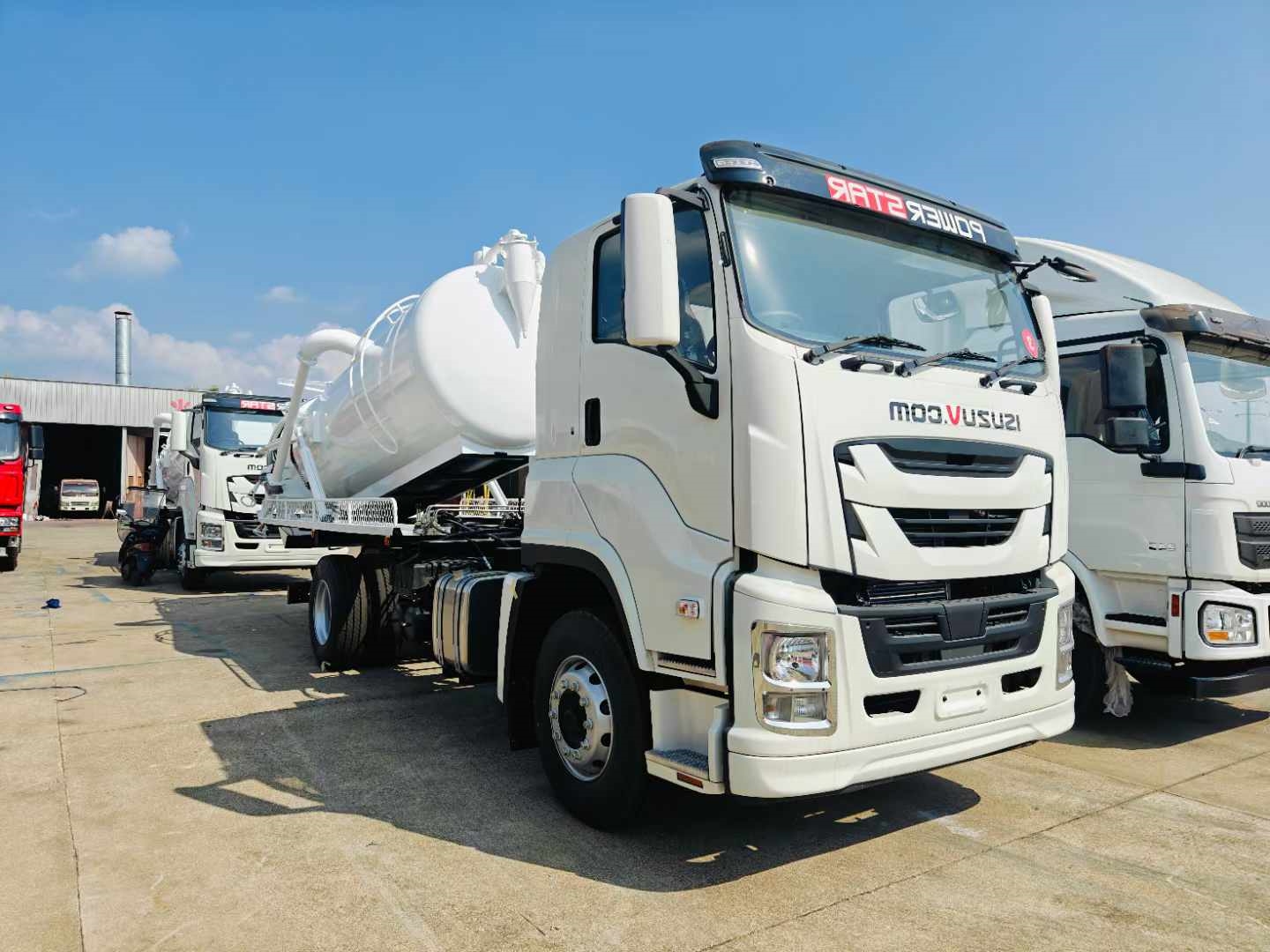

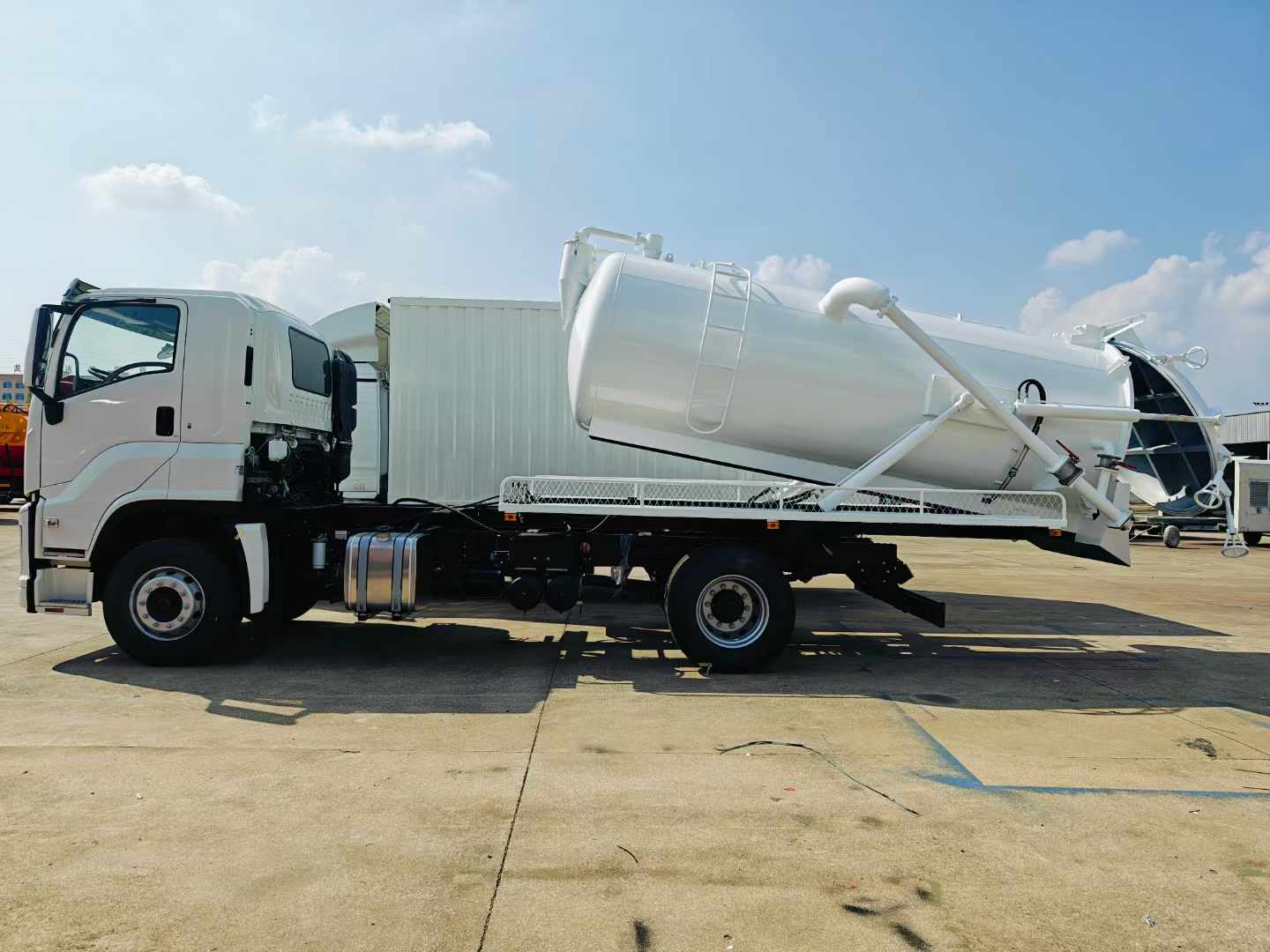

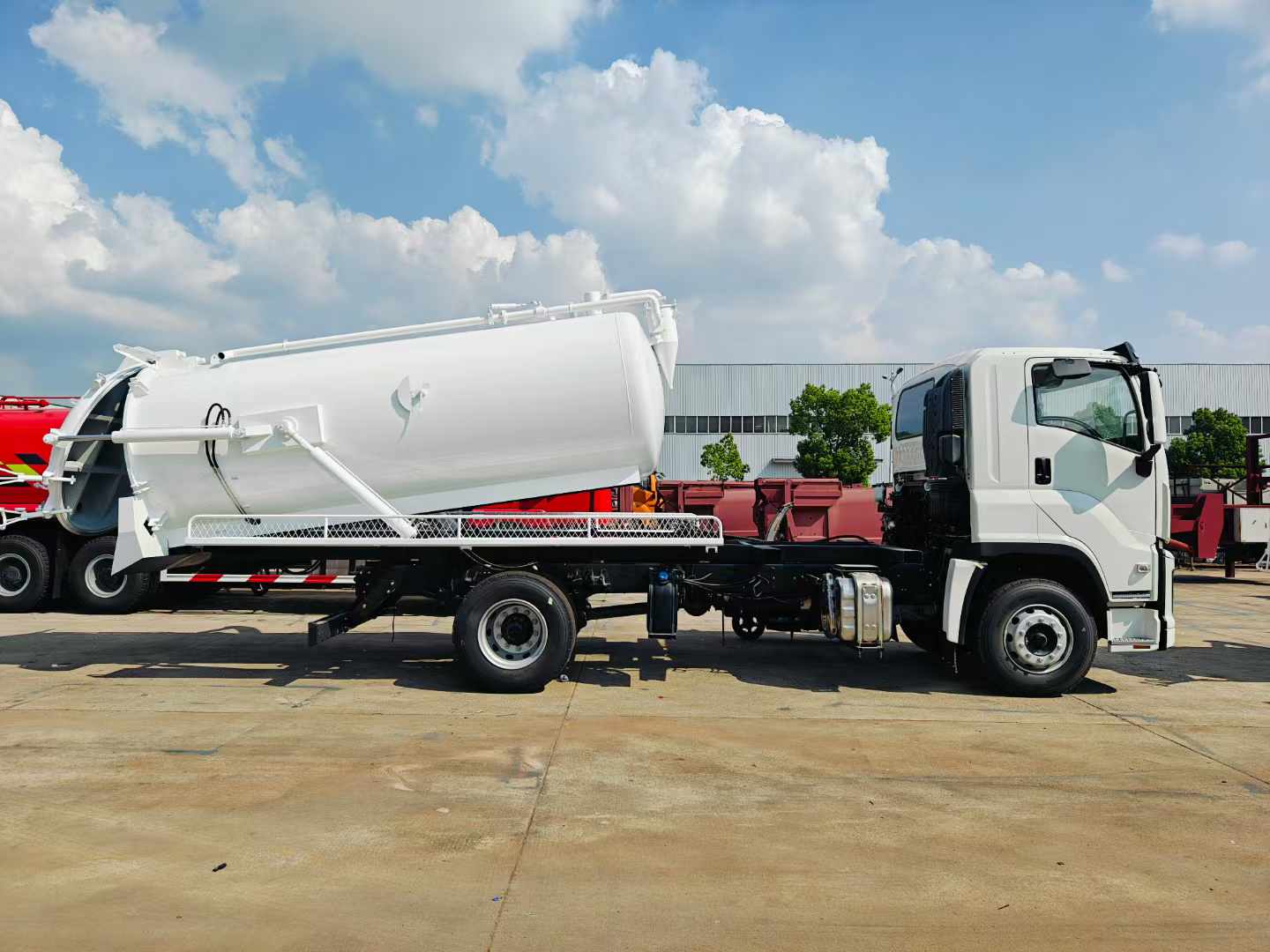

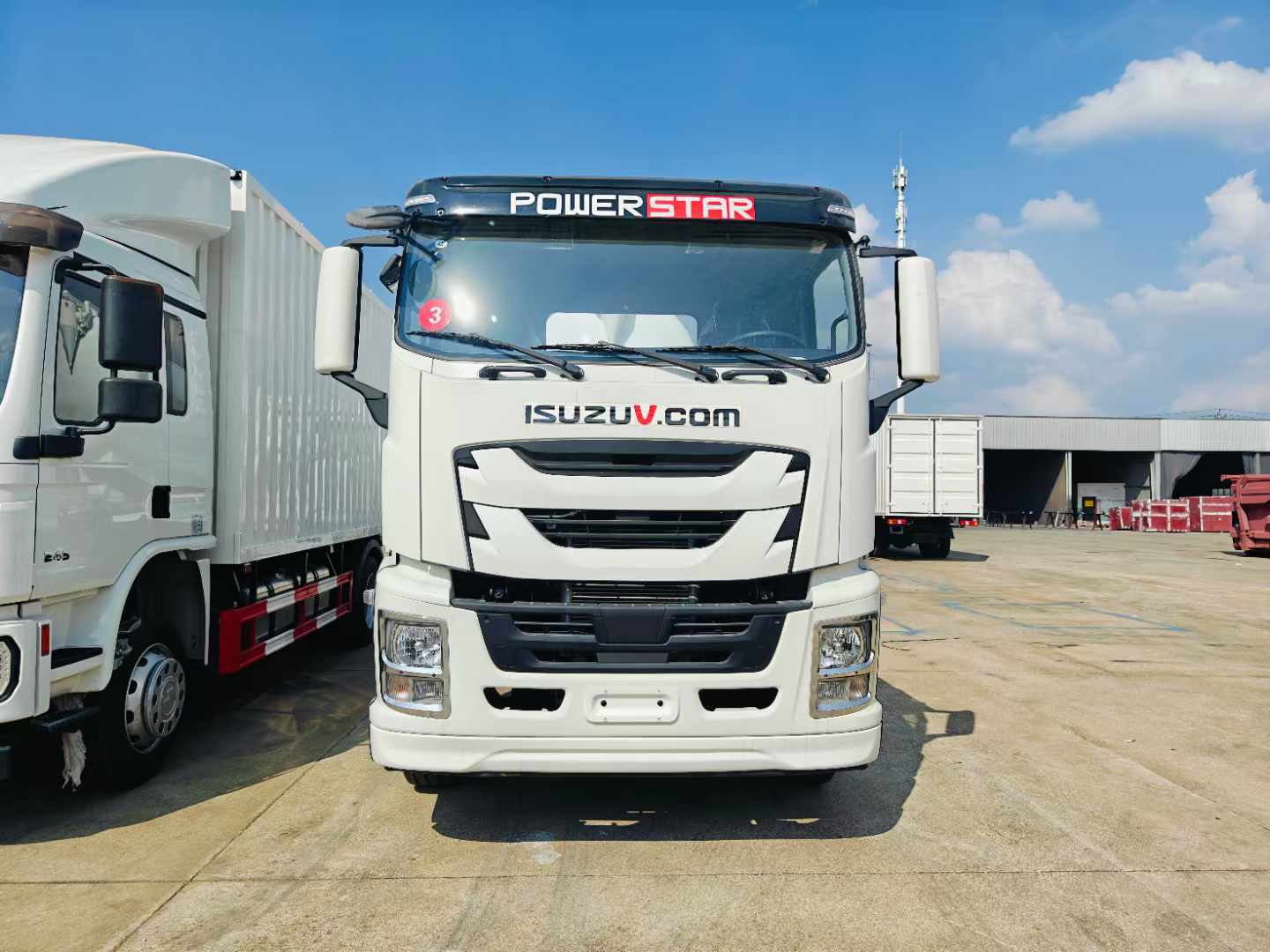

Export Isuzu 4X2 12m ³ sewage suction truck

Special Function Description:
a. The dedicated part of the sewage suction vehicle consists of a vacuum sewage pump, power take-off, transmission shaft, water gas separator, oil gas separator, multi way directional valve, tank body, sewage discharge valve, sight glass, vacuum pressure gauge, pipe network system, hydraulic system, etc.
b. The material of the suction truck tank body is high-quality carbon steel, and stainless steel or steel lined plastic can be selected. Tank metal paint.
c. Our company produces suction trucks and installs imported anti overflow devices to prevent feces and sewage from being filled and poured back into the vacuum pump system.

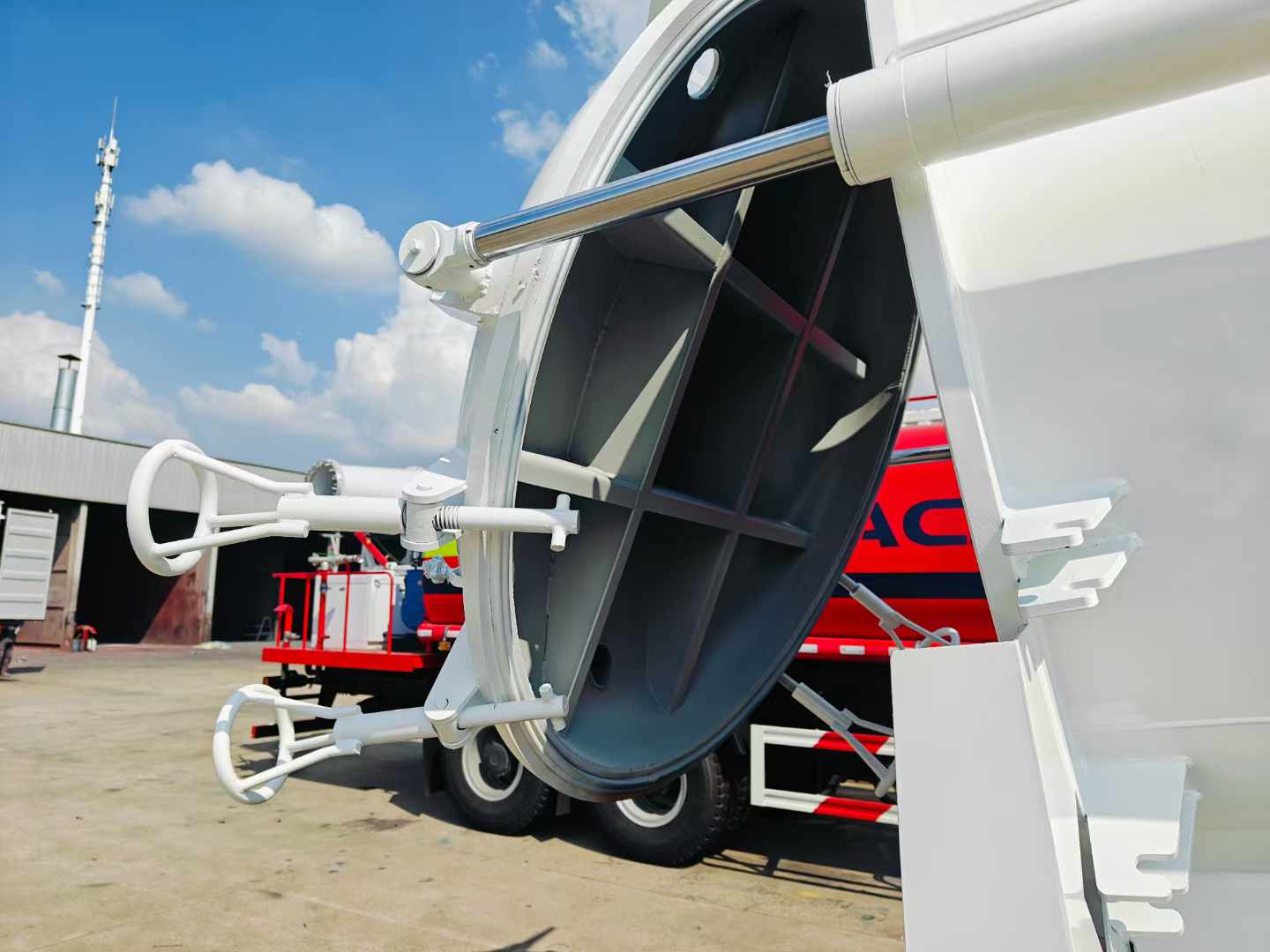

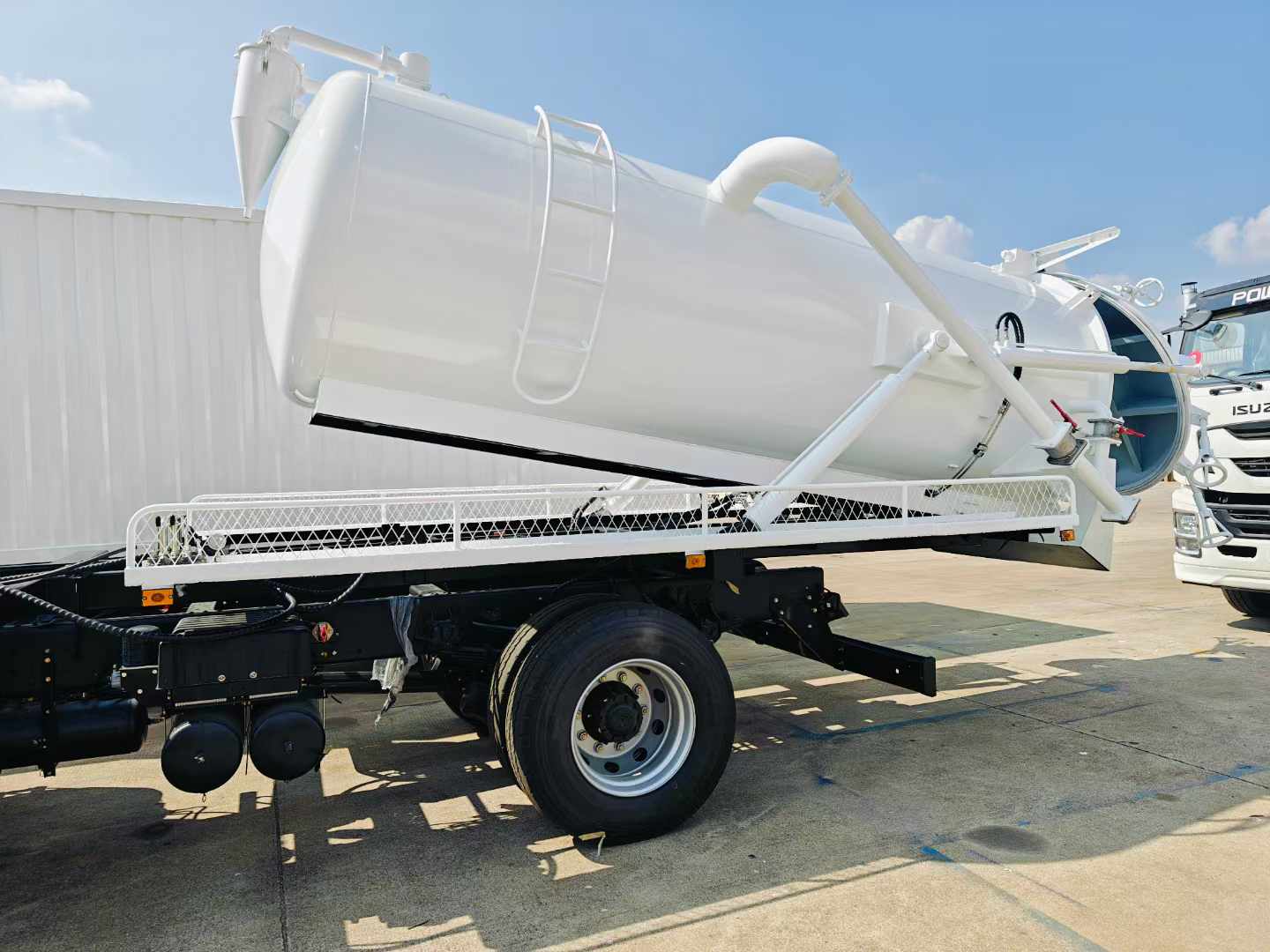

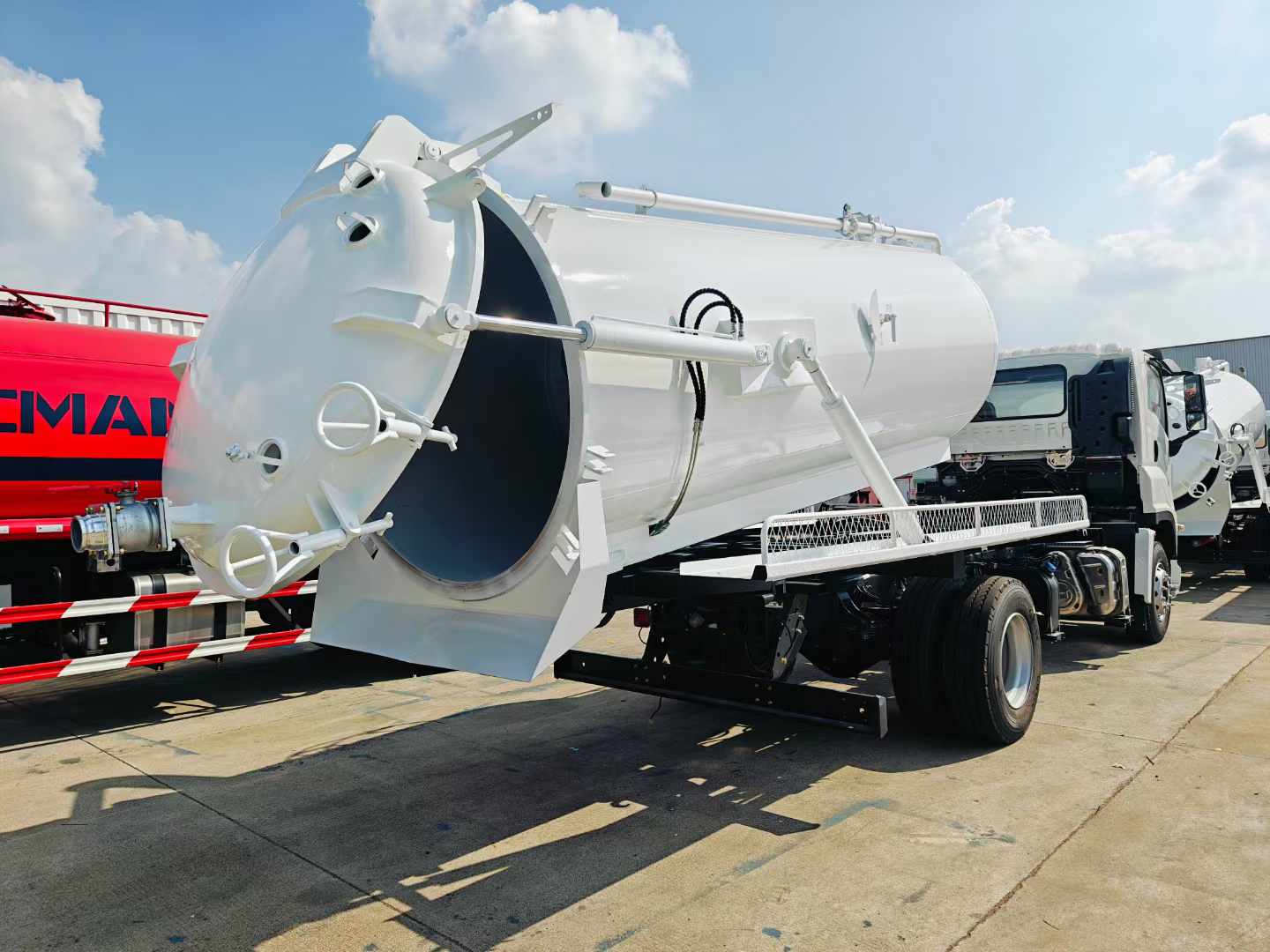

d. The suction truck has a hydraulic lifting and self dumping function, which facilitates the dumping of various types of sludge. Moreover, the rear tank door can be automatically opened by hydraulic pressure, which facilitates the cleaning of sediment and solidified substances inside the tank and the maintenance of the interior of the tank.
e. The sewage suction truck produced by our company can self suction and discharge, with convenient suction and discharge. The sewage suction truck has all the functions of a sewage suction truck, with higher vacuum degree, longer suction range, and greater pressure than a sewage suction truck, which can meet the needs of users in different usage environments.

Product Name： Export Isuzu 4X2 12m ³ sewage suction truck
Driving Type： 4X2
Tank volume(cbm)： 12m³
Axle Quantity： 2

Product Features

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Export Isuzu 4X2 12m ³ sewage suction truck
Driving Type	4X2
Tank volume(cbm)	12m³
Axle Quantity	2
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	235/75R17.5-14PR,8.25-20-14PR,8.25R20-14PR, 6+1 spare
Garbage container material	Made of high-quality steel plates from WISCO
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
