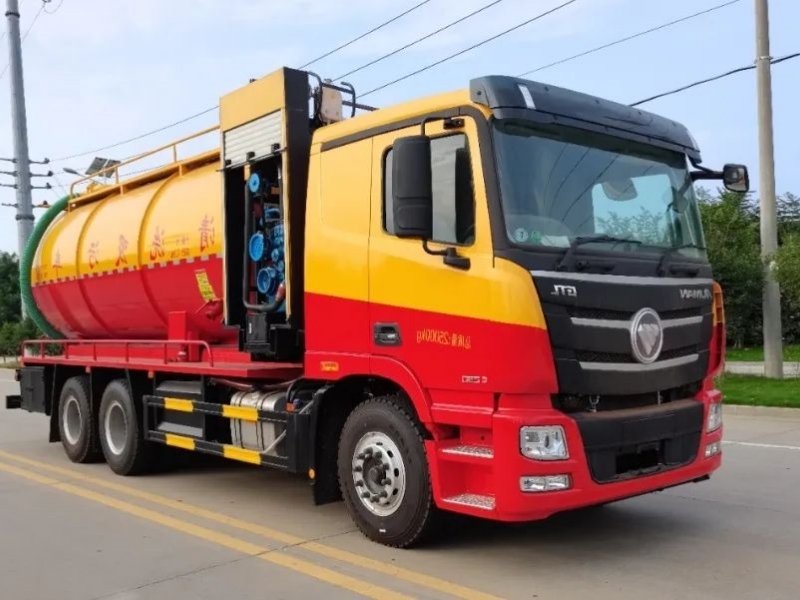

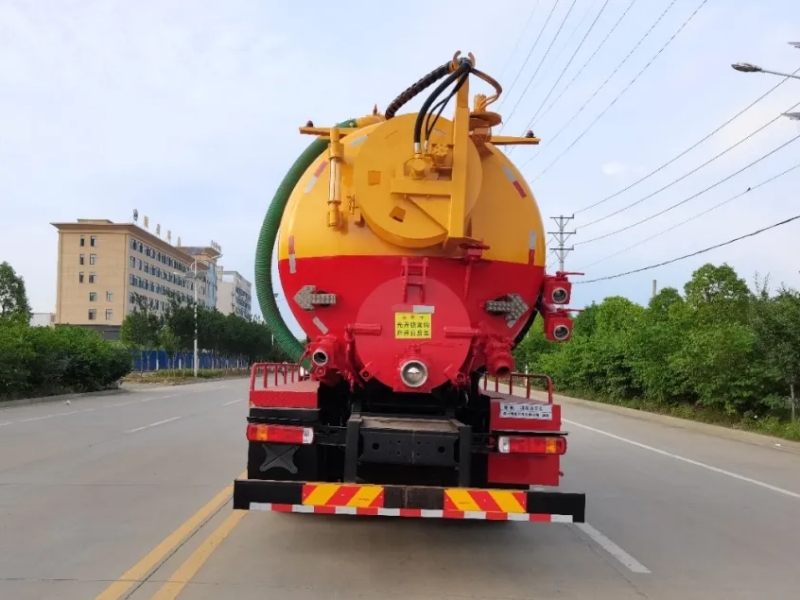

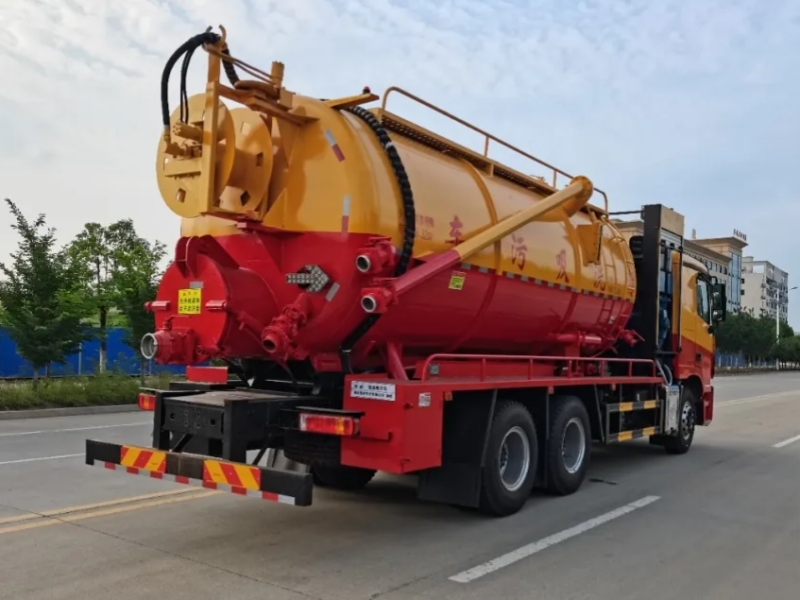

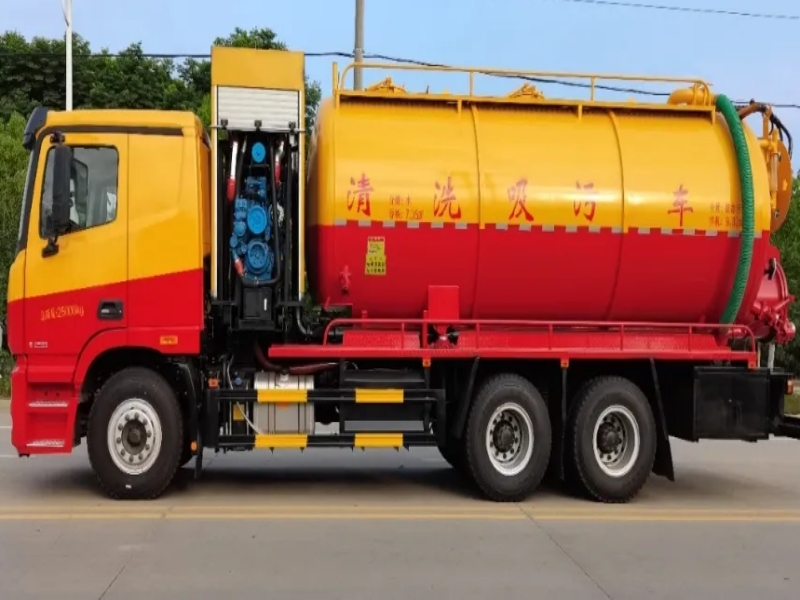

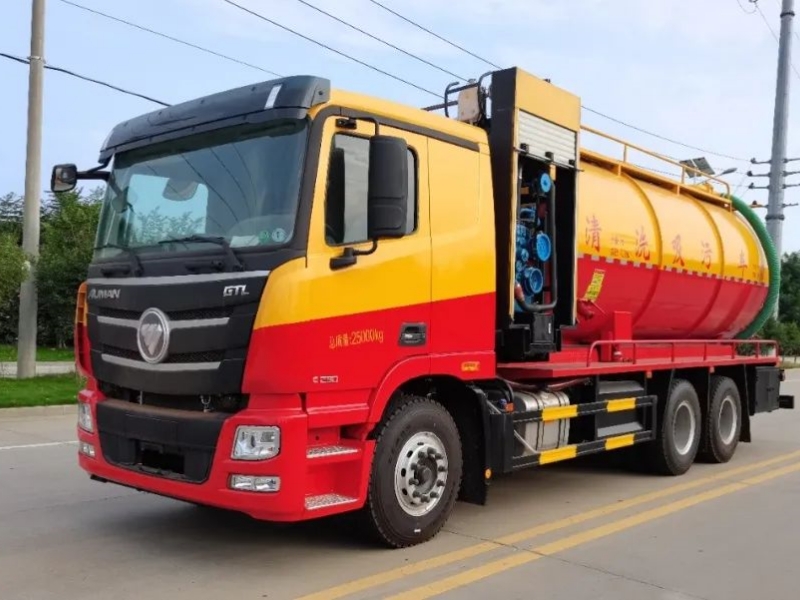

Mercedes Benz Auman 6X4 cleaning and suction truck

Chassis configuration

1.Engine:D6.7NS6B290, Cummins 290hp

2.Transmission type: Fast 8-speed with synchronizer and power take-off

3.Tyre: 11.00R20 steel wire tire, 10+1 spare

4.Wheelbase: 4400+1350(mm)

5 Other: Remote key, PTO electric doors and windows, central locking, air conditioning, optional multifunction steering wheel, electric flip, 7-inch instrument panel+reverse image+reverse radar, flange or spline power take-off

Upper configuration:

The Front compartment clear water tank 7 cubic meters, rear compartment suction tank 15 cubic meters, with water and sewage interconnection. It is made of high-quality steel plates from Wugang, with a wall thickness of 6mm and a clean water tank thickness of 4mm. It is equipped with a 215 flow high-pressure pump and a filtering device

Product Name： Mercedes Benz Auman 6X4 cleaning and suction truck
Driving Type： 6X4
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(Kg) ： 17700(Kg)

Product Features

Mercedes Benz Auman 6X4 cleaning and suction truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Mercedes Benz Auman 6X4 cleaning and suction truck
Driving Type	6X4
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	17700(Kg)
Rated weight(kg)	7170(Kg)
Wheelbase(mm)	4400+1350(mm)
Overall Dimension(mm)	10250×2550×3850,3950(mm)
Tank volume(cbm)	22m³
Engine brand & model	D6.7NS6B290, Cummins 290hp
Displacement(L)/Power(kw)	6.7L/213kW
Axle Quantity	3
Transmission Type	Fast 8-speed with synchronizer and power take-off
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20 steel wire tire, 10+1 spare
Cab	Mercedes Benz Ouman GTL2500mm driver's cabin (four point airbag suspension), luxurious interior, airbag seats
Tank material	8mm carbon steel
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
