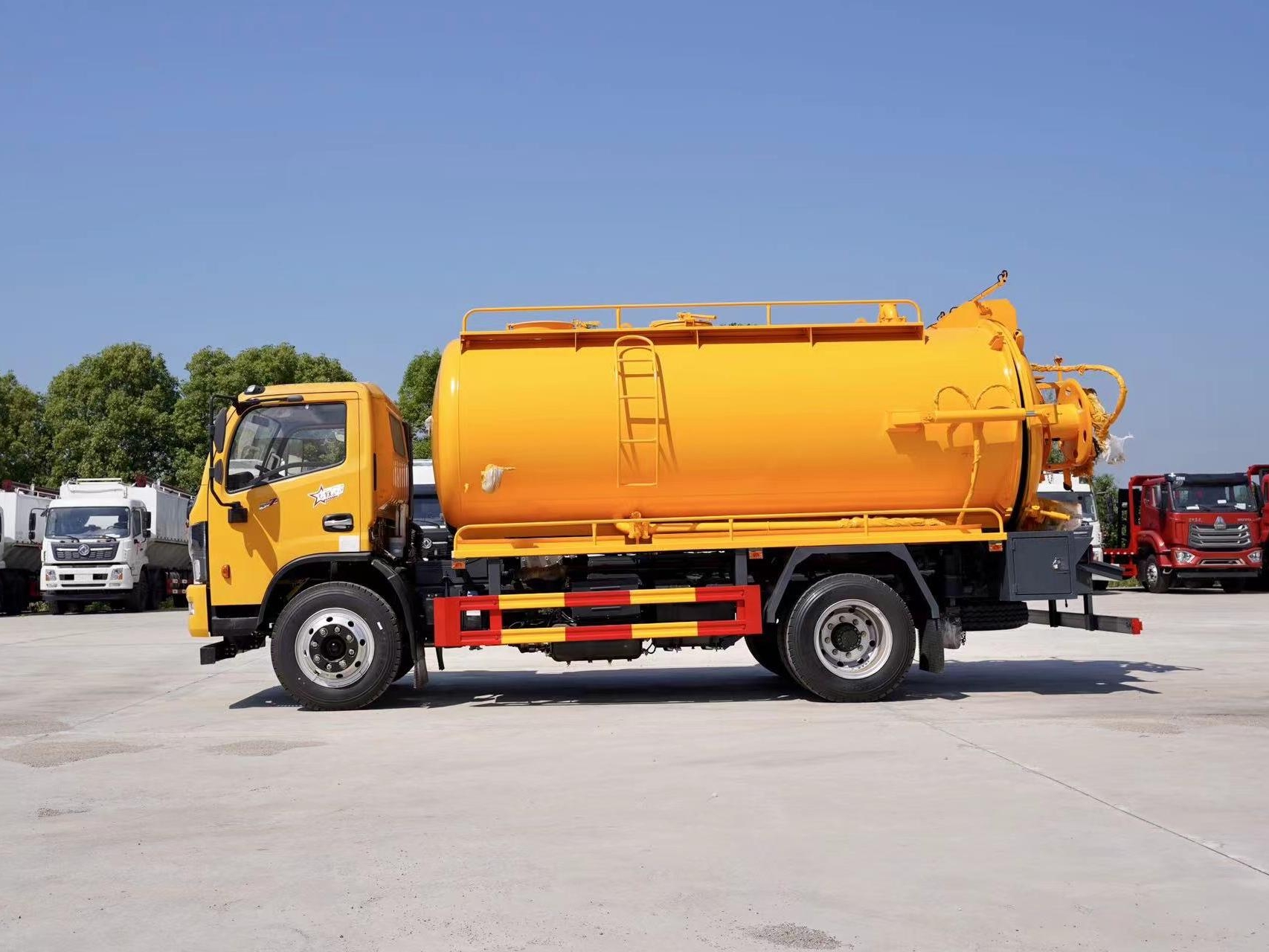

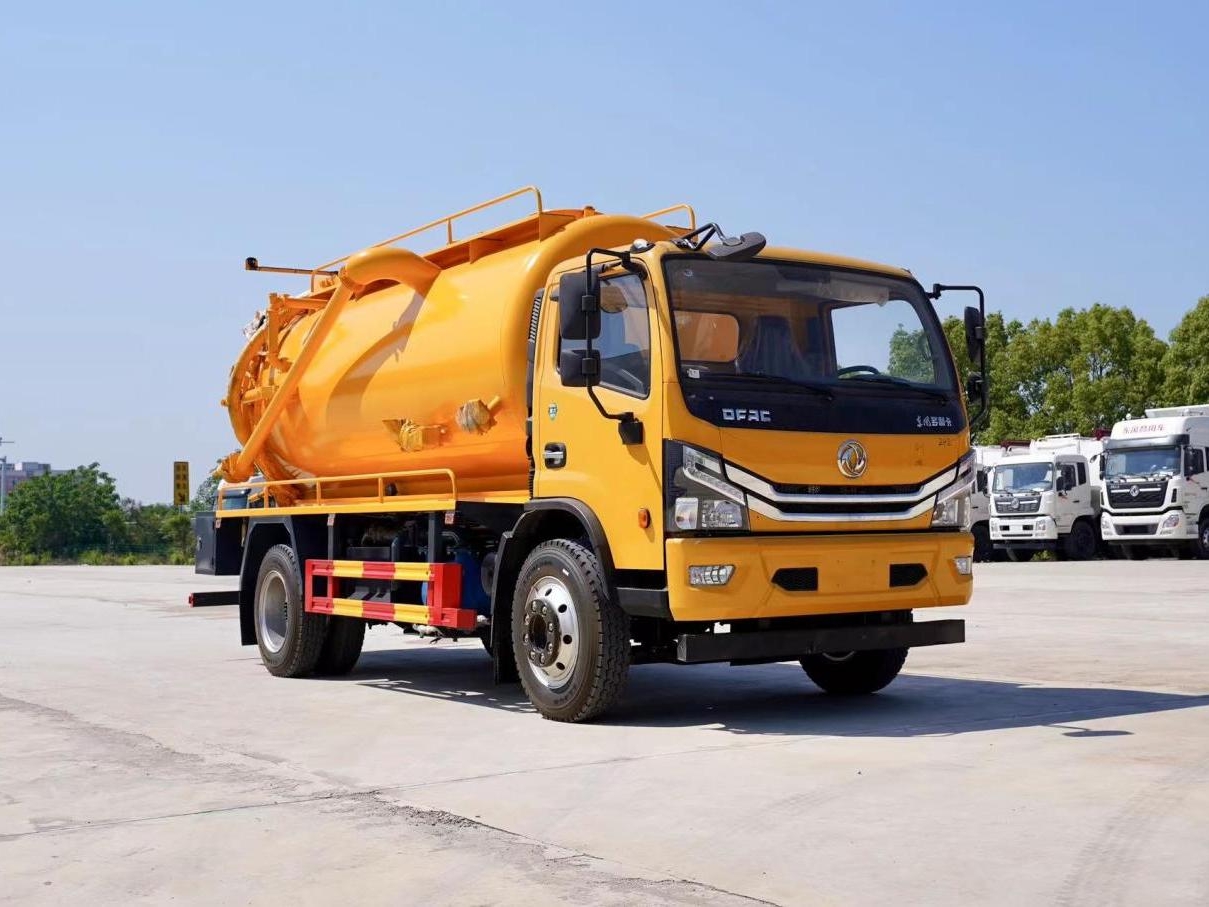

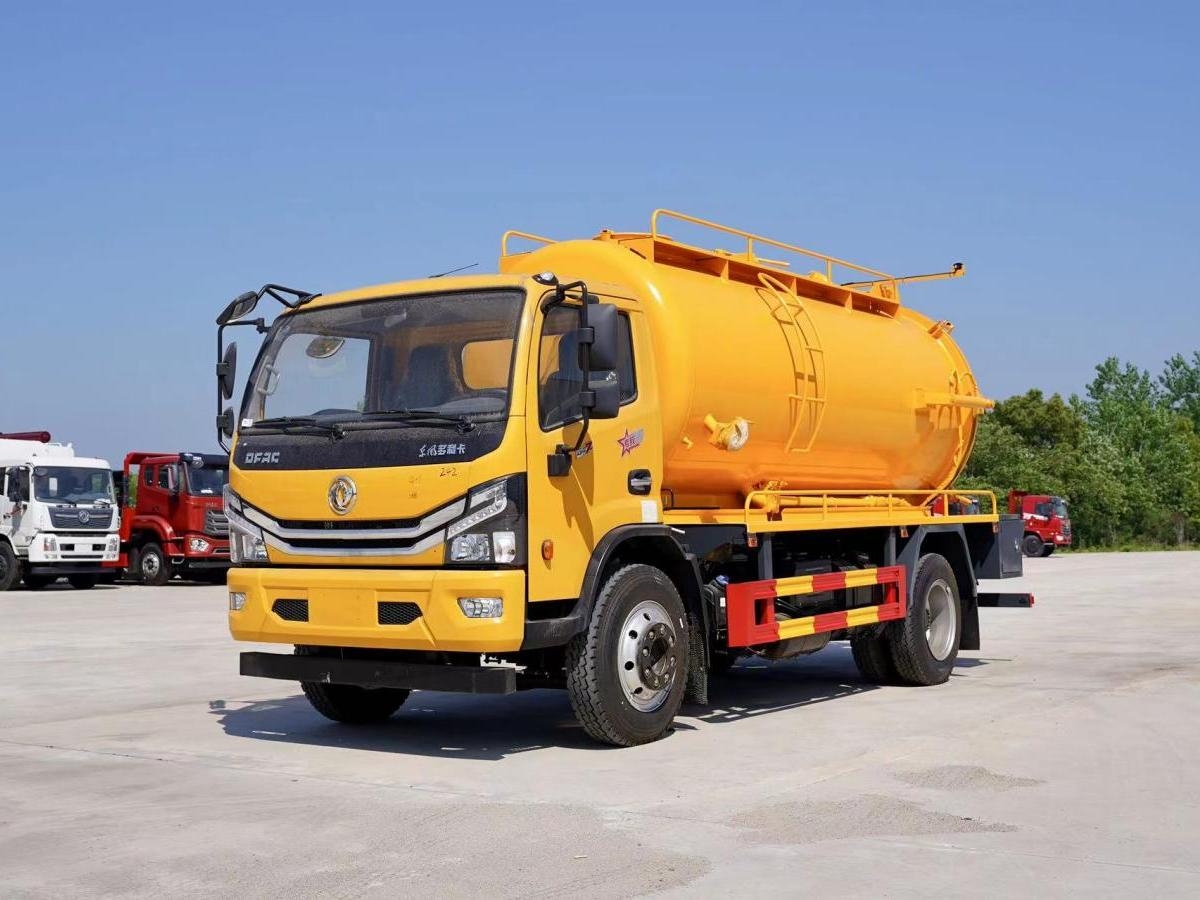

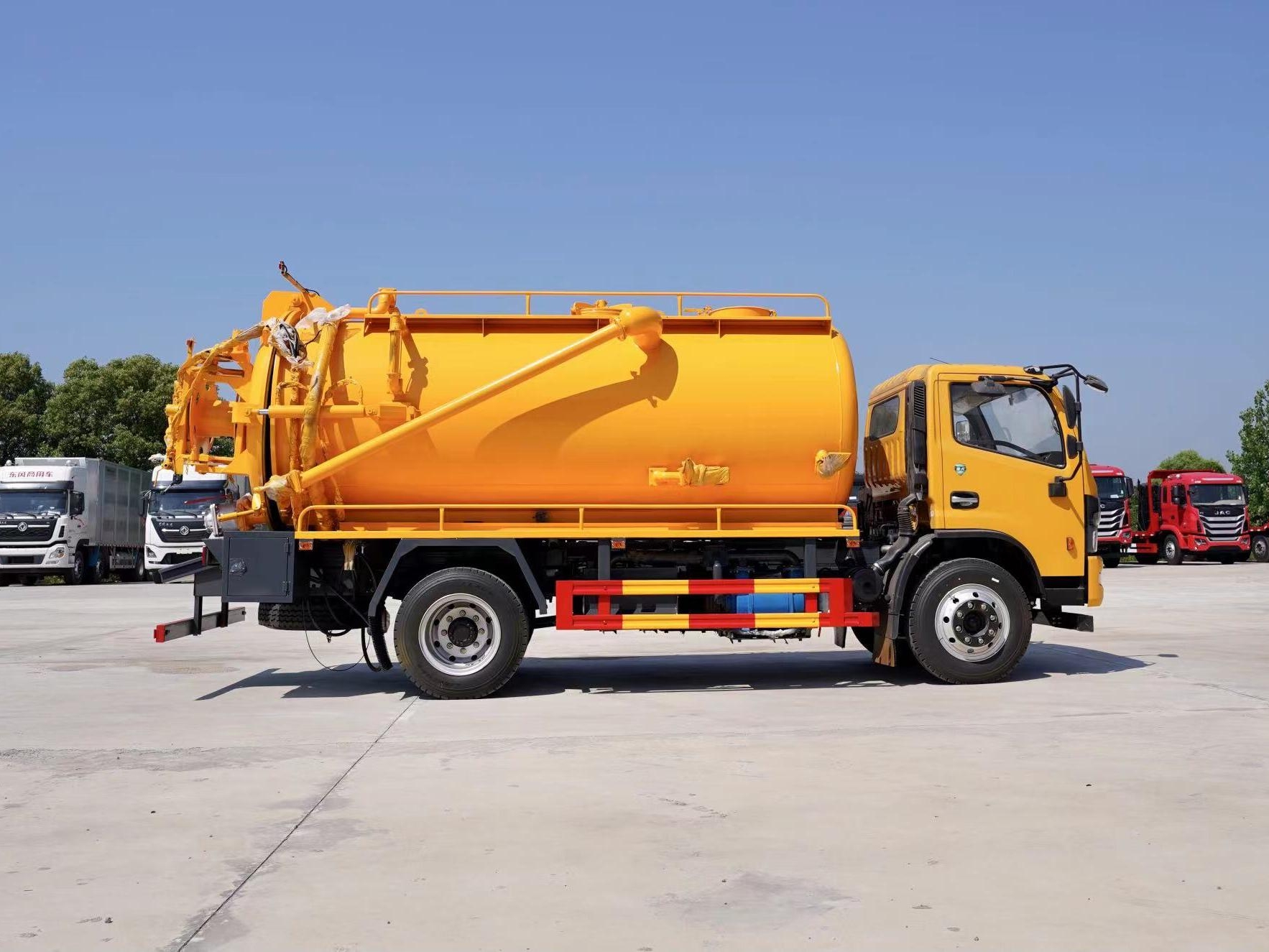

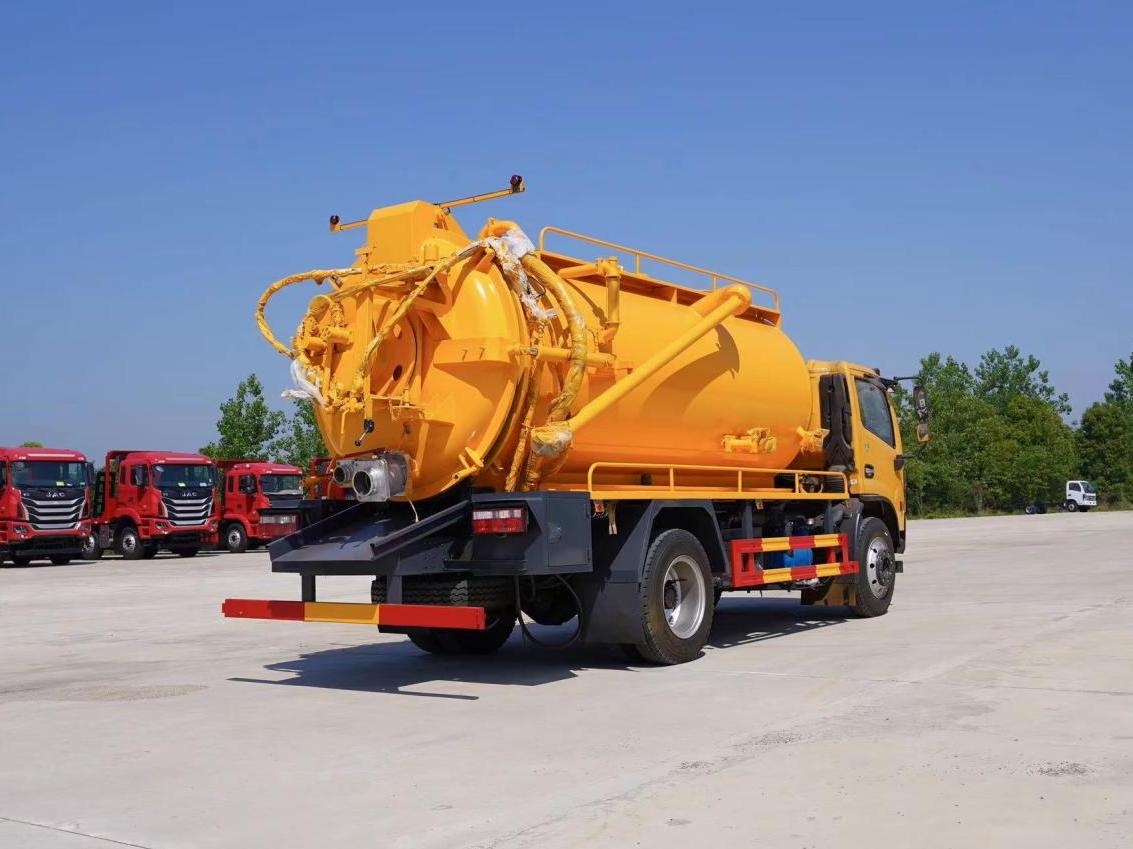

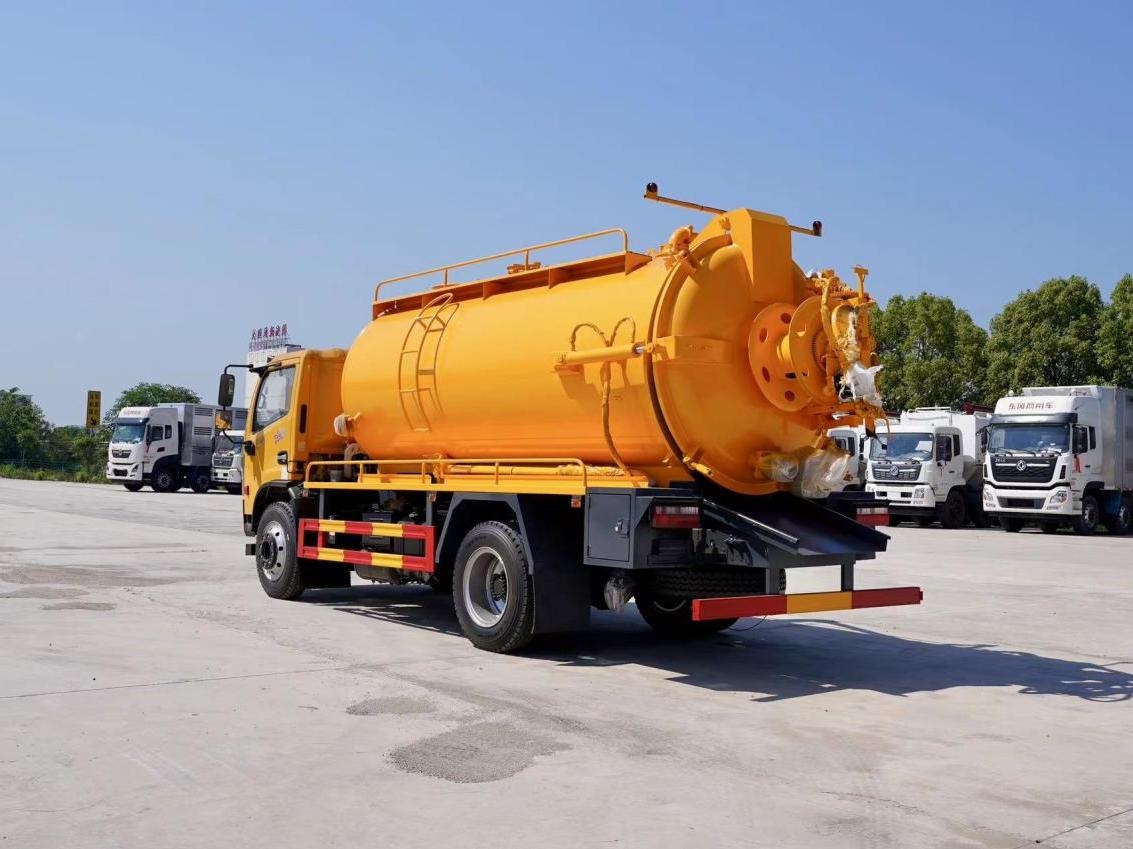

Dongfeng D7 4X2 suction cleaning truck

Chassis configuration: Dongfeng Dorica D7, Yuchai 165 horsepower, National VI engine 3800 wheelbase, 6-speed gearbox, 8.25 steel wire tires, original power steering, air brake ABS, electric glass, central locking, original air conditioning.

Upper configuration: The suction tank is 6mm thick, equipped with a dual Yao 215 flow high-pressure pump, a Y-shaped filter, a 60m 19 diameter high-pressure pipe, and 10 high-pressure nozzles. The sewage suction adopts Shandong SK-12 water circulation pump, with hydraulic lifting function on the tank body, hydraulic opening on the back cover, and a 100 ball valve suction and a 150 ball valve discharge at the tail, equipped with 2 8-meter sewage suction pipes. The rest shall be strictly produced in accordance with the announcement style

Product Name： Dongfeng D7 4X2 suction cleaning truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 14060(Kg)
Curb weight(Kg) ： 8200(Kg)

Product Features

Dongfeng D7 4X2 suction cleaning truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Dongfeng D7 4X2 suction cleaning truck
Driving Type	4X2
Gross vehicle weight(Kg)	14060(Kg)
Curb weight(Kg)	8200(Kg)
Rated weight(kg)	5665(Kg)
Wheelbase(mm)	3800(mm)
Overall Dimension(mm)	7380x2380x3150(mm)
Tank volume(cbm)	12m³
Engine brand & model	Yuchai, YCY30165-60
Displacement(L)/Power(kw)	10.8L/121W
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	8.25 steel wire tire, 6+1 spare
Cab	D7 cab, electric window, central locking, original air conditioning
Garbage container material	The thickness of the suction tank is 6mm.
Standard configuration	High pressure cleaning section: Double Yao 215 flow high-pressure pump. Suction part: Shandong SK-12 water circulation pump.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
