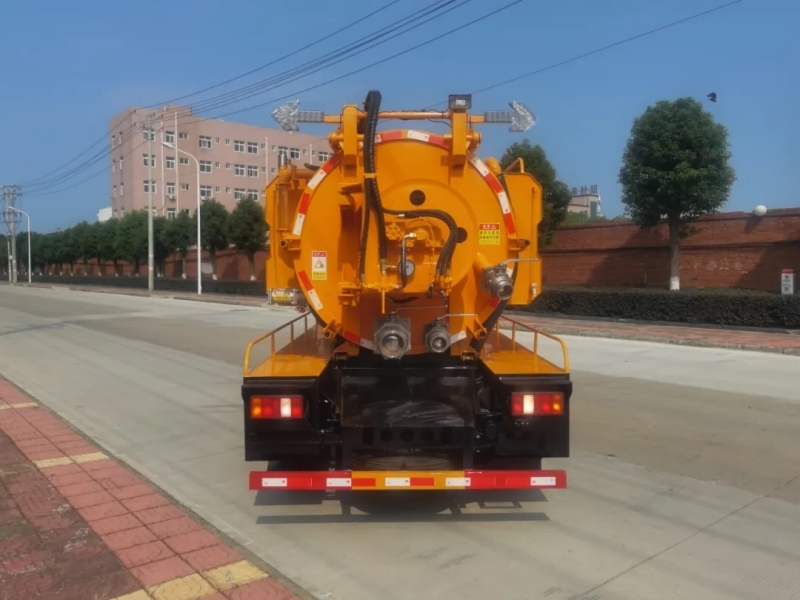

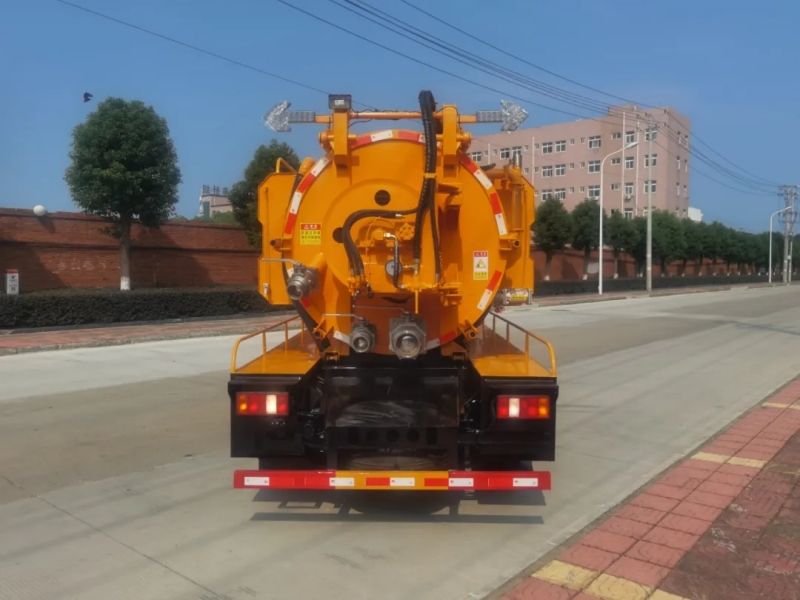

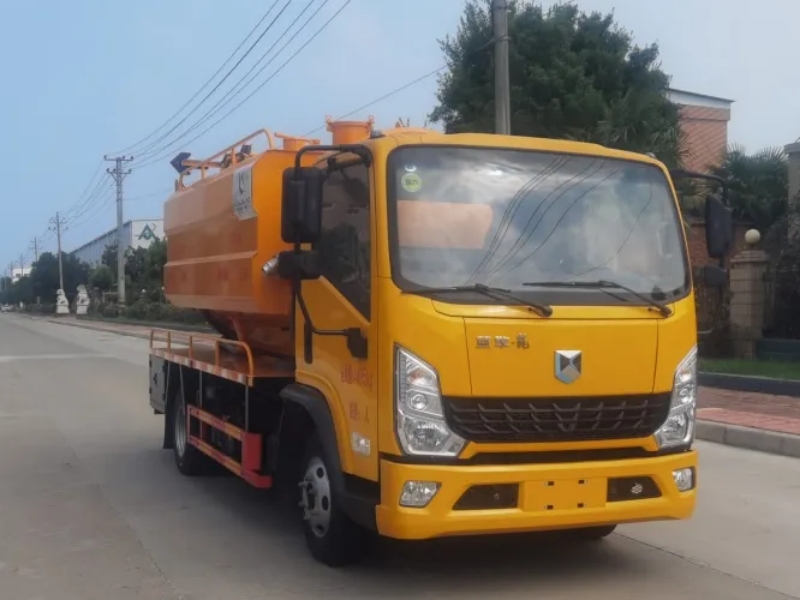

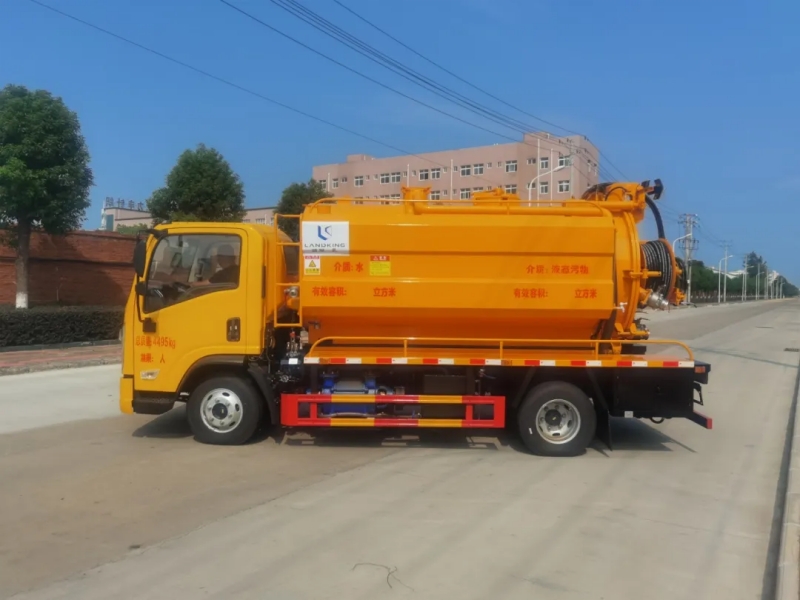

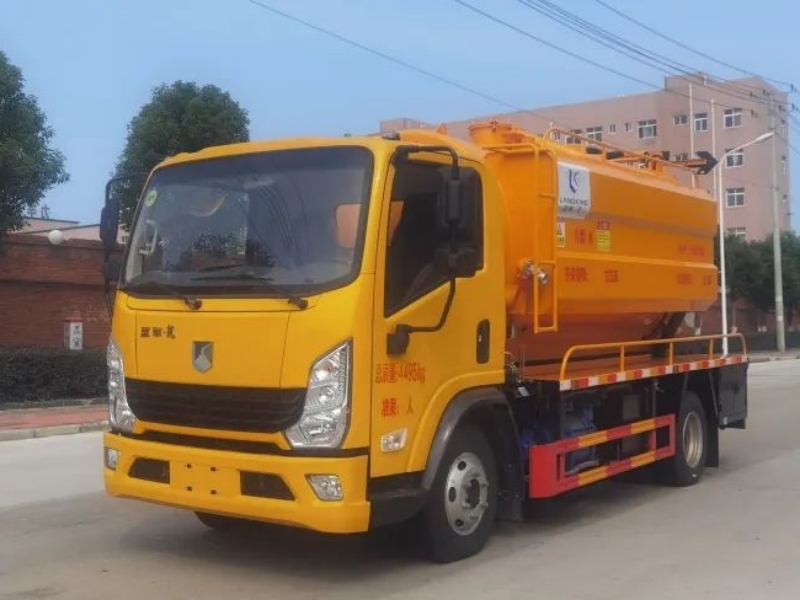

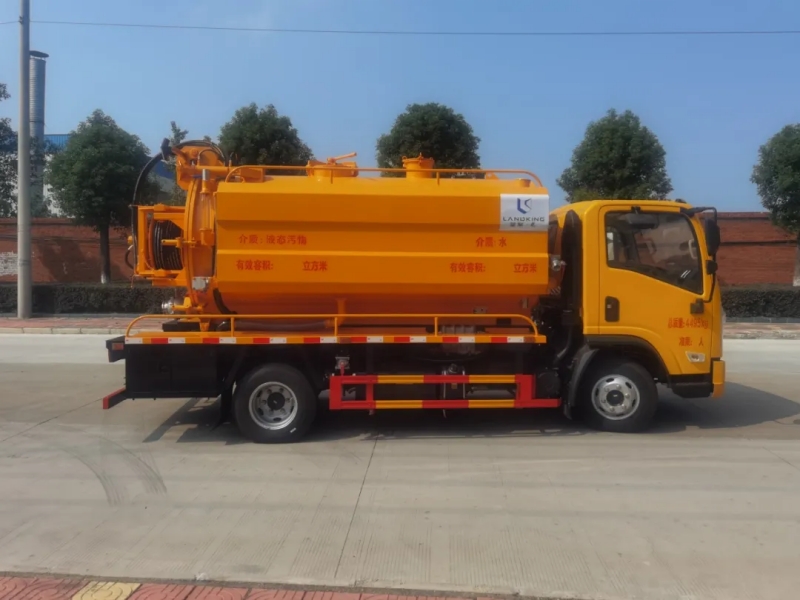

Shacman Delong 4X2 suction sewage truck

Chassis configuration

1.Engine:WP2.5NQ170E62, Weichai 170hp

2.Transmission type: FAST 6-speed gearbox

3.Tyre: 7.00R16LT 8PR, 6+1 spare

4.Wheelbase: 3300(mm)

5 Other: Equipped with power take-off switch, air conditioning, maintenance free battery, air brake, shut-off brake, luxurious fabric seats, central locking+electric doors and windows+remote key

Upper configuration:

The sewage tank is 4 cubic meters and the clean water tank is 2 cubic meters, with water and sewage interconnection. It is made of high-quality steel plates from Wugang, with a wall thickness of 6mm and a clean water tank thickness of 4mm. It is equipped with a 215 flow high-pressure pump and a filtering device,

Product Name： Shacman Delong 4X2 suction sewage truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg) ： 2805(Kg)

Product Features

Shacman Delong 4X2 suction sewage truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Product parameters

Product Name	Shacman Delong 4X2 suction sewage truck
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	2805(Kg)
Rated weight(kg)	1560,1495(Kg)
Wheelbase(mm)	3300(mm)
Overall Dimension(mm)	5995×2090×2750(mm)
Tank volume(cbm)	6m³ (2m³ clear water tanks+4 m³ sewage tanks）
Engine brand & model	WP2.5NQ170E62, Weichai 170hp
Displacement(L)/Power(kw)	2.49L/125W
Axle Quantity	2
Transmission Type	FAST 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT 8PR, 6+1 spare
Cab	Shacman Delong cab. Equipped with air conditioning, luxurious fabric seats, central locking system+electric doors and windows+remote key
Garbage container material	Made of high-quality steel plates from WISCO
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
