Sinotruk Sitrak 8X4 25.6m³ Fuel Tanker Truck

Standard configuration

1-One high flow oil pump (capable of pumping in and out)

2-One compartment (can be made into different compartments)

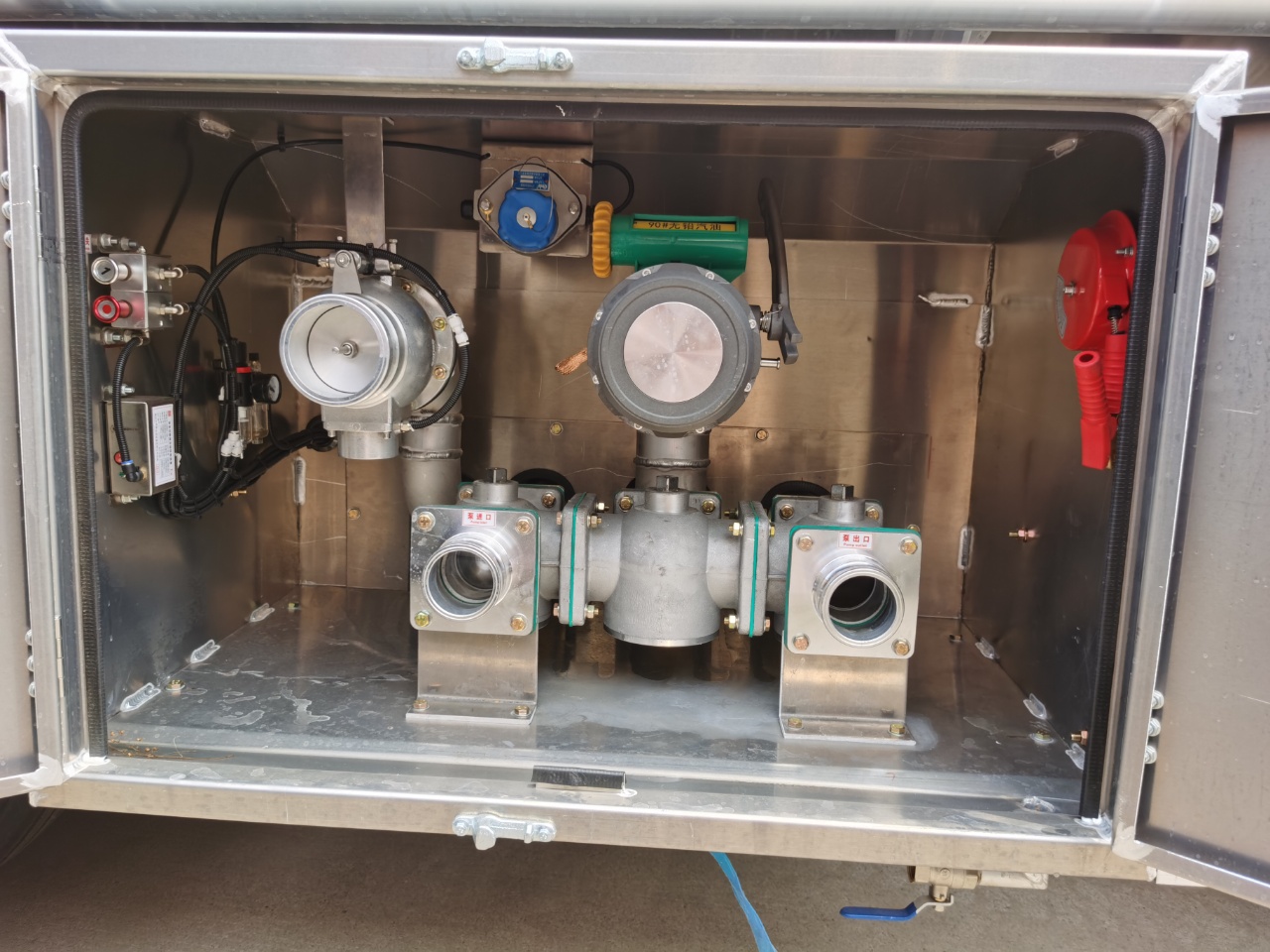

3-A full set of bottom loading oil system with European standards (including 1 bottom loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switch, 1 anti-overflow probe rod, and 1 five core socket)

4-A European standard tank cover

5-A bottom emergency shut-off valve (with locking function)

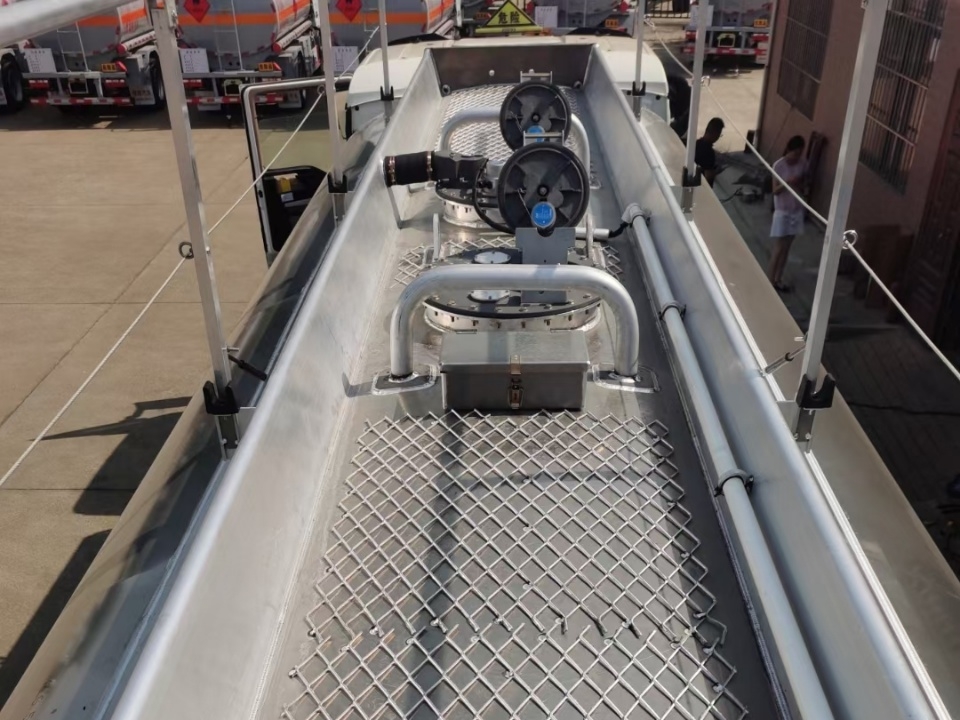

6-Folding lifting protective barriers on both sides of the tank top

7-Tank material: aluminum alloy/stainless steel/carbon steel

8-Tank is painted in aluminum alloy color.

9- Attach 3M-1 grade orange reflective tape in the center of both sides of the tank, three "flammable liquid" signs, and safety signs.

10-One tool box

11-Two fire extinguishers

12- Can be customized according to customers’ requirements.

Product Name： Sinotruk Sitrak 8X4 25.6m³ Fuel Tanker Truck
Chassis brand： Sinotruk Sitrak

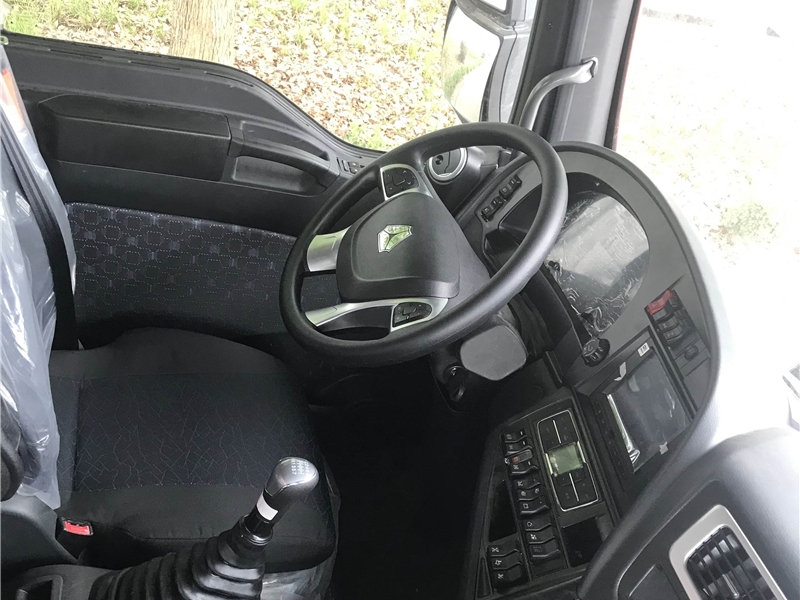

Cab： G5 cab with sleeping berth
Drive wheel： 8X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

We have many different brands and tonnages of oil tankers, please feel free to inquire.

Classification of oil tanker trucks

1-By appearance: Flat head oil tanker truck, pointed end oil tanker truck, and flat head oil tanker truck.

2-By drive type: 4×2,6×2,6×4,8×2,8×4。

3-By load capacity: from 2t to 40t.

4-By chassis brand: Dongfeng oil truck, Jiefang oil truck, JAC oil truck, HOWO oil truck, Sinotruk oil truck, FOTON oil truck, etc.

Main Parameter

Product Name	Sinotruk Sitrak 8X4 25.6m³ Fuel Tanker Truck
Chassis brand	Sinotruk Sitrak
Cab	G5 cab with sleeping berth
Drive wheel	8X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Sinotruk
Engine Model	MC07H.35-60
Horse Power (HP)	350
Engine displacement	7.36L
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	9 forward gears and 1 reverse gear
Wheel base	1800+4575+1400(mm)
Front wheel track	1998/1998,2035/2035,2065/2065(mm)
Rear wheel track	1850/1850,1880/1880(mm)
Approach angle/departure angle	16/19(°)
Front/rear suspension	1450/2665(mm)
F/R axle load	6500/6500/19000
Axle numbers	4
Tire Specification and Quantity	295/80R22.5 18PR, 12 with 1 spare tire
Vehicle dimension	11900×2525×3400(mm)
Tank dimension	9200×2300×1500(mm)
Gross vehicle weight	32000(Kg)
Curb weight	11565(Kg)
Rated weight	20305,20240(Kg)
Tank volume	25.6 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
