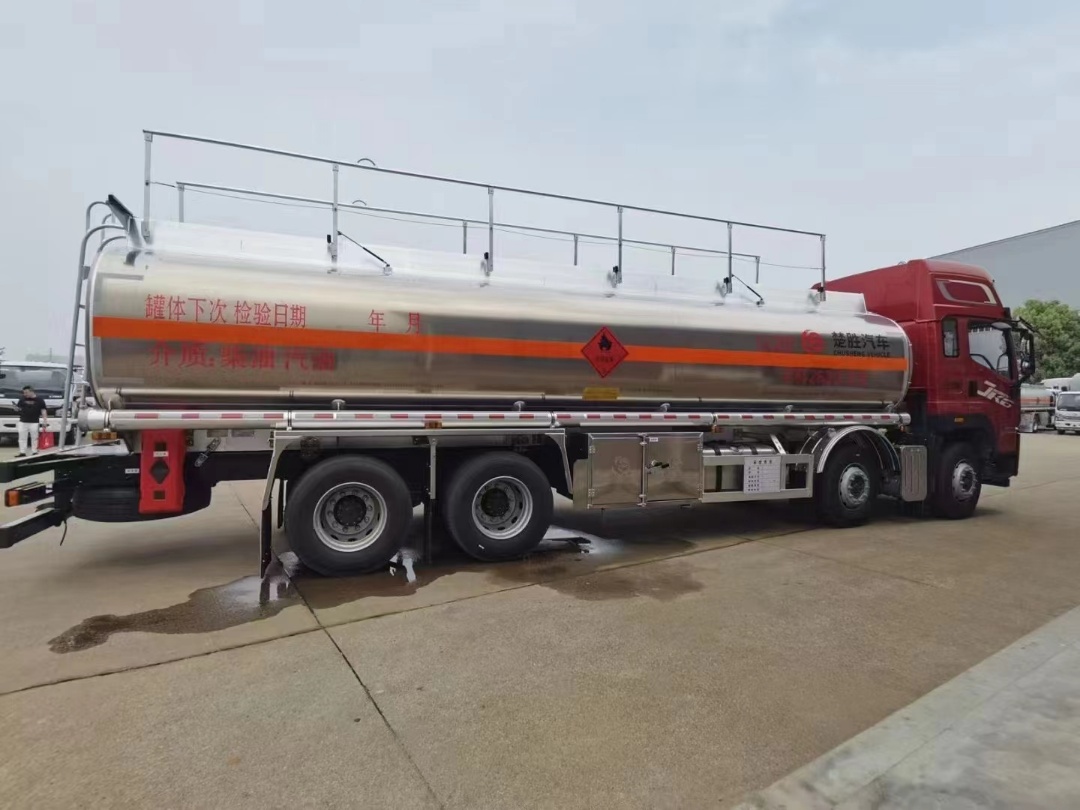

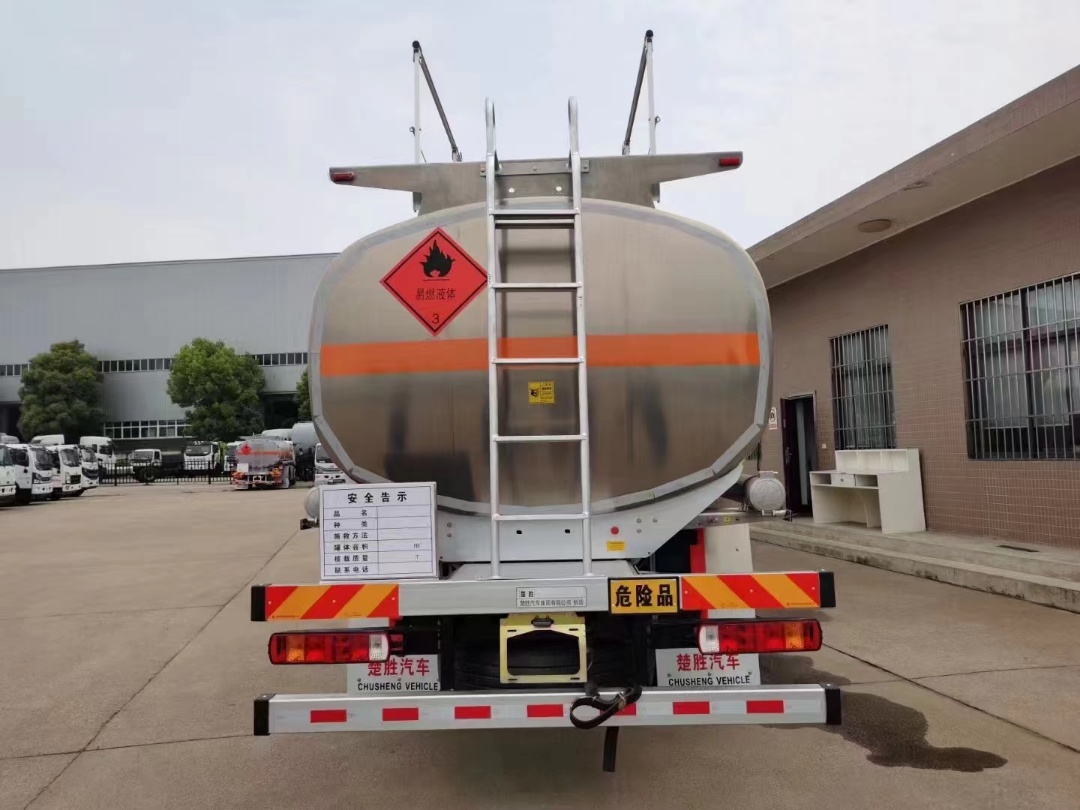

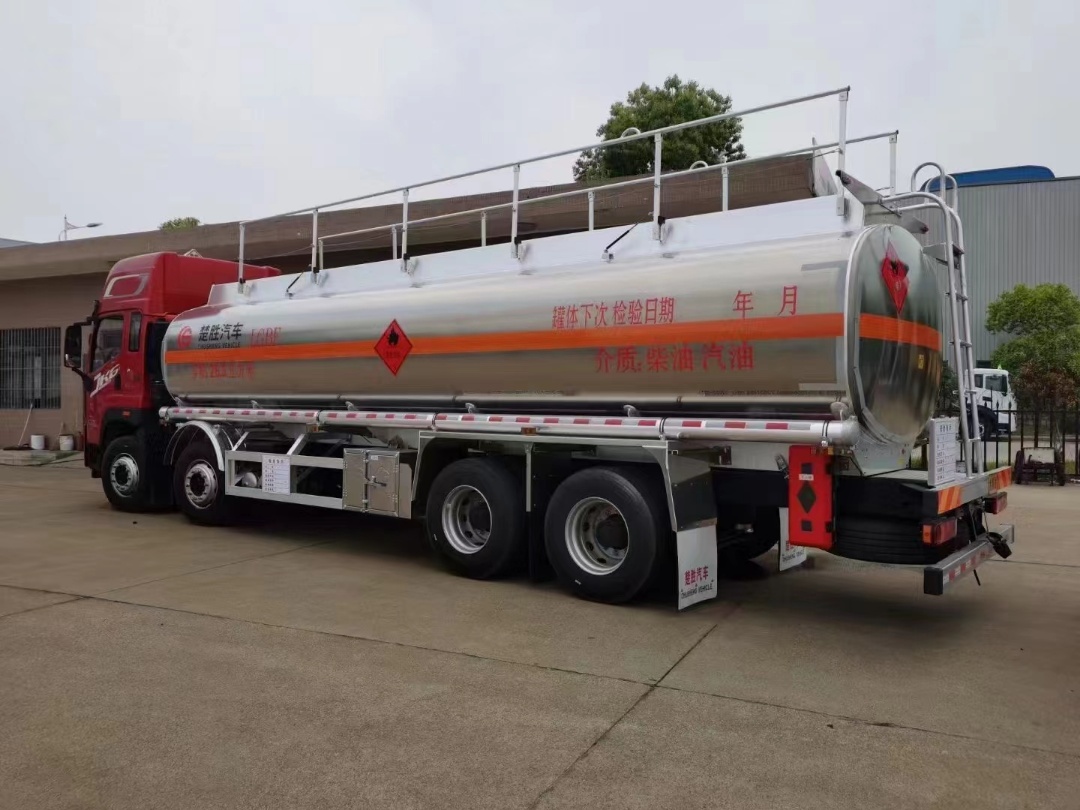

Jiefang 8X4 26.3m³ Oil Delivery Truck

Standard configuration

1-One high flow oil pump (capable of pumping in and out)

2-One compartment (can be made into different compartments)

3-A full set of bottom loading oil system with European standards (including 1 bottom loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switch, 1 anti-overflow probe rod, and 1 five core socket)

4-A European standard tank cover

5-A bottom emergency shut-off valve (with locking function)

6-Folding lifting protective barriers on both sides of the tank top

7-Tank material: aluminum alloy/stainless steel/carbon steel

8-Tank is painted in aluminum alloy color.

9- Attach 3M-1 grade orange reflective tape in the center of both sides of the tank, three "flammable liquid" signs, and safety signs.

10-One tool box

11-Two fire extinguishers

12- Can be customized according to customers’ requirements.

Product Name： Jiefang 8X4 26.3m³ Oil Delivery Truck
Chassis brand： Jiefang
Cab： JK6 high roof cab with sleeping berth
Drive wheel： 8X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Jiefang 8X4 26.3m³ Oil Delivery Truck
Chassis brand	Jiefang
Cab	JK6 high roof cab with sleeping berth
Drive wheel	8X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Dachai
Engine Model	CA6DK2-35E65
Horse Power (HP)	350
Engine displacement	7.75
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	10 forward gears and 1 reverse gear
Wheel base	1900+4500+1350,1900+3800+1350(mm)
Front wheel track	1922/1922,1946/1946,1965/1965,1987/1987(mm)
Rear wheel track	1878/1878,1900/1900(mm)
Approach angle/departure angle	25/11(°)
Front/rear suspension	1410/2390(mm)
F/R axle load	6500/6500/19000
Axle numbers	4
Tire Specification and Quantity	295/80R22.5-18PR, 12 with 1 spare tire
Vehicle dimension	11550×2550×3300,3515(mm)
Tank dimension	8800×2300×1600mm
Gross vehicle weight	32000(Kg)
Curb weight	11005(Kg)
Rated weight	20865,20800(Kg)
Tank volume	26.3 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
