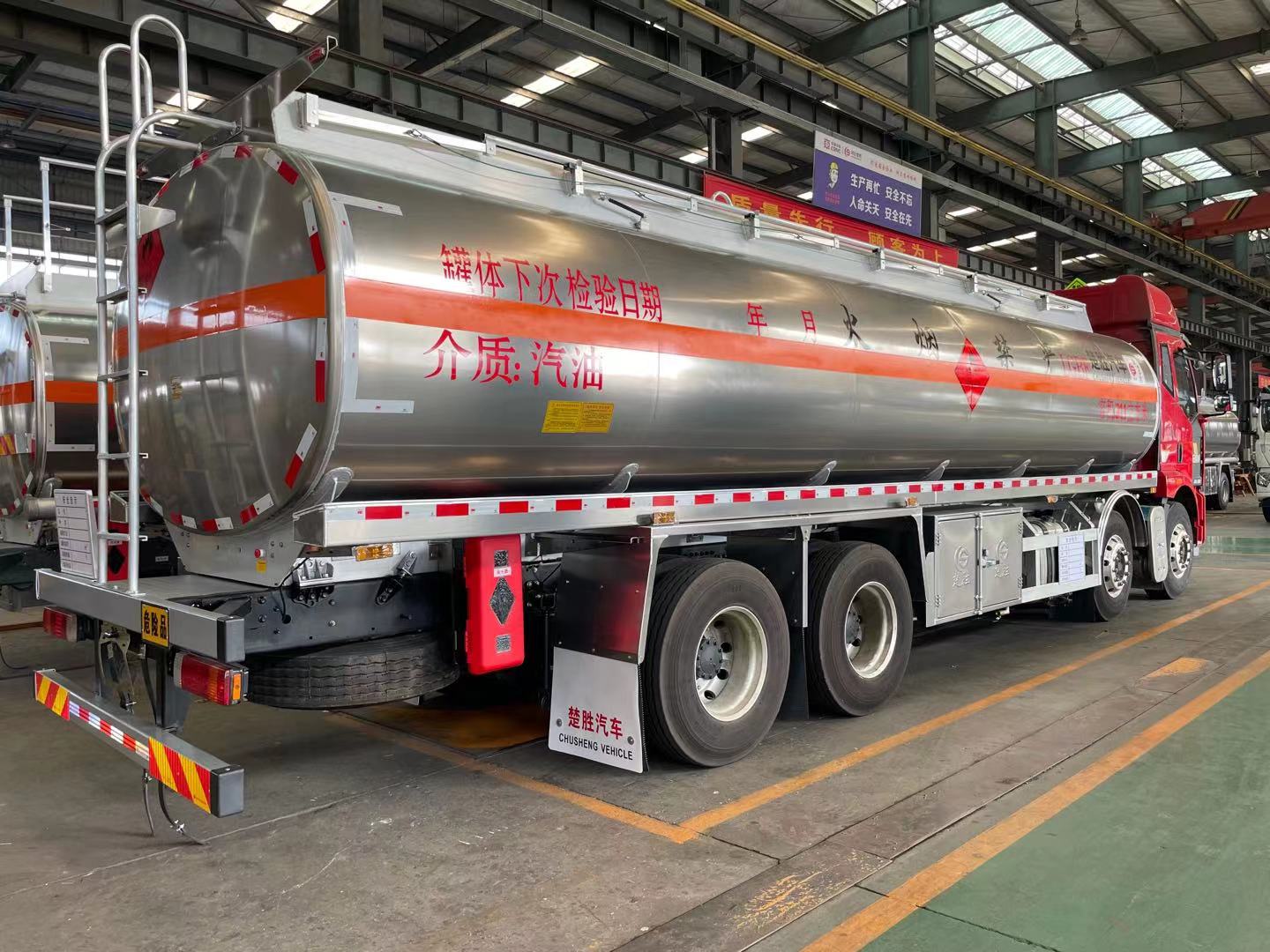

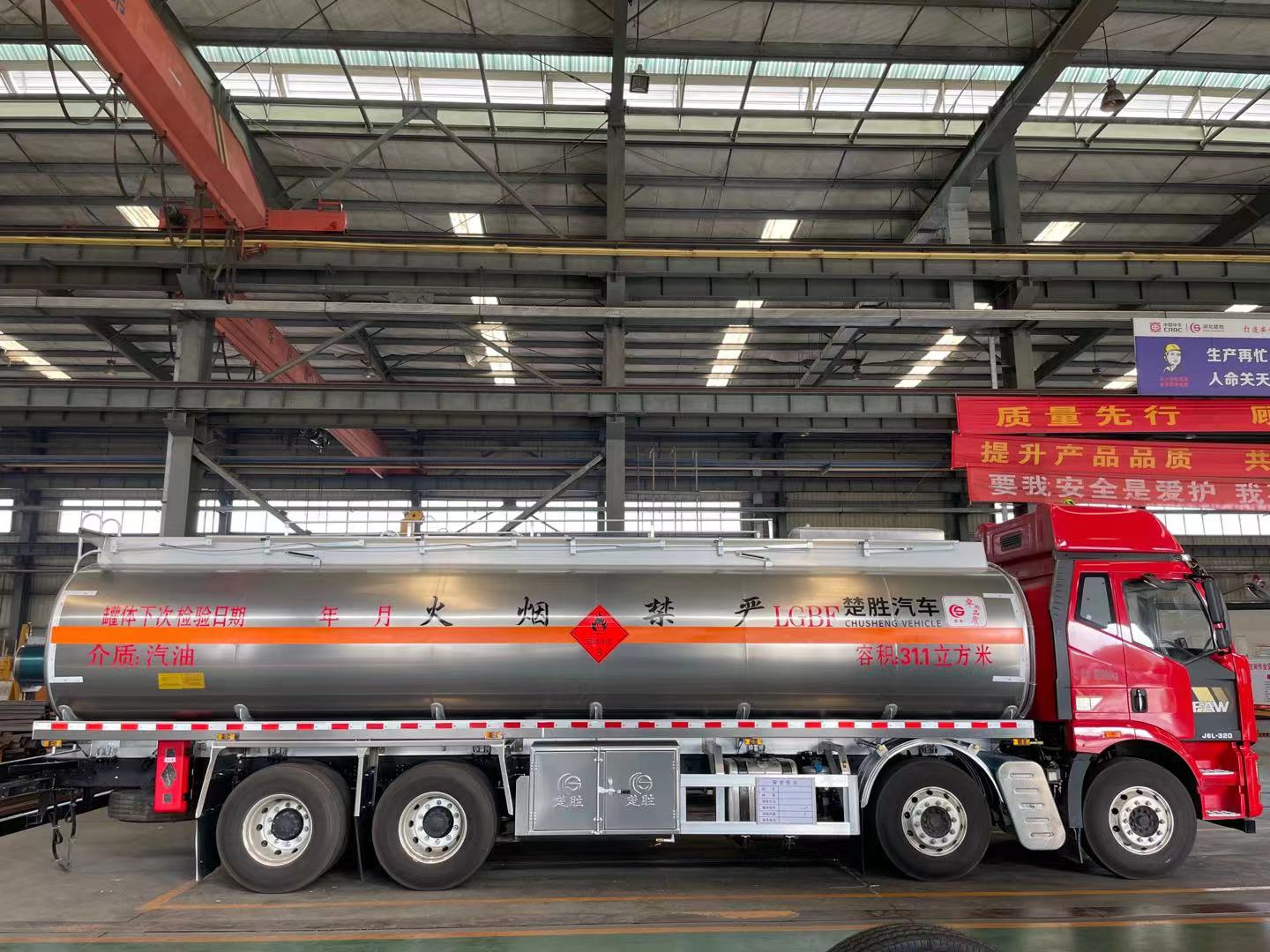

Jiefang 8X4 31.1m³ Oil Delivery Truck

Standard configuration

1-One high flow oil pump (capable of pumping in and out)

2-One compartment (can be made into different compartments)

3-A full set of bottom loading oil system with European standards (including 1 bottom loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switch, 1 anti-overflow probe rod, and 1 five core socket)

4-A European standard tank cover

5-A bottom emergency shut-off valve (with locking function)

6-Folding lifting protective barriers on both sides of the tank top

7-Tank material: aluminum alloy/stainless steel/carbon steel

8-Tank is painted in aluminum alloy color.

9- Attach 3M-1 grade orange reflective tape in the center of both sides of the tank, three "flammable liquid" signs, and safety signs.

10-One tool box

11-Two fire extinguishers

12- Can be customized according to customers’ requirements.

Product Name： Jiefang 8X4 31.1m³ Oil Delivery Truck
Chassis brand： Jiefang
Cab： J6L high roof cab with sleeping berth
Drive wheel： 8X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

Main Parameter

Product Name	Jiefang 8X4 31.1m³ Oil Delivery Truck
Chassis brand	Jiefang
Cab	J6L high roof cab with sleeping berth
Drive wheel	8X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Dachai
Engine Model	CA6DK1-32E61
Horse Power (HP)	320
Engine displacement	7.14L
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	10 forward gears and 1 reverse gear
Wheel base	1900+4500+1350mm
Front wheel track	1950/1950,1974/1974(mm)
Rear wheel track	1878/1878,1900/1900(mm)
Approach angle/departure angle	14/13(°)
Front/rear suspension	1400/2600(mm)
F/R axle load	6500/6500/19000
Axle numbers	4
Tire Specification and Quantity	12R22.5 18PR, 12 with 1 spare tire
Vehicle dimension	11750×2550×3500mm，
Tank dimension	9200×2450×1720mm
Gross vehicle weight	32000(Kg)
Curb weight	11070(Kg)
Rated weight	20800,20735(Kg)
Tank volume	31.1 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
