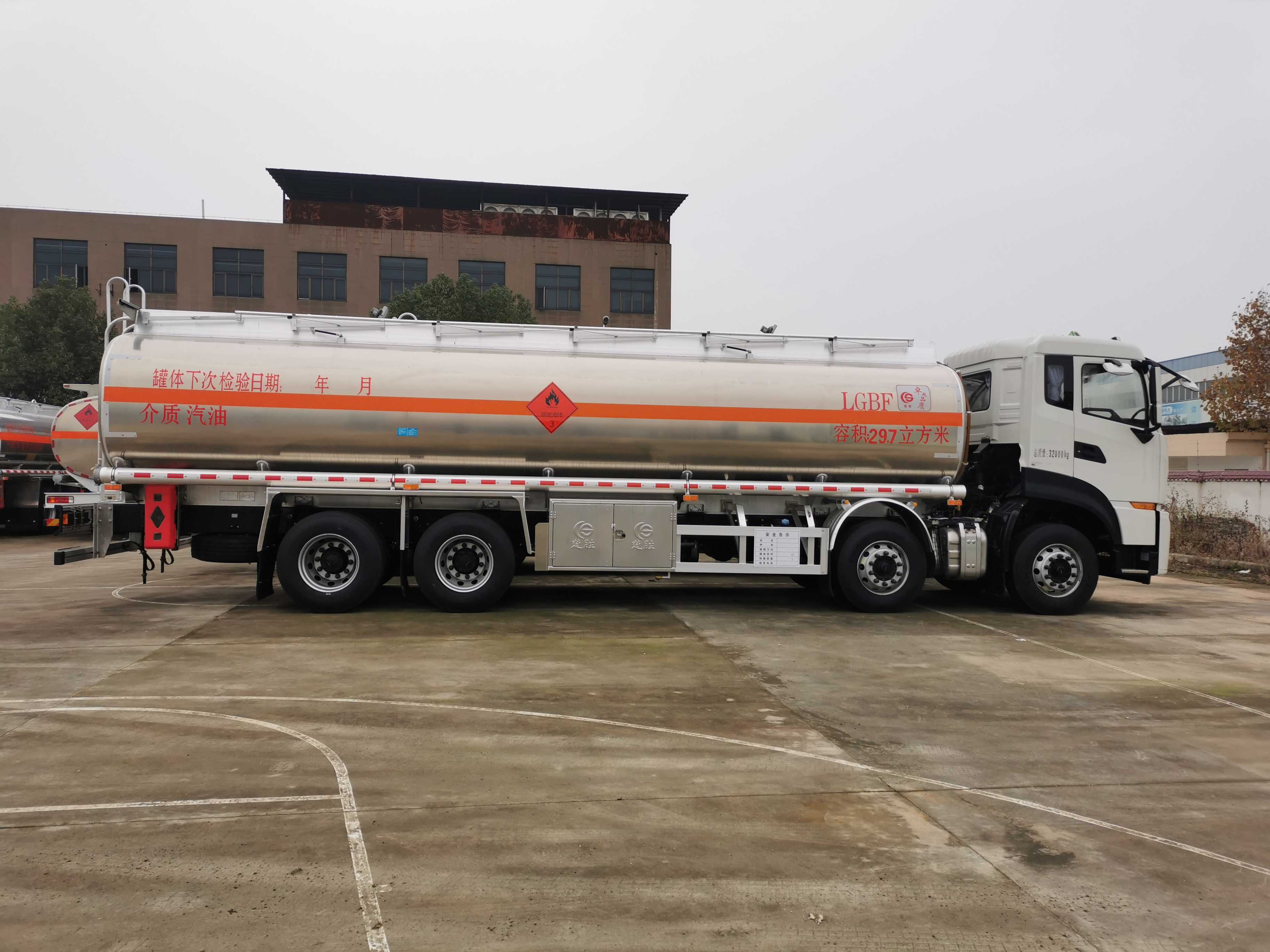

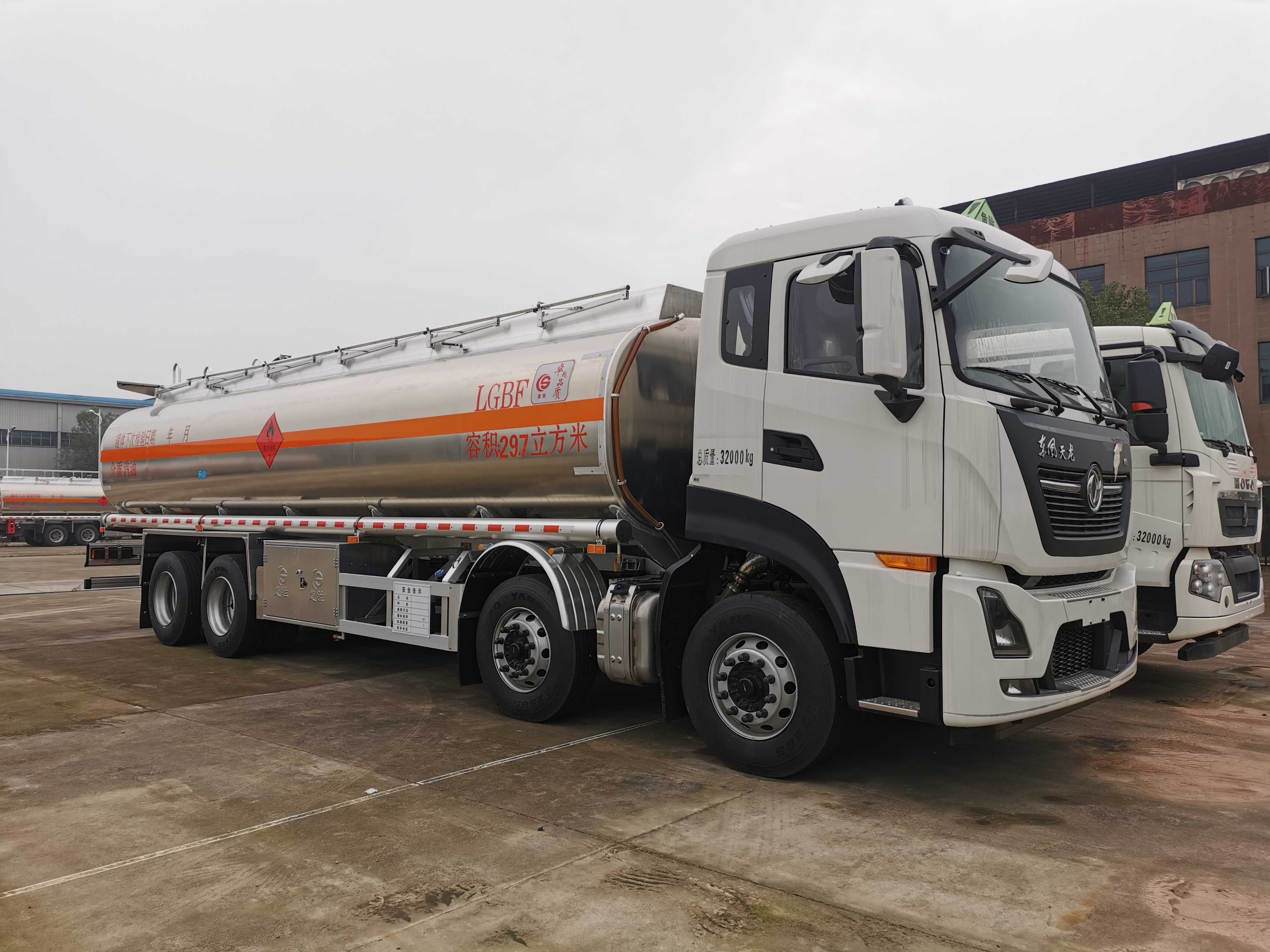

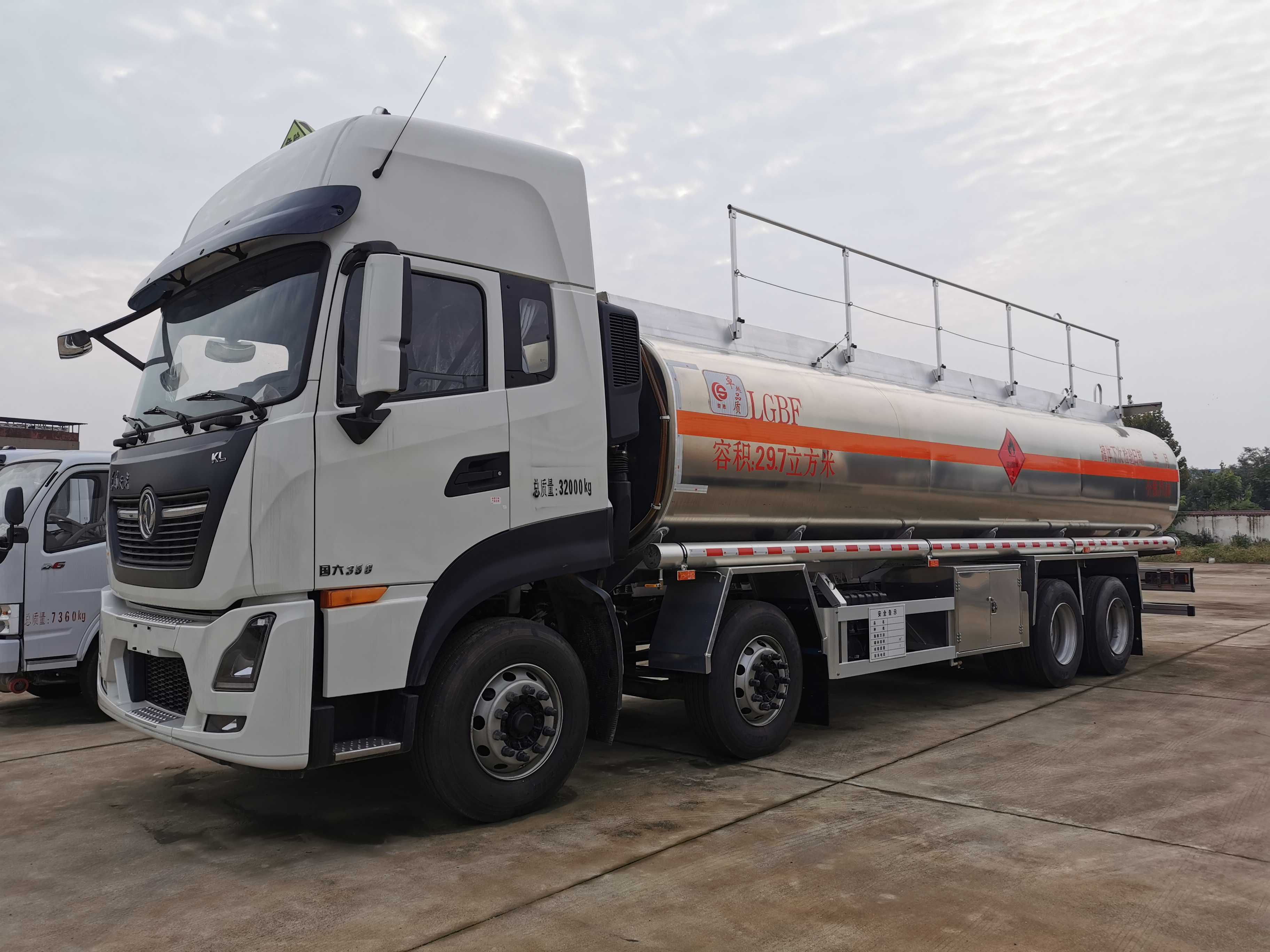

Dongfeng 8X4 29.7m³ Oil Delivery Truck

Standard configuration

1-One high flow oil pump (capable of pumping in and out)

2-One compartment (can be made into different compartments)

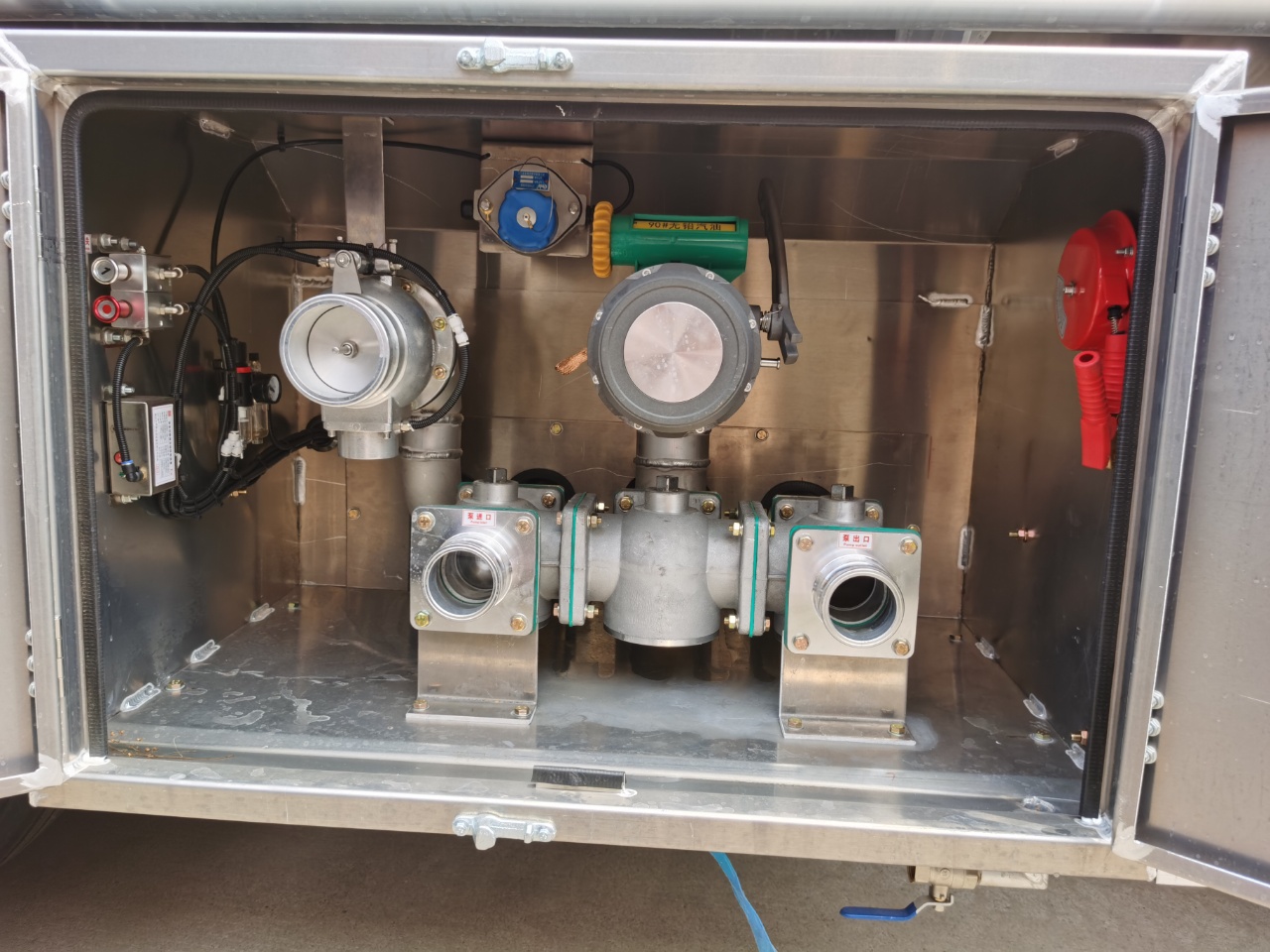

3-A full set of bottom loading oil system with European standards (including 1 bottom loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switch, 1 anti-overflow probe rod, and 1 five core socket)

4-A European standard tank cover

5-A bottom emergency shut-off valve (with locking function)

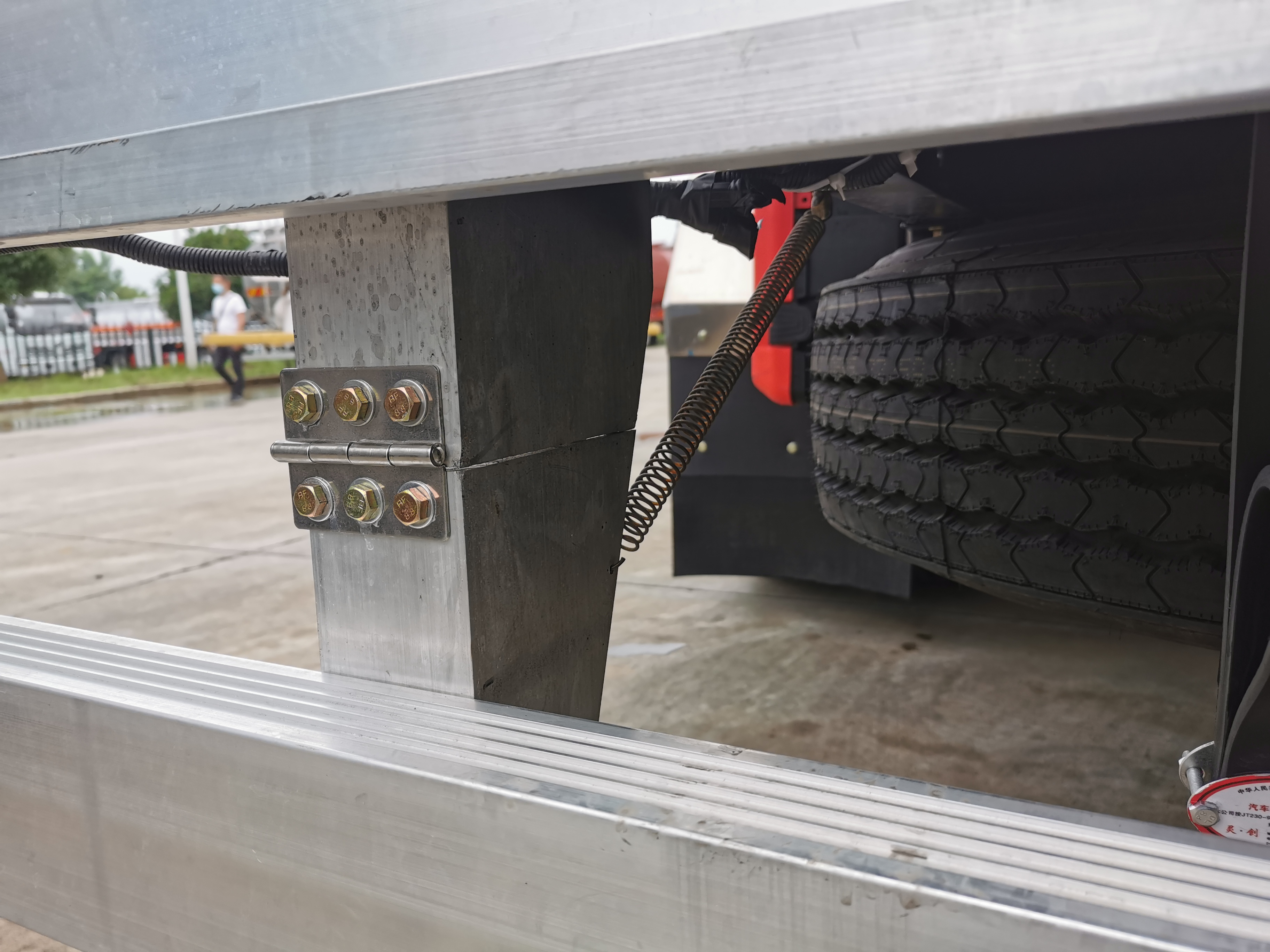

6-Folding lifting protective barriers on both sides of the tank top

7-Tank material: aluminum alloy/stainless steel/carbon steel

8-Tank is painted in aluminum alloy color.

9- Attach 3M-1 grade orange reflective tape in the center of both sides of the tank, three "flammable liquid" signs, and safety signs.

10-One tool box

11-Two fire extinguishers

12- Can be customized according to customers’ requirements.

Product Name： Dongfeng 8X4 29.7m³ Oil Delivery Truck
Chassis brand： Dongfeng
Cab： KL cab with sleeping berth
Drive wheel： 8X4

Product Features

Brief Introduction of Oil Truck

Oil tanker truck, also known as refueling truck, oil transport truck, or tanker truck. Tank trucks belong to the tank truck series of specialized vehicles, mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel, crude oil, lubricants, and coal tar.

A refueling truck is a vehicle used for transporting and delivering oil materials. It is equipped with a movable refueling machine that delivers fuel to oil receiving equipment such as vehicles, agricultural machinery, boilers, construction machinery, and hotels.

We have many different brands and tonnages of oil tankers, please feel free to inquire.

Classification of oil tanker trucks

1-By appearance: Flat head oil tanker truck, pointed end oil tanker truck, and flat head oil tanker truck.

2-By drive type: 4×2,6×2,6×4,8×2,8×4。

3-By load capacity: from 2t to 40t.

4-By chassis brand: Dongfeng oil truck, Jiefang oil truck, JAC oil truck, HOWO oil truck, Sinotruk oil truck, FOTON oil truck, etc.

Main Parameter

Product Name	Dongfeng 8X4 29.7m³ Oil Delivery Truck
Chassis brand	Dongfeng
Cab	KL cab with sleeping berth
Drive wheel	8X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Brand	Dongfeng
Engine Model	DDi75E350-60
Horse Power (HP)	350
Engine displacement	7.5L
Emission standard	Euro 6 (option:Euro3/4/5)
Gearbox	9 forward gears and 1 reverse gear
Wheel base	1995+4500+1350(mm)
Front wheel track	2030/2030(mm)
Rear wheel track	1860/1860,1880/1880(mm)
Approach angle/departure angle	22/11(°)
Front/rear suspension	1480/2575(mm)
F/R axle load	6500/6500/19000
Axle numbers	4
Tire Specification and Quantity	295/80R22.5 18PR, 12 with 1 spare tire
Vehicle dimension	11900×2530×3500,3880(mm)
Tank dimension	9000×2300×1500(mm)
Gross vehicle weight	32000(Kg)
Curb weight	12000,11800(Kg)
Rated weight	19870,19805,20070,20005(Kg)
Tank volume	29.7 cubic meter
Tank material	Aluminum alloy/stainless steel/carbon steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
