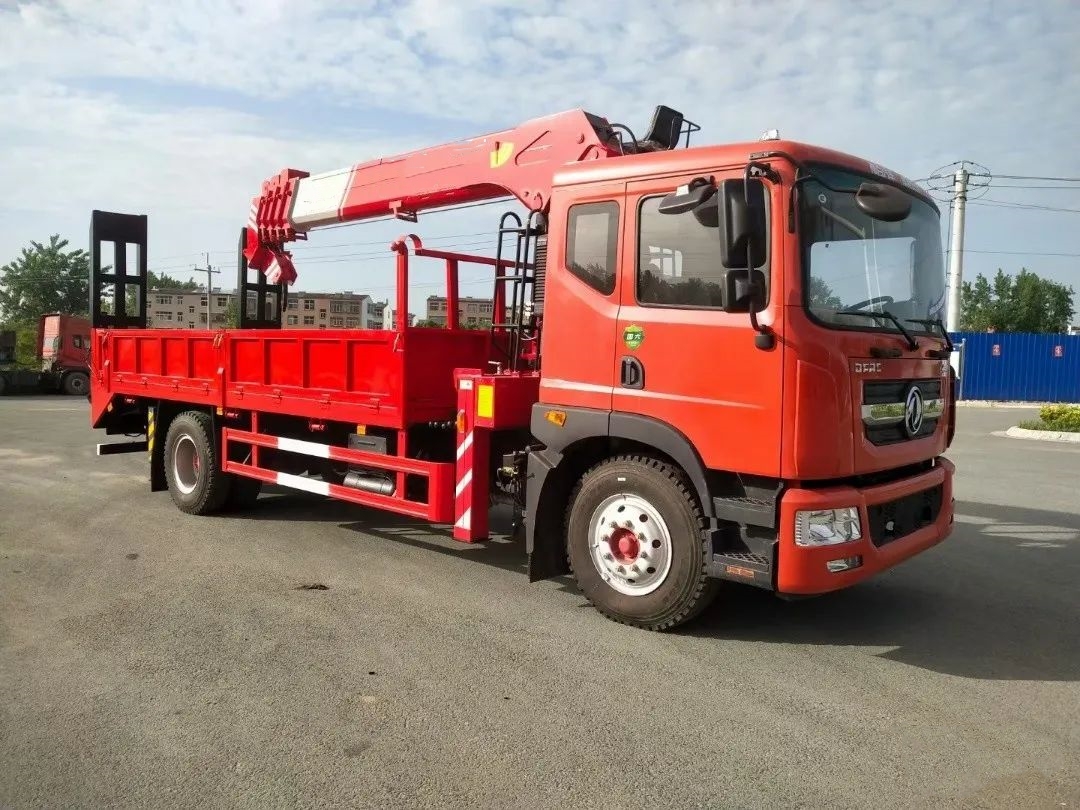

Dongfeng D9 4X2 truck mounted 8-ton crane with ladder

Chassis configuration:

1.Engine: B6.2NS6B230, Cummins 230hp

2.Transmission type: Fast 8-speed gearbox

3.Wheelbase: 5300(mm)

4.Tyre:10.00R20 18PR, 6+1 spare

5 Other: Dongfeng D9 cab, 5-ton front axle, 10 ton rear axle, three story 300 beam, with air conditioning, central locking, electric doors and windows, ABS， Air brake, exhaust brake.

Installation configuration:

Install a new 8-ton 5-section arm crane, with two single section arms, an arm length of 18.1 meters, a lifting height of 20.1 meters, a composite front support leg, a span of 7.5 meters, a long source dual pump, a Sant variable amplitude balance valve, a dual planetary rotary reducer, a Yuzhou upper control valve, a inclined disc plunger motor with a single chamber hydraulic rear support leg, and a flat process cargo box with a slope of 5.8 meters for the excavator.

Product Name： Dongfeng D9 4X2 truck mounted 8-ton crane with ladder
Driving Type： 4X2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(kg)： 11000,11500,12000(Kg)

Product Features

Dongfeng D9 4X2 truck mounted 8-ton crane with ladder

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Crane:It can accommodate cranes of different brands and tonnages.

Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.

Product parameters

Product Name	Dongfeng D9 4X2 truck mounted 8-ton crane with ladder
Driving Type	4X2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(kg)	11000,11500,12000(Kg)
Rated weight(kg)	6805,6305,5805(Kg)
Wheel base(mm)	5300(mm)
Overall dimension(mm)	7500,8400,8800,9000×2500,2550×3600,3700(mm)
Cargo box dimension(mm)	4500,5200,5600,5800,6000,6100,6200,6300×2400,2450×550,600(mm)
Engine	B6.2NS6B230, Cummins 230hp
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	10.00R20 18PR, 6+1 spare
Cab	Dongfeng D9 cab
Crane configuration	Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc.
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
