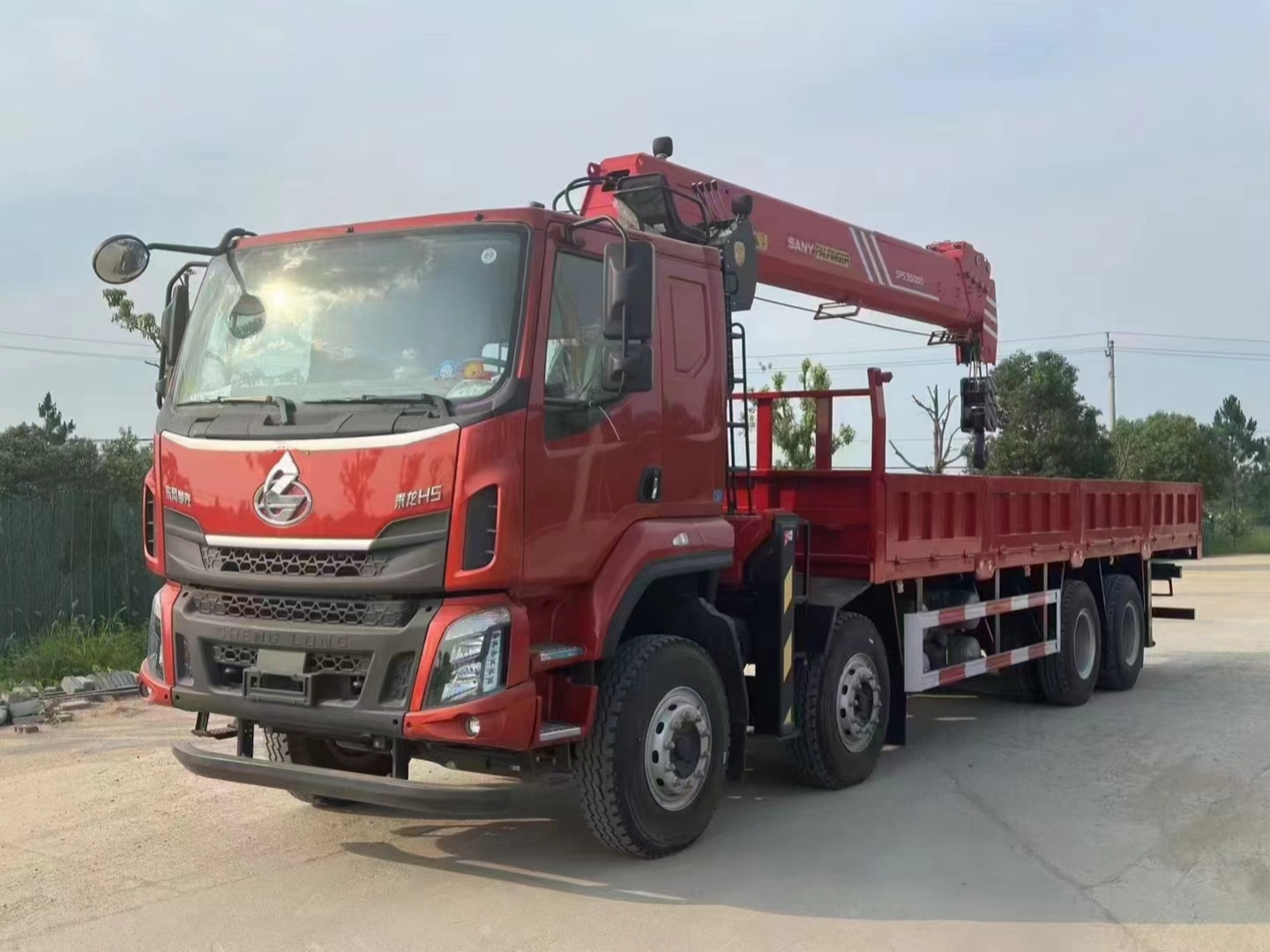

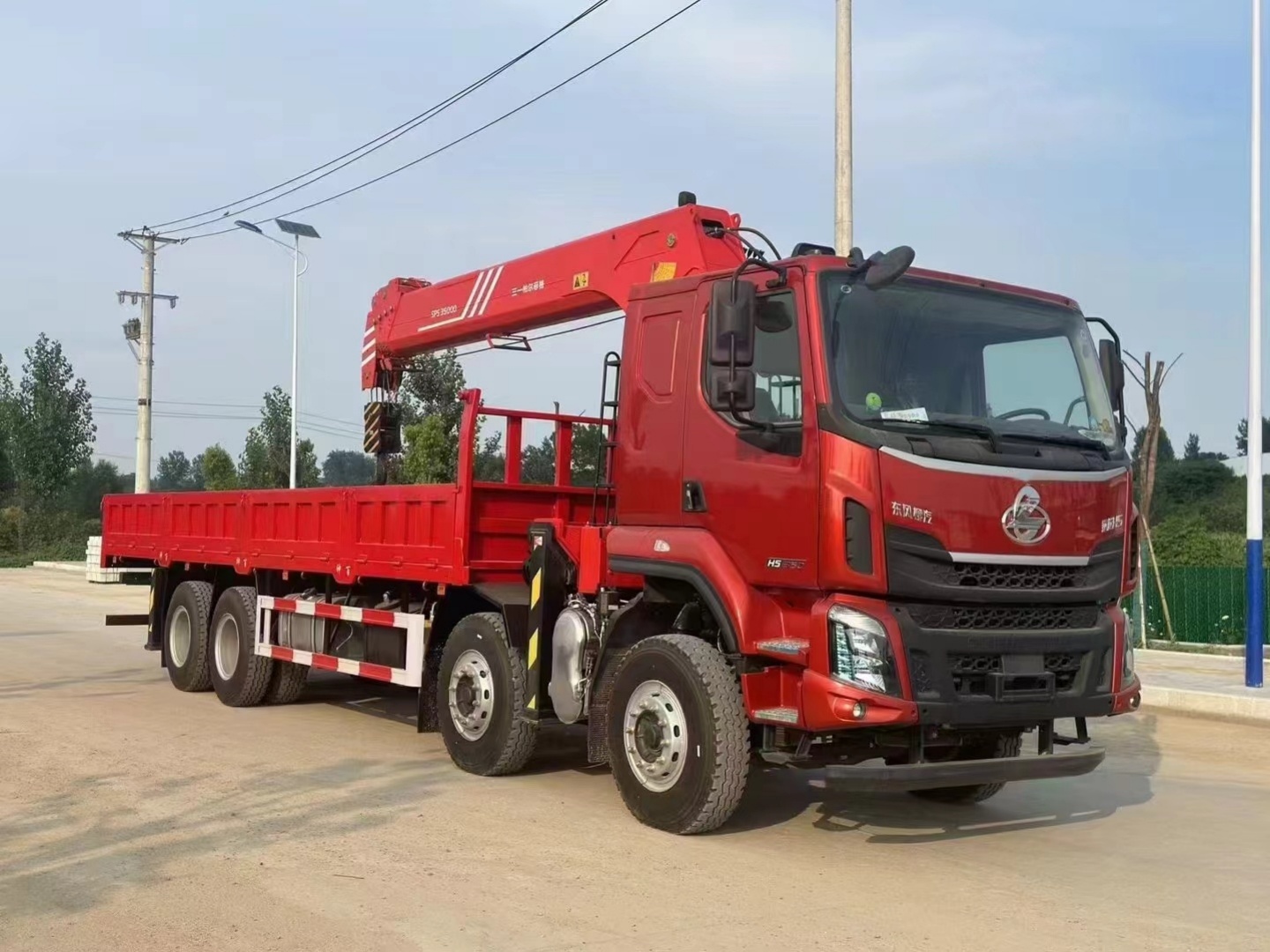

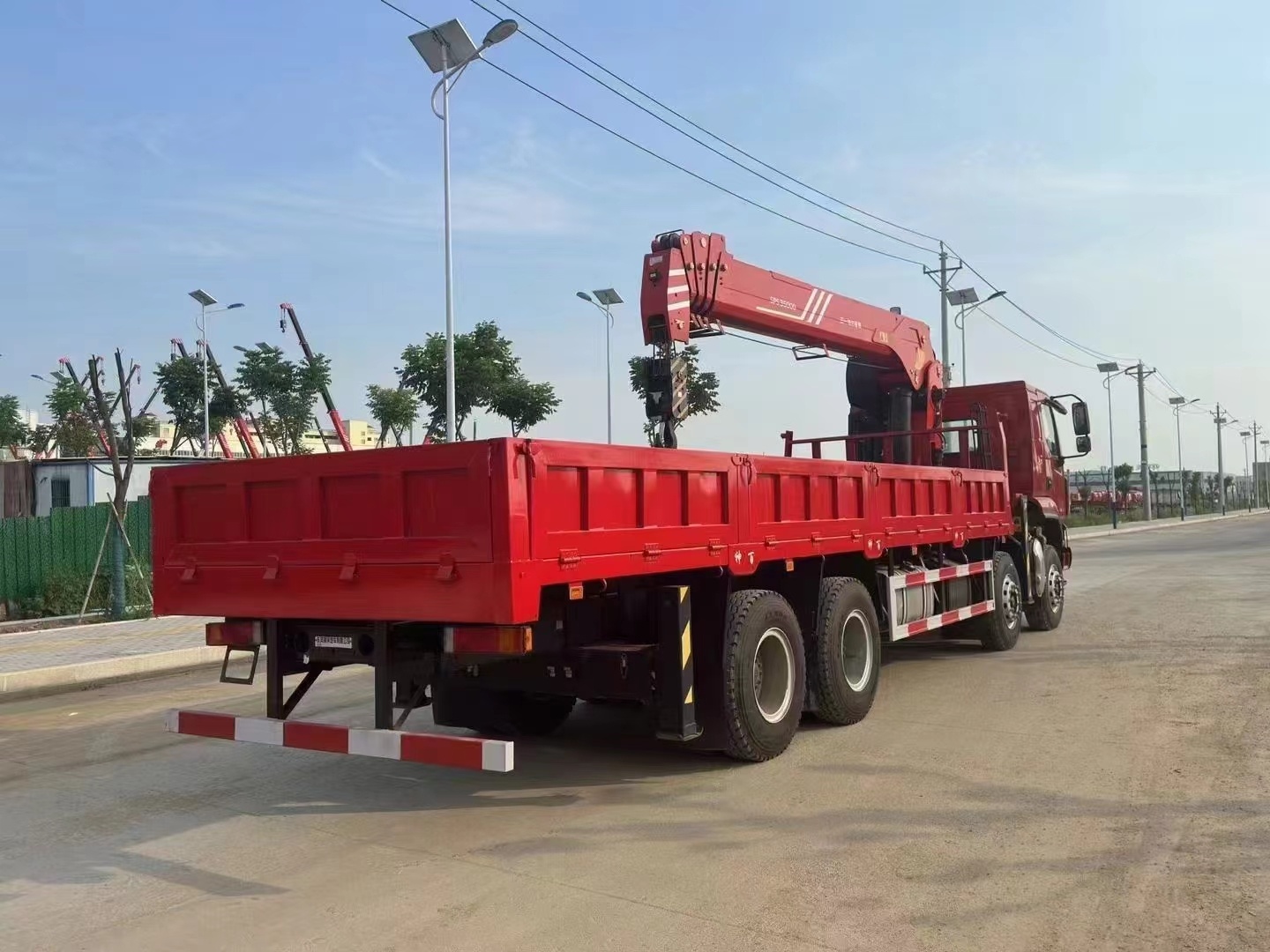

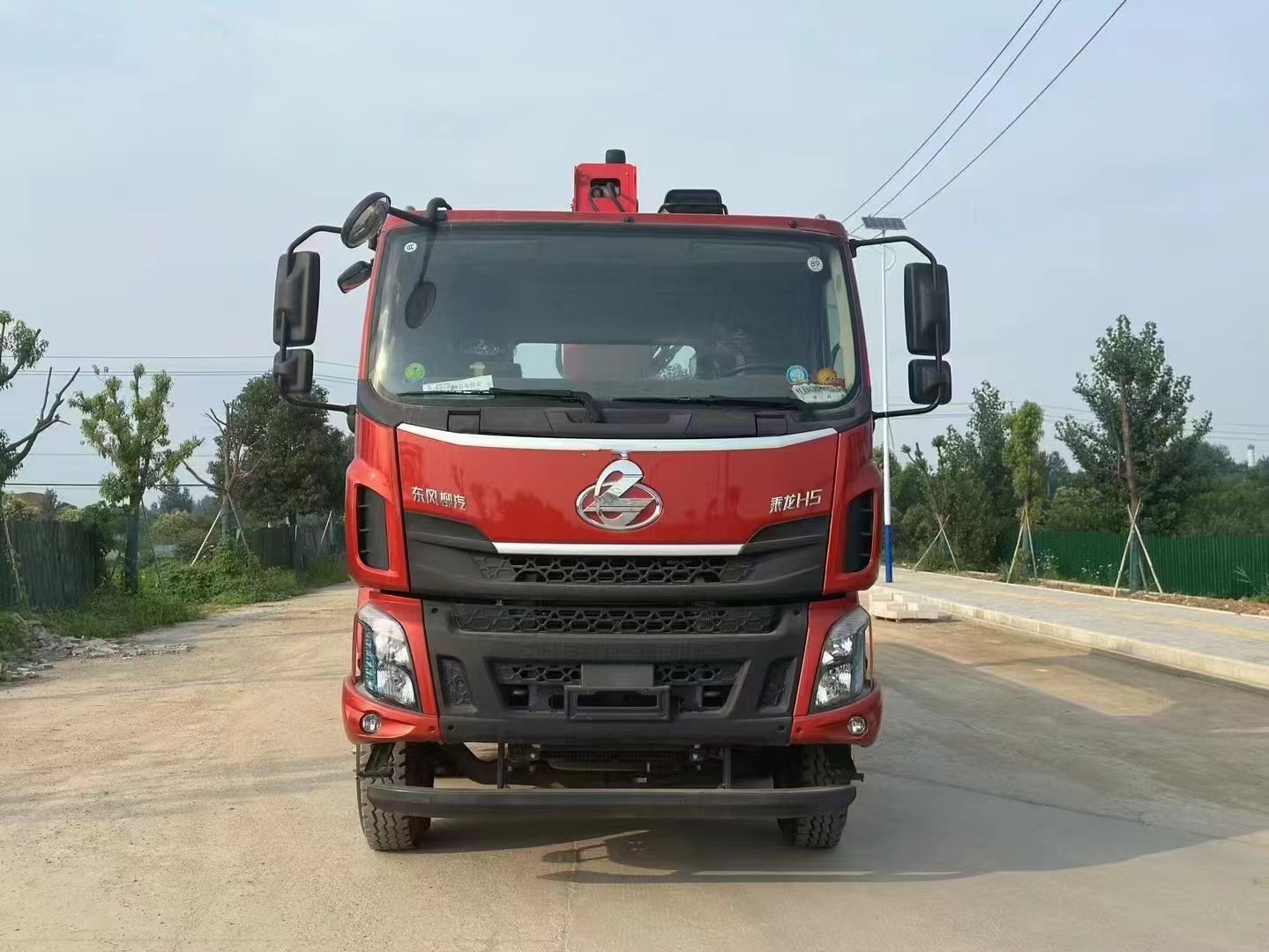

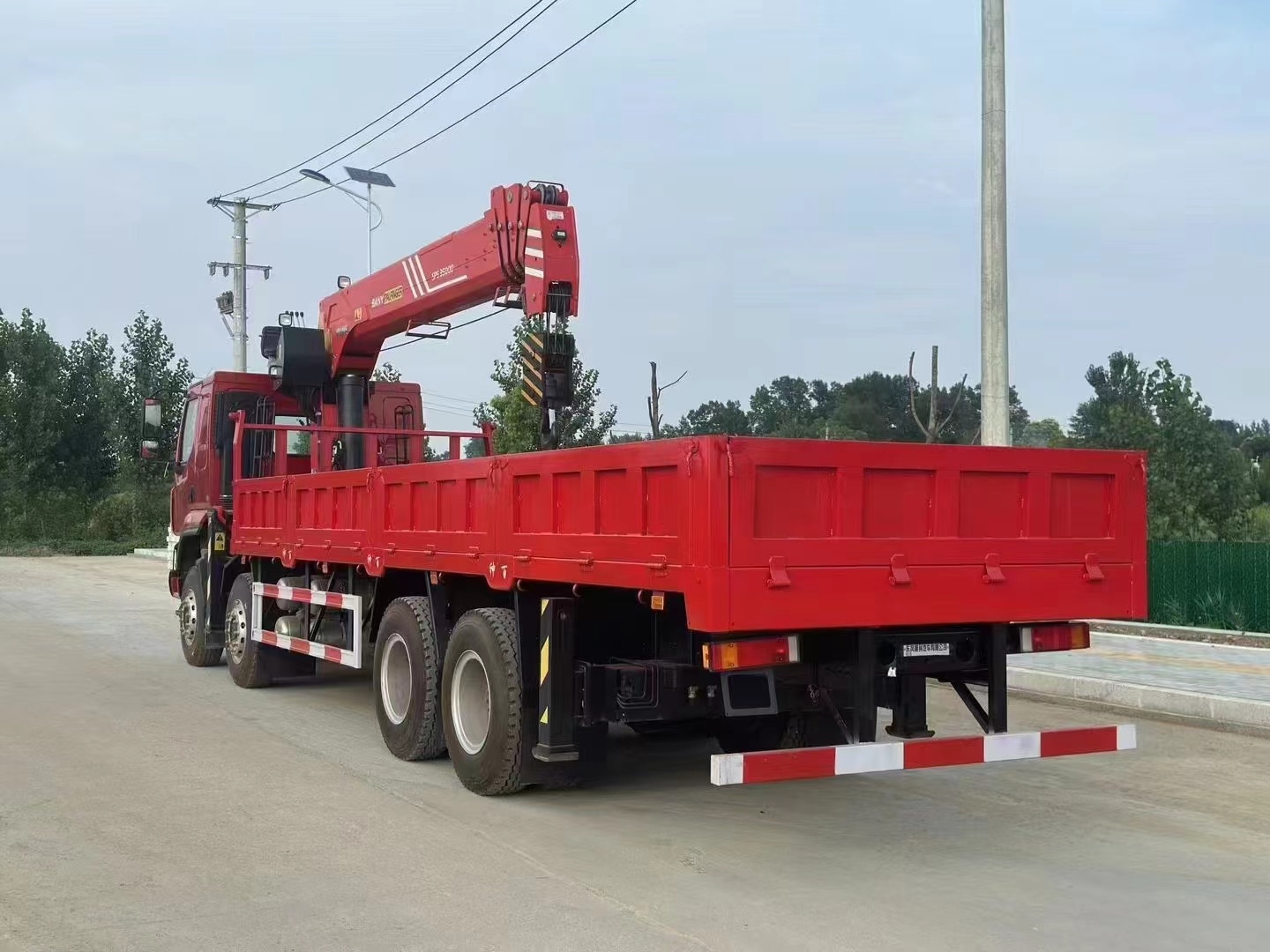

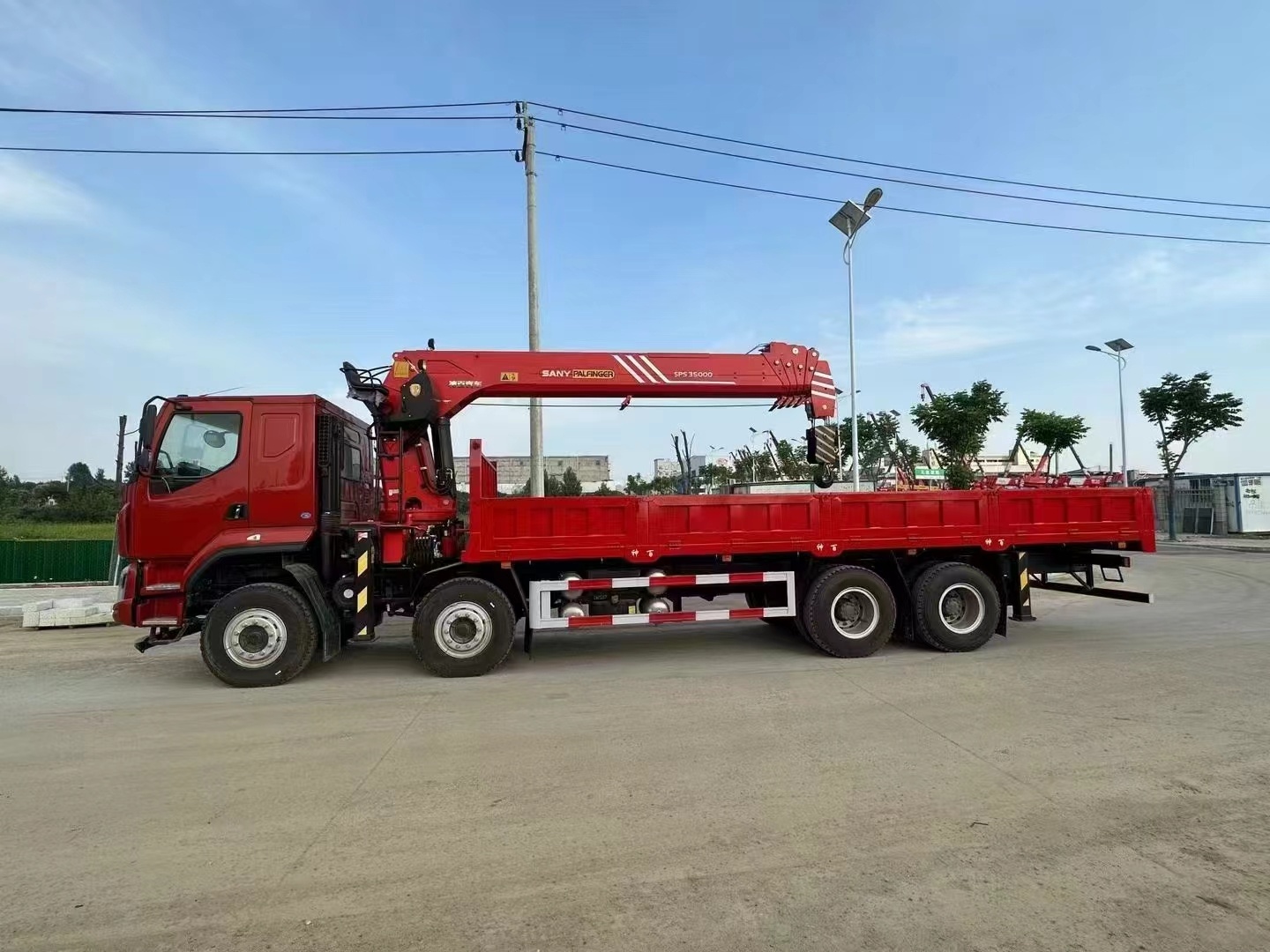

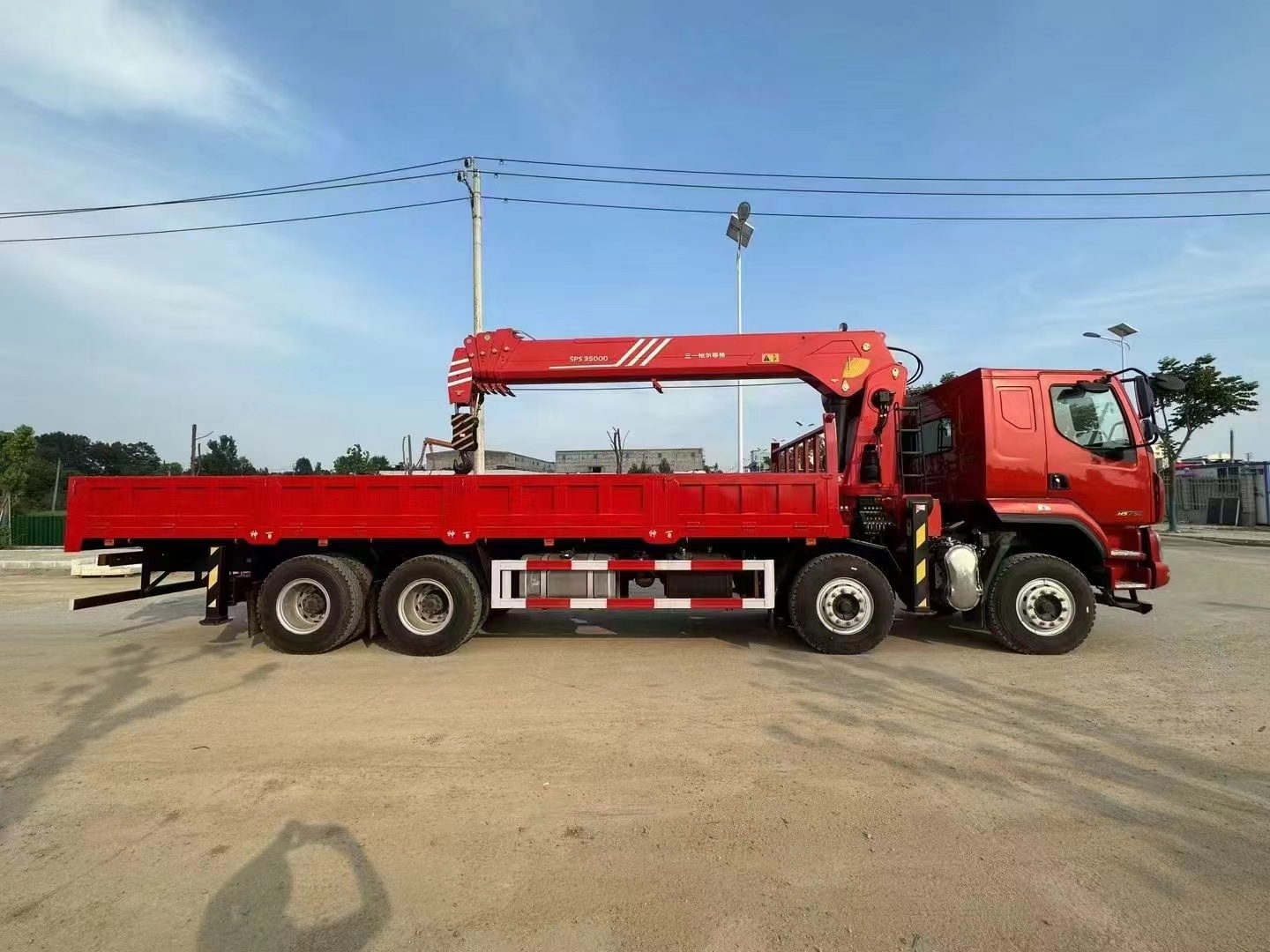

Liuqi H5 8X4 14 ton truck with crane

Chassis configuration:

1. Engine: YCK08350-60,Yuchai350HP

2.Transmission type: 10-speed gearbox

3.Tyre: 11.00R20 18PR,12 with a spare

4.Wheelbase:2050+4400+1350,2100+4350+1350(mm)

5 Other:H5 fully floating cab, electric doors and windows, remote control central locking, air conditioning, driving recorder
Installation configuration:

Equipped with a Sany 14 ton five section arm crane, double winch, standard high-altitude seats, one key start stop, dual stage composite front support legs, with two section arm single output, original factory double chamber rear support legs, integral secondary beam, radiator, and cargo box clearance of 8300 × 2450 × 550mm.

Product Name： Liuqi H5 8X4 14 ton truck with crane
Driving Type： 8X4
Curb weight(kg)： 22200,20200,21200(Kg)
Rated weight(kg)： 8670,10670,9670(Kg)

Product Features

Liuqi H5 8X4 14 ton truck with crane

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Product parameters

Product Name	Liuqi H5 8X4 14 ton truck with crane
Driving Type	8X4
Curb weight(kg)	22200,20200,21200(Kg)
Rated weight(kg)	8670,10670,9670(Kg)
Wheel base(mm)	2050+4400+1350,2100+4350+1350(mm)
Overall dimension(mm)	12000,10900×2550,2500×3650,3750,3850,3950(mm)
Cargo box dimension(mm)	8300×2450×550mm
Engine brand & model	YCK08350-60,Yuchai350HP
Displacement(L)/Power(kw)	36.9L/257KW
Axle Quantity	4
Transmission Type	10-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	11.00R20 18PR,12 with a spare

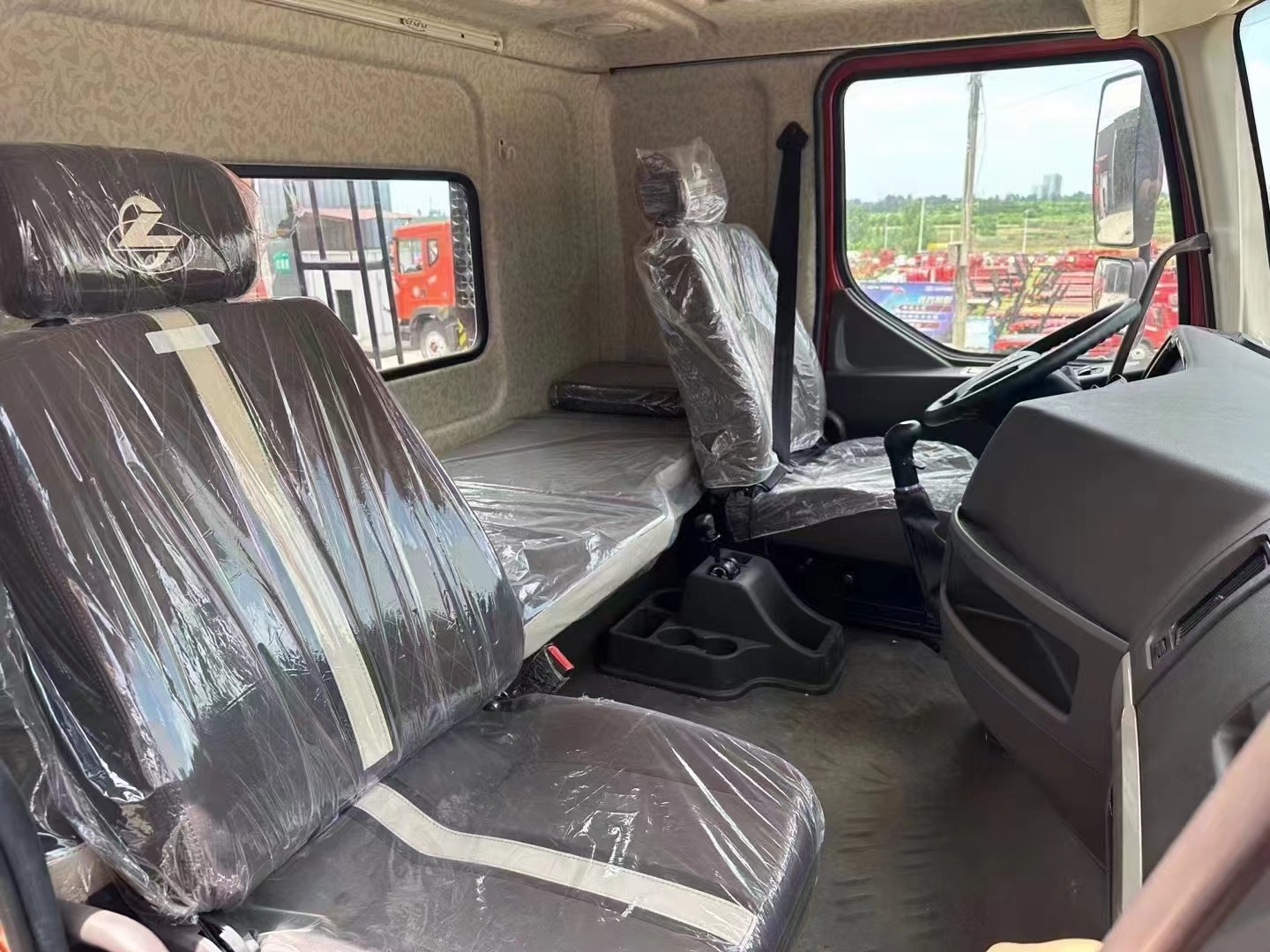

Cab	H5 fully floating cab, electric doors and windows, remote control central locking, air conditioning, driving recorder
Crane configuration	Sany 14 ton five section arm crane, double winch, standard high-altitude seat, one click start stop, dual stage composite front support legs, with two section arm single output, original dual chamber rear support legs, integral auxiliary beam, radiator
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
