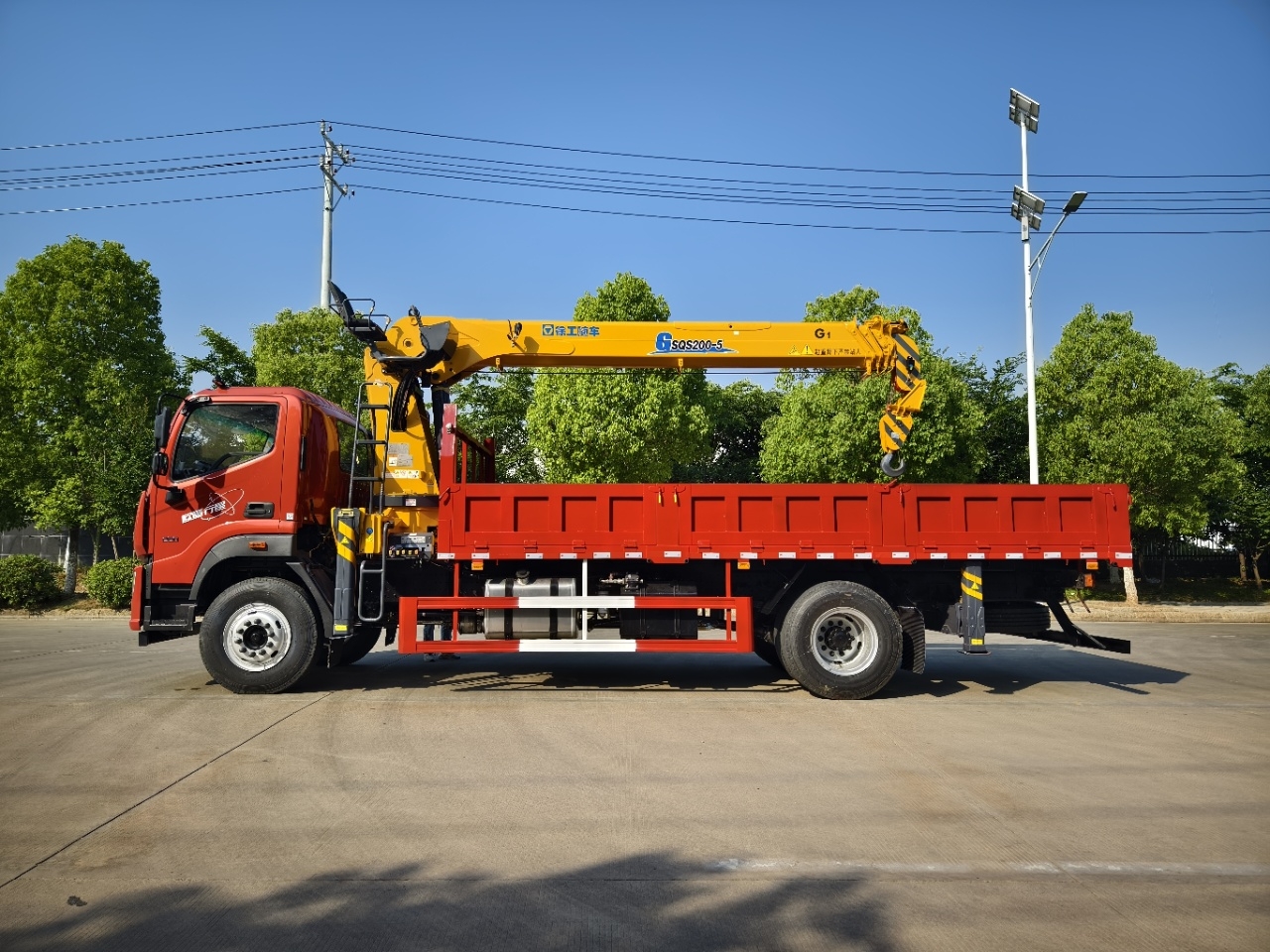

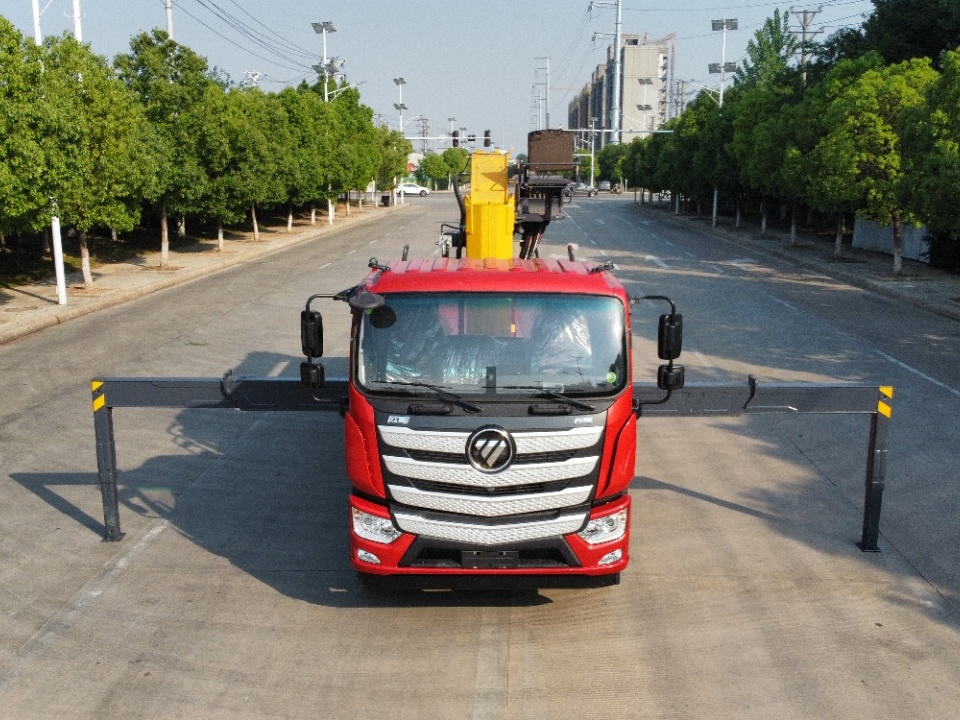

Auman 4X2 8 ton truck mounted crane

Chassis configuration:

1. Engine: YCS04220-61A,Yuchai220HP

2.Transmission type: 8-speed gearbox

3.Tyre: 10.00R20 steel wire tire,6 with a spare

4.Wheelbase:5150mm

5.Other:Airbag seats, multifunctional steering wheel, air conditioning, electric doors and windows, cruise control
Installation configuration:

Equipped with XCMG 8-ton 5-section arm, arm length 18.6 meters, lifting height 20.6 meters.

Product Name： Auman 4X2 8 ton truck mounted crane
Driving Type： 4X2
Curb weight(kg)： 12000,11500(Kg)
Rated weight(kg)： 8670,10670,9670(Kg)

Product Features

Auman 4X2 8 ton truck mounted crane

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Product parameters

Product Name	Auman 4X2 8 ton truck mounted crane
Driving Type	4X2
Curb weight(kg)	12000,11500(Kg)
Rated weight(kg)	8670,10670,9670(Kg)
Wheel base(mm)	5150mm
Overall dimension(mm)	9000×2550,2500×3780,3850,3950(mm)
Cargo box dimension(mm)	6100×2450,2400×550,600(mm)
Engine brand & model	YCS04220-61A,Yuchai220HP
Displacement(L)/Power(kw)	4.3L/162KW
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	10.00R20 steel wire tire,6 with a spare
Cab	Airbag seats, multifunctional steering wheel, air conditioning, electric doors and windows, cruise control
Crane configuration	XCMG 8-ton 5-section arm, arm length 18.6 meters, lifting height 20.6 meters
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
