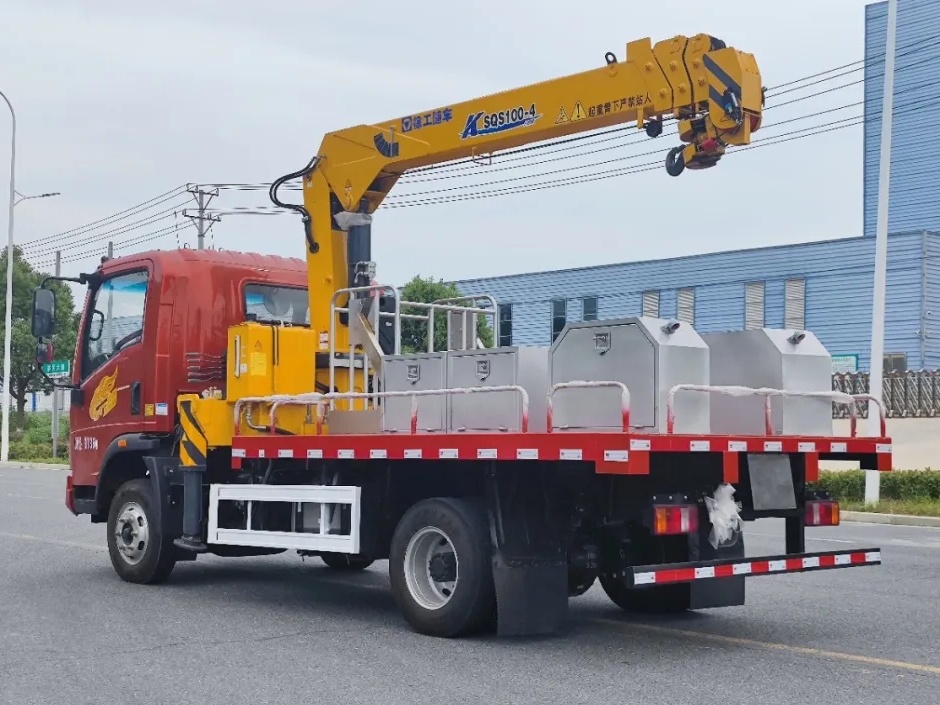

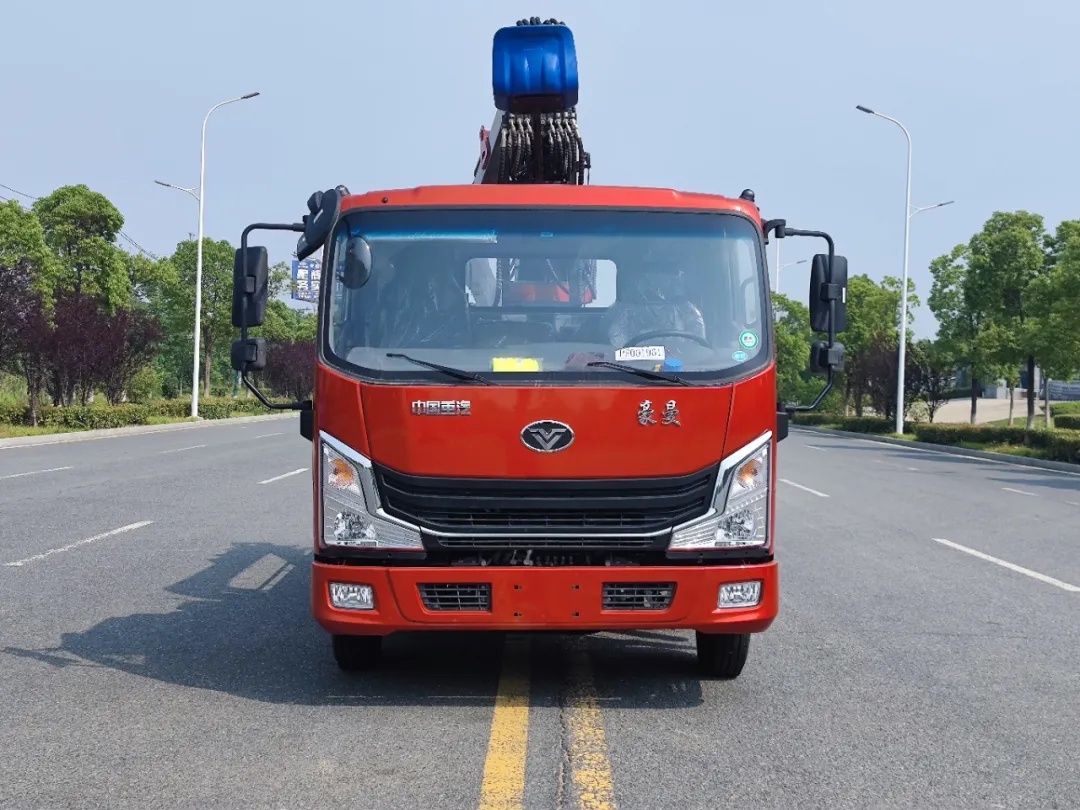

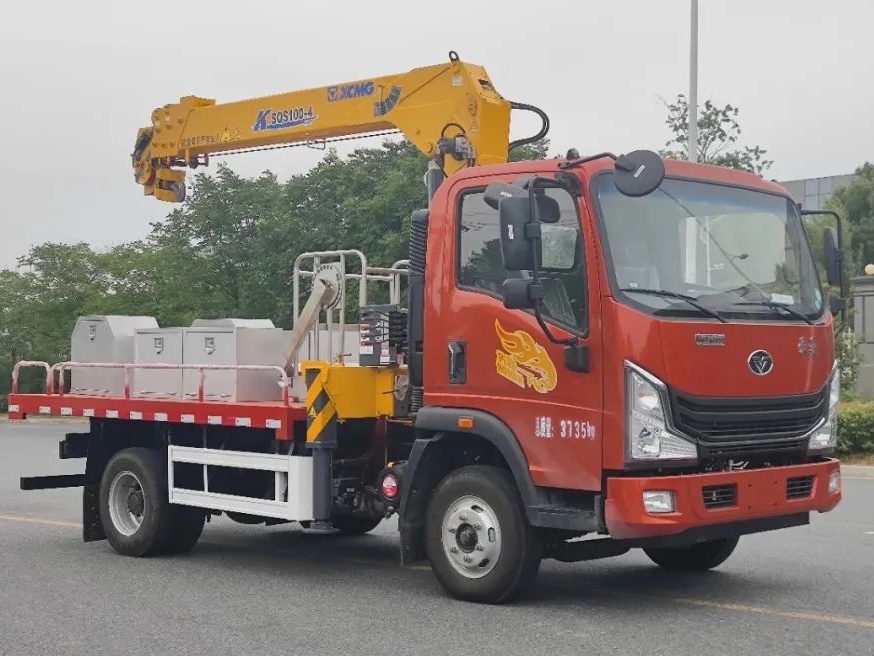

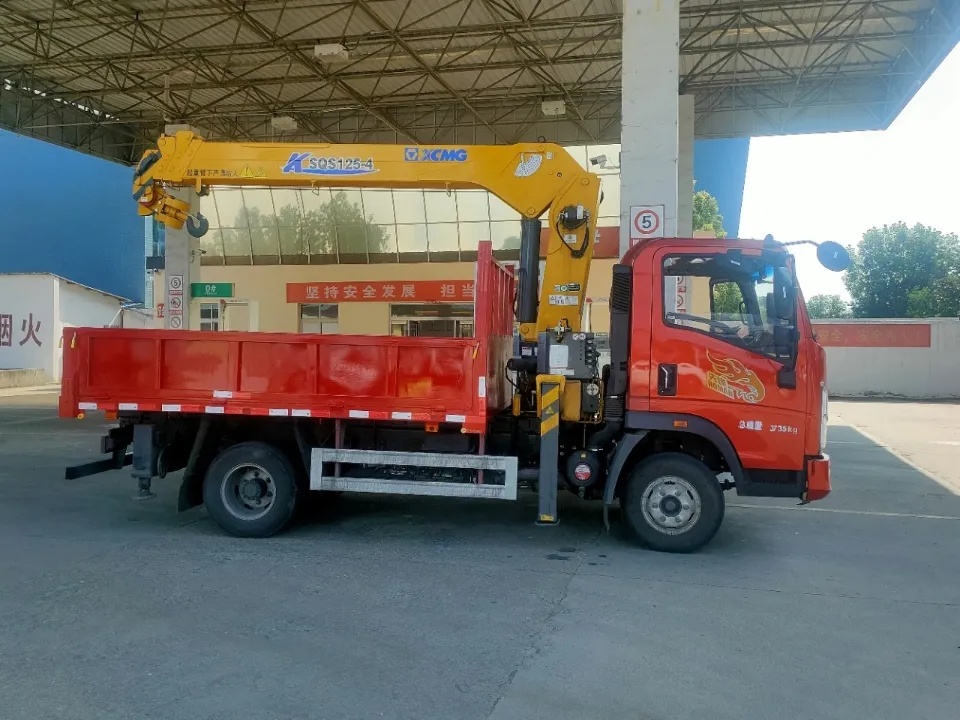

Sinotruk Homan Multi-functional Truck Mounted Crane

Chassis configuration:

1. Engine: WP2.3NQ150E61,Weichai 150hp

2.Transmission type: 5-speed gearbox

3.Tyre: 8.25R16LT 18PR,6 with a spare

4.Wheelbase:3280(mm)

5.Other: electric doors and windows, multifunctional steering wheel, reverse image, air conditioning
Installation configuration:

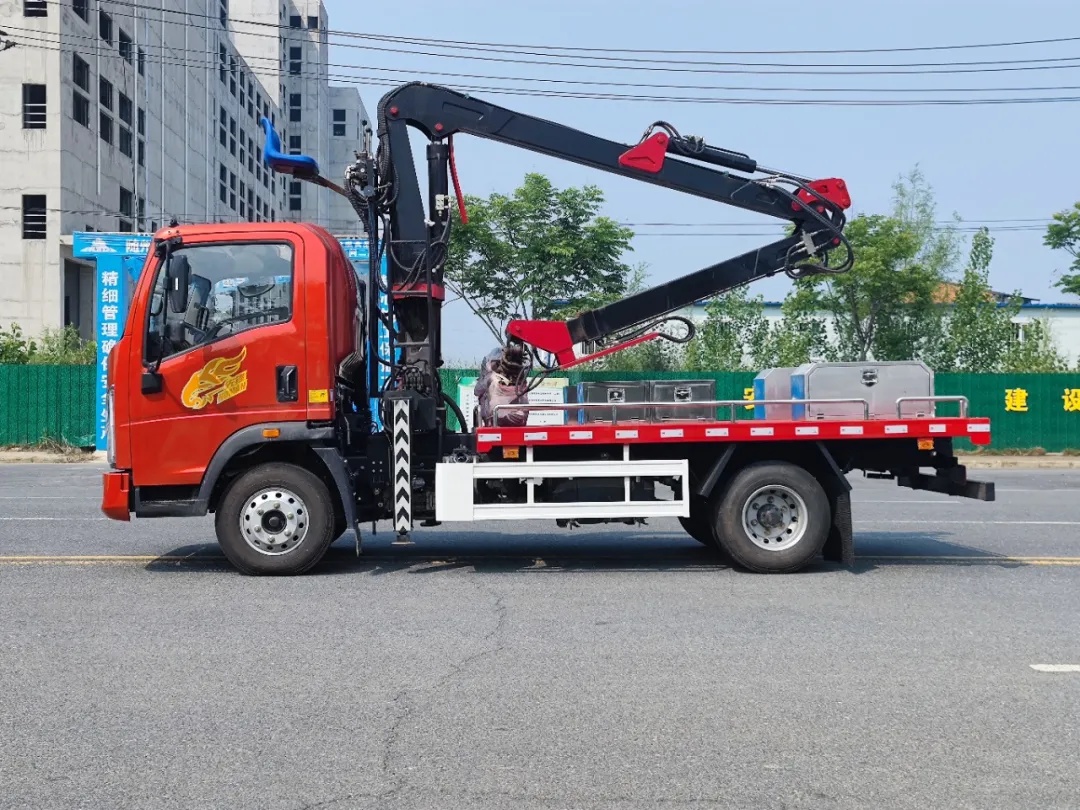

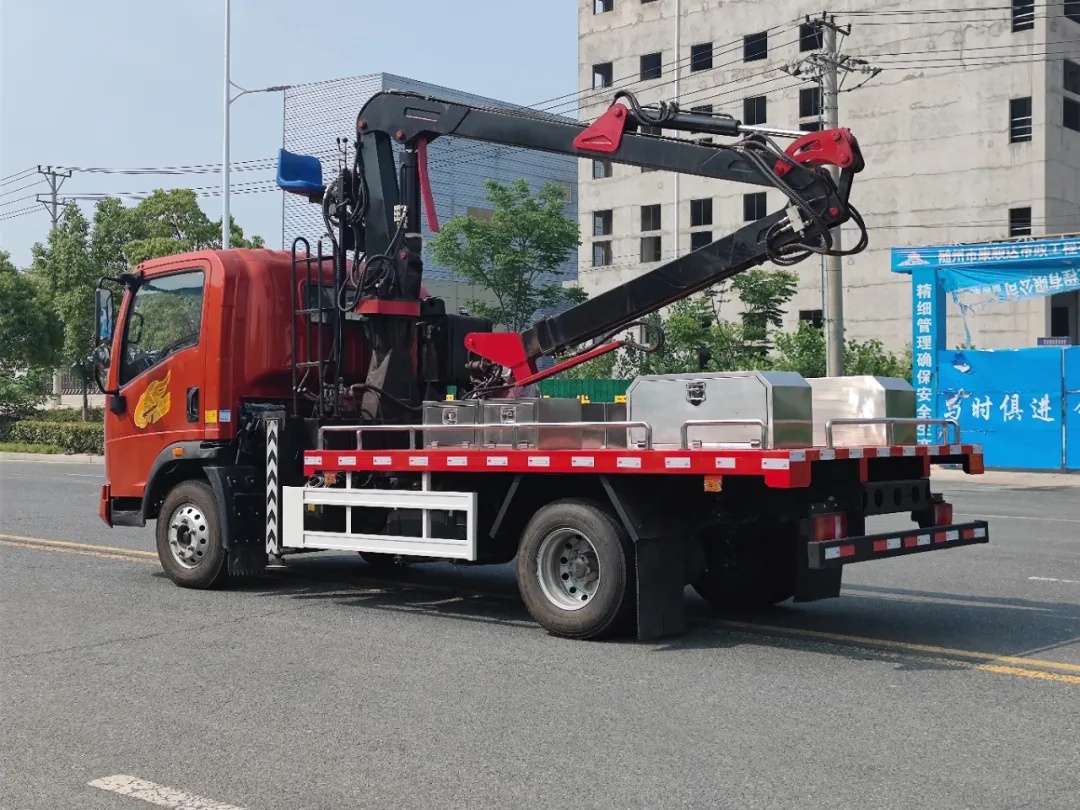

The crane can be equipped with 2-ton, 3.2-ton, 5-ton, 6.3-ton straight arm crane or articulated arm crane.

Product Name： Sinotruk Homan Multi-functional Truck Mounted Crane
Driving Type： 4X2
Curb weight(kg)： 7400,6800(Kg)
Rated weight(kg)： 3670,3605,4270,4205(Kg)

Product Features

Sinotruk Homan Multi-functional Truck Mounted Crane

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Product parameters

Product Name	Sinotruk Homan Multi-functional Truck Mounted Crane
Driving Type	4X2
Curb weight(kg)	7400,6800(Kg)
Rated weight(kg)	3670,3605,4270,4205(Kg)
Wheel base(mm)	3280(mm)
Overall dimension(mm)	6080,6780,6980,7200,7650,7995×2300,2400,2550,2500×2750,2850,3350,3550,3700(mm)
Cargo box dimension(mm)	3500,3800,3950,4000,4200,4700,5050×2200,2300,2450,2400×550,600(mm)
Engine brand & model	WP2.3NQ150E61,Weichai 150hp
Displacement(L)/Power(kw)	2.28L/110KW
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	8.25R16LT 18PR,6 with a spare
Cab	electric doors and windows, multifunctional steering wheel, reverse image, air conditioning
Crane configuration	The crane can be equipped with options of 2 tons, 3.2 tons, 5 tons, and 6.3 tons
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
