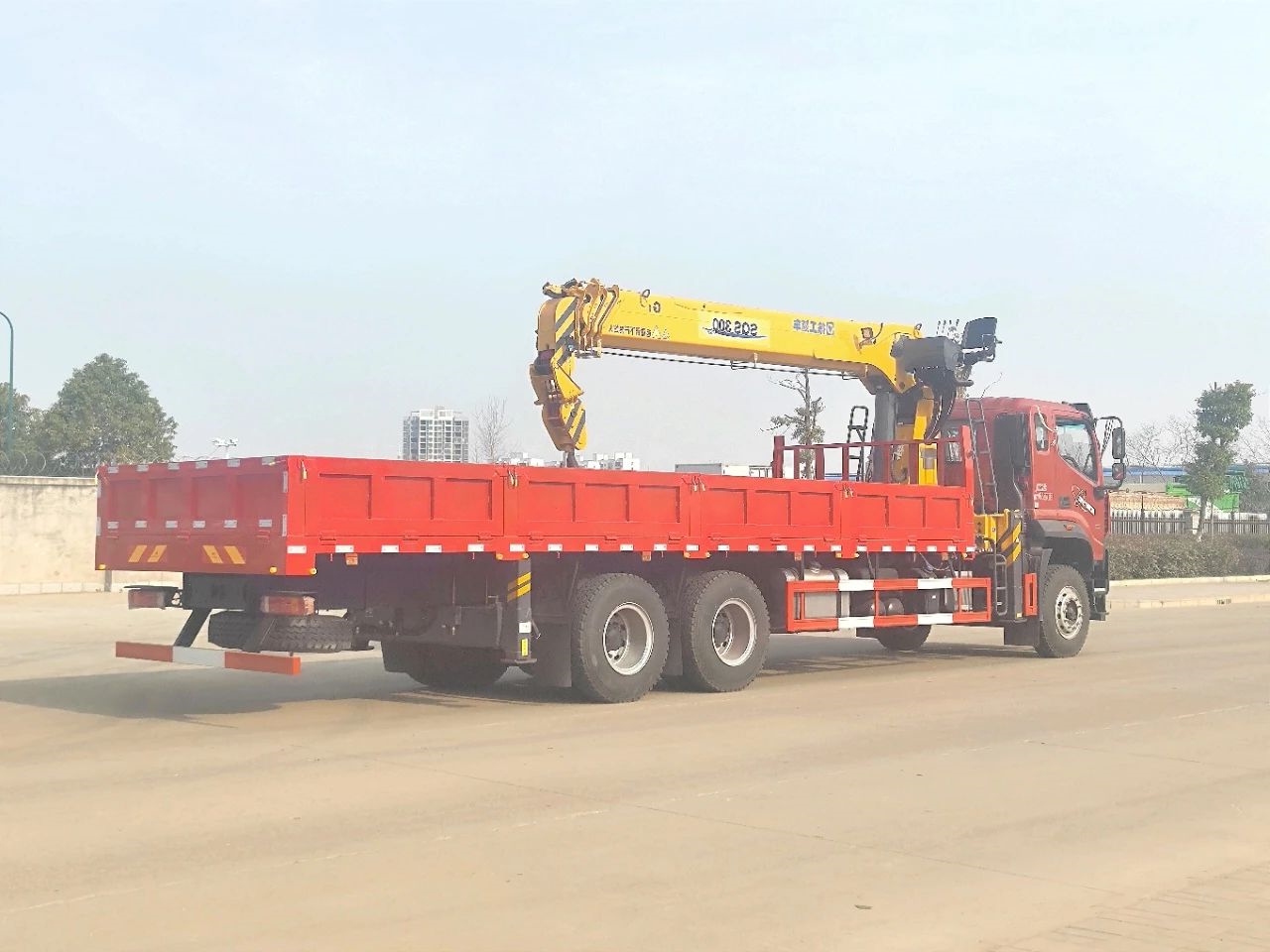

Auman 6X4 Truck With Crane

Chassis configuration:

1.Engine: YCS06300-60,Yuchai 300 hp, optional Yuchai 270hp

2.Transmission type: Fast 9-speed with flange power take-off and remote throttle

3.Wheelbase: 5850+1350,4800+1350(mm)

4.Tyre:11.00R20 steel wire tire, 10+1 spare

5 Other: Dongfeng cab

Installation configuration:

Crane options: 12 ton 4-arm or 5-arm crane, 14 ton 4-arm or 5-arm crane. Optional single chamber hydraulic rear leg and dual chamber hydraulic rear leg.

Product Name： Auman 6X4 Truck With Crane
Driving Type： 6X4
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(kg)： 16140,17660(Kg)

Product Features

Auman 6X4 Truck With Crane

A truck with crane is a type of transport vehicle that combines a crane with a chassis. It is composed of a crane arm, a turntable, a frame, legs, and other parts. The mechanical action of the crane is achieved through the actions of mechanisms such as amplitude, expansion, rotation, and hoisting, and the lifting operation is achieved through the combination of different actions.

Crane:It can accommodate cranes of different brands and tonnages. 12 ton 4-arm or 5-arm crane, 14 ton 4-arm or 5-arm crane.

Rear support legs:can be equipped with fixed rear support legs, single chamber hydraulic rear support legs, or double chamber hydraulic rear support legs.

Product parameters

Product Name	Auman 6X4 Truck With Crane
Driving Type	6X4
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(kg)	16140,17660(Kg)
Rated weight(kg)	8730,8665,7210,7145(Kg)
Wheel base(mm)	5850+1350,4800+1350(mm)
Overall dimension(mm)	12000×2500,2550×3815,3895,3975(mm)
Cargo box dimension(mm)	8300,8400,8500,8600,7600,7800,8000,8200×2420,2450×550,600,800(mm)
Engine	YCS06300-60,Yuchai 300 hp, optional Yuchai 270hp
Axle Quantity	3
Transmission Type	Fast 9-speed with flange power take-off and remote throttle
Steering Type	LHD or RHD with power steering
Tire Spec. & size	11.00R20 steel wire tire, 10+1 spare
Cab	Auman cab
Crane configuration	Multiple types of cranes are available for installation, including XCMG, Haiwo, Shimei, Sany, etc.
Cargo box material	Channel steel, square tube, corrugated board
Optional	1. Box board structure, 2. The middle and high seats of the on-board crane, 3. Rear support legs of the accompanying crane, 4. The on-board crane does not come with a seat, 5. Without the rear support legs of the accompanying crane, 6. Different spraying colors and patterns of the crane, 7. Rear with ladder style
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
