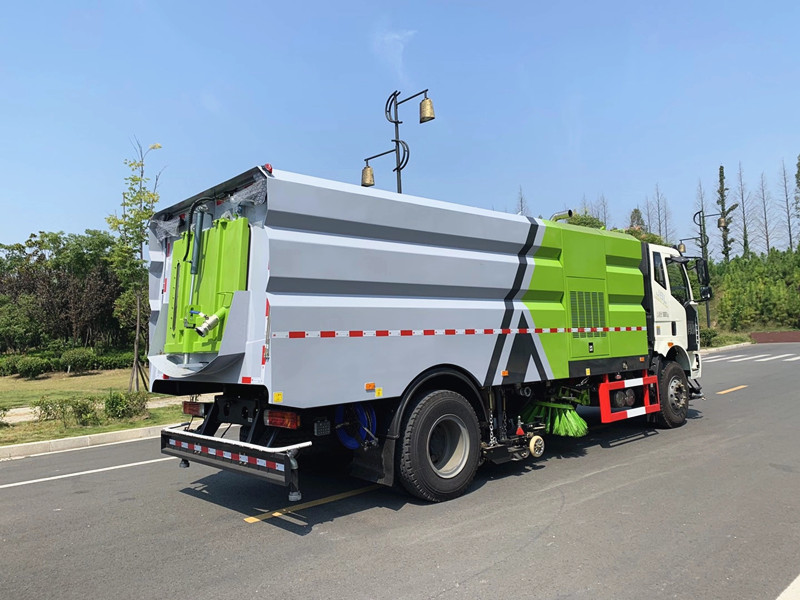

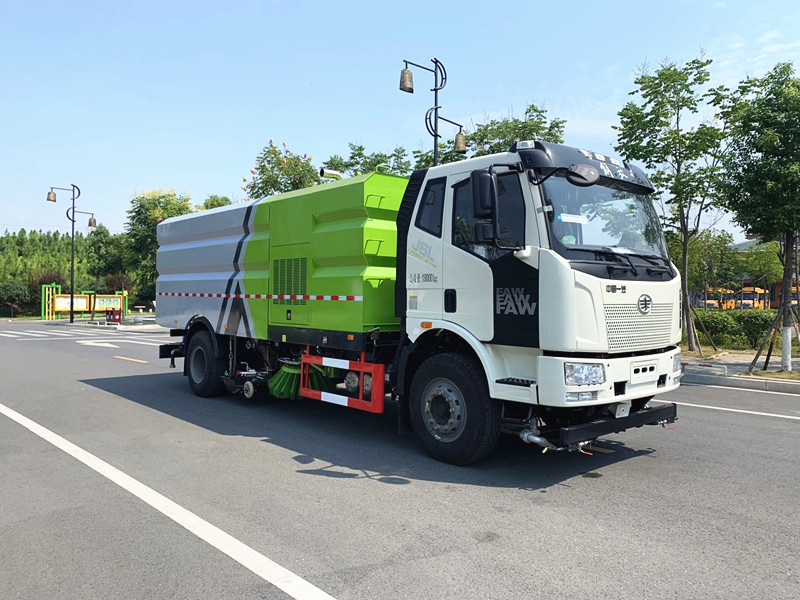

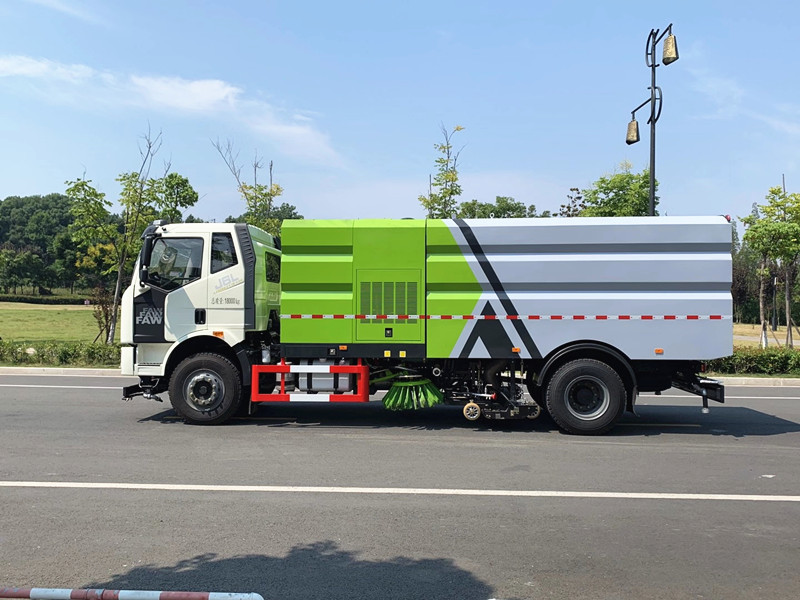

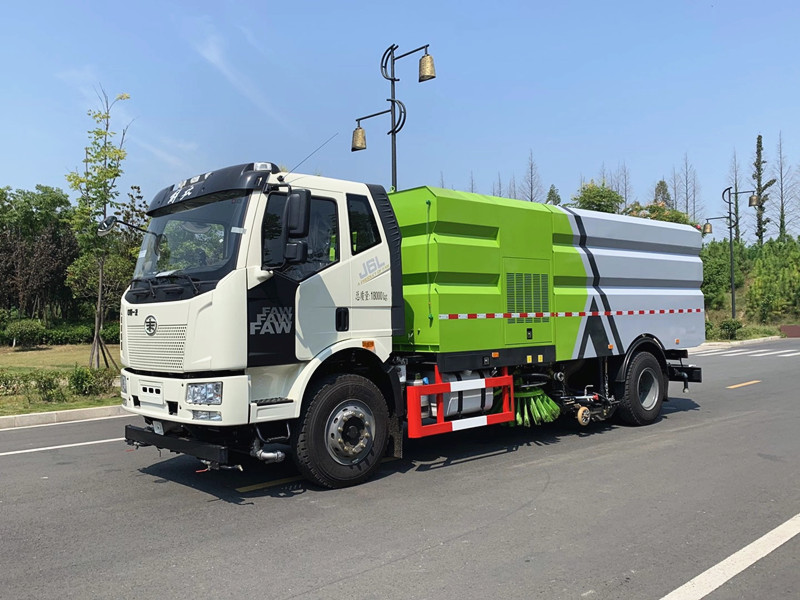

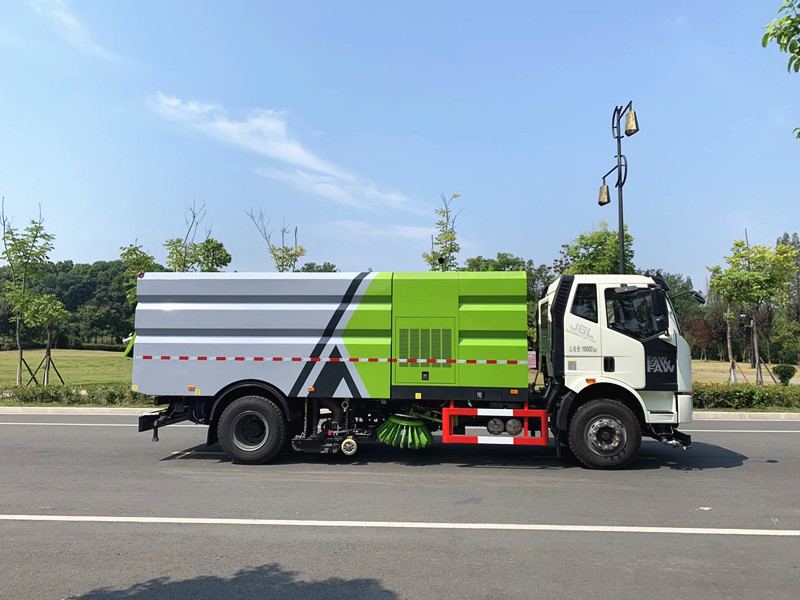

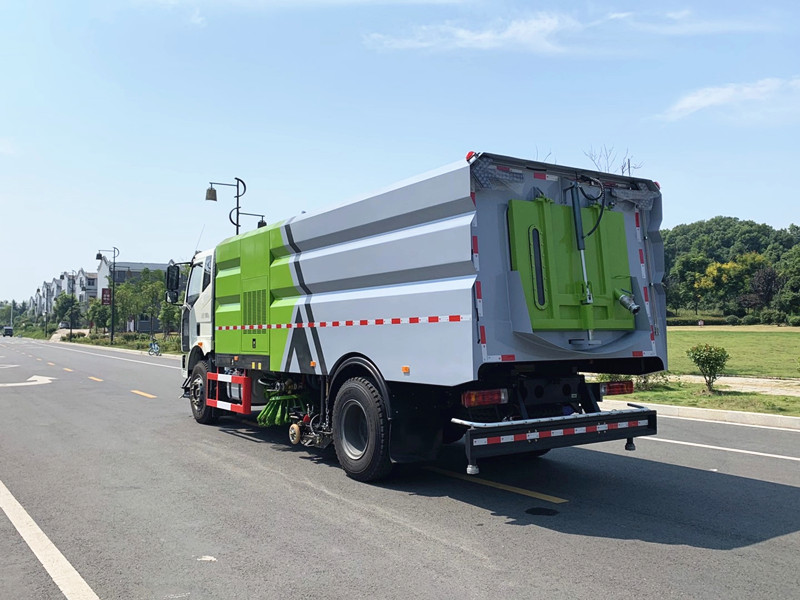

Jiefang J6L 4X2 Road Sweeper truck

Jiefang J6L 4X2 Road Sweeper truck

A road sweepe truck  is a type of road cleaning vehicle in the road sweeper series. It has multiple functions such as road surface cleaning, road surface cleaning, curbstone facade cleaning, low-pressure washing, spray dust removal, etc. There are various operation modes to choose from, including "full wash scan", "left wash scan", "right wash scan", "full scan", and more. Choose the "full wash sweep" mode to clean the square and road surface, with high cleaning efficiency and good results, achieving a cleaning rate of over 95%. Select the "left wash scan" or "right wash scan" mode to clean the road surface and curb. When road sweeping or road cleaning operations are required, the sweeping mode can be selected. When spray dedusting is required, the spray device can be started for spray dedusting. It can perform low-pressure flushing operations on the road surface like a sprinkler truck.
The cleaning car is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations on urban roads, expressways, squares, airports, docks, tunnels, bridges, separation walls, curbs and curb facades.

Vehicle installation:
1) Stainless steel water tank, stainless steel garbage bin, and discharge door opening speed of 45 degrees. The garbage bin is equipped with anti overflow alarm device and high-pressure spray cleaning device, and the water tank is equipped with a low water level sensing alarm system to reduce the labor intensity of operators. The cleaning operation width is 2.8-3.2 meters.
2) Equipped with 2 sweeping discs and Jiangling auxiliary engine; Italian motor, French Schneider control switch, Taiwanese solenoid valve group; Maintenance free self separating clutch; Maintenance free fan; Manual pump emergency system. The rotating mechanism of the front sweeping brush arm uses a high-tech wear-resistant engineering spacer sleeve, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe.
3) Cummins 170 horsepower auxiliary engine; Powerful motor; German high-pressure water pump (front flushing/side spraying/medium spraying/rear spray (stainless steel nozzle)/side flushing water gun/dustbin self-cleaning device); Wanxiang high-pressure roadside cleaning; Taiwan hydraulic valve group; Weilong low-pressure pump (front flushing); 4mm stainless steel garbage bin; 4mm stainless steel water tank; Stainless steel high-pressure pipeline; Double layer stainless steel vacuum cleaner; German controller; American sensors; Tail arrow light; Oil, garbage bins, and water tanks are all equipped with anti overflow or low-level alarm devices; Indoor monitor for reversing and cleaning status; Automatic reverse collision protection device; Maintenance of safety protection devices; The rotating mechanism of the sweeping arm uses a high-tech wear-resistant engineering spacer, which does not require oiling; 20m high-pressure flushing reel. Integrated motion controller, one click computer control.

Main Parameter
