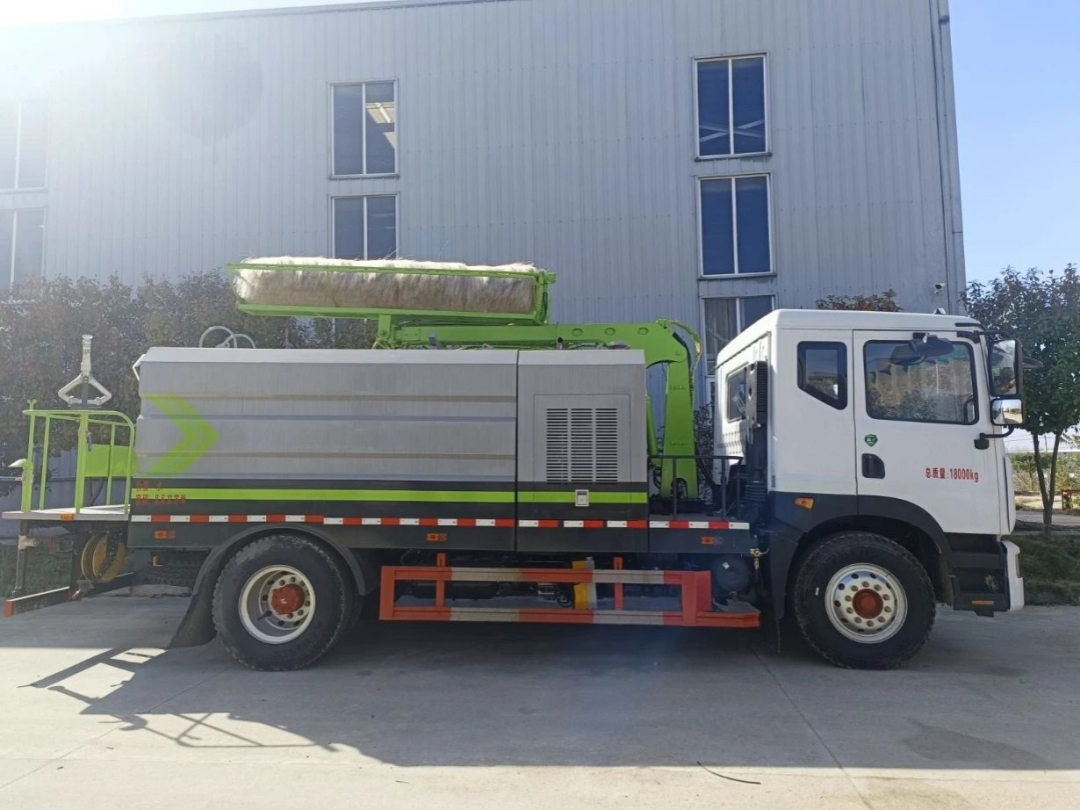

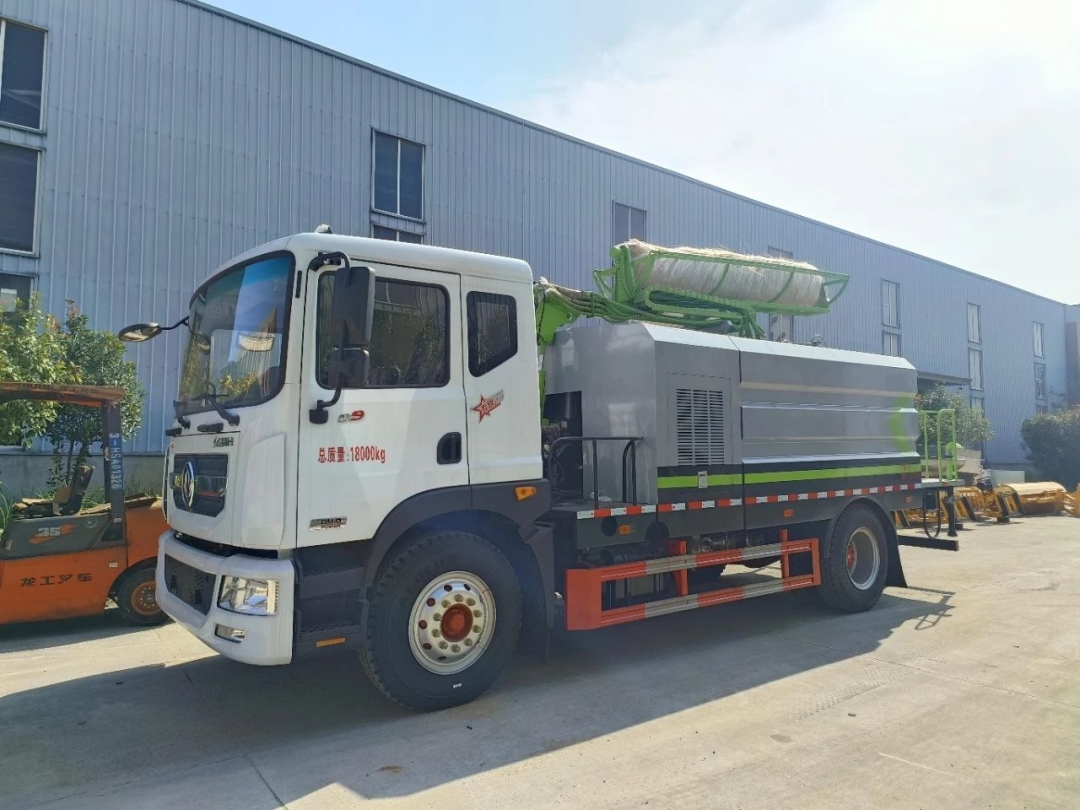

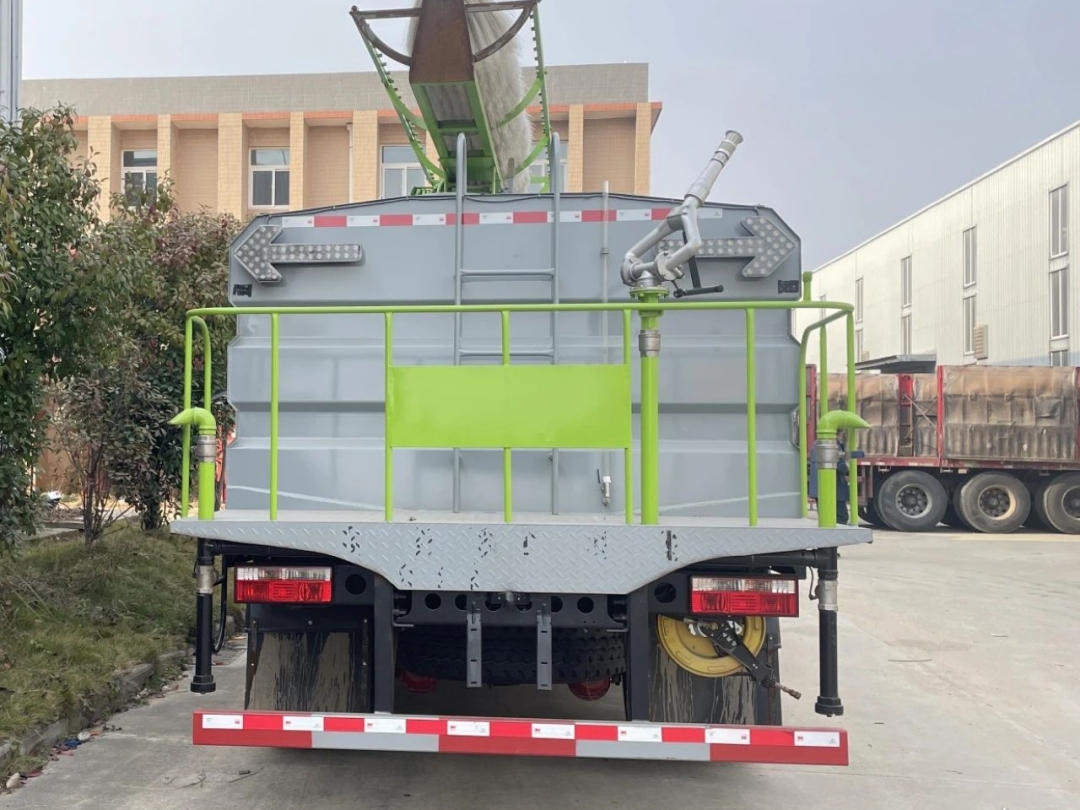

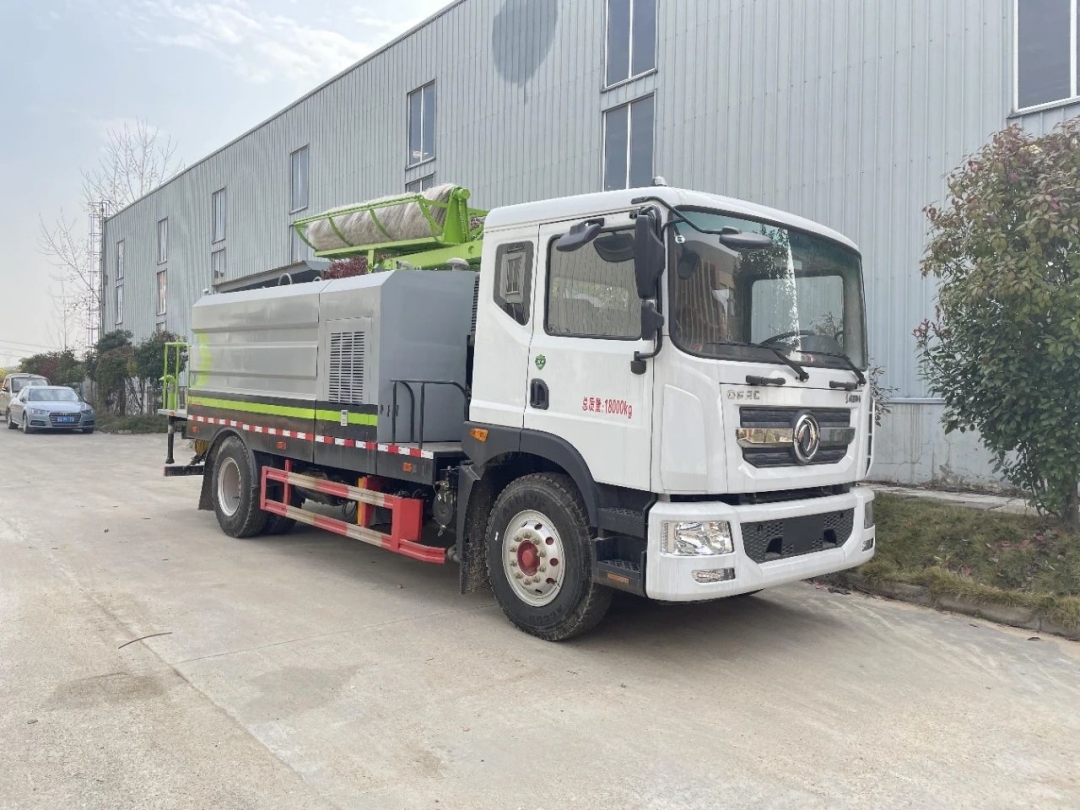

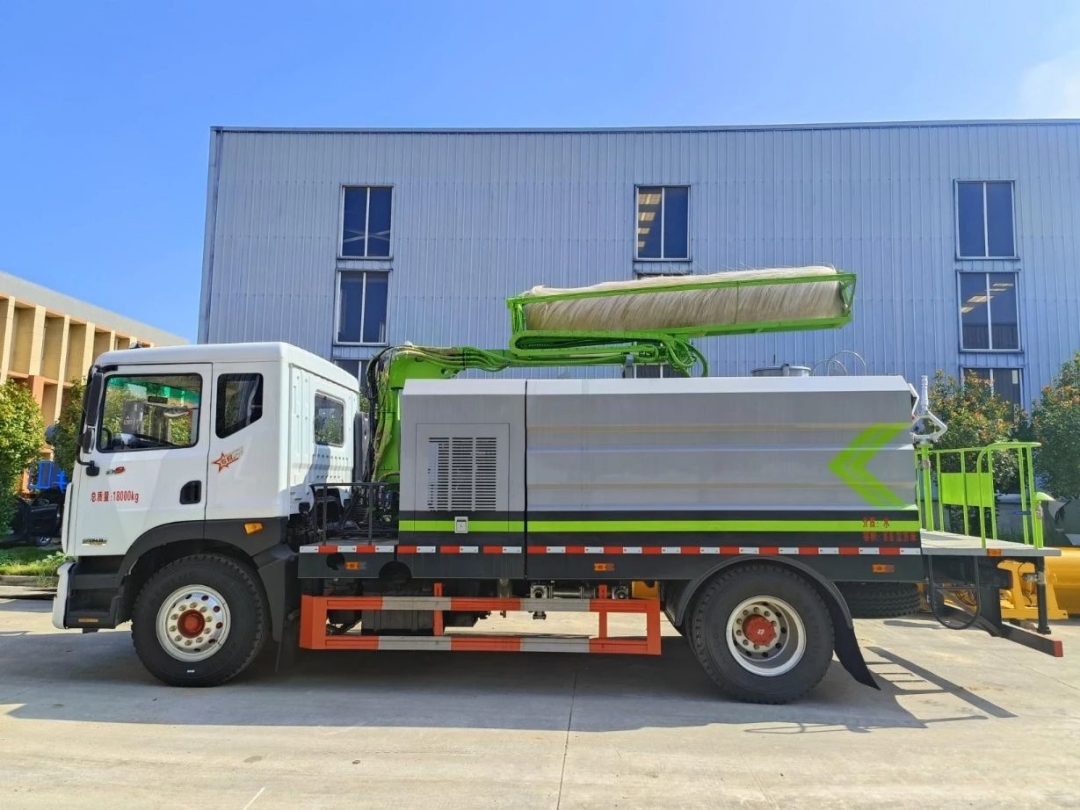

Dongfeng D9 4X2 photovoltaic panel cleaning vehicle

Chassis configuration:

1. Engine: D4.0NS6B195,Cummins 195 horsepower.

2.Transmission type: FAST 8-speed gearbox

3.Wheelbase: 3600,3950,4500,4700,5000,5300,5600(mm)

4.Tyre: 10.00R20 18PR steel wire tire, 6 + 1 spare tire

5 Other: Dongfrng D9 cab,Air conditioning, electric doors and windows, central locking system, ABS exhaust brake.
Installation configuration:

1. The upper part uses a secondary generator to provide power to the robotic arm (with a limiter to avoid pipeline entanglement), driving the roller brush for photovoltaic panel cleaning operations.
2. In addition, it is equipped with a Pinfu high-pressure pump with a maximum flow rate of 115 liters/minute, which is fully compatible with high-pressure cleaning function.
3. Equipped with a 20 meter automatic return reel, it can clean small wall advertisements, stubborn mud stains on the ground, and also wash vehicles.
4-Video display in the driver's cabin, used for reversing camera and displaying cameras above the rear platform and cleaning arm.

We have many different brands of road sweep trucks, please feel free to inquire.

Product Name： Dongfeng D9 4X2 photovoltaic panel cleaning vehicle
Cab： Dongfrng D9 cab,Air conditioning, electric doors and windows, central locking system, ABS exhaust brake.
Drive wheel： 4X2
Steering wheel： Left/Right hand drive

Product Features

Dongfeng D9 4X2 photovoltaic panel cleaning vehicle

Thephotovoltaic panel cleaning car is also called the solar panel cleaning car. It is suitable for watering, spray, cooling, dedusting and washing of various roads. It is mainly used for cleaning PV panels and tunnel walls. It can also be used for road maintenance, landscaping, emergency fire fighting, transportation of drinking water, etc.

The solar panel cleaning vehicle adopts the Dongfeng D9 chassis and is equipped with a high-pressure flushing system and a low-pressure flushing system. It is a solar photovoltaic panel flushing operation vehicle that integrates mechanical, hydraulic, and electrical parts.

Main Parameter

Product Name	Dongfeng D9 4X2 photovoltaic panel cleaning vehicle
Cab	Dongfrng D9 cab,Air conditioning, electric doors and windows, central locking system, ABS exhaust brake.
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Model	D4.0NS6B195,Cummins 195 horsepower.
Gearbox	FAST 8-speed gearbox
Wheel base	3600,3950,4500,4700,5000,5300,5600(mm)
Axle numbers	2
Tire sepcification and quantity	10.00R20 18PR steel wire tire, 6 + 1 spare tire
Vehicle dimension	9700,8900,8700,8500,7700,7500×2500×3250,3600(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8000(Kg)
Rated weight(Kg)	9870,9805(Kg)
Upper configuration	The upper part uses a secondary engine to provide power to the robotic arm (with a limiter to avoid pipeline entanglement), driving the roller brush for photovoltaic panel cleaning operations. In addition, it is equipped with a Pinfu high-pressure pump,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
