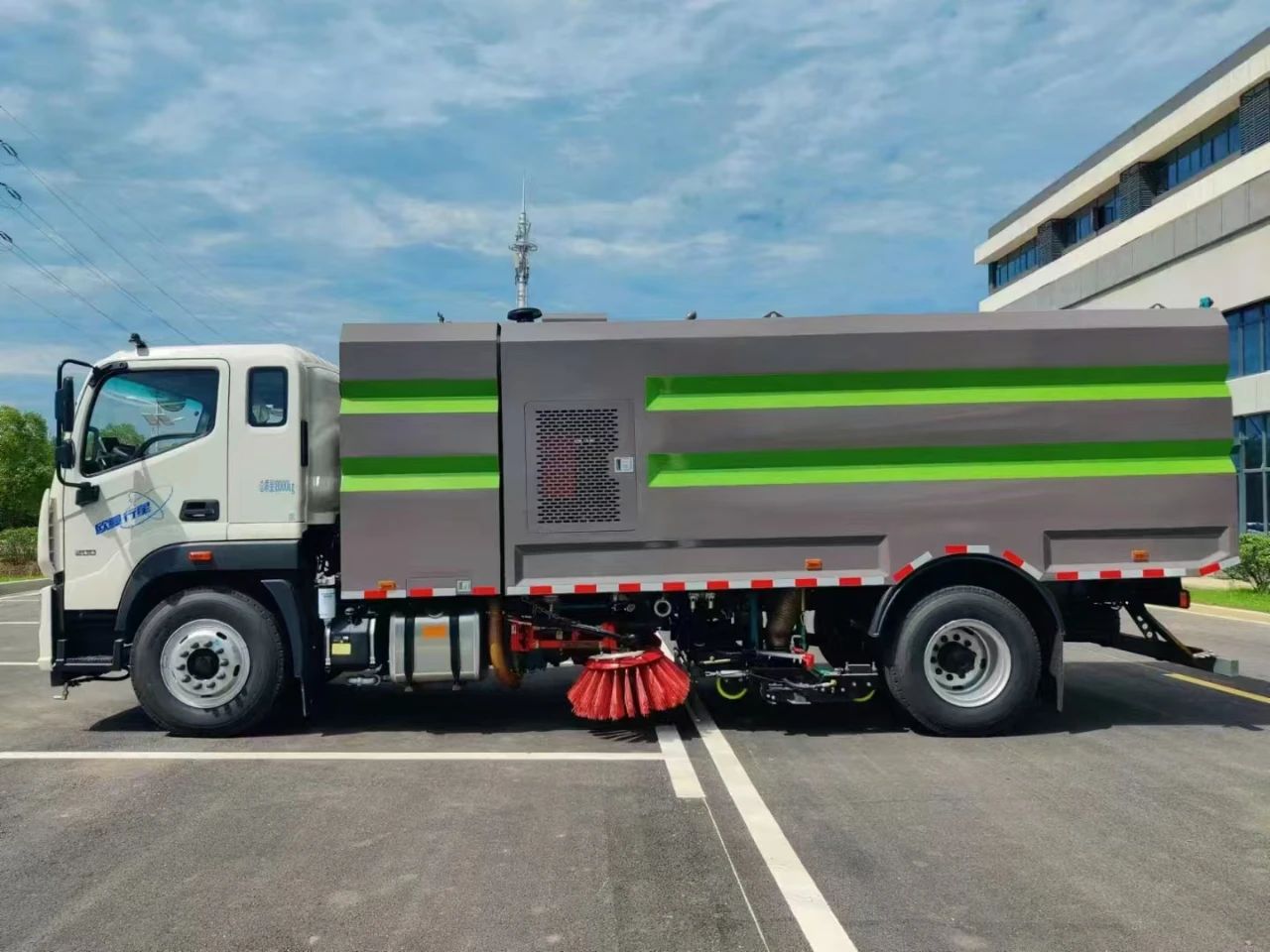

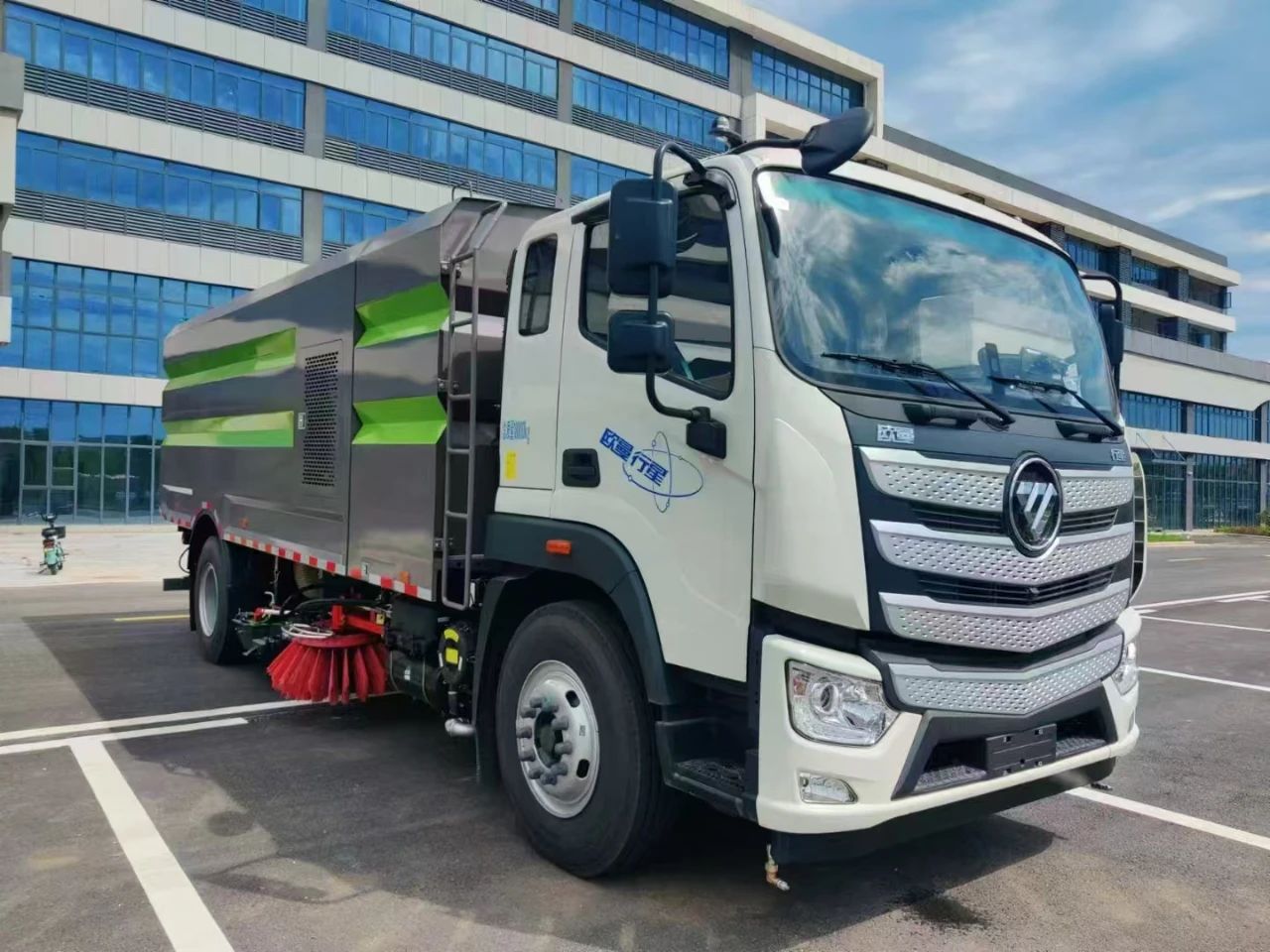

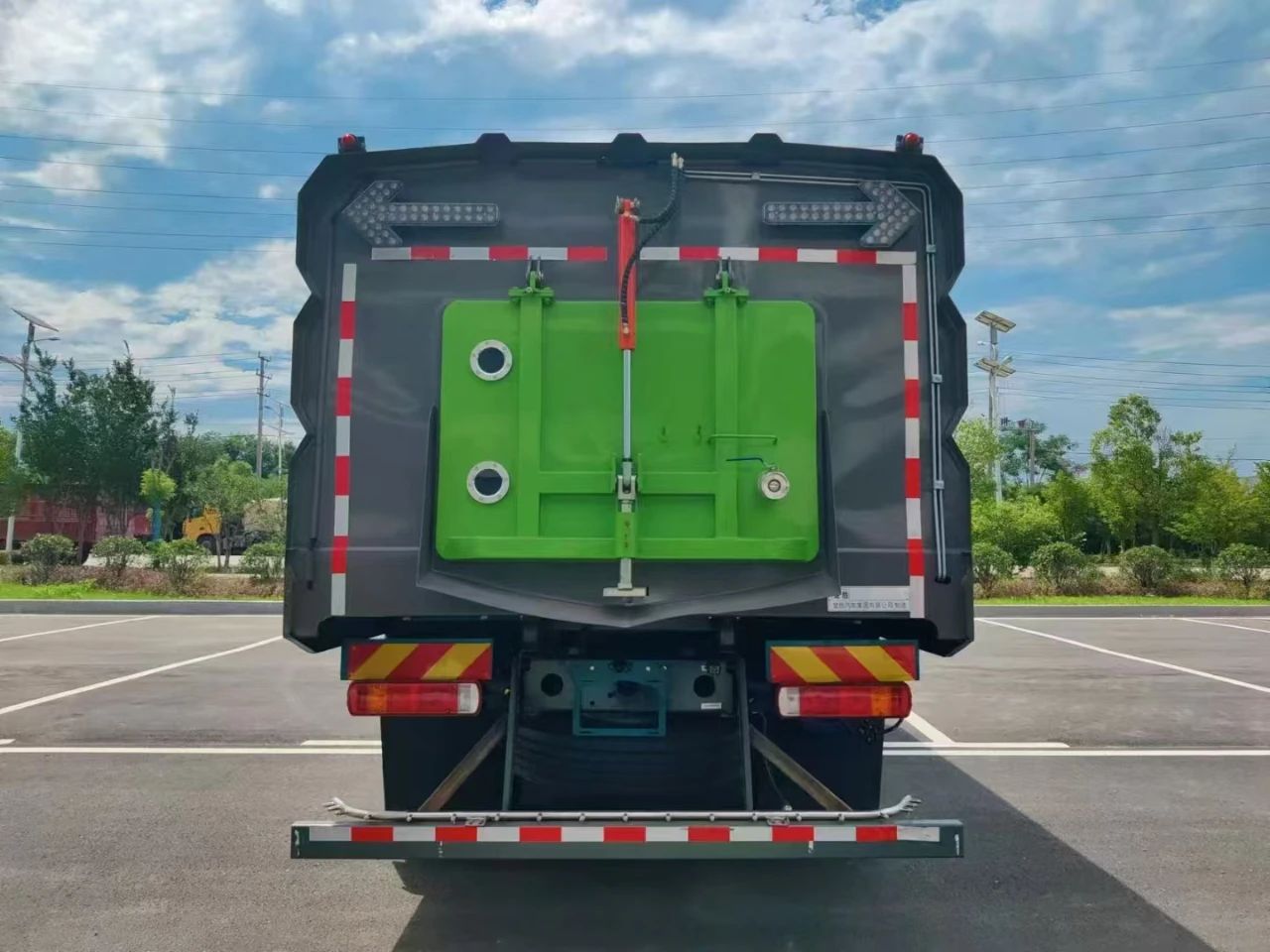

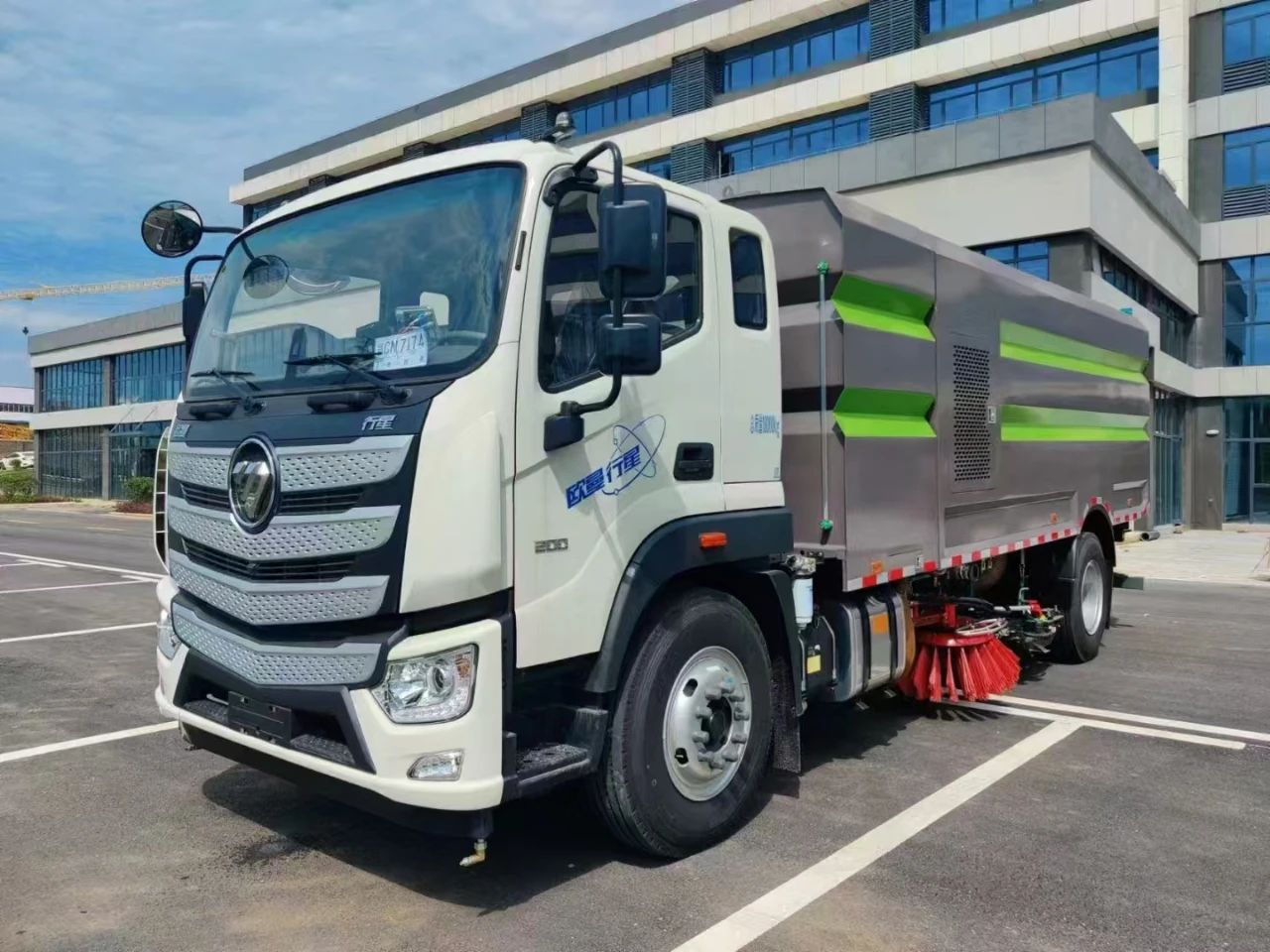

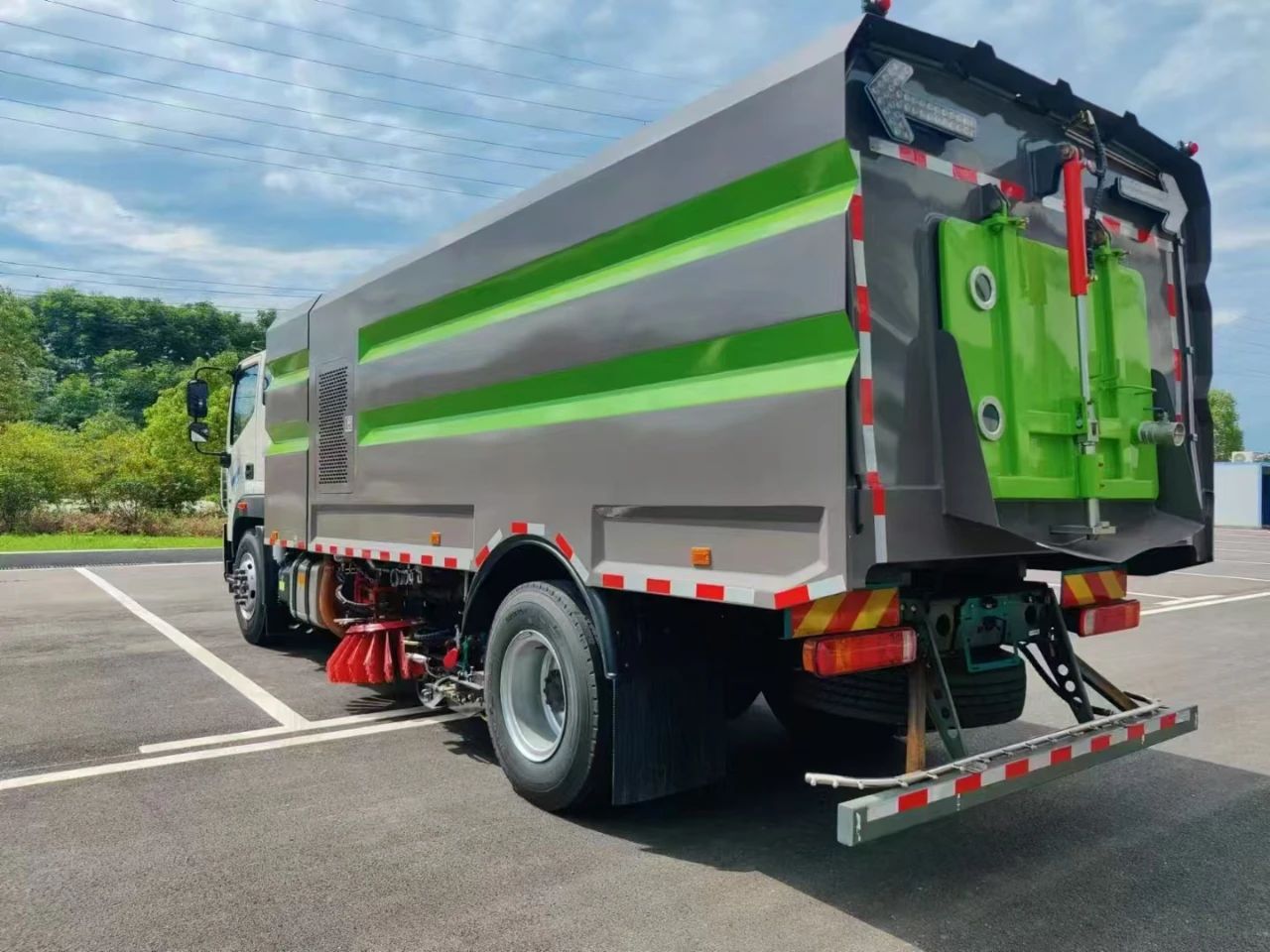

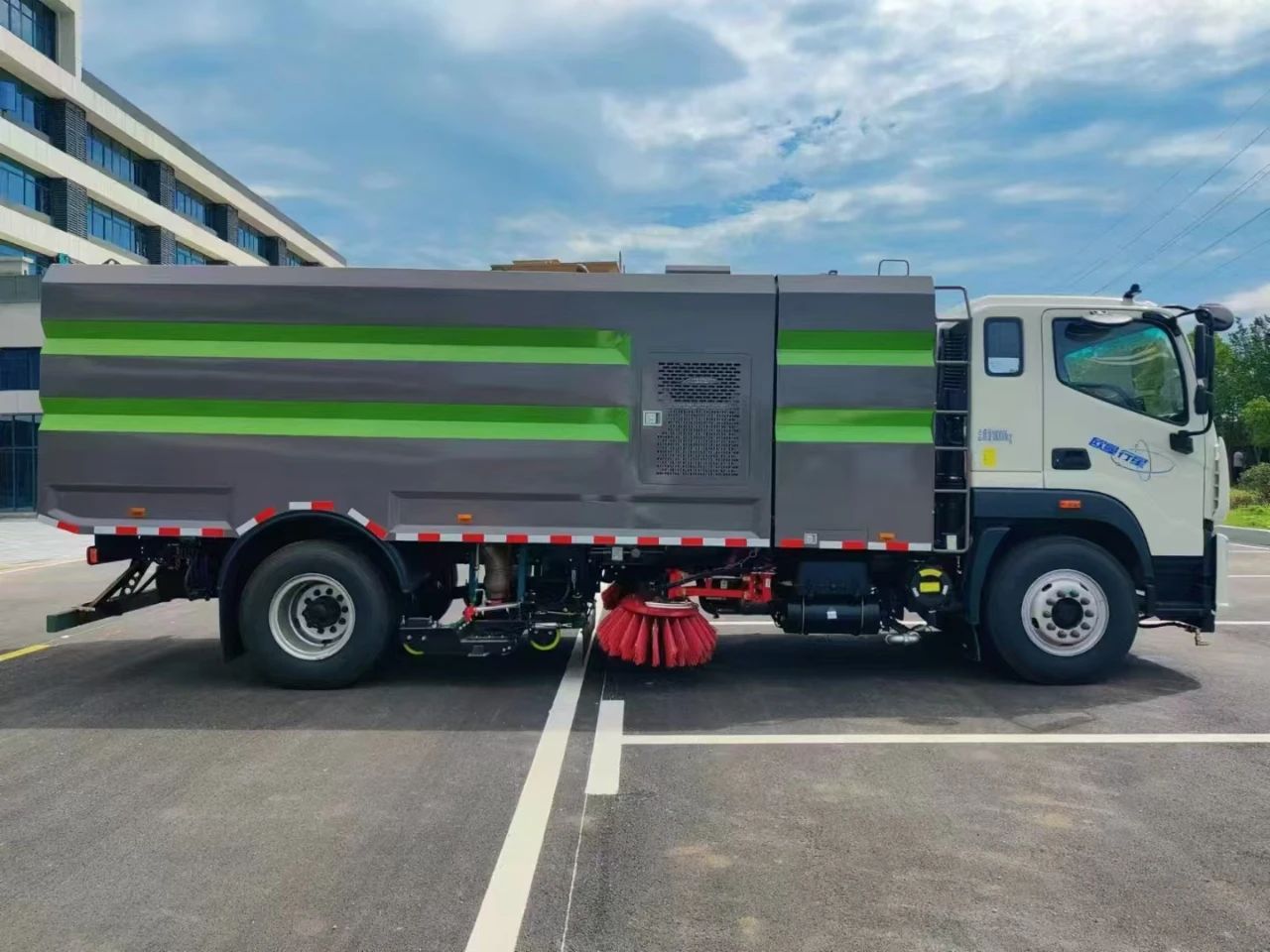

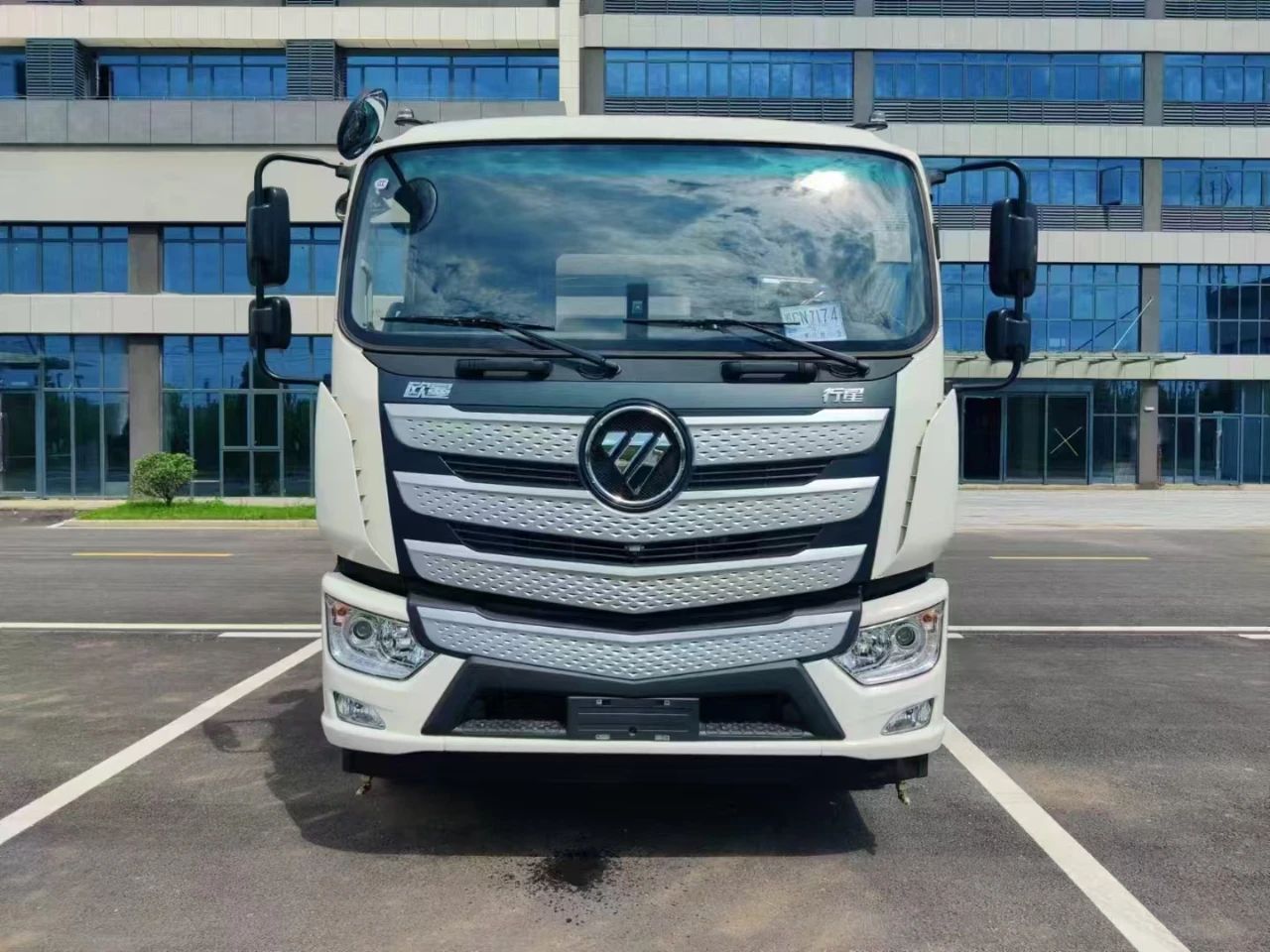

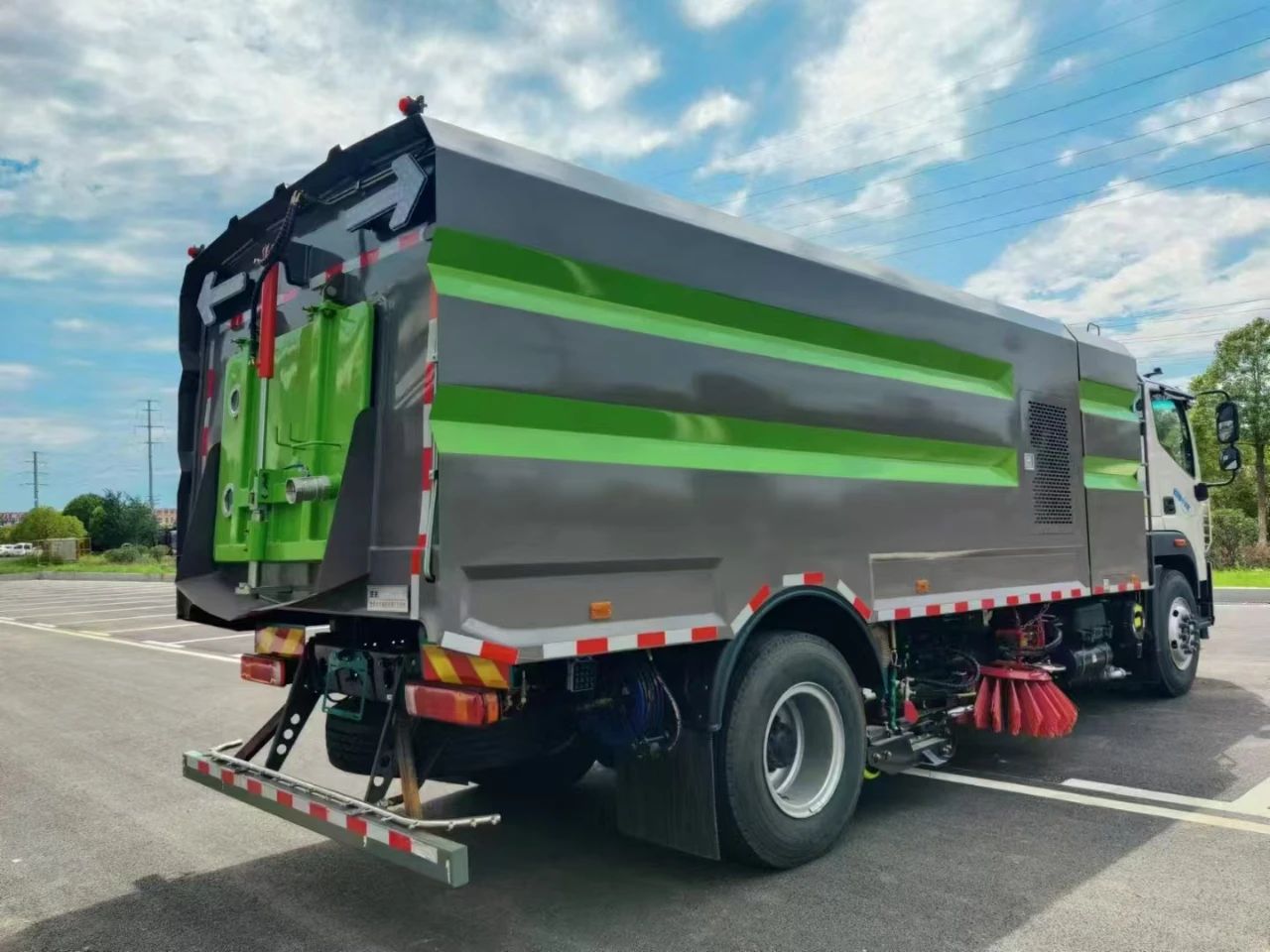

Foton Auman 4X2 Road Sweeper

Main chassis configuration: Auman planetary flat top half cab, 5150mm wheelbase, Yuchai 200 horsepower National VI engine, Fast eight speed transmission, 10 ton rear axle, 10.00R20 steel wire tires, with air conditioning, ABS, central locking, electric doors and windows.
Main configuration of the upper part: auxiliary engine, fan, high-pressure water pump, clean water tank of about 10 cubic meters, dustbin of about 7 cubic meters, left and right vertical sweeps, wide suction nozzle with water spray rod, low-pressure washing system, sweeping and dust suppression system, hydraulic system, special device electric control system and auxiliary frame, etc. are modified. The auxiliary engine is Cummins 170 horsepower, with two central sweeping discs, Lydon motor, Haplus solenoid valve, Haplus cylinder, GTM high-pressure water pump, high-pressure front corner spray, high-pressure rear spray, high-pressure reel, high-pressure edge cleaning nozzle, low-pressure front hedge, high-pressure self-cleaning of the dustbin, CAN bus control+rear operation box, LED arrow light, dustbin The water tank is equipped with an anti overflow low water level alarm device, with visual images!

We have many different brands of road sweep trucks, please feel free to inquire.

Product Name： Foton Auman 4X2 Road Sweeper
Cab： Auman Planet flat roof semi cab, equipped with air conditioning, ABS, central locking, and electric doors and windows.
Drive wheel： 4X2
Steering wheel： Left/Right hand drive

Product Features

Foton Auman 4X2 Road Sweeper

A road sweeper is a type of road cleaning vehicle in the road sweeper series. It has multiple functions such as road surface cleaning, road surface cleaning, curbstone facade cleaning, low-pressure washing, spray dust removal, etc. There are various operation modes to choose from, including "full wash scan", "left wash scan", "right wash scan", "full scan", and more. Choose the "full wash sweep" mode to clean the square and road surface, with high cleaning efficiency and good results, achieving a cleaning rate of over 95%. Select the "left wash scan" or "right wash scan" mode to clean the road surface and curb. When road sweeping or road cleaning operations are required, the sweeping mode can be selected. When spray dedusting is required, the spray device can be started for spray dedusting. It can perform low-pressure flushing operations on the road surface like a sprinkler truck.
The cleaning car is suitable for mechanized cleaning, sweeping, spray dust reduction and other cleaning operations on urban roads, expressways, squares, airports, docks, tunnels, bridges, separation walls, curbs and curb facades.

Main Parameter

Product Name	Foton Auman 4X2 Road Sweeper
Cab	Auman Planet flat roof semi cab, equipped with air conditioning, ABS, central locking, and electric doors and windows.
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Model	YCS04200-68, Yuchai 200hp
Gearbox	FAST 8-speed gearbox
Wheel base	5100(mm)
Axle numbers	2
Tire sepcification and quantity	10.00R20 18PR steel wire tire, 6 + 1 spare tire
Vehicle dimension	8630×2500×3100(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	11500(Kg)
Rated weight(Kg)	6370,6305(Kg)
Water tank capacity	10m³
Garbage bin capacity	7m³
Upper configuration	Modified from left and right vertical sweeping, wide suction nozzle with spray bar, low-pressure flushing system, sweeping disc dust reduction system, hydraulic system, dedicated device electrical control system, and subframe
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
