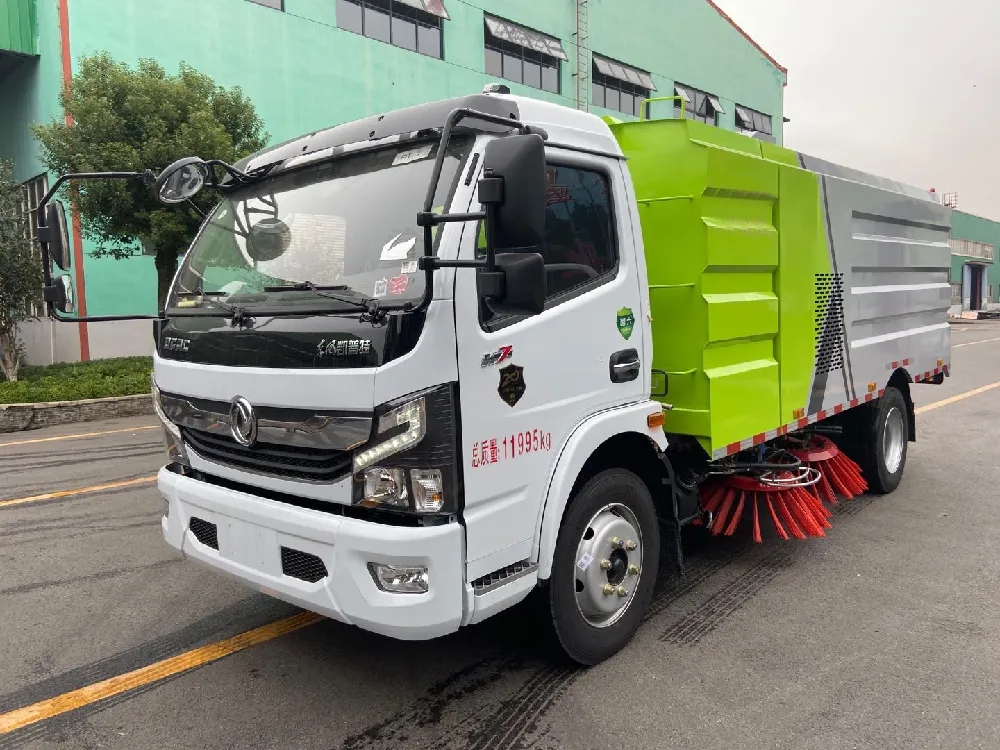

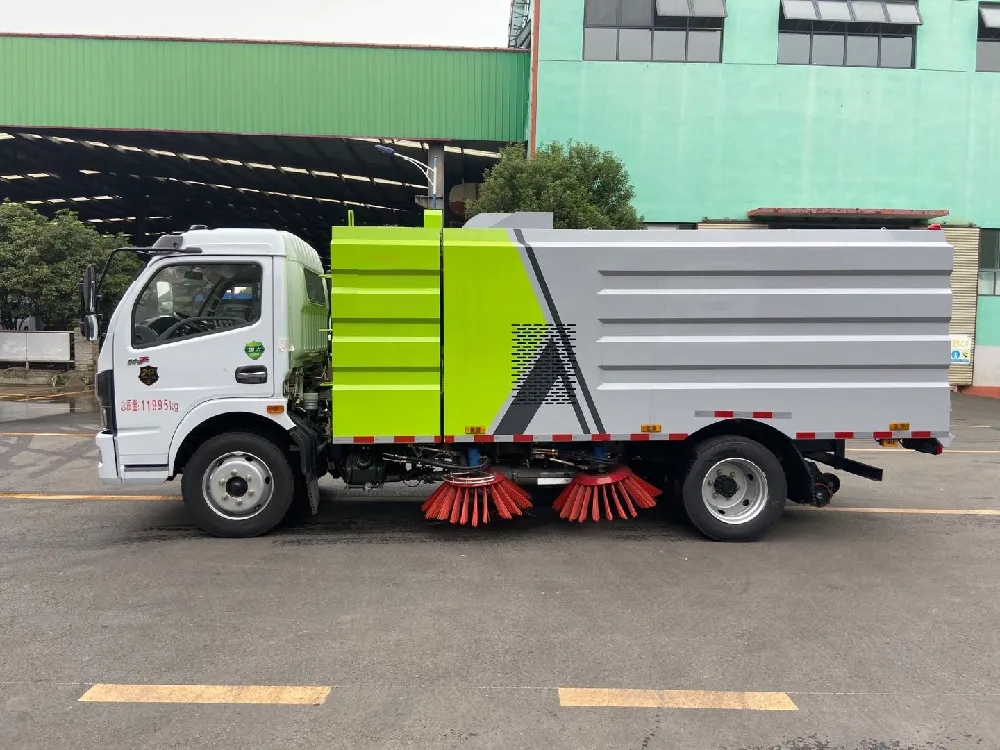

Dongfeng D7 4X2 road sweep truck

Advantage

The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.

We have many different brands of road sweep trucks, please feel free to inquire.

Product Name： Dongfeng D7 4X2 road sweep truck
Cab： Dongfeng D7
Drive wheel： 4X2
Steering wheel： Left/Right hand drive

Product Features

Product Introduction

The Dongfeng high-pressure cleaning vehicle is a dual engine, dual water pump cleaning vehicle. It is a specialized cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic), and electrical components by adding a high-pressure flushing system and a low-pressure flushing system on the basis of a standard Class II chassis. This vehicle has independent high and low pressure water systems, providing a pressure water source for cleaning the vehicle. Its working principle is to use high-pressure water generated by a high-pressure water pump, which is sprayed out through the high-pressure nozzle of the spray rack, and use the kinetic energy of the high-pressure water flow to clean in a high-pressure and low flow manner, effectively removing dirt and saving water, and cleaning old stains on the road surface; Or high-pressure water can be sprayed from the left (right) corner to clean the roadside, sidewalk, and guardrail isolation area; High pressure spray guns can also be used to clean road signs, billboards, elevated roads, etc; The spray system has powerful functions of spray to reduce dust, spray air disinfectant and adjust air humidity.

The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.

Main Parameter

Product Name	Dongfeng D7 4X2 road sweep truck
Cab	Dongfeng D7
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Model	CY4SK361
Gearbox	6 forward gears and 1 reverse gear
Wheel base	3800(mm)
Front wheel track	1745,1802,1820,1842,1765,1890(mm)
Rear wheel track	1630,1650,1800,1720(mm)
Approach angle/departure angle	21/12(°)
Front/rear suspension	1130/1770,1130/2200(mm)
Axle numbers	2
F/R axle load	4350/7645
Tire sepcification and quantity	245/70R19.5,8.25R20, 6 with 1 spare tire
Vehicle dimension	6700,7130×2230,2350×2650,2750(mm)
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	6300(Kg)
Rated weight(Kg)	5500(Kg)

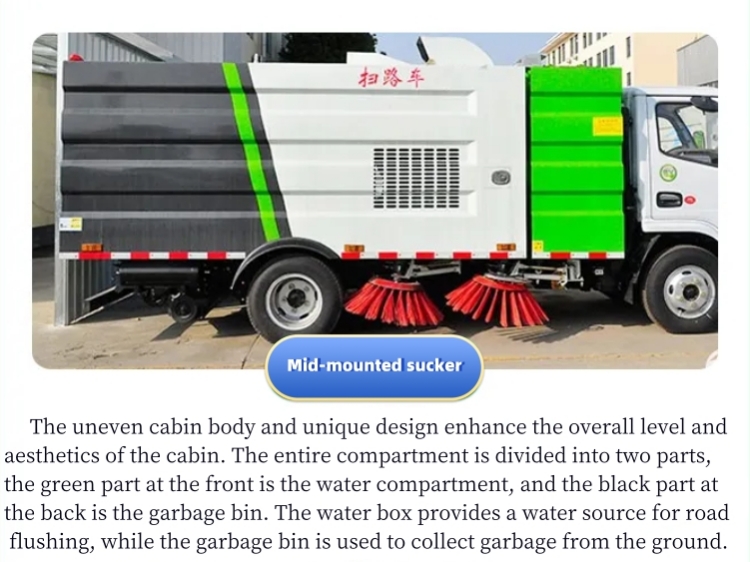

Water tank capacity	2m³
Garbage bin capacity	5m³
Working width	3m
Diameter of inhaled dust particles	φ120mm

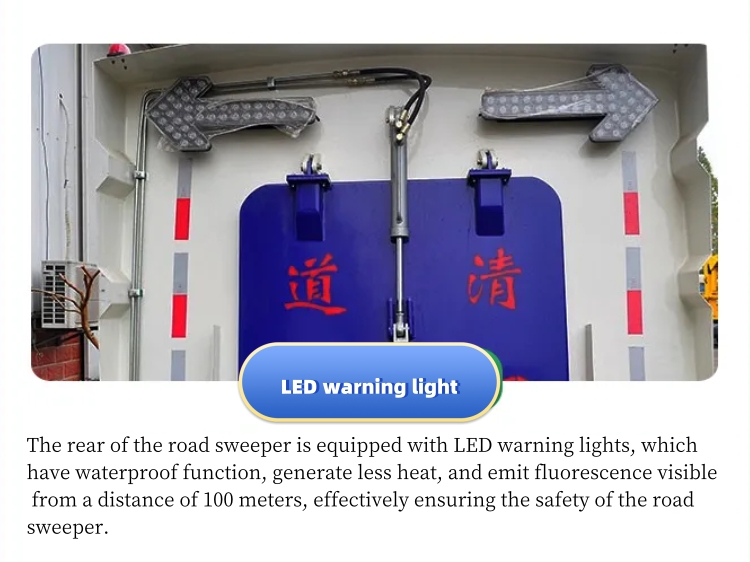

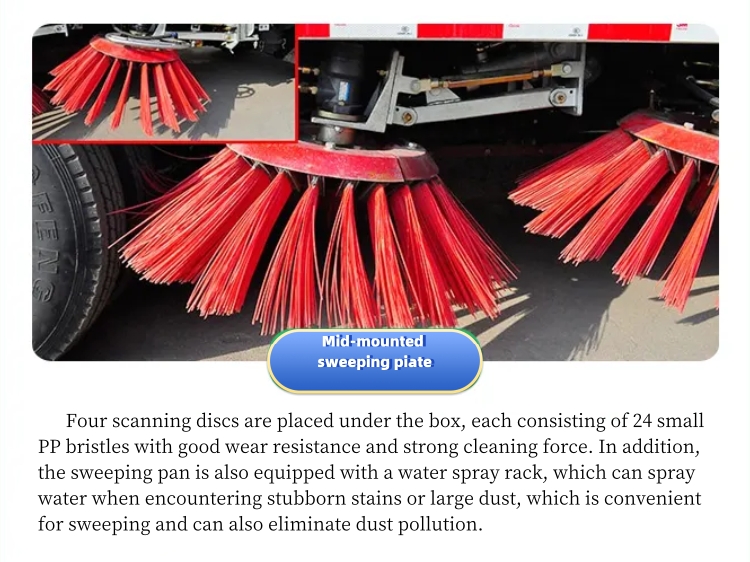

Upper configuration	4 mid mounted scanning disks with 3-speed speed regulation; Jiangling 78 horsepower auxiliary engine; Powerful motor; Schneider control switch; Taiwan solenoid valve group; Maintenance free self separating clutch; Beibotai Information Maintenance Fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; The brush arm rotating mechanism uses a high-tech wear-resistant engineering spacer, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
