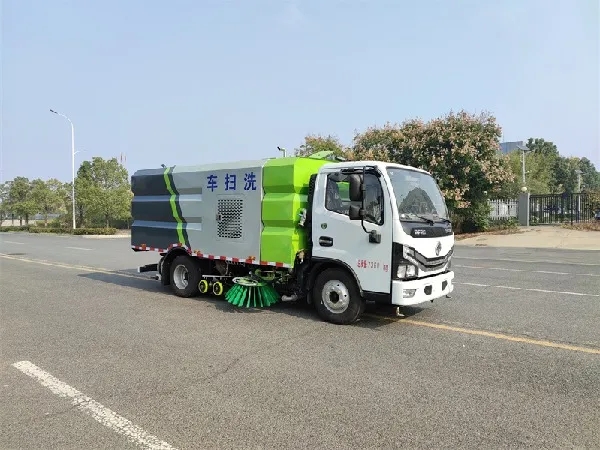

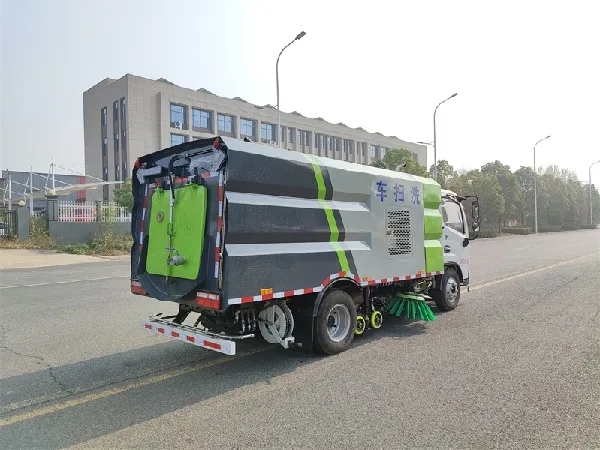

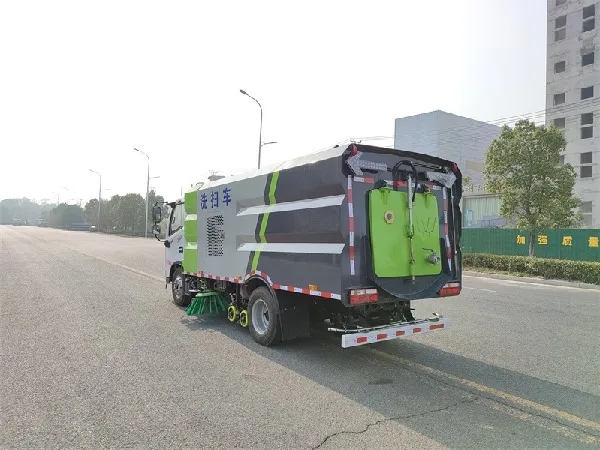

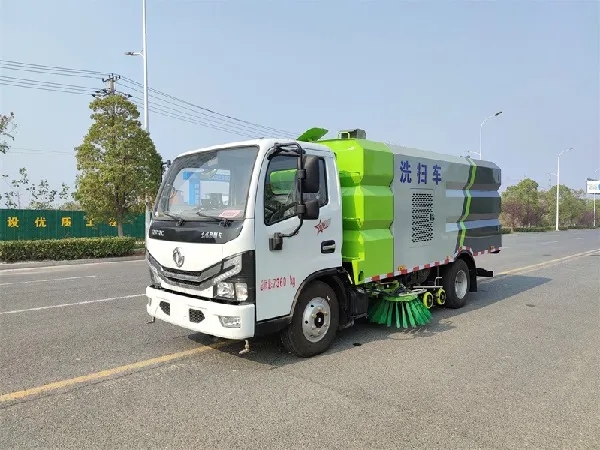

Product Introduction
The cleaning truck combines the functions of the road sweeper and the high-pressure cleaning truck, and has many functions, such as road cleaning, road cleaning, curb and curb stone facade cleaning, spray dust reduction, low-pressure washing, etc. Good cleaning effect and easy maintenance. Specially suitable for high-definition cleanliness cleaning operations on urban squares, road surfaces, and road edges, as well as for general cleaning operations such as cleaning and washing on urban squares, road surfaces, and road edges.
Details
01 Centralized control box: PLC cab
operation . One click operating system. Easy to operate, safe and reliable.
02 High pressure pump: German imported
high-pressure pump with high pressure, large flow rate, high suction, and low
noise.
03 Fan: Adopting maintenance free
centrifugal fan with strong suction capacity.
04 Hydraulic valve group: Imported
high-quality hydraulic valves can ensure the stability and smoothness of the
hydraulic action of the entire vehicle.
05 Pin type rear door locking: Ensure the
rear door is locked to prevent dirt leakage.
06 post spray: it can conduct spray on the
road surface to effectively suppress dust.
07 High voltage reel: 20 meter automatic
return reel, can clean small wall advertisements, stubborn mud stains on the
ground, and can also clean car bodies and other equipment and facilities.
08 Suction cup: Absorbs garbage, sewage,
and stones that cannot be swept away by the brush, with super strong dust
collection and improved overall cleanliness.
09 Sweep Disk: The two center mounted
sweeping disks have anti-collision and shock-absorbing functions, which can
clean the road surface and wash the curbstone facade.
10 directional forward flushing: The
direction can be adjusted and is mainly used for watering, cleaning, and dust
reduction on road surfaces. It can flush road stones and garbage to the
roadside for easy cleaning.
11 High pressure nozzle: With strong
pressure and large flow rate, it can clean road markings and curbs efficiently
and conveniently.
12 water pump: The low-pressure water pump
provides power for left and right hedge.
Main Parameter
| Product Name |
Dongfeng 4x2 road cleaning truck |
Cab |
Dongfeng |
Drive wheel |
4X2 |
Steering wheel |
Left/Right hand drive |
Seat capacity |
2-3 person |
Engine Model |
Q28-130E60 |
Gearbox |
5 forward gears and 1 reverse gear |
Wheel base |
3308(mm) |
Front wheel track |
1525,1519,1503,1613,1540(mm) |
Rear wheel track |
1498,1516,1586,1670,1650,1800,1546(mm) |
Approach angle/departure angle |
27.5/15(°) |
Front/rear suspension |
1055/1567(mm) |
Axle numbers |
2 |
F/R axle load |
2640/4720 |
Tire sepcification and quantity |
7.00R16,7.00R16LT, 6 with 1 spare tire |
Vehicle dimension |
5930,5572,5322×2000×2645(mm) |
Gross vehicle weight(Kg) |
7360(Kg) |
Curb weight(Kg) |
5060(Kg) |
Rated weight(Kg) |
2170(Kg) |
Water tank capacity |
2m³ |
Garbage bin capacity |
3.5m³ |
Working width |
3m |
Diameter of inhaled dust particles |
φ120mm |
Upper configuration |
4 mid mounted scanning disks with 3-speed speed regulation; Jiangling 78 horsepower auxiliary engine; Powerful motor; Schneider control switch; Taiwan solenoid valve group; Maintenance free self separating clutch; Beibotai Information Maintenance Fan; Stainless steel water tank; Stainless steel garbage bin; Tail LED arrow light; Manual pump emergency system; The brush arm rotating mechanism uses a high-tech wear-resistant engineering spacer, which does not require oiling; Precision cold-formed seamless hydraulic oil pipe. |
Notice |
The above information is for reference only, and vehicles can be customized depending on your requirements. |
