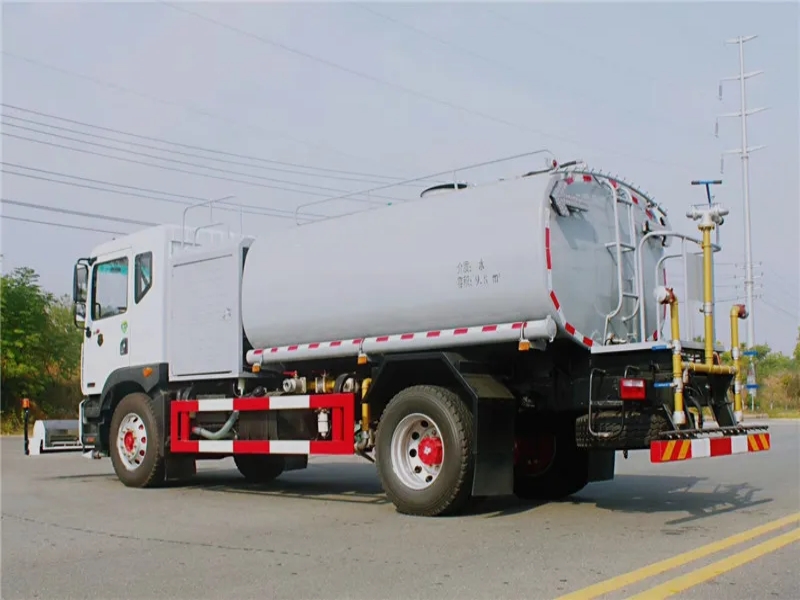

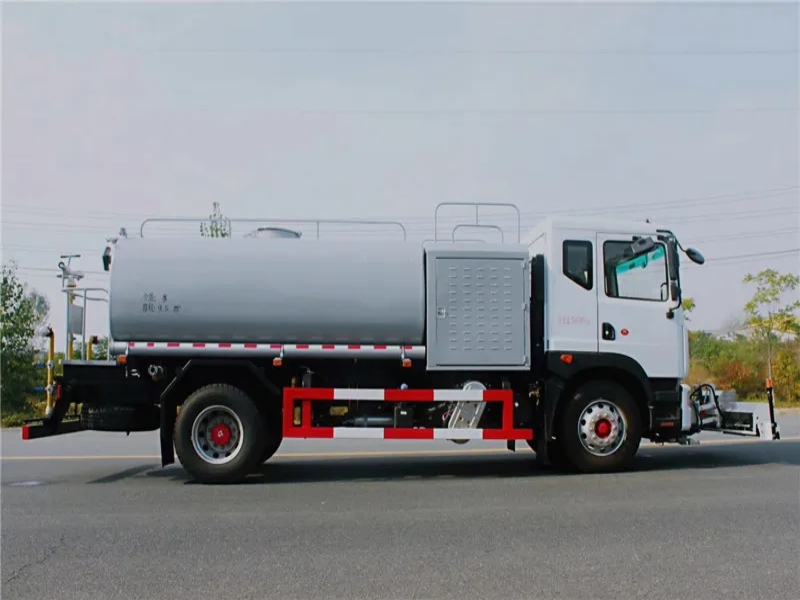

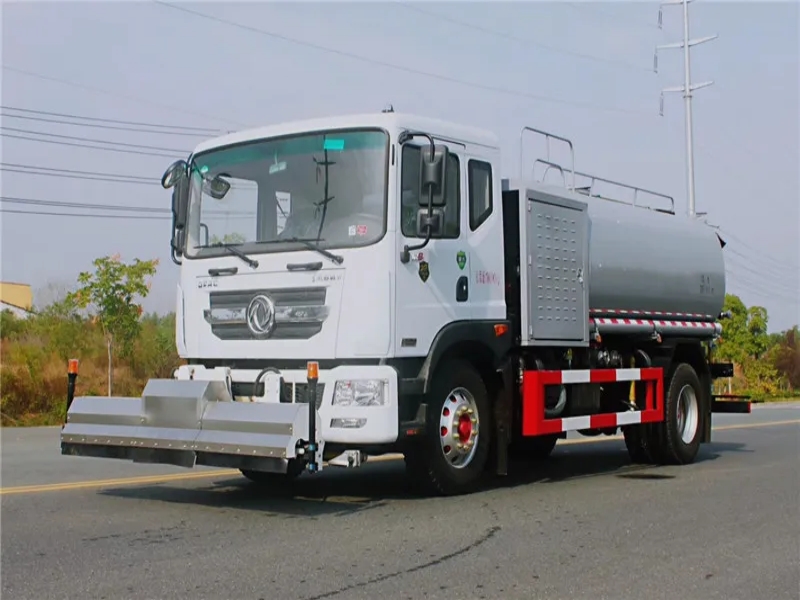

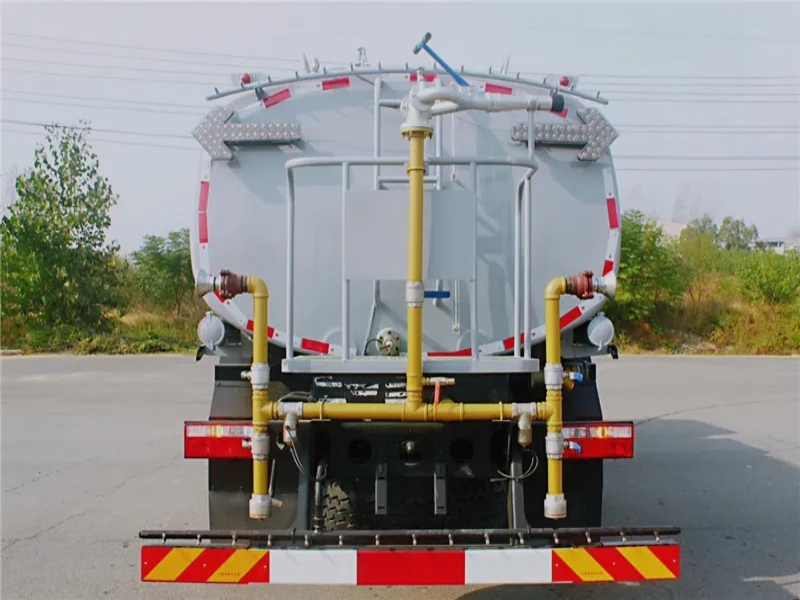

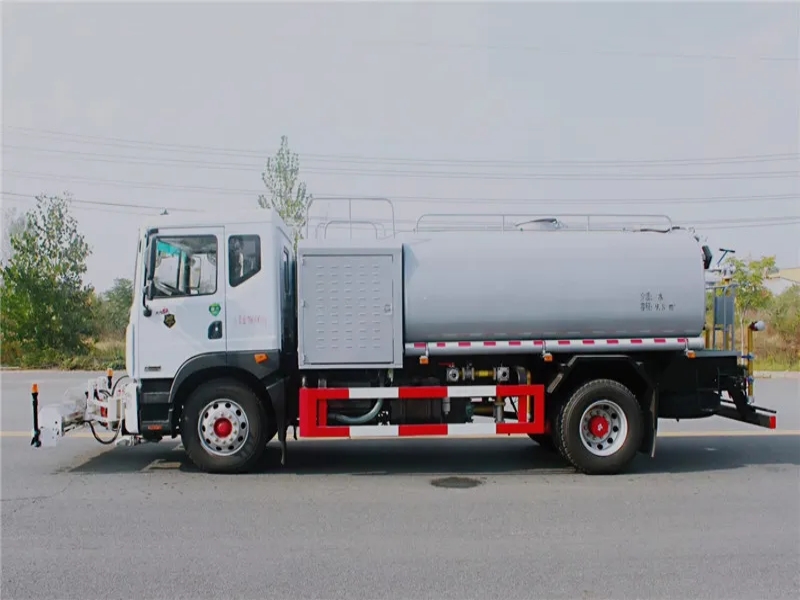

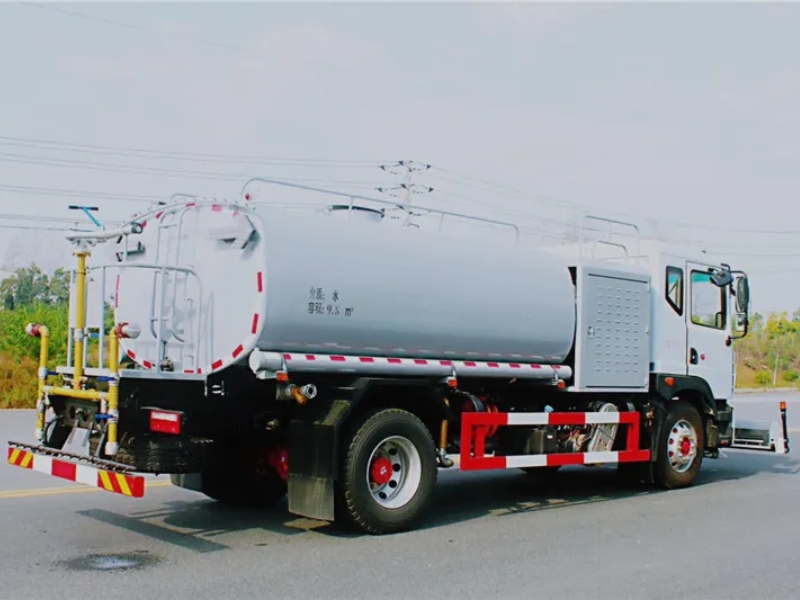

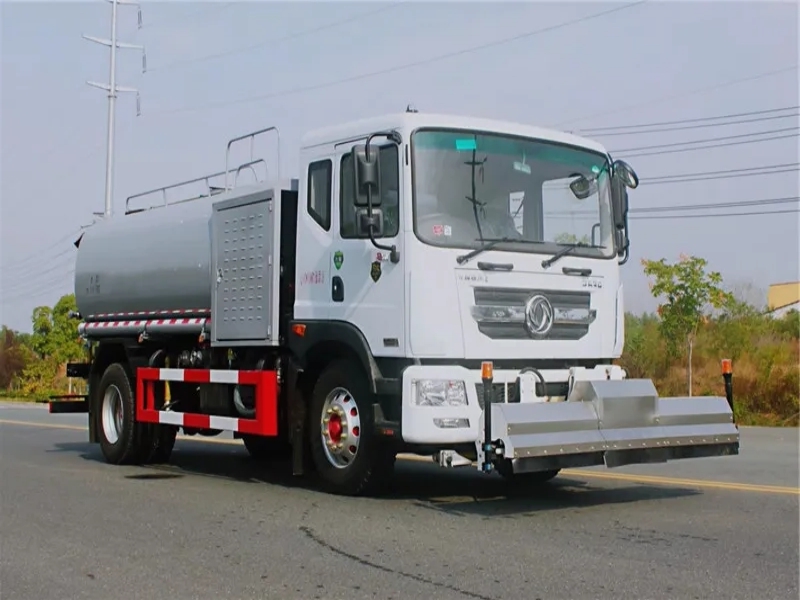

Dongfeng D9 4X2 road sweep truck, 11m³ road cleaning vehicle

Advantage

The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.

We have many different brands of road sweep trucks, please feel free to inquire.

Product Name： Dongfeng D9 4X2 road sweep truck, 11m³ road cleaning vehicle
Cab： Dongfeng D9
Drive wheel： 4X2
Steering wheel： Left/Right hand drive

Product Features

Product Introduction

The Dongfeng high-pressure cleaning vehicle is a dual engine, dual water pump cleaning vehicle. It is a specialized cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic), and electrical components by adding a high-pressure flushing system and a low-pressure flushing system on the basis of a standard Class II chassis. This vehicle has independent high and low pressure water systems, providing a pressure water source for cleaning the vehicle. Its working principle is to use high-pressure water generated by a high-pressure water pump, which is sprayed out through the high-pressure nozzle of the spray rack, and use the kinetic energy of the high-pressure water flow to clean in a high-pressure and low flow manner, effectively removing dirt and saving water, and cleaning old stains on the road surface; Or high-pressure water can be sprayed from the left (right) corner to clean the roadside, sidewalk, and guardrail isolation area; High pressure spray guns can also be used to clean road signs, billboards, elevated roads, etc; The spray system has powerful functions of spray to reduce dust, spray air disinfectant and adjust air humidity.

The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.

Main Parameter

Product Name	Dongfeng D9 4X2 road sweep truck, 11m³ road cleaning vehicle
Cab	Dongfeng D9
Drive wheel	4X2
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Model	B6.2NS6B210/YCS04200-68
Gearbox	6 forward gears and 1 reverse gear
Wheel base	4500(mm)
Front wheel track	1862,1933,1949,1904,1960(mm)
Rear wheel track	1806,1865(mm)
Approach angle/departure angle	19/12(°)
Front/rear suspension	1260/2240(mm)
Axle numbers	2
F/R axle load	6500/11500
Tire sepcification and quantity	10.00R20 18PR, 6 with 1 spare tire
Vehicle dimension	9000×2550×3200(mm)
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8280(Kg)
Rated weight(Kg)	9525,9590(Kg)
Water tank capacity	9.3m³
Garbage bin capacity	11m³
Spray rack cleaning width	2.5-3.5m
Spray rack angle	30° on each side
High pressure cleaning capability	25000 ㎡/h
Cleaning water flow rate	134L/min
Spray water flow	134L/min
Low pressure sprinkler flow rate	600~800L/min
Low pressure flushing width	≥24m
Watering width	≥16m
Water gun range	38m
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
