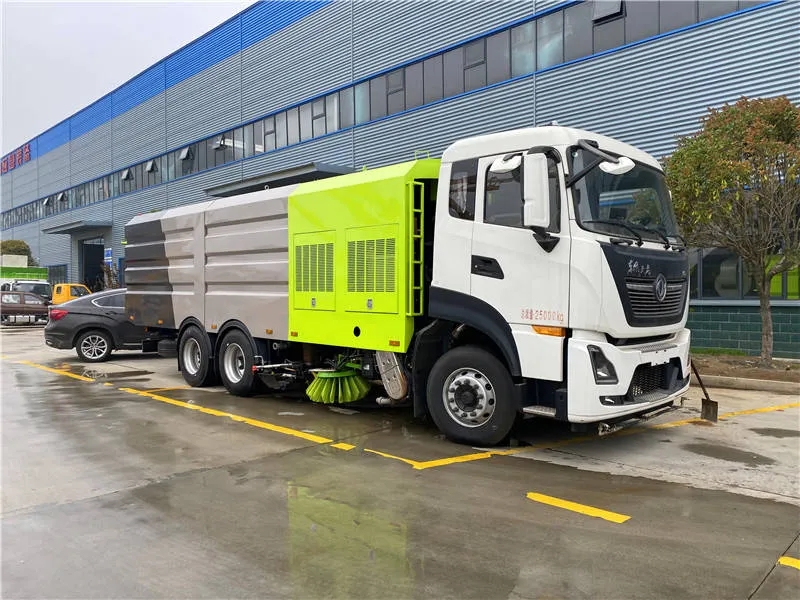

Dongfeng 6X4 road cleaning truck

Advantage

The high-pressure water pump is driven by the auxiliary engine, transmission shaft, belt drive, electromagnetic clutch, and coupling; The low-pressure water system adopts a two-stage impeller centrifugal pump, which has high efficiency, large sprinkler width, and long water gun range. The low-pressure water pump is directly driven by the chassis gearbox power take-off through the transmission shaft.

We have many different brands of road sweep trucks, please feel free to inquire.

Product Name： Dongfeng 6X4 road cleaning truck
Cab： Dongfeng
Drive wheel： 6X4
Steering wheel： Left/Right hand drive

Product Features

Product Introduction

The Dongfeng high-pressure cleaning vehicle is a dual engine, dual water pump cleaning vehicle. It is a specialized cleaning operation vehicle that integrates mechanical, hydraulic (pneumatic), and electrical components by adding a high-pressure flushing system and a low-pressure flushing system on the basis of a standard Class II chassis. This vehicle has independent high and low pressure water systems, providing a pressure water source for cleaning the vehicle. Its working principle is to use high-pressure water generated by a high-pressure water pump, which is sprayed out through the high-pressure nozzle of the spray rack, and use the kinetic energy of the high-pressure water flow to clean in a high-pressure and low flow manner, effectively removing dirt and saving water, and cleaning old stains on the road surface; Or high-pressure water can be sprayed from the left (right) corner to clean the roadside, sidewalk, and guardrail isolation area; High pressure spray guns can also be used to clean road signs, billboards, elevated roads, etc; The spray system has powerful functions of spray to reduce dust, spray air disinfectant and adjust air humidity.

The high-pressure water pump, nozzle, high-pressure spray gun, and key hydraulic and electrical components of this vehicle are all made of internationally renowned products, with excellent performance and reliable operation.

Main Parameter

Product Name	Dongfeng 6X4 road cleaning truck
Cab	Dongfeng
Drive wheel	6X4
Steering wheel	Left/Right hand drive
Seat capacity	2-3 person
Engine Model	ISD245 50/ISD270 50
Gearbox	9 forward gears and 1 reverse gear
Wheel base	4350+1350,5350+1350,5700+1350,3800+1350(mm)
Front wheel track	2040(mm)
Rear wheel track	1860/1860(mm)
Approach angle/departure angle	17/15(°)
Front/rear suspension	1480/2420(mm)
Axle numbers	3
F/R axle load	4350/7645
Tire sepcification and quantity	11.00-20 18PR,11.00R20 16PR,295/80R22.5 16PR, 10 with 1 spare tire
Vehicle dimension	10600×2500×3350(mm)
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	17660,16550(Kg)
Rated weight(Kg)	7145,8255,7210,8320(Kg)
Water tank capacity	2m³
Garbage bin capacity	5m³
Working width	3m

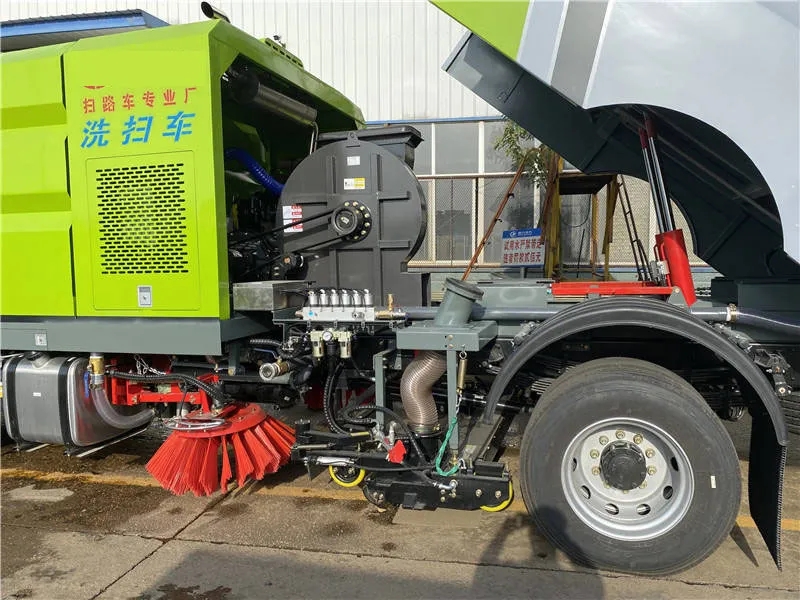

Upper configuration	Equipped with 2 mid mounted sweeping discs and a Cummins 170 horsepower auxiliary engine; Powerful motor; German high-pressure water pump (front flushing/side spraying/medium spraying/rear spray (stainless steel nozzle)/side flushing water gun/dustbin self-cleaning device); Wanxiang high-pressure roadside cleaning; Taiwan hydraulic valve group; Weilong low-pressure pump (front flushing); 4mm stainless steel garbage bin; Stainless steel water tank; Stainless steel high-pressure pipeline; German controller; American sensors; Tail arrow light; Oil, garbage bins, and water tanks are all equipped with anti overflow or low-level alarm devices; Indoor monitor for reversing and cleaning status; Automatic reverse collision protection device; Maintenance of safety protection devices; The rotating mechanism of the sweeping arm uses a high-tech wear-resistant engineering spacer, which does not require oiling; 20m high-pressure flushing reel. Integrated motion controller, one click computer control.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
