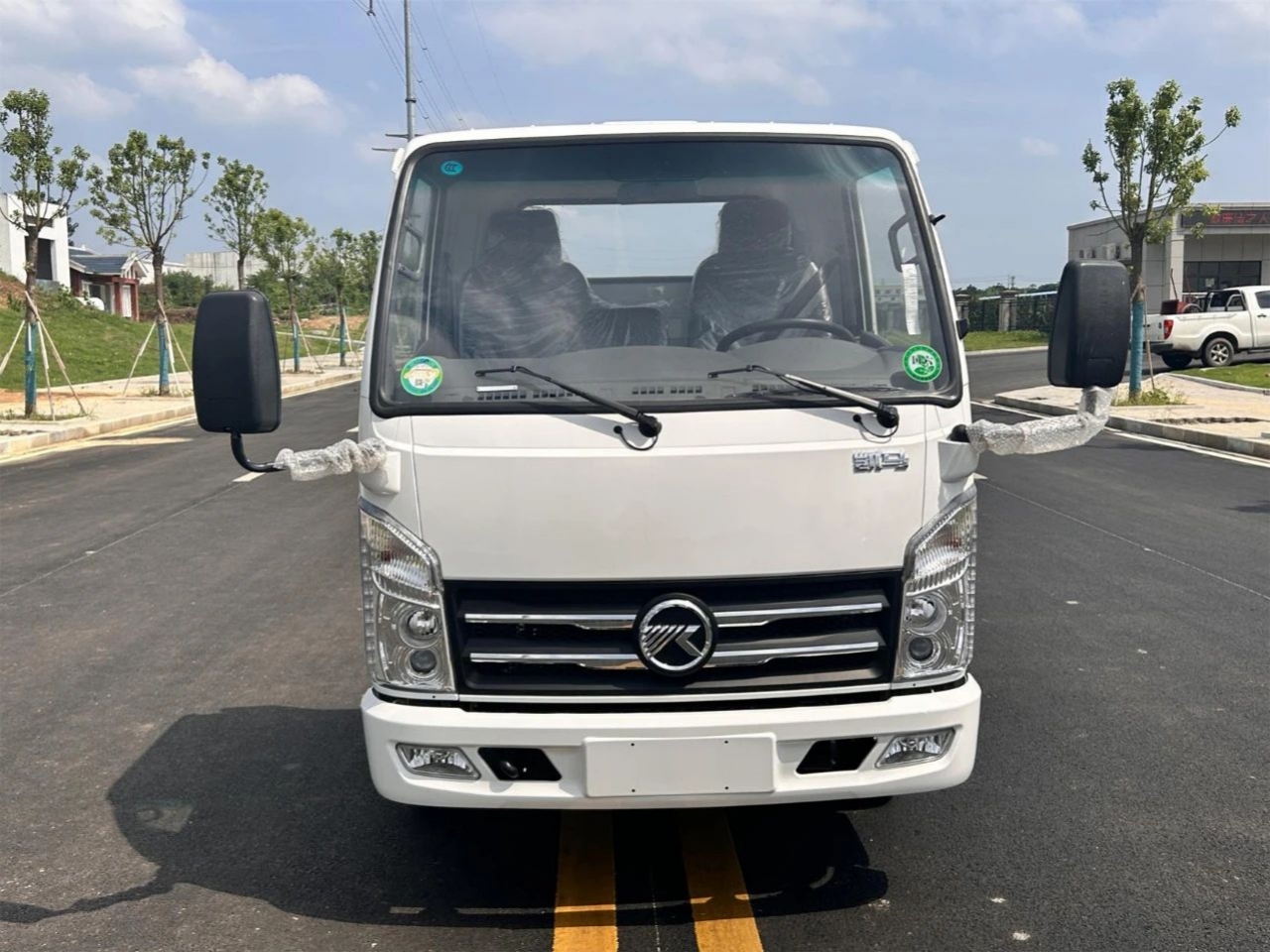

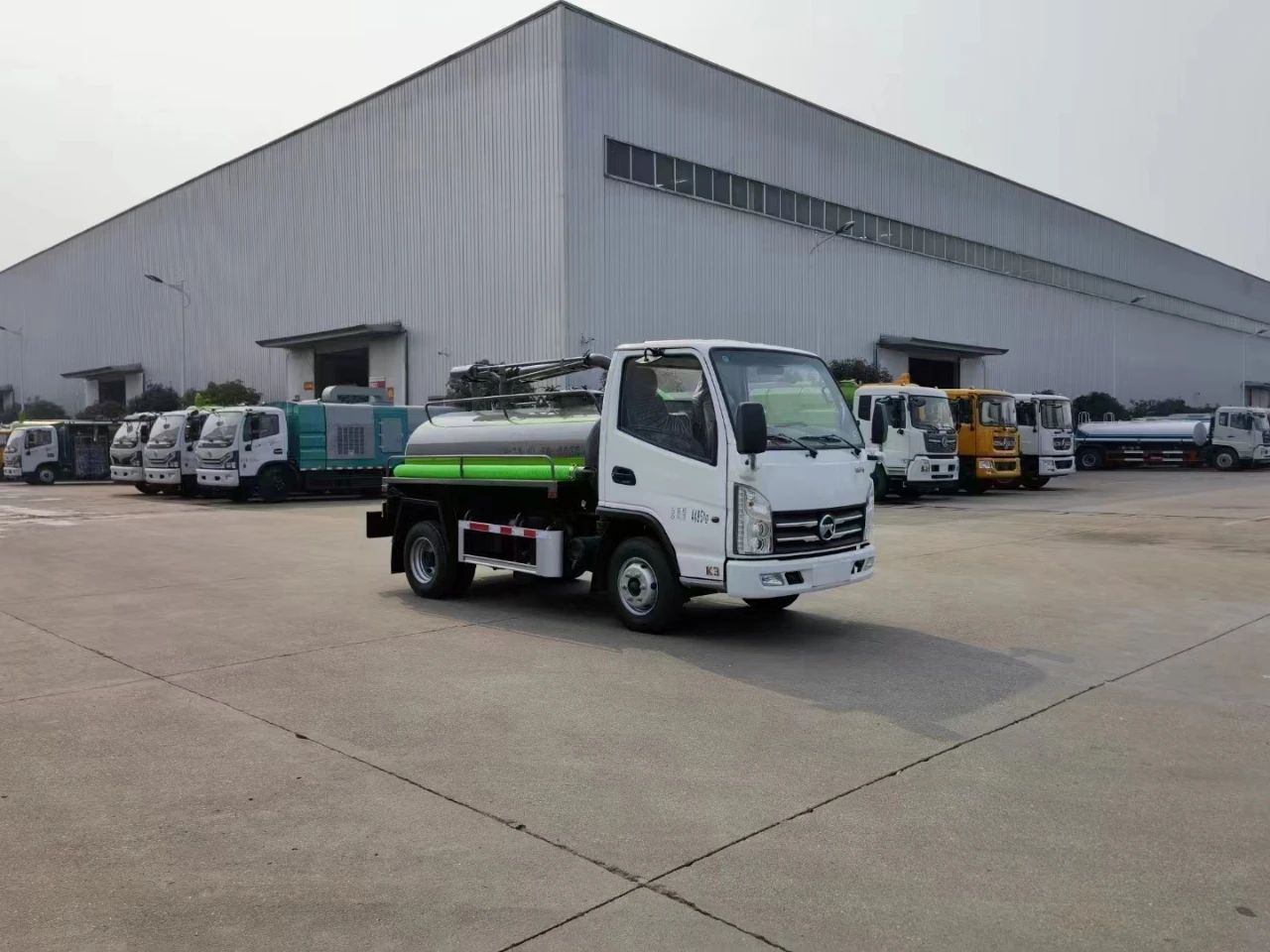

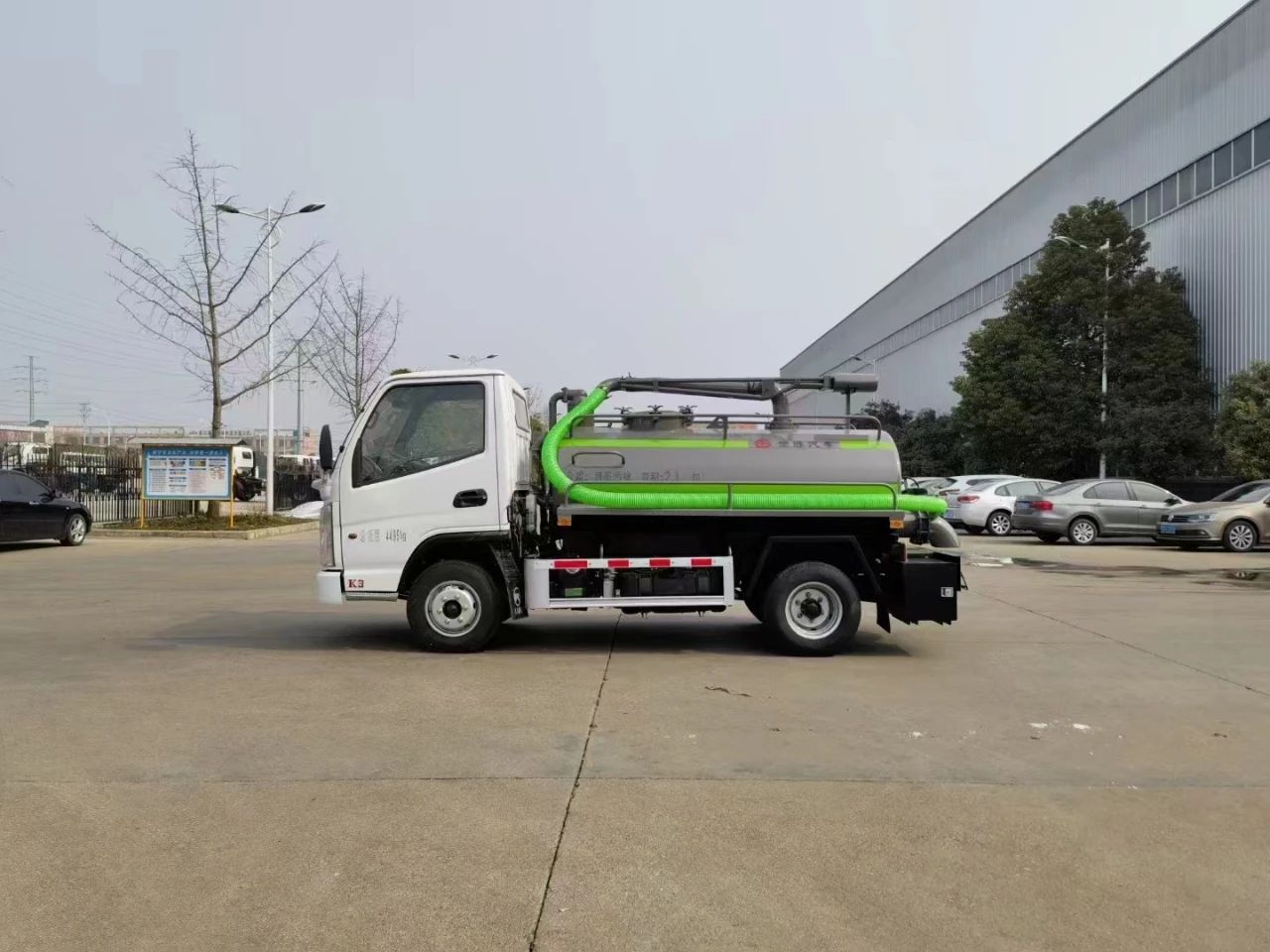

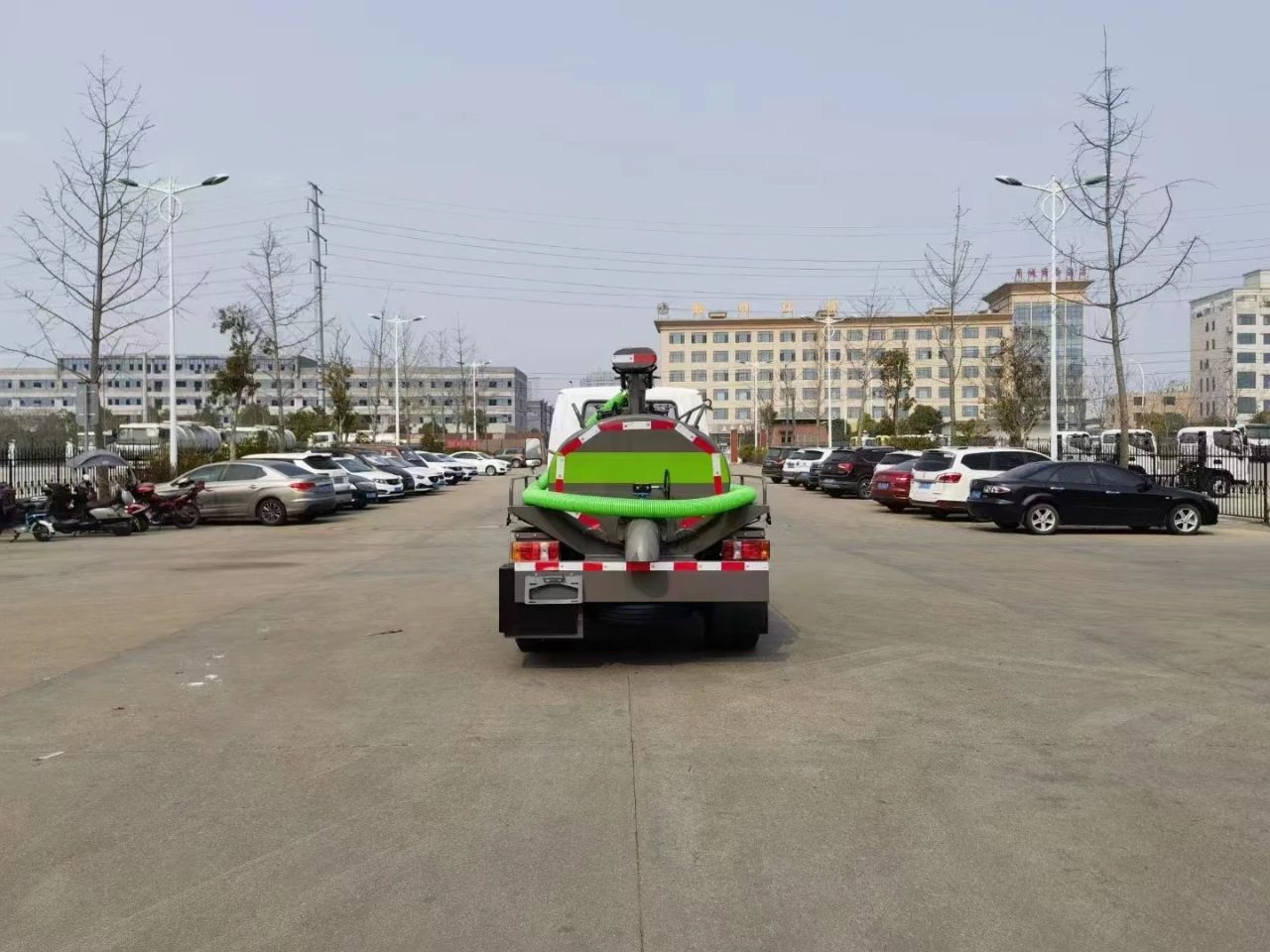

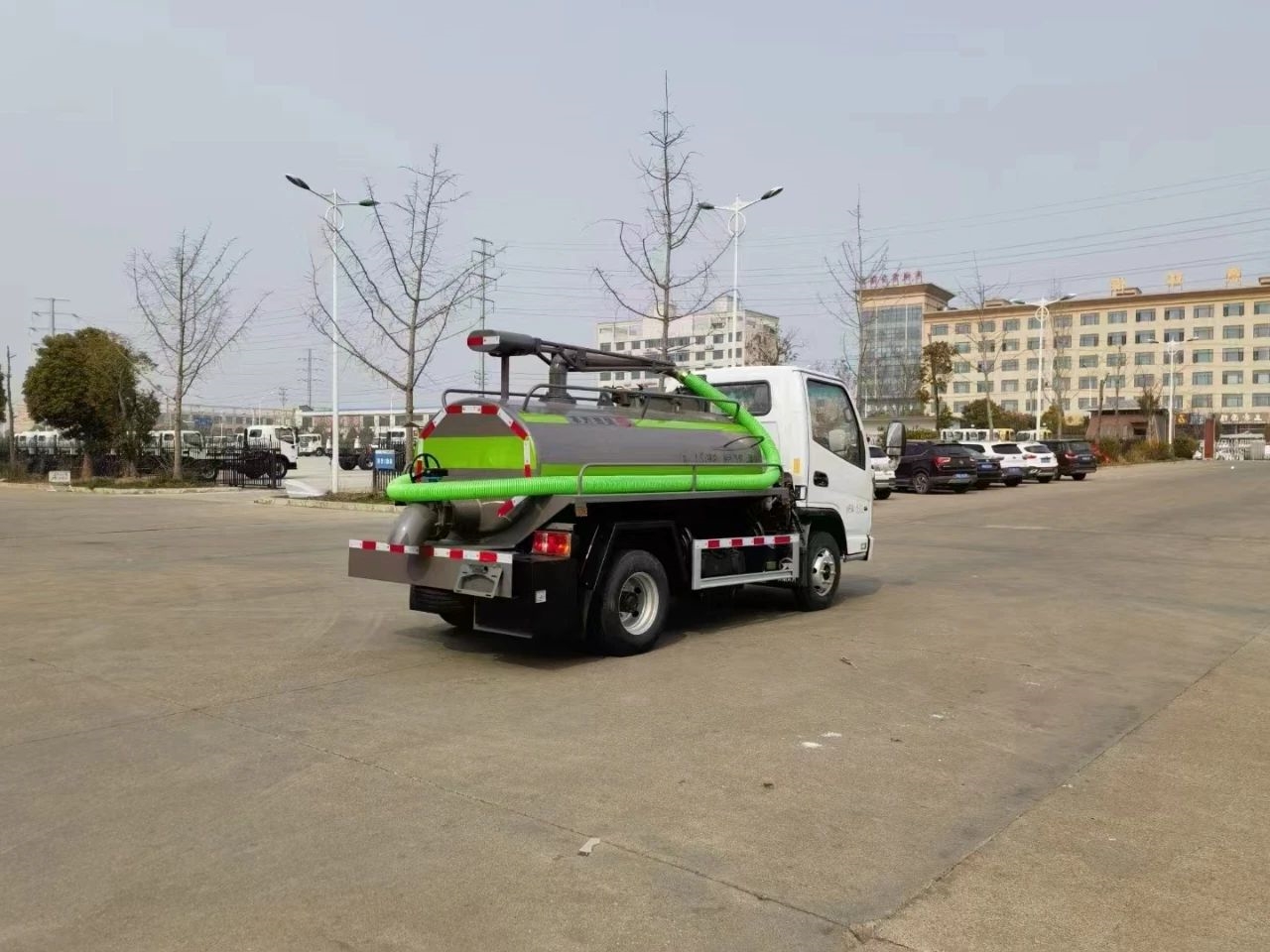

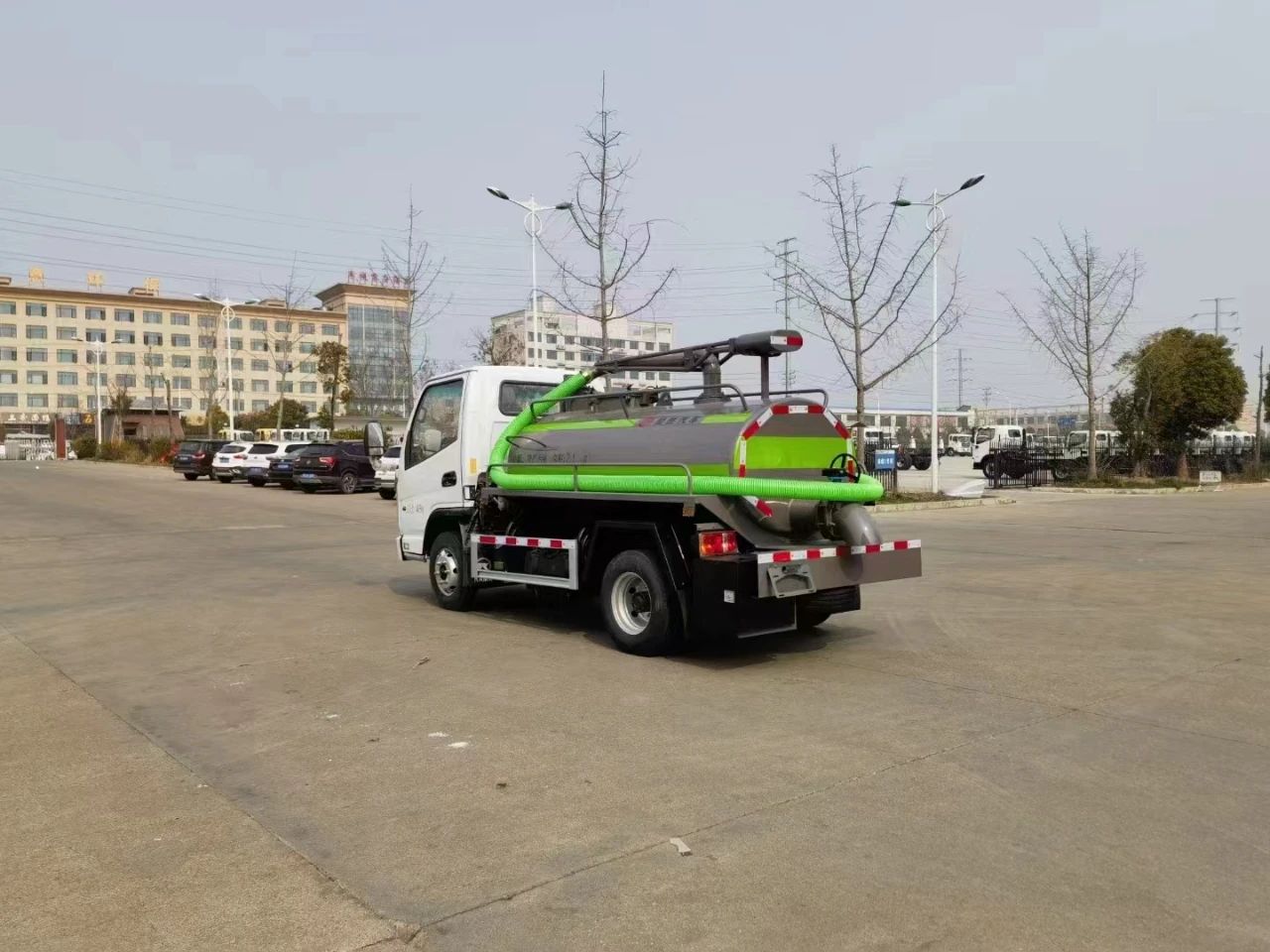

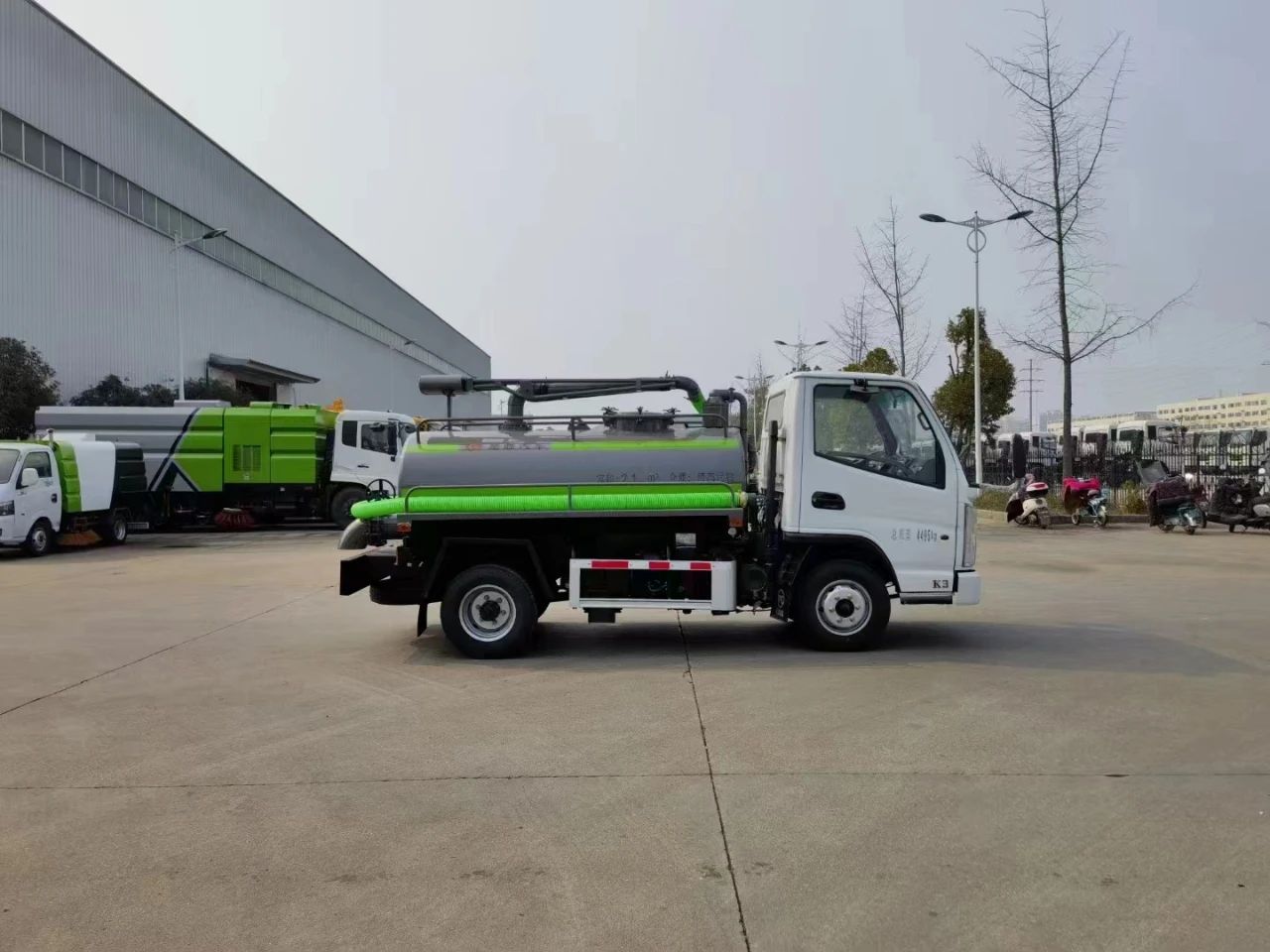

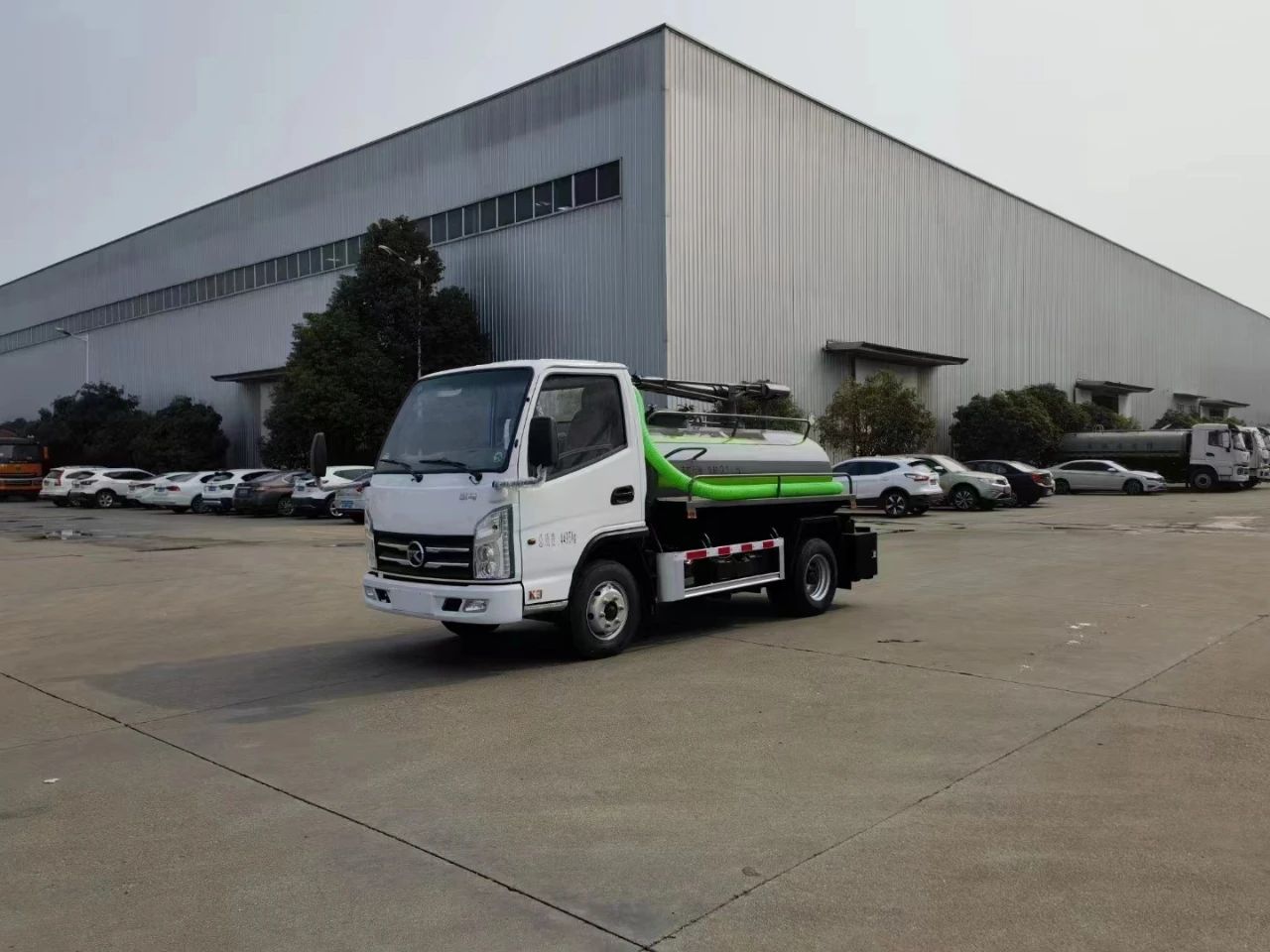

KAMA 4X2 gasoline fecal suction truck

Chassis configuration:

The new K1-1580mm white single row reversible cab, Yunnei gasoline engine, National VI B engine (1.6L displacement), 88KW, Howo 5-speed transmission (with power take-off interface), 140mm straight beam (light truck beam), 2.5-ton rear axle, 6.00R15 tires, oil brake, ABS, original air conditioning, electronic power assist, 12V battery, electric glass.

Product Name： KAMA 4X2 gasoline fecal suction truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 3495(Kg)
Curb weight(Kg) ： 2145(Kg)

Product Features

KAMA 4X2 gasoline fecal suction truck

Sewage suction truck, also called sewage tanker truck, sewage truck, sewage suction tanker truck,vacuum sewage suction truck,suction truck, fecal suction truck, vacuum tank suction tanker truck etc .

Introduction

Suction sewage truck is a new type of environmental sanitation vehicle that collects, transfers, cleans, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil. The suction truck adopts a domestically advanced vacuum pump with high suction force and long suction distance, which is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for large objects such as sewage mud, sludge, stones, bricks, etc.

Installation configuration:
Elliptical tank with an effective volume of 1.52 cubic meters and an actual volume of 1.9 cubic meters. The tank is made of high-quality carbon steel with a thickness of 5mm according to national standards. It is equipped with a 5-ton Yifeng vacuum pump, a sewage pipe, a self flowing valve (200 butterfly valve), an anti overflow valve, a suspension rod seat, a water oil separator, a 7-meter suction pipe, and other standard equipment in the factory.
Product parameters

Product Name	KAMA 4X2 gasoline fecal suction truck
Driving Type	4X2
Gross vehicle weight(Kg)	3495(Kg)
Curb weight(Kg)	2145(Kg)
Rated weight(kg)	1220(Kg)
Wheelbase(mm)	2600,2800,3180(mm)
Overall Dimension(mm)	5250,5320×1850×2100,2350(mm)
Tank volume(cbm)	1.52m³
Engine brand & model	G16MPI,Yunnei gasoline engine National VI B engine (1.6L displacement) 88KW
Displacement(L)/Power(kw)	1.6L
Axle Quantity	2
Transmission Type	HOWO 5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	oil brake
Tire Spec. & size	6.00R15 , 6+1 spare
Cab	New K1-1580mm white single row reversible cab
Tank material	5mm carbon steel
Standard configuration	Oil water separator, water gas separator, hydraulic dumping device, special vacuum suction bump, volume pressure gauge,suction pipe, gravity valve, vacuum tank, connected vessels (fecal window), full-automatic anti overflow valve, hydraulic kit.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
