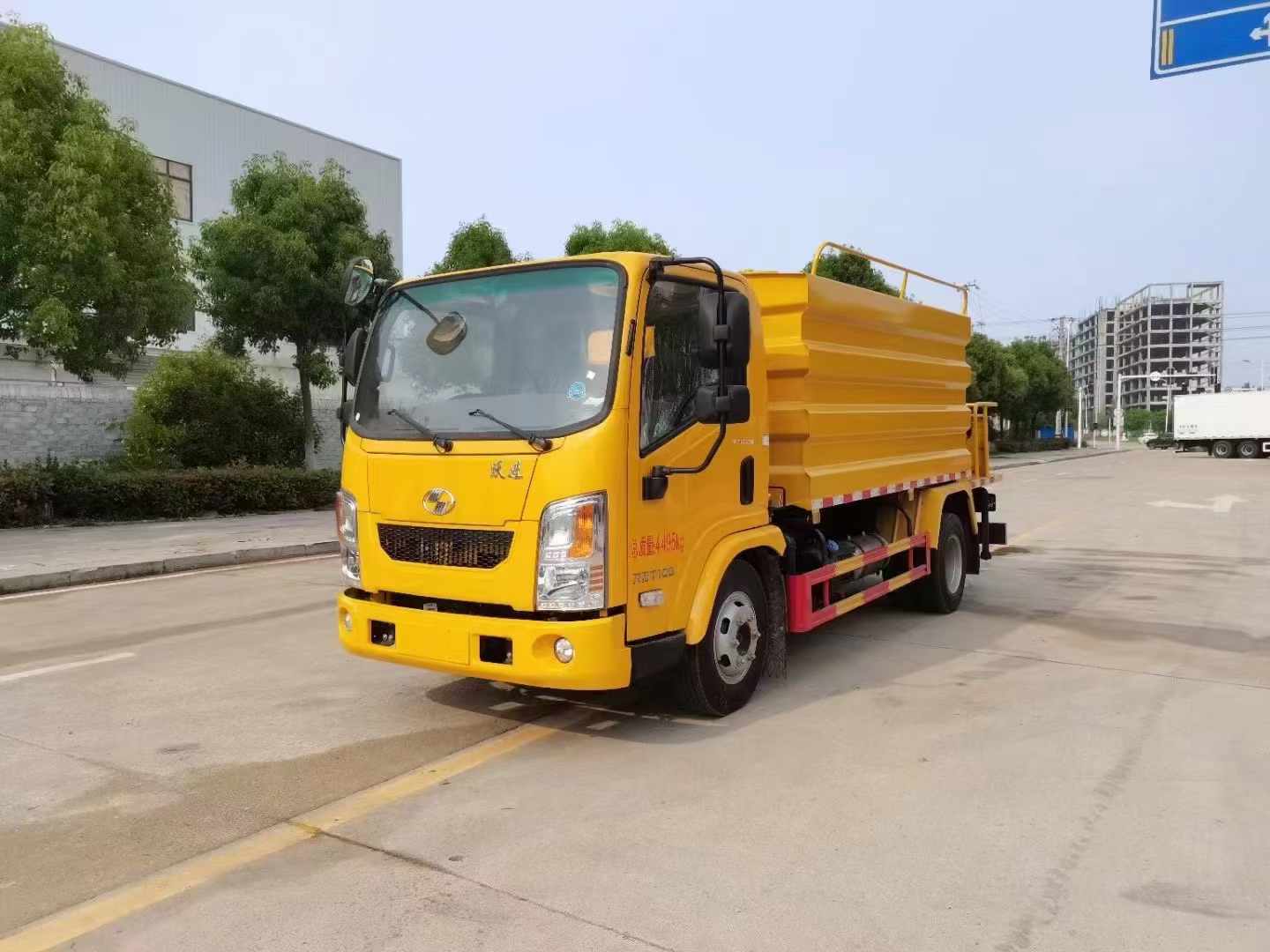

Yuejin 4X2 Road Maintenance Vehicle

Chassis configuration:
Multi functional steering wheel, central door lock, power windows, remote key, integrated audio system, cruise control, radio+MP3+Bluetooth, air conditioning, LCD instrument panel,
Driver's cab: S100 driver's cab, height: 2100mm, width: 1730mm;
Beam width: 740mm, partially double layered beam of 180mm.
Engine: Quanchai 132 horsepower
Transmission: Wanliyang 8-speed gearbox
Tire: 7.00R16 steel wire tire
Wheelbase: 3300mm
Front/Rear (Bridge): 1.8/4.5 (T)
Chassis weight: 2180Kg
Installation configuration:
The tank body is a square tank body made of high-quality carbon steel plate. When this vehicle is a high-pressure cleaning vehicle device, the volume of the compartment is 7 cubic meters, with a front flushing and rear spraying platform anti-aircraft gun.

Product Name： Yuejin 4X2 Road Maintenance Vehicle
Drive type： 4X2
Engine： Q23-132E60, Quanchai 132 hp
Gearbox： Wanliyang 8-speed gearbox

Product Features

A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.

Main Parameter

Product Name	Yuejin 4X2 Road Maintenance Vehicle
Drive type	4X2
Engine	Q23-132E60, Quanchai 132 hp
Gearbox	Wanliyang 8-speed gearbox
Wheel base (mm)	3300(mm)
Vehicle dimensions (mm)	5998×2020,2050,2100×2200,2450,2550(mm)
Tire specification	7.00R16 steel wire tire, 6+1 spare
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3670,3865(Kg)
Rated weight(Kg)	695,500(Kg)
Tank volume(m³)	7m³
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	50/50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
