JAC 6 wheels road maintenance vehicle

JAC 6 wheels road maintenance vehicle

Chassis configuration:
1. Engine: D20TCIF16, Yunnei 140hp

2.Transmission type: 5 forward gears and 1 reverse gear

3.Tyre: 7.00R16  steel wire tire

4.Wheelbase:3365mm

5 Other: Air brake, original air conditioning, electric doors and windows, central locking system, driving recorder.
Installation configuration:
1.The tank body is about 7 cbm.
2.The side lights are electrified, and two red width indicator lights are standard above the tail of the tank.
3.The standard front spray is duckbill straight jet, and the standard rear spray allows users to adjust the offset position according to their own needs.


  • Product Name: JAC 6 wheels road maintenance vehicle
  • Engine Model: D20TCIF16
  • Engine horsepower: Yunnei 140hp
  • Engine displacement: 1.9L

Product Features

Product Introduction

A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.

Main Parameter




Product Name JAC 6 wheels road maintenance vehicle
Engine Model D20TCIF16
Engine horsepower Yunnei 140hp
Engine displacement 1.9L
Gearbox 5 forward gears and 1 reverse gear
Tire specification 7.00R16 steel wire tire
Wheel base (mm) 3365
Gross vehicle weight(Kg) 4485
Curb weight(Kg) 3500
Rated weight(Kg) 855
Vehicle dimensions (mm) 5998×2080,2060×2700,2600,2400
Tank volume(cbm) 7
Fuel type diesel
Emission standard Euro 6 (option:Euro3/4/5)
Water pump model 50/50
Tank material Q235 carbon steel
Additional configuration Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice The above information is for reference only, and vehicles can be customized depending on your requirements.

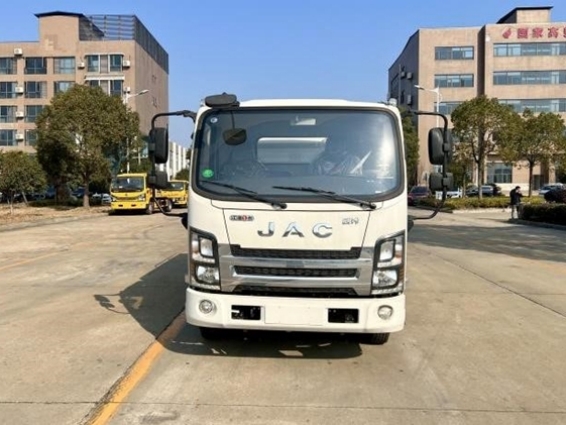

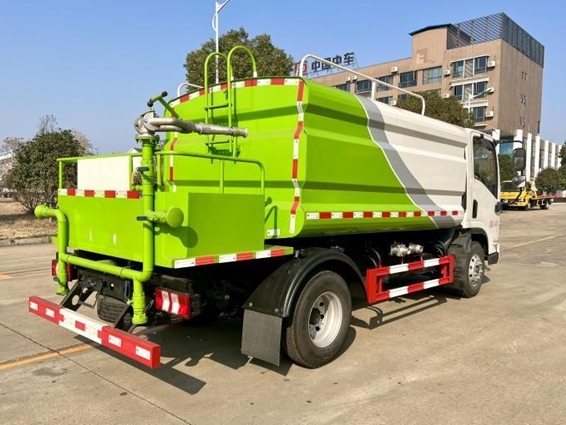

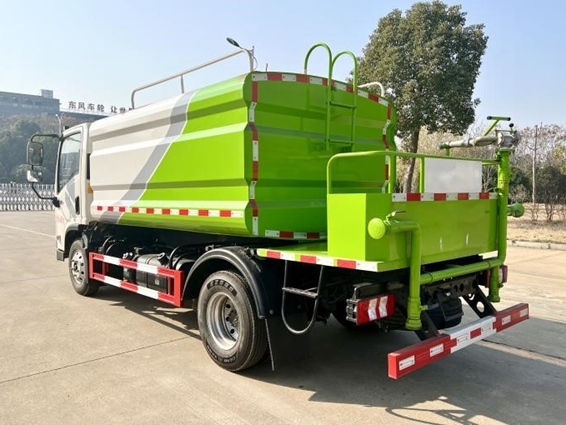

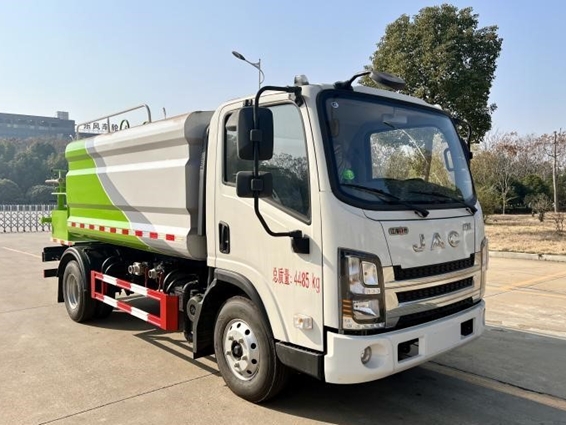

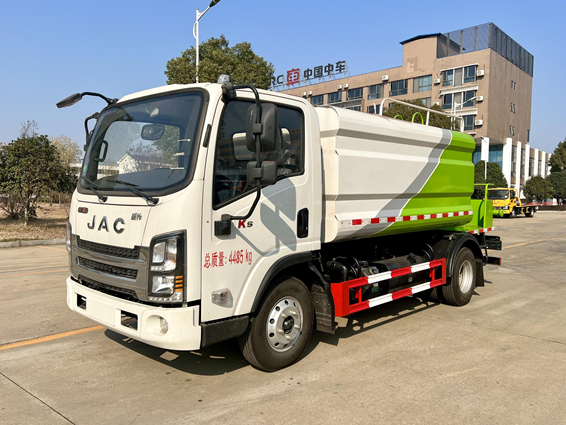

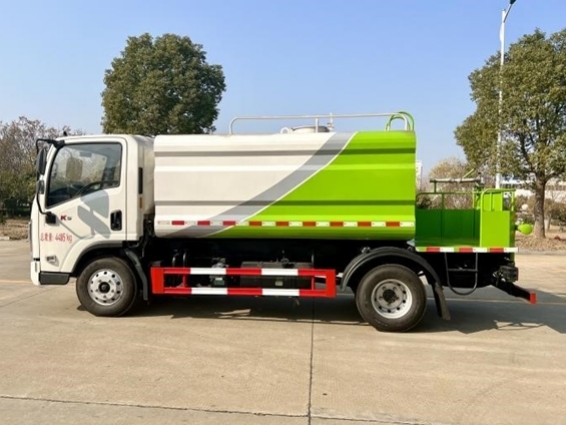

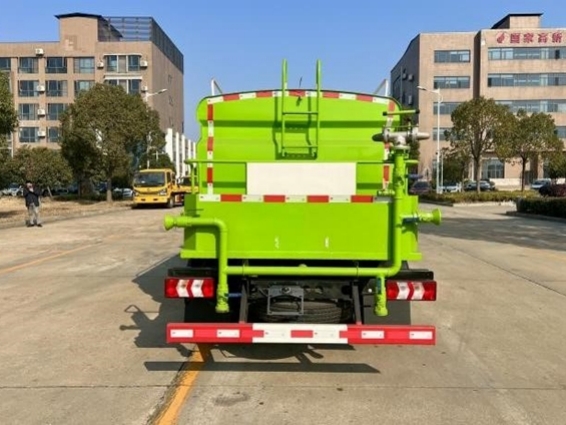

Vehicle pictures
