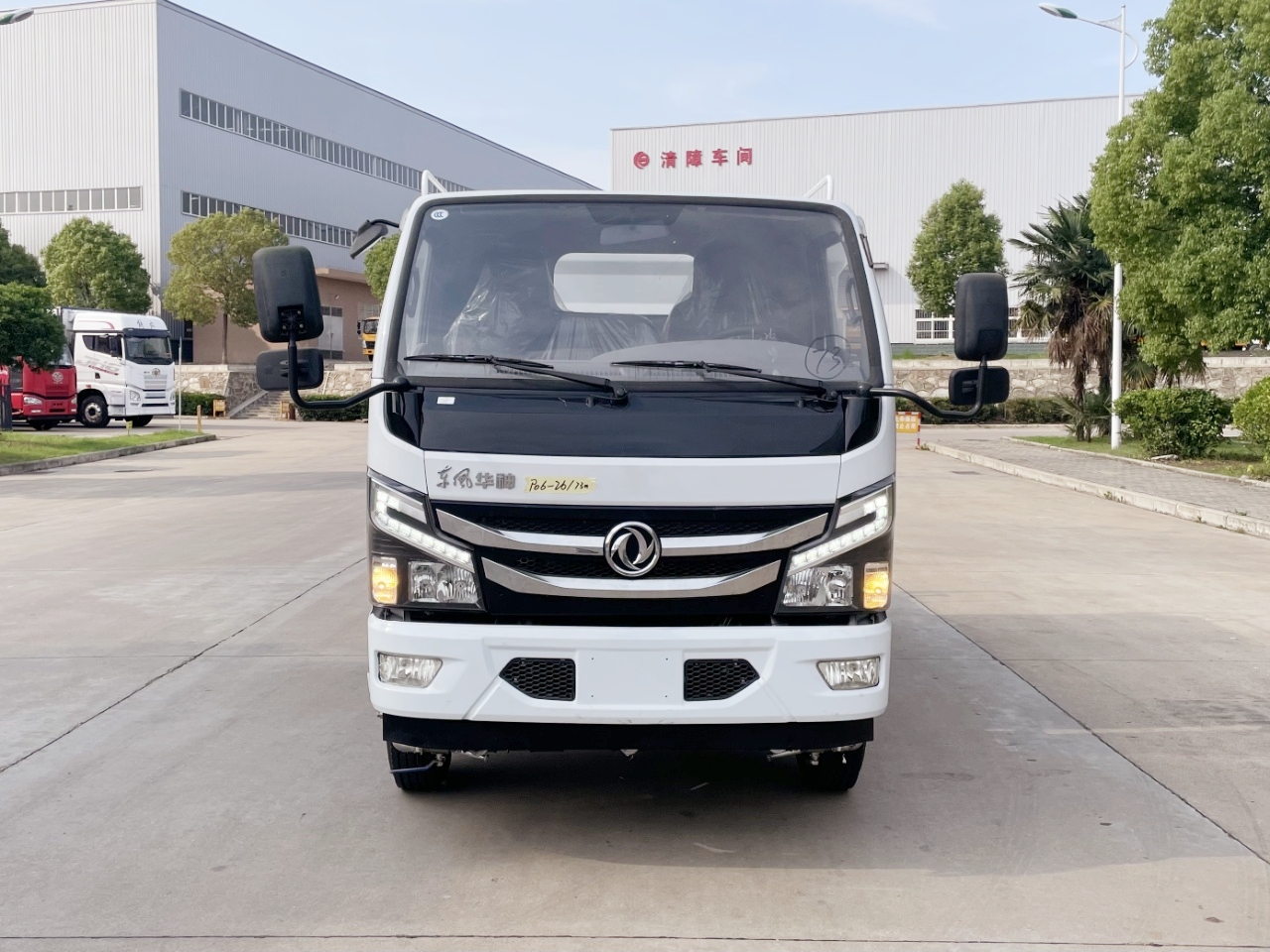

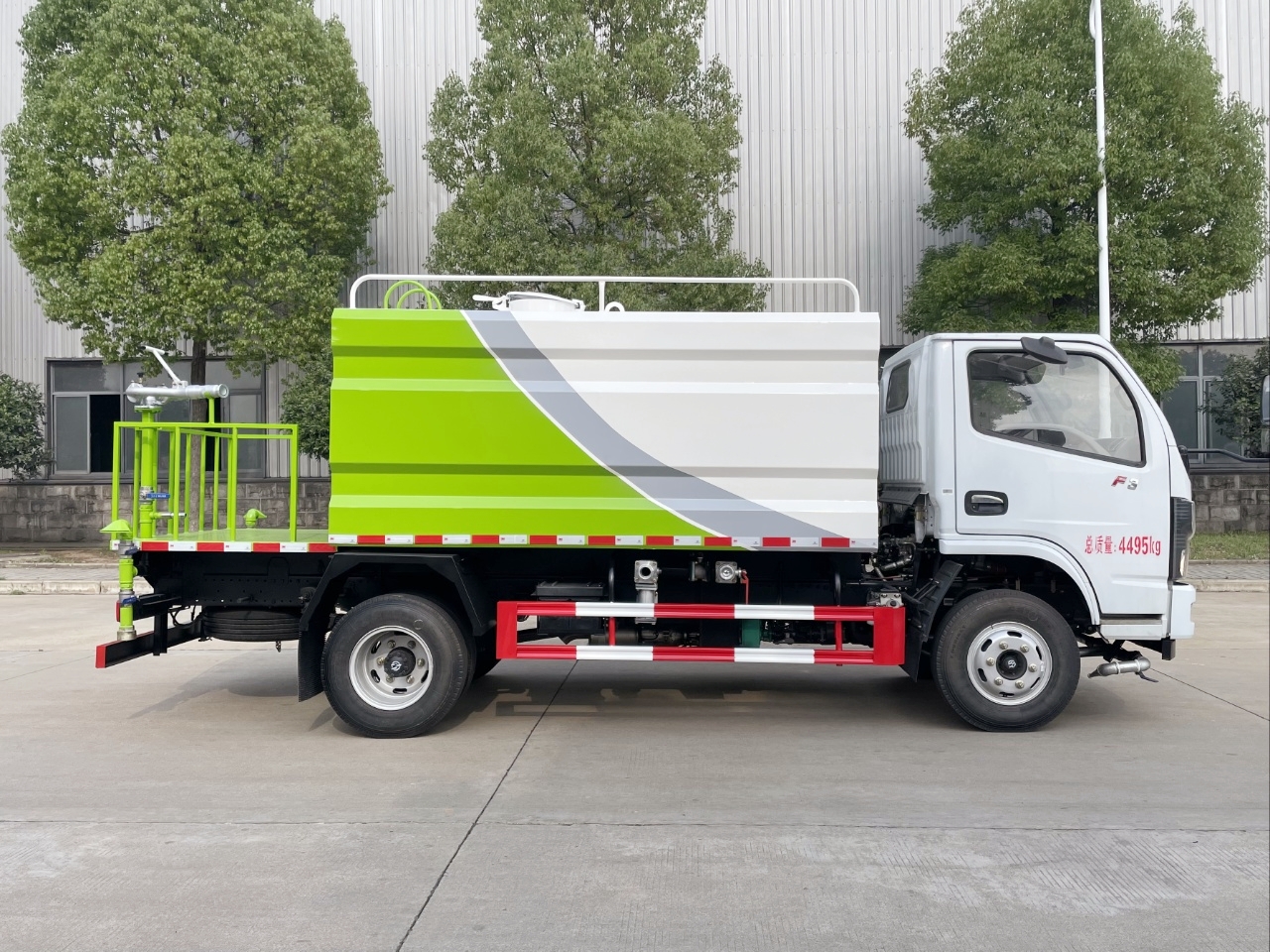

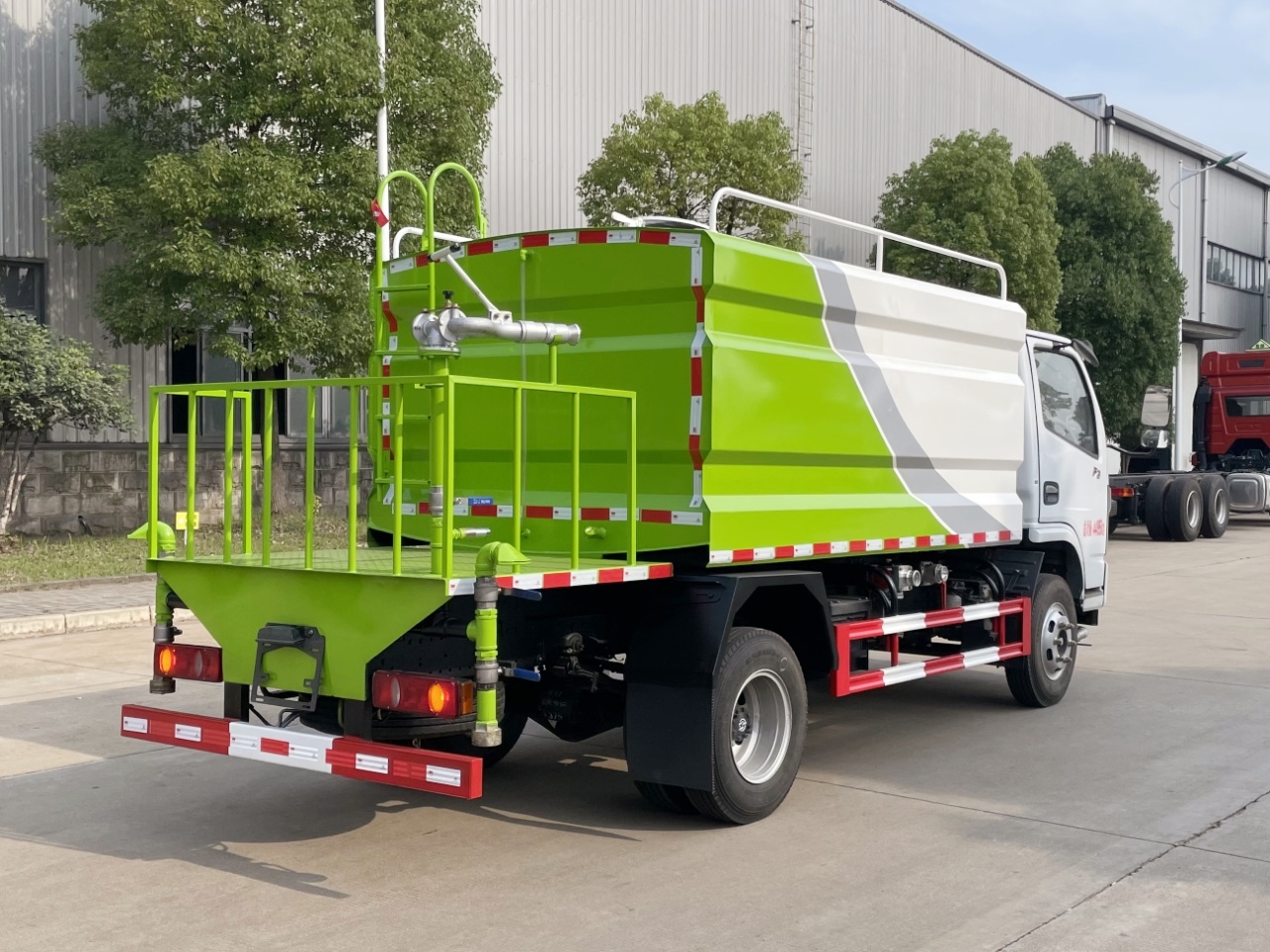

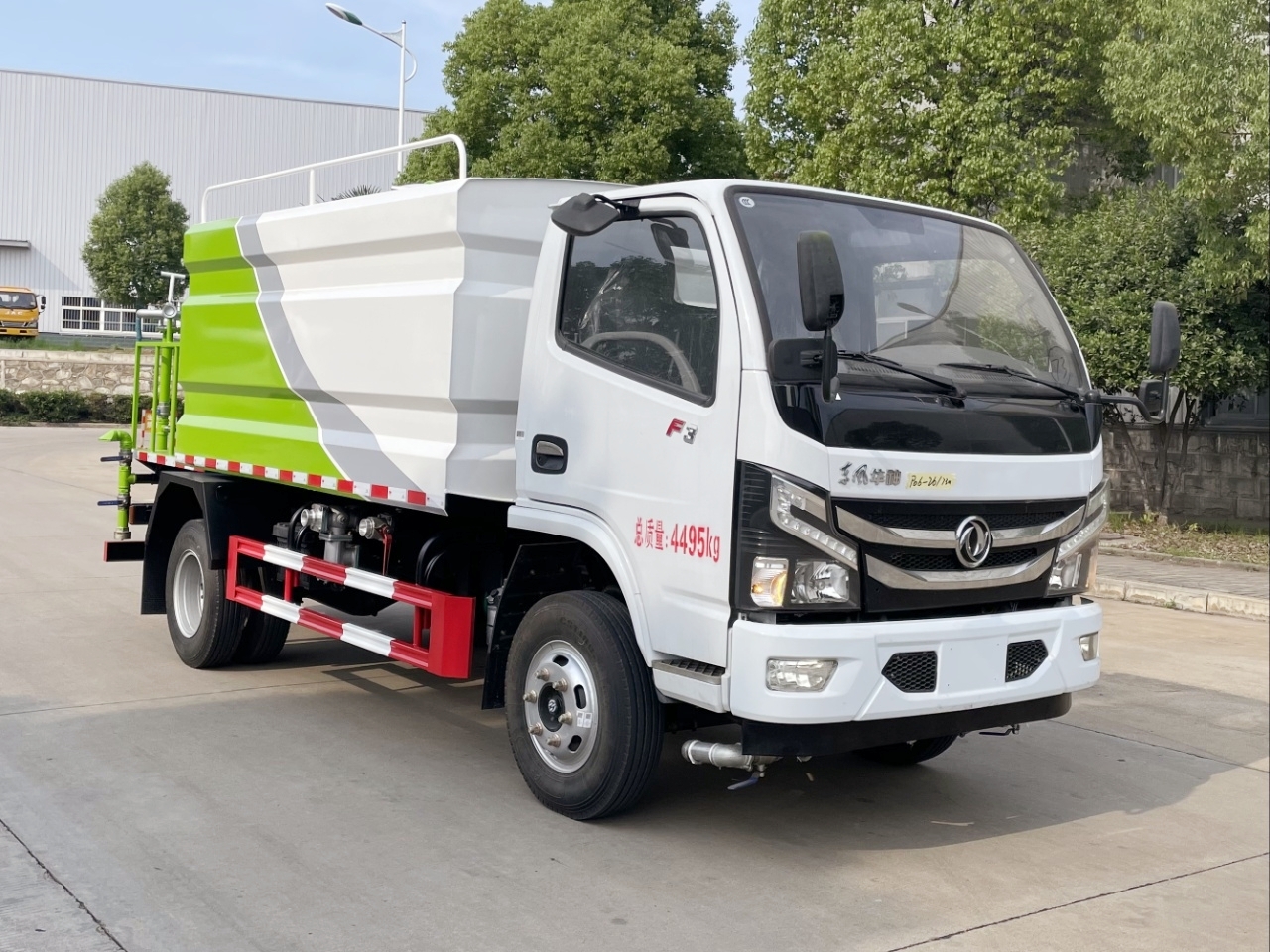

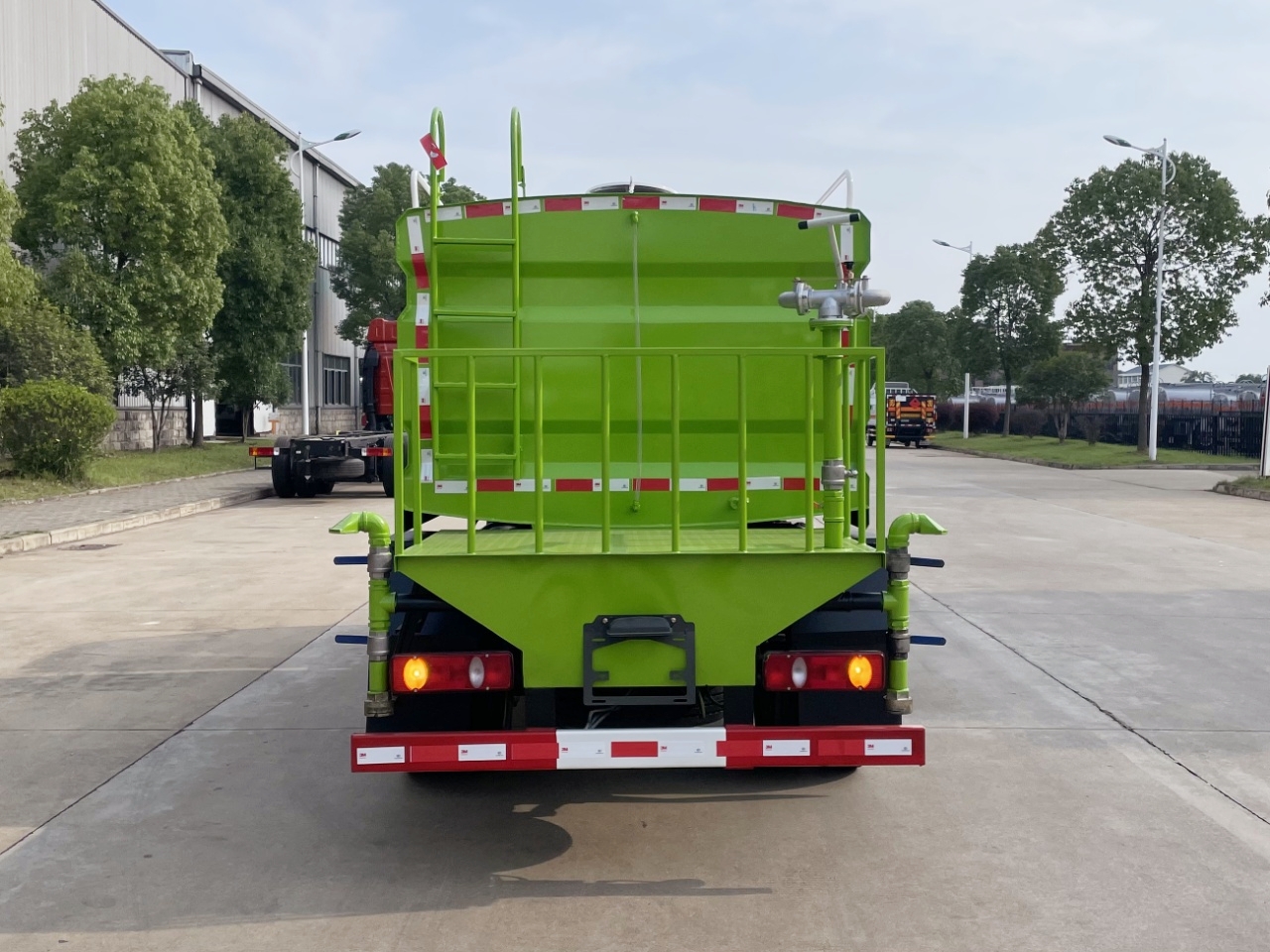

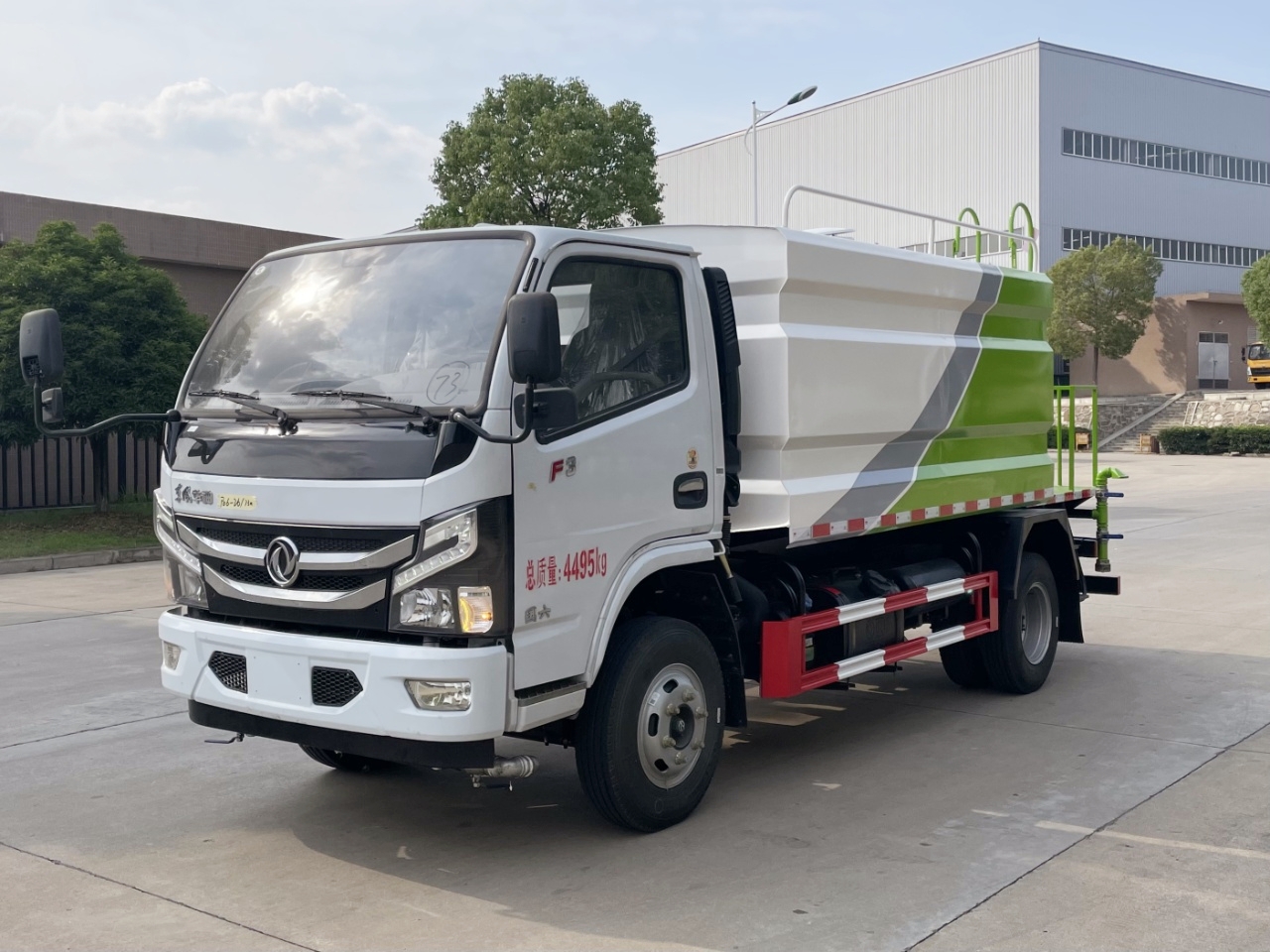

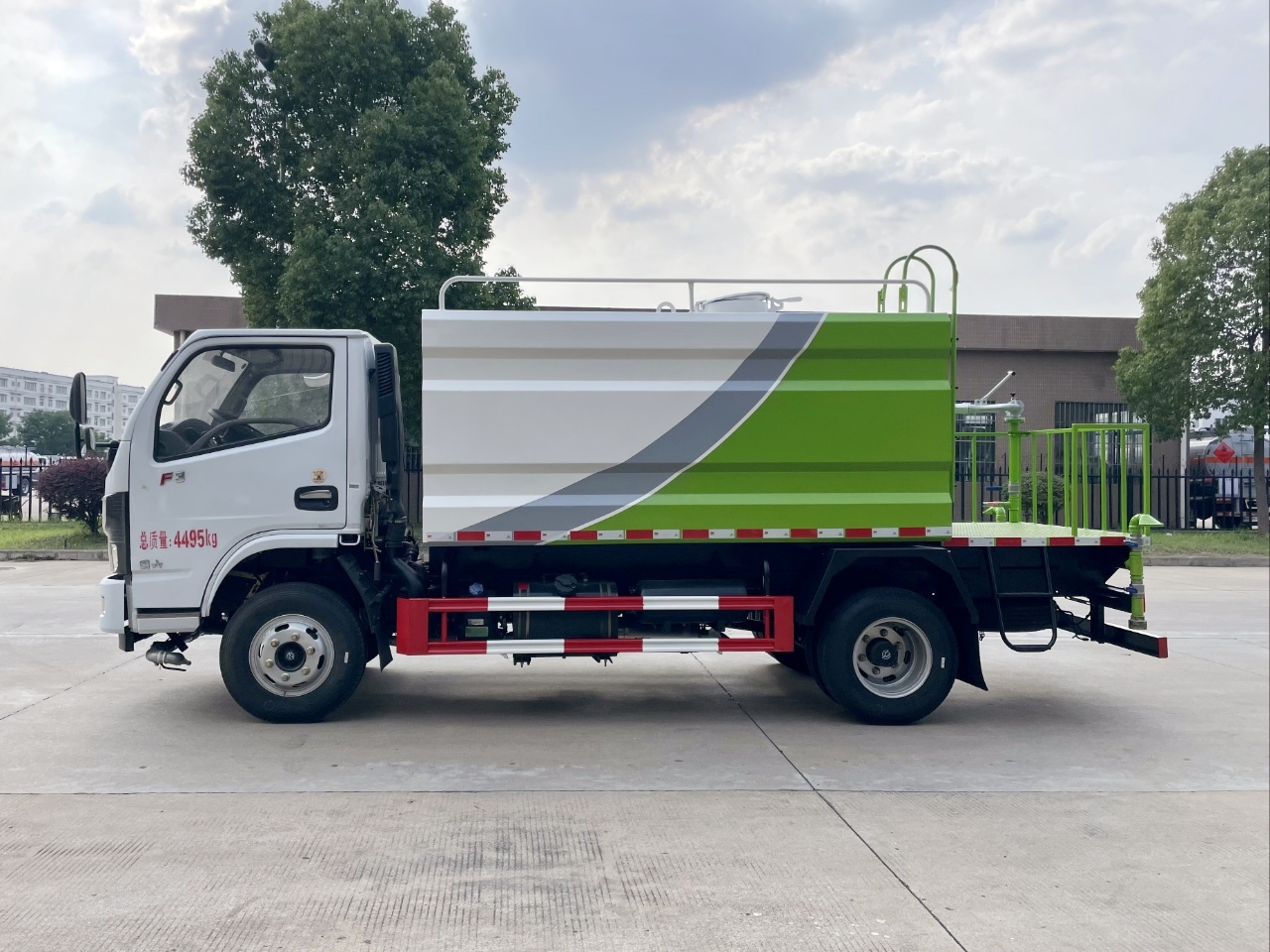

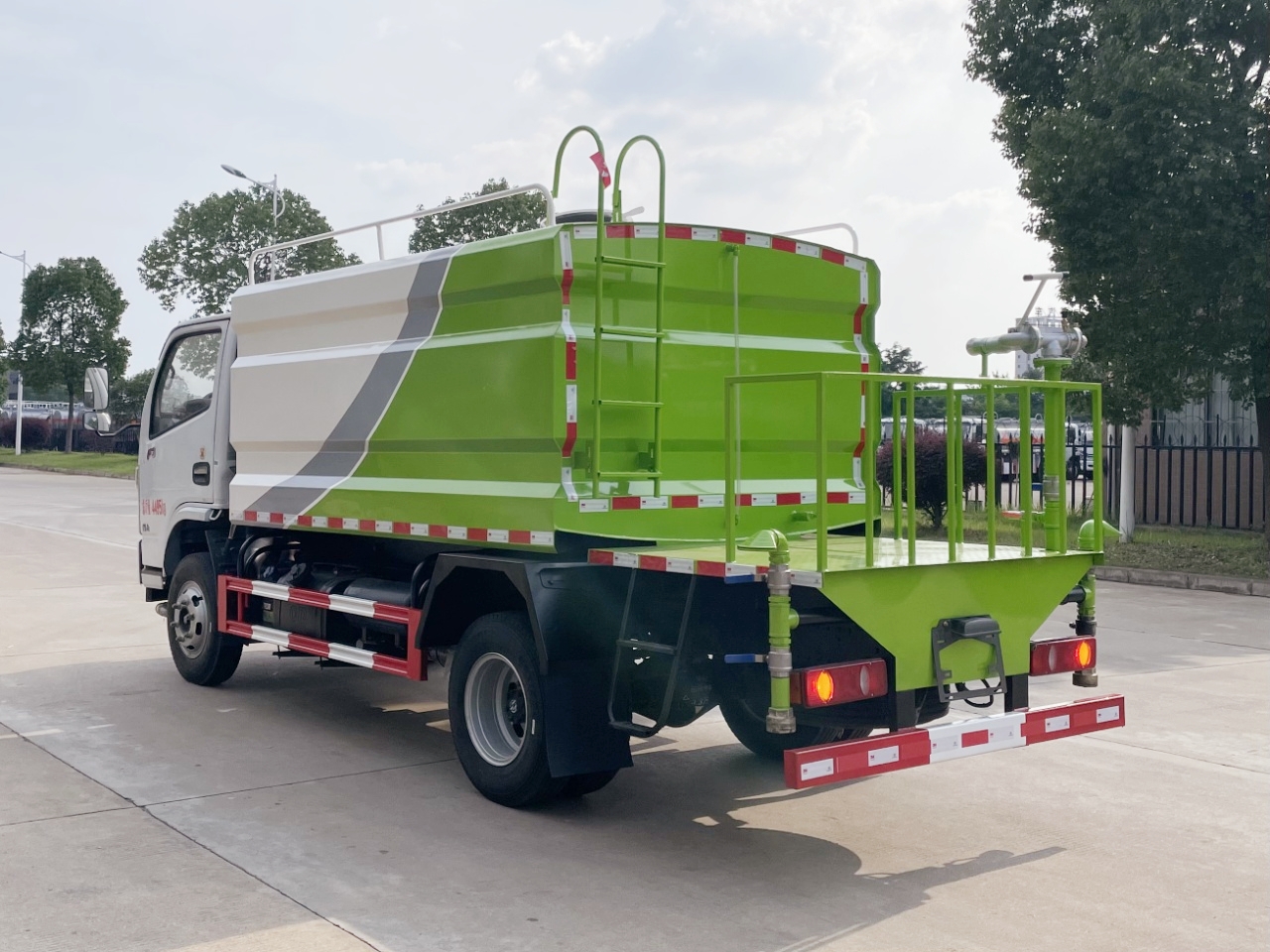

Dongfeng Huashen F3 7m³ Road Maintenance Vehicle

Chassis configuration:

Dongfeng Huashen F3 cab, 3300mm wheelbase, Yunnei 126 horsepower engine, Wanliyang 5-speed gearbox, 7.00R16 tires, 1.8T front axle, 3.5T rear axle, central locking system.

Main configuration of the upper part:The tank body is made of high-strength and high-quality carbon steel plate, with a capacity of about 7 square meters. It uses a high flow water pump of 50-50, with basic water spraying functions of front flushing, rear spraying, and side spraying. The work platform is equipped with a high-altitude gun (adjustable to mist and straight column shape), which can pump in and out. The tank body has gun barrels on both sides and is equipped with two water extraction hoses.

Product Name： Dongfeng Huashen F3 7m³ Road Maintenance Vehicle
Drive type： 4X2
Engine： D20TCIF11, Yunei 126HP
Gearbox： Wanliyang 5-speed gearbox

Product Features

Dongfeng Huashen F3 7m³ Road Maintenance Vehicle

A road maintenance truck is a specialized vehicle designed to support the upkeep and repair of roadways, ensuring they remain safe and functional for public use. These trucks are equipped with a variety of tools and features tailored to address the specific needs of road maintenance tasks. They play a crucial role in municipal and state infrastructure management, handling everything from minor repairs to significant construction efforts.

Main Parameter

Product Name	Dongfeng Huashen F3 7m³ Road Maintenance Vehicle
Drive type	4X2
Engine	D20TCIF11, Yunei 126HP
Gearbox	Wanliyang 5-speed gearbox
Wheel base (mm)	3300(mm)
Vehicle dimensions (mm)	5995×2030,2080×2600,2750,2850(mm)
Tire specification	7.00R16, 6+1 spare
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3800(Kg)
Rated weight(Kg)	500,565(Kg)
Tank volume(m³)	7m³
Fuel type	diesel
Emission standard	Euro 6 (option:Euro3/4/5)
Water pump model	50/50
Tank material	Q235 carbon steel
Additional configuration	Electric cannon, reversing camera, cylinder, pneumatic valve, toolbox, arrow warning light
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
